VOLVO EC200 Classic inheritance, brand new upgrade

VOLVO EC200 Classic inheritance, brand new upgrade

Medium-sized excavator

EC200 CN4

Summary

Yield twice the result with half the effort

The EC200 crawler excavator is designed for productivity. Building on the successful experience of the previous generation, this new XC4-compliant tracked excavator combines power and performance perfectly, increasing fuel efficiency by about 10%. Operators benefit from higher comfort and safety, and can maximize uptime thanks to a robust and durable design, easy maintenance, and long maintenance cycles.



Main technical specifications:

Power: 115 kW

Machine weight: 20500 kg

Bucket capacity: 0.28 ~ 1.1 m3





Configuration parameters

Standard: ● Option: ○ Reference value: * To be refined: /







1. Performance parameters:



force	Traction force	172	kN·m
	Bucket Digging Force - ISO	136	kN
	Bucket Rod Digging Force - ISO	92	kN
	Rotation torque	69	kN·m
speed	Reverse speed	13	r/min
	行走高速/低速	5.6/3.5	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	°
	Ground is higher than pressure	/	kPa





2. Powertrain:



Engine Model	Volvo D4J
rated power	115/2000	kW/rpm
Maximum torque	618/1700	Nm/rpm
discharge volume	/	L
Emissions Level	Country 4
Emissions technology routes	DOC+DPF+SCR





3. Hydraulic system:



The technical route	All-electric control
Main Pump Brand / Model	/
Main pump discharge	/	cc
Main valve brand / model	/
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*200	L
The overflow valve settings:
Execute a hydraulic circuit	32.4	MPa
Turning the oil road	27.9	MPa
Walking the oil road	32.4	MPa
Leading oil road	/	MPa
Tank specifications:
Armed cylinder	/	mm
Bulk fuel tank	/	mm
The shovel oil tank	/	mm





4. Working appliance:



Move your arms	5700	mm
Fighting clubs	2900	mm
The shovel fighter looks	1.0	m³





5. The chassis system:



Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	2	individual
Number of support wheels - one side	7	individual
Running board width	600	mm
Chainrail steering agency - single side	2	individual



6. Amount of oil and water added:



Fuel tank	360	L
Urin boxes	30	L
Hydraulic system	240	L
Hydraulic fuel tank	140	L
Engine oil	19.5	L
Antifreeze Solution	14	L
Walking brake gear oil	2X3.5	L
Reverse gear oil	5	L

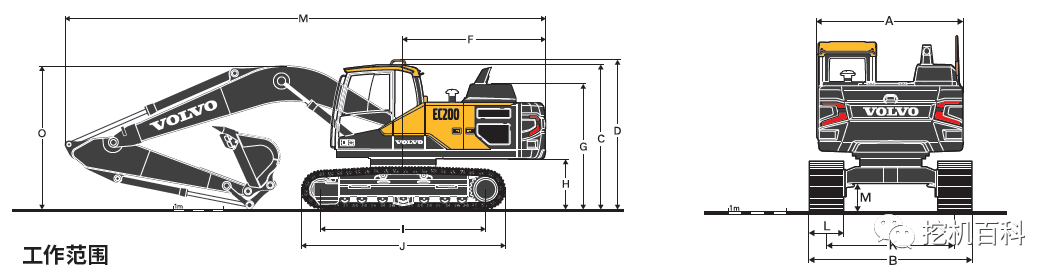

7. Form factor:





A	Total upper structure width	2500	mm
B	Total width	2800	mm
C	Total height of the driver's room	2915	mm
D	Total armrest height	3032	mm
F	Tail pivot radius	2850	mm
G	Total height of engine cover	2586	mm
H	Weight-to-earth gap *	1011	mm
I	Wheel spacing (drive and guide wheels)	3370	mm
J	Track length	4163	mm
K	Track length	2200	mm
L	Trackboard width	600	mm
M	Minimum distance from the ground *	460	mm
N	Total length	9690	mm
O	Total arm height	2926	mm
*: No track plate teeth

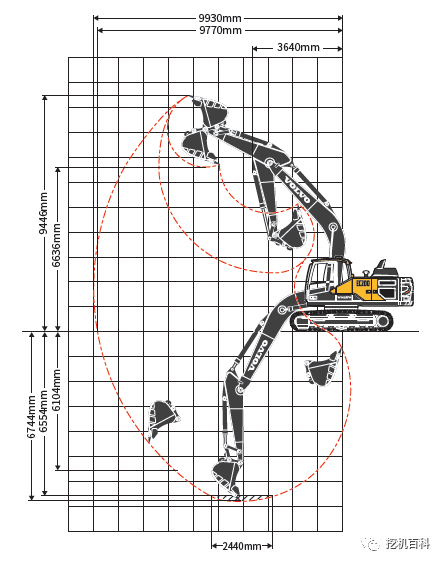

8. Operational scope:

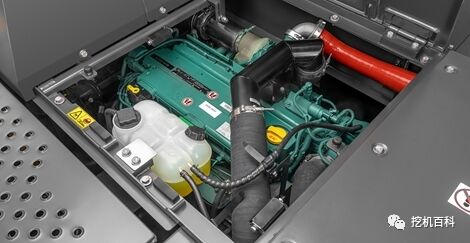

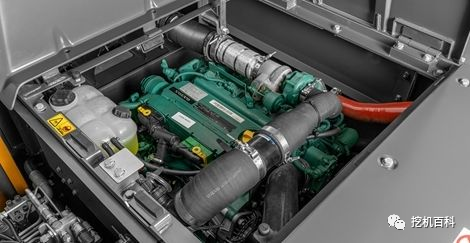

Experienced engine technology



Since 2014, the Volvo D6 engine compliant with the National Four standards has been widely tried and tested around the world. After nearly 10 years of technical testing, verification and improvement, this engine can be trusted for delivering exceptional levels of quality, reliability and efficiency.







1. Fuel efficient mode.





• The machine uses technology unique to Volvo that combines the operation mode with the throttle control device for higher performance.

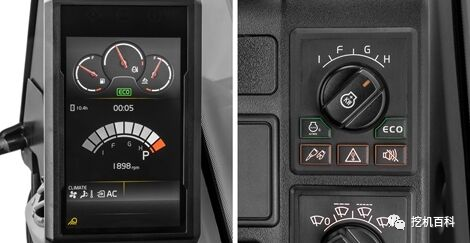

• When the driver selects a certain operating mode: I (idle), F (fine), G (normal), H (heavy) and P (power), the system has set the corresponding speed to achieve greater efficiency. The ECO mode further improves fuel efficiency by about 5% and does not lose any performance in most operating conditions.



2. Stronger control, lower fuel consumption







• Optimized hydraulic systems work in concert with fully electronic control systems and advanced ECO mode to match engine power, reduce power loss and improve operation and response speed.

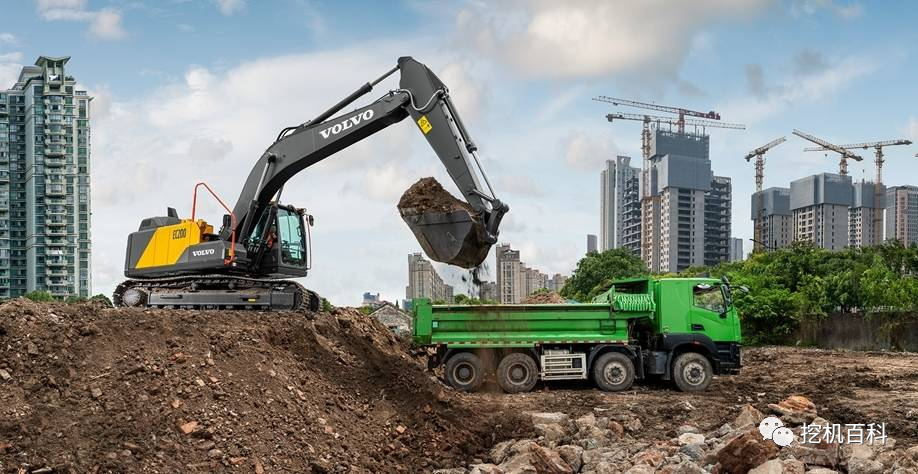

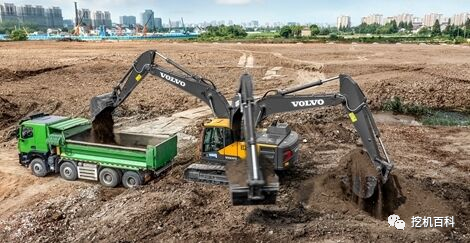

• The EC200 track excavator's boom rotary priority valve further improves operability and is ideal for truck loading.



3 Playing its full part





• With smart engine capabilities, unnecessary fuel consumption can be reduced, operating costs reduced and the environmental impact reduced, so that every drop of fuel makes a difference.

• If the controller is not activated for a preset period of time, the engine automatic idling function reduces the engine speed to idling.

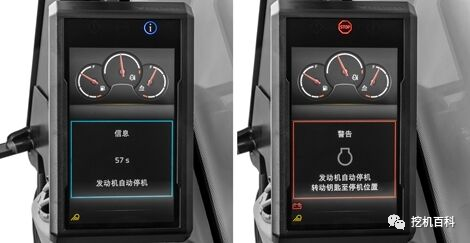

• If the machine is inactive for a preset period of time, the engine automatic shutdown function automatically shuts down the engine.



4. Stay up to date on what's happening





• The combination of machine capabilities with Volvo services helps drivers and owners monitor fuel usage, maximize efficiency and further reduce operating costs.

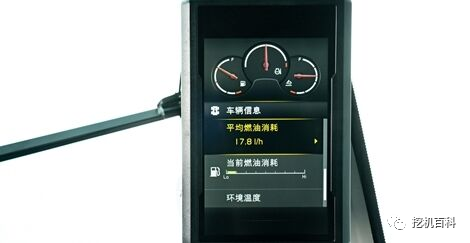

• The fuel meter displays real-time fuel consumption and average fuel usage information to keep you up to date.

• A fuel efficiency report provides a clear picture of fuel consumption in a fleet, on site or on a single machine and helps identify areas where fuel efficiencies can be improved.

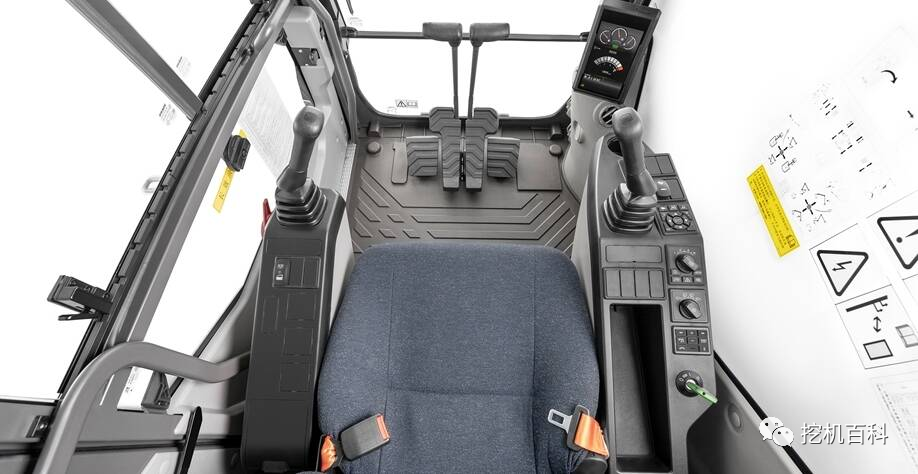

Advanced Driver's Lounge



Step into the industry's popular driver's room and experience a comfortable driving environment. Operators can enjoy a low-noise, low-vibration driving interior with ergonomic controllers, suspended seats, advanced air conditioning systems and Bluetooth. Operators will be more enjoyable, more alert and more efficient at work.





1. Excellent view.





• The operator is relieved of worries thanks to the slim cab column, optimized LED work lights, large glass area and rear-view camera.

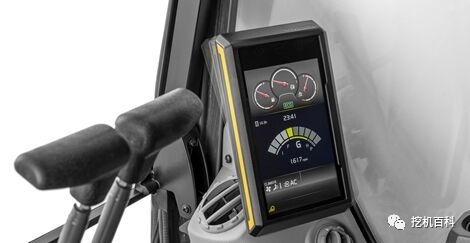

2. A new monitor





• Color LCD monitors have a larger screen, a more intuitive layout, and can display more information. The screen is anti-glare and can be tilted to make it more convenient to use.

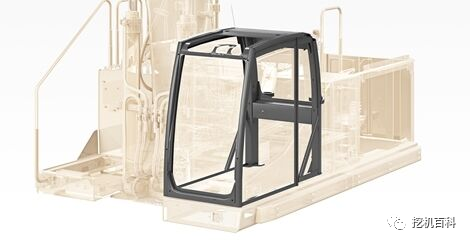

3. Safety First





• Every Volvo machine has been designed with safety in mind, and the EC220 has a ROPS driving room, emergency engine shutdown and laminated front glass to provide better operator protection.





Manufacturing for efficient production



The moving distance is longer, the excavation capacity is greater, and the loading capacity is larger. High turn-around speeds and a powerful Volvo engine that meets State IV standards mean you can count on the EC200 to achieve high productivity and reduce cycle times. The shovel size was increased by 5 per cent, further increasing productivity.







1. Experienced engine technology





• Since 2014, the Volvo D4 engine, which complies with the National IV standard, has gone through the global market.

• With a decade of carefully honed technological advantages, its overall strength continues to strengthen, providing solid and reliable product quality and satisfactory operational efficiency to users around the world.



2. Long-lasting performance.





• A range of standard protection features such as filters, electronic warning sensors and automatic protection systems help keep the machine in optimal working condition.

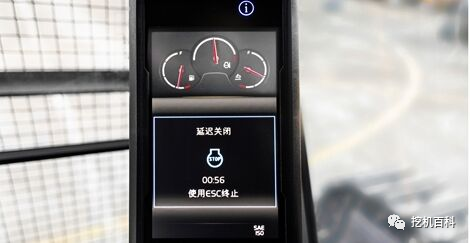

• When the turbocharger cools to the right temperature, the smart engine delayed downtime function turns the machine off, further enhancing the engine's durability and reliability.



3. Long lasting.





• With a robust and durable design, the EC200 tracked excavator's optimized arms and arms use internal panels to disperse stress from high-pressure areas, allowing the machine to withstand greater operational strength and a longer service life.

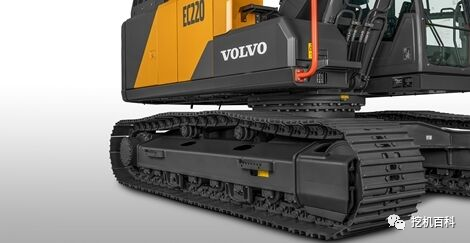

• The optimized X-shaped lower frame provides even weight distribution, while the optimized chassis provides excellent traction.



4. Strong operational capability

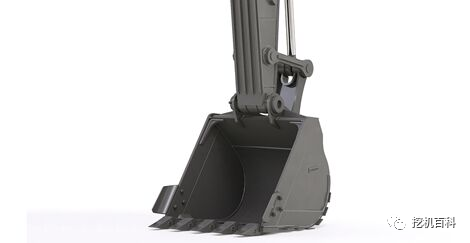

• Equipped with a range of factory-supplied shovels, the EC200 track excavator maximizes productivity and profitability and is ideal for digging and reprocessing operations in a variety of situations.

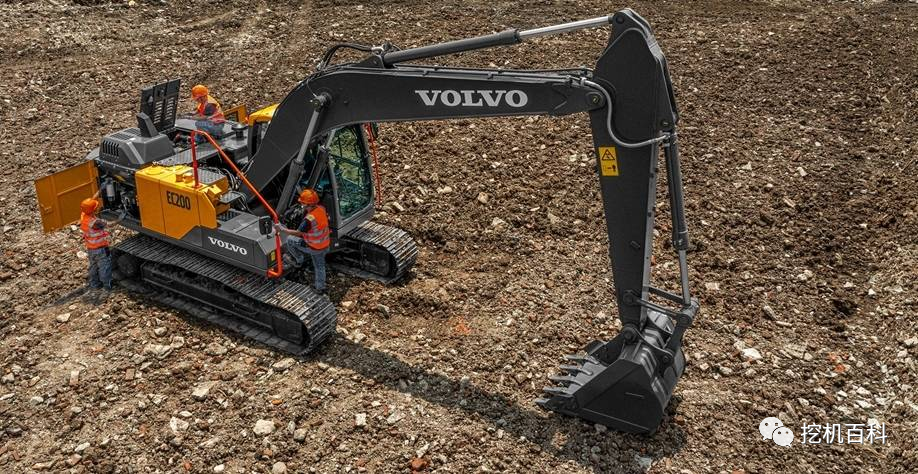

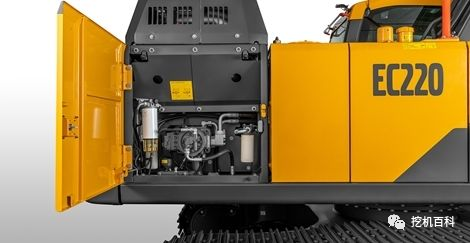

Easy to repair

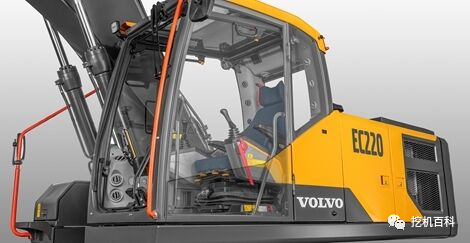

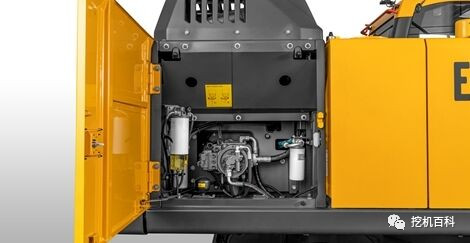

Thanks to a series of features such as the grouping of lubrication points and filter access from the ground, the entire routine of maintenance can be easily and quickly completed. Anti-skateboarding and prominent railings make it safe and easy for drivers and technicians to operate outside the machine. In addition, the increased toolbox capacity allows for faster and more convenient maintenance operations.





1. Production is uninterrupted





• Longer maintenance cycles reduce operating costs and increase uptime.

• The 5,000-hour hydraulic fluid replacement interval and the 2,500-hour lubrication filter replacement interval minimize operational disruptions, and the increased fuel tank capacity helps to achieve longer periods of uninterrupted production.

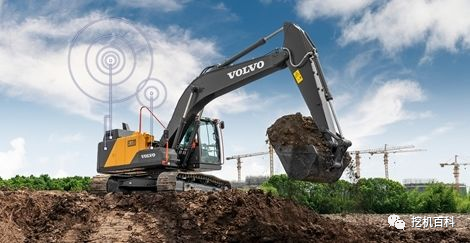

2. Machine monitoring is more convenient

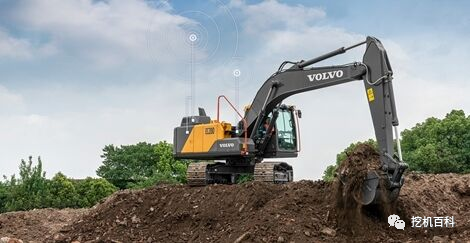

• Pulse, a new in-vehicle communication system, can maximize machine uptime and reduce maintenance costs.

• Check your machine's health with Volvo ActiveCare. The Volvo Maintenance Hours Centre will provide 24 / 7 machine monitoring and notify you when preventive maintenance measures are required.



3. We are fully committed to your service.





• Volvo's range of services meets your needs, keeping your machines running efficiently through forward-looking solutions and a network of technical experts.

• Provide services such as deferred insurance and customer care maintenance checks to ensure the efficient operation and excellent performance of the machines.
