VOLVO EC130 Classic inheritance, brand new upgrade

VOLVO EC130 Classic inheritance, brand new upgrade

Small excavator



EC130 CN4

Summary

Higher profitability

EC130 can help you make more profit. The reliability and durability of the machine can increase your uptime, guarantee your normal operation and maintain profitability. Thanks to excellent fuel efficiency and powerful power, the machine can increase the speed of your operations and help you accomplish more tasks. EC130 is equipped with Volvo engine in line with the national four standards, powerful, operable, with star performance. Excellent excavatoring power and machine stability speed up the operation cycle time and increase productivity.



Main technical specifications:

Power: 78.6kW

Machine weight: 12300 kg

Bucket capacity: 0.2 ~ 0.52 m3





Configuration parameters

Standard: ● Option: ○ Reference value: * To be refined: /







1. Performance parameters:



force	Traction force	107	kN·m
	Bucket Digging Force - ISO	88.7	kN
	Bucket Rod Digging Force - ISO	62.6	kN
	Rotation torque	30.6	kN·m
speed	Reverse speed	11.6	r/min
	行走高速/低速	5.2/3	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	°
	Ground is higher than pressure	/	kPa





2. Powertrain:



Engine Model	Volvo D3.8H
rated power	78.6/2200	kW/rpm
Maximum torque	375/1500	Nm/rpm
discharge volume	/	L
Emissions Level	Country 4
Emissions technology routes	/





3. Hydraulic system:



The technical route	All-electric control
Main Pump Brand / Model	/
Main pump discharge	/	cc
Main valve brand / model	/
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*106	L
The overflow valve settings:
Execute a hydraulic circuit	34.3	MPa
Turning the oil road	24.5	MPa
Walking the oil road	34.3	MPa
Leading oil road	/	MPa
Tank specifications:
Armed cylinder	/	mm
Bulk fuel tank	/	mm
The shovel oil tank	/	mm





4. Working appliance:



Move your arms	4600	mm
Fighting clubs	2500	mm
The shovel fighter looks	0.52	m³







5. The chassis system:



Weight of weight	2000	kg
Number of trackpads - one side	/	section
Number of cogs - one side	1	individual
Number of support wheels - one side	6	individual
Running board width	500	mm
Chainrail steering agency - single side	0	individual



6. Amount of oil and water added:



Fuel tank	250	L
Hydraulic system	167	L
Hydraulic fuel tank	85	L
Engine oil	13.2	L
Antifreeze Solution	16.05	L
Walking brake gear oil	2x2.4	L
Reverse gear oil	1.6	L

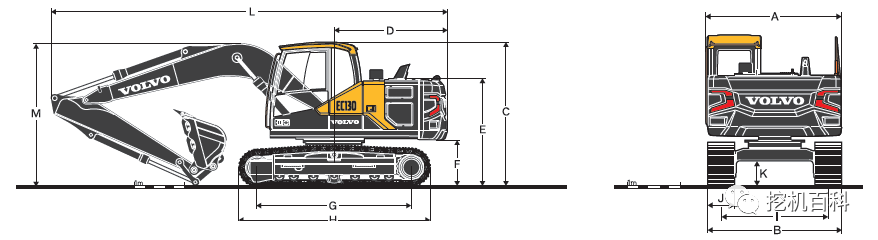

7. Form factor:





A	Total upper structure width	2500	mm
B	Total width	2500	mm
C	Total height of the driver's room	2800	mm
D	Tail pivot radius	2200	mm
E	Total height of engine cover	2080	mm
F	Weight-to-earth gap *	920	mm
G	Wheel spacing (drive and guide wheels)	2870	mm
H	Track length	3550	mm
I	Track length	1990	mm
J	Trackboard width	500	mm
K	Minimum distance from the ground *	436	mm
L	Total length	7720	mm
M	Total arm height	2830	mm
*: No track plate teeth

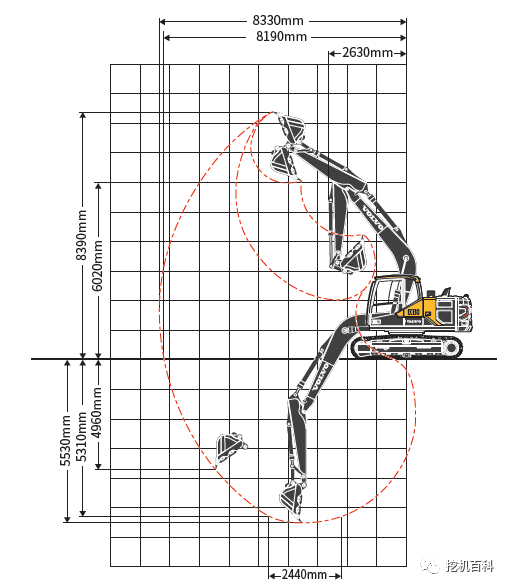

8. Operational scope:







Long-term Eco mode



Volvo's smart ECO model can help you operate efficiently and profitably. The ECO mode helps increase the overall fuel efficiency of the machine without compromising performance at all. The design optimizes flow and pressure while maintaining a high excavatoring power and turning torque. Please select the appropriate settings according to the operating conditions.







1. The durability is good.





• Despite the long day-to-day work, the machine is able to maintain robust performance. With durable components, a strong upper structure, chassis, arms and arms, the machine helps you achieve better results in all situations.



2. Excellent performance







• The EC130 can help you increase your productivity. This excavator has strong performance, diverse functions and a wide range of applications.

• The combination of a robust scaffold with outstanding engine power and hydraulic systems allows for superior excavator power and fast operational cycle times for higher productivity in a variety of construction operations.



3. reliability





• Long-lasting high quality components and outstanding design improve the machine's uptime and profitability.

• The EC130's robust construction and accessories ensure robustness and robust performance at the job site.



4. Excellent fuel efficiency





• The EC130 helps you reduce fuel consumption, increase productivity and profitability, and increases fuel efficiency by about 4%.

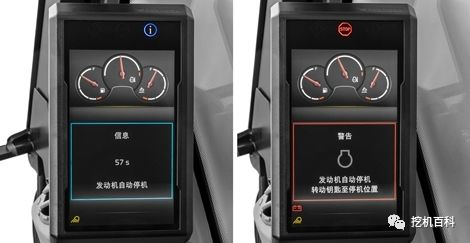

• The powerful engine works in harmony with the optimized hydraulic system and the machine's automatic idling function, which further reduces fuel consumption.





Time-tested engine technology



Since 2014, Volvo engines that meet the Tier 4 standards have been tested worldwide. After nearly 10 years of technical testing, verification and improvement, this engine can be trusted for delivering exceptional levels of quality, reliability and efficiency.







1. A new and efficient operating model





• For fast cycle times and lower fuel consumption, the EC130 is equipped with intelligent operating modes, including the new G4 operating mode.

• The operator can choose modes that are more suitable for the current job: I (idle), F (fine), G (normal), H (heavy) and P (maximum power) modes. By choosing the right mode based on the operational conditions, you can achieve more functionality and improve machine performance.



2. Operators performed better





• Operating in a comfortable cab increases productivity every day.

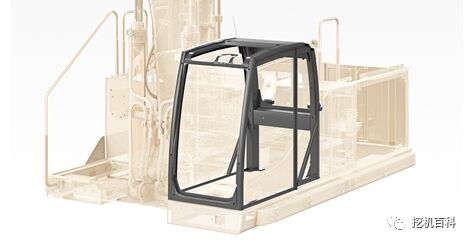

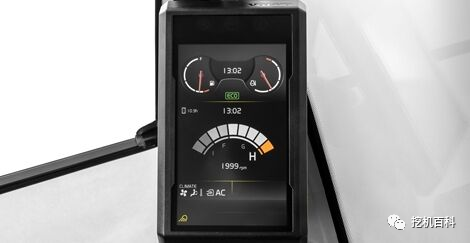

• The EC130 features an advanced ROHS cockpit, which is equipped with an easy-to-see monitor, rear-view camera, a spacious and safe driving environment that provides an enhanced full range of view, and adjustable seats and ergonomic controllers.



3. Machine stability





• Thanks to the machine's long and wide chassis and heavier weighting (which ensures that the machine is well balanced and stable when operating in all terrain conditions), stability is improved and more challenging environments can be operated.

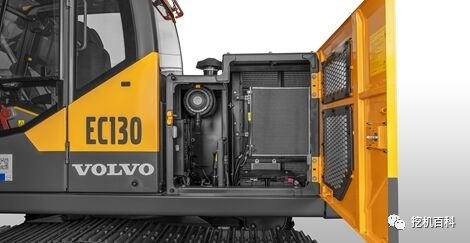

Easy to repair

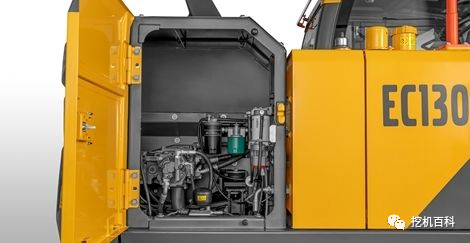

Thanks to the grouping of lubrication points and filter access from the ground, the entire routine of maintenance can be easily and quickly completed. Anti-skateboarding and prominent railings make it safe and easy for drivers and technicians to operate outside the machine. In addition, the increased toolbox capacity allows for faster and more convenient maintenance operations.







1. Production is uninterrupted





• Longer maintenance cycles reduce operating costs and increase uptime.

• The 5,000-hour hydraulic fluid replacement interval and the 2,500-hour lubrication filter replacement interval minimize operational disruptions, and the increased fuel tank capacity helps to achieve longer periods of uninterrupted production.



2. Machine monitoring is more convenient





• Pulse, a new in-vehicle communication system, can maximize machine uptime and reduce maintenance costs.

• Check your machine's health with Volvo ActiveCare.
