SHANTUI SE680LC-10W Classic inheritance, brand new upgrade
SHANTUI SE680LC-10W Classic inheritance, brand new upgrade
The Very Large Excavator
SE680LC-10W
Configuration parameters
Standard: ● Option: x To be perfected: / Reference value: *
1. Performance parameters:
|
force |
Traction force |
475 |
kN·m |
|
Bucket Digging Force - ISO |
420 |
kN |
|
|
Bucket Rod Digging Force - ISO |
350 |
kN |
|
|
Rotation torque |
/ |
kN·m |
|
|
speed |
Reverse speed |
7 |
r/min |
|
行走高速/低速 |
4.7/3.2 |
km/h |
|
|
noise |
Operator voice pressure （ISO 6396:2008） |
/ |
dB（A） |
|
Average external sound pressure （ISO 6395:2008） |
/ |
dB（A） |
|
|
Other |
Ability to climb slopes |
70% |
|
|
Ground ratio |
102 |
kPa |
2. Powertrain:
|
Engine Model |
潍柴 WP15H |
|
|
form |
Direct spray, water cool, four strokes, increased pressure, medium cool |
|
|
rated power |
566/1900 |
kW/rpm |
|
Maximum torque |
/ |
Nm/rpm |
|
discharge volume |
15.33 |
L |
3. Hydraulic system:
|
The technical route |
Electrically controlled positive flow system |
|
|
Main Pump Brand / Model |
Lindh |
|
|
Main pump discharge |
300 |
cc |
|
Fixed work flow |
2x510 |
L/min |
|
Main valve brand / model |
/ |
|
|
Reverse motors and gearing brands / models |
/ |
|
|
Walking motors and gears brands / models |
/ |
|
4. Working appliance:
|
Move your arms |
6600 /7000/7300 |
mm |
|
Fighting clubs |
2900 /2600-2900/2900 |
mm |
|
The shovel fighter looks |
3.6-4-4.5 |
m³ |
|
A smashing hammer |
210~220 |
mm |
5. The chassis system:
|
Weight of weight |
/ |
kg |
|
Number of trackpads - one side |
/ |
section |
|
Number of cogs - one side |
3 |
individual |
|
Number of support wheels - one side |
9 |
individual |
6. Amount of oil and water added:
|
Fuel tank capacity |
900 |
L |
|
Cooling system |
76 |
L |
|
Engine oil quantity |
58 |
L |
|
Hydraulic fuel tank |
360 |
L |
|
Hydraulic system |
600 |
L |
|
Reverse motor decelerator gear oil |
/ |
L |
|
Walking motor decelerator gear oil |
/ |
L |

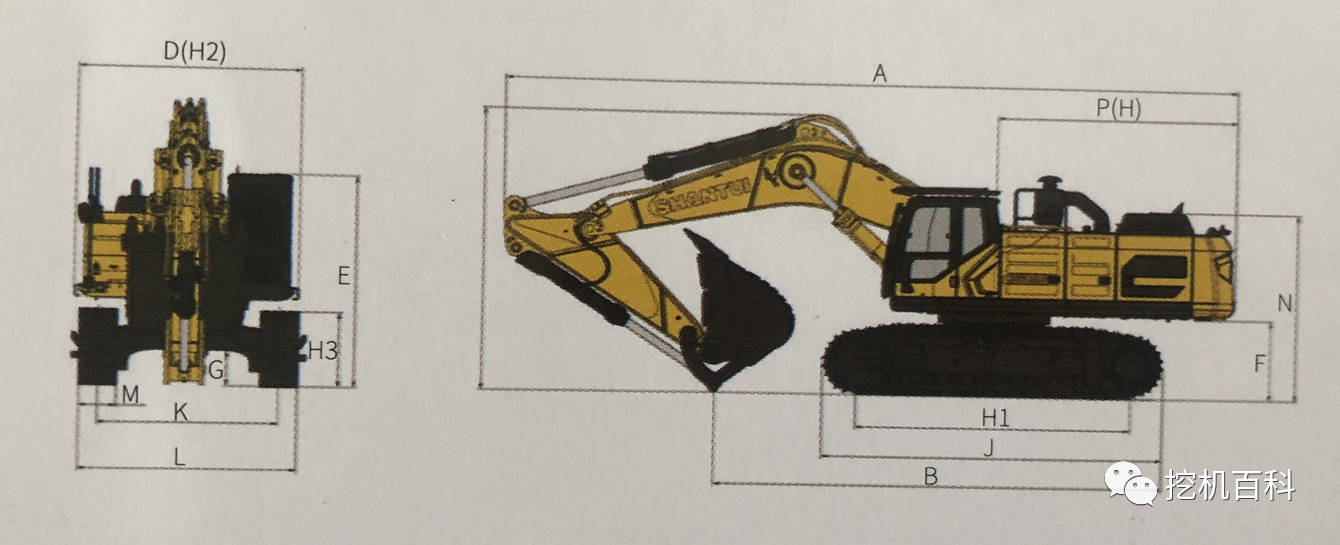

7. Form factor:
|
A |
total length |
12245 |
mm |
|
B |
Landing length (when transported) |
7510 |
mm |
|
C |
Total height (to the top of the moving arm) |
4750 |
mm |
|
D |
Total width |
3735 |
mm |
|
E |
Total height (to the top of the cab) |
3530 |
mm |
|
F |
Gap between weight and ground |
1370 |
mm |
|
G |
Minimum distance from the ground |
587 |
mm |
|
H |
Tail pivot radius |
4145 |
mm |
|
J |
Track length |
3710 |
mm |
|
K |
gauge |
2900 |
mm |
|
L |
Running bandwidth |
3500 |
mm |
|
M |
Standard track plate width |
600 |
mm |
|
H2 |
The width of the pivot platform |
3580 |
mm |
|
P |
Distance from center of turning circle to rear end |
4066 |
mm |

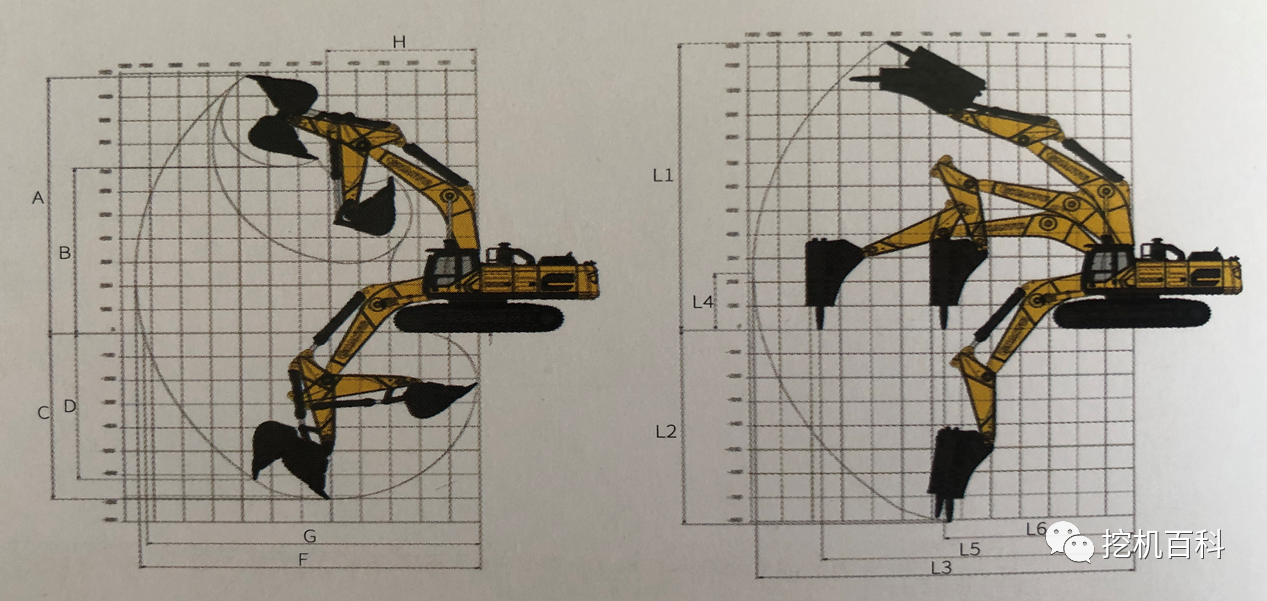

8. Operational scope:
|
Area of excavation work: |
|||
|
A |
Maximum excavation height |
10855 |
mm |
|
B |
Maximum removal height |
7015 |
mm |
|
C |
Maximum excavation depth |
7040 |
mm |
|
D |
Maximum vertical excavation depth |
6195 |
mm |
|
F |
Maximum excavation distance |
11520 |
mm |
|
G |
Maximum ground excavation distance |
11270 |
mm |
|
H |
Minimum rotation radius of working device |
5000* |
mm |
|
Scope of Broken Operations: |
|||
|
L1 |
Maximum breaking height |
12000 |
mm |
|
L2 |
Maximum breaking depth |
8110 |
mm |
|
L3 |
Maximum rupture distance |
12850 |
mm |
|
L4 |
Maximum fracture distance at ground level |
2390 |
mm |
|
L5 |
Maximum ground excavation distance |
10680 |
mm |
|
L6 |
Minimal excavation distance on the ground |
6590 |
mm |
Details need to be completed
