The Very Large Excavator

FR700F

Summary

Mine operations could do a lot.

FR700F is Weichai + Linde gold hydraulic powertrain products. It is mainly used for the crushing and loading of vehicles in large and medium-sized mines, and is focused on high reliability, strong power, efficiency, low consumption, and comfort.



Main technical specifications:

Power: 566 / 1900 kW / rpm

Machine weight: 69000 kg

Bucket capacity: 4.0 ~ 5.0 m3



Configuration parameters



Standard: ● Option: ○ Reference value: * To be refined: /



1. Performance parameters:



force	Traction force	430	kN·m
	Bucket Digging Force - ISO	374	kN
	Bucket Rod Digging Force - ISO	320	kN
	Rotation torque	250	kN·m
speed	Reverse speed	6.8	r/min
	行走高速/低速	4.5/	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	degree
	Ground is higher than pressure	/	kPa





2. Powertrain:

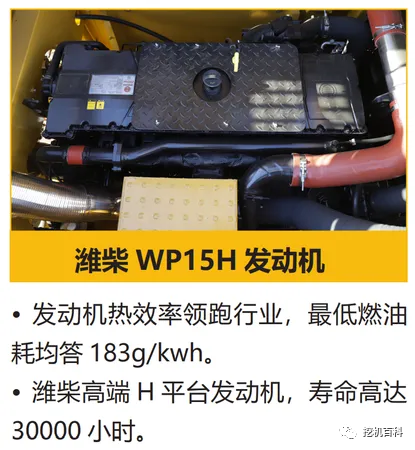

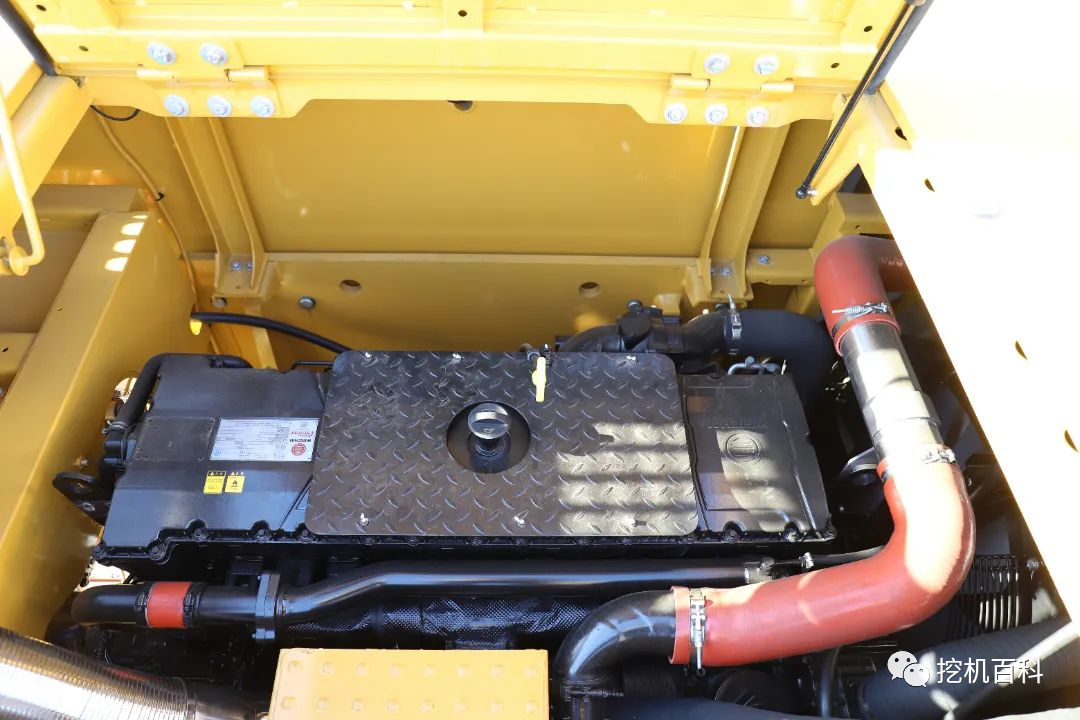

Engine Model	潍柴 WP15H
rated power	566/1900	kW/rpm
Maximum torque	2890/1200~1600	Nm/rpm
discharge volume	/	L
Emissions Level	The Third Country





3. Hydraulic system:



The technical route	All-electric control

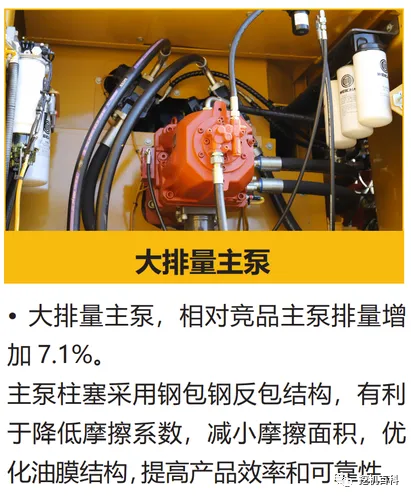

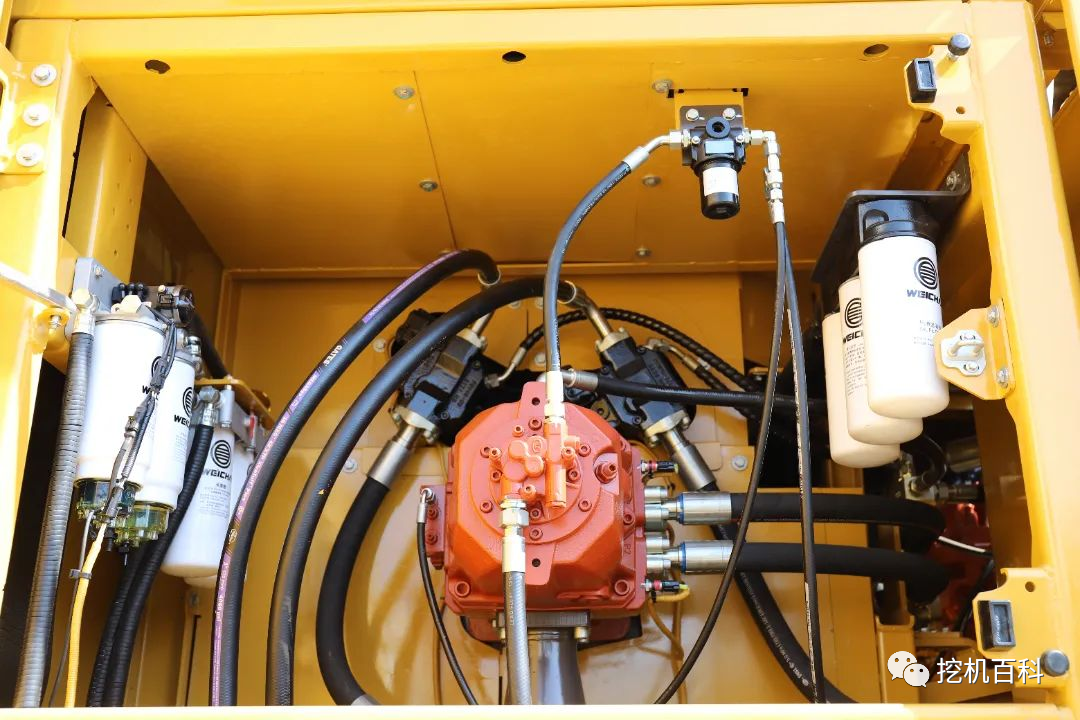

Main Pump Brand / Model	Lindh /
Main pump discharge	300	cc
Main valve brand / model	Lindh /
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*480	L
Maximum working oil pressure	37.3	MPa
Maximum pressure of the leading system	3.9	MPa





4. Working appliance:



Move your arms	6800	mm
Fighting clubs	2800	mm
The shovel fighter looks	4.0~5.0	m³
A smashing hammer	210~230	mm





5. The chassis system:



Weight of weight	/	kg
Number of trackpads - one side	52	section
Number of cogs - one side	3	individual
Number of support wheels - one side	9	individual
Running board width	600	mm



6. Amount of oil and water added:



Fuel tank	800	L
Hydraulic system	700	L
Hydraulic fuel tank	600	L
Engine oil	52	L
Antifreeze Solution	60	L
Walking brake gear oil	2*15	L
Reverse gear oil	2*10.5	L



7. Shipping dimensions:

A	Total length	12550	mm
B	Landing length (transportation)	7900	mm
C	Total height (to the top of the arm)	4750	mm
D	Total width	4250	mm
E	Total height (to the top of the cab)	3600	mm
F	Gap between weight and ground	1580	mm
G	Minimum distance from the ground	880	mm
H	Tail pivot radius	4180	mm
I	Track grounding length	4570	mm
J	Track length	5710	mm
K	gauge	2810/3350	mm
L	The chassis width	3440/3980	mm
M	Trackboard width	600	mm
P	On-platform width	3350	mm

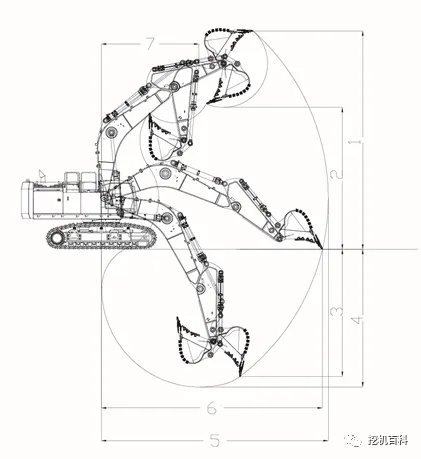

8. Operational scope:

1	Maximum excavation height	11260	mm
2	Maximum removal height	7320	mm
3	Maximum vertical excavation depth	4250	mm
4	Maximum excavation depth	7100	mm
5	Maximum excavation radius	11680	mm
6	Maximum excavation radius of the operating surface	11380	mm
7	Minimum rotation radius	5100	mm





The diggers are very efficient.













Airframe reinforced, highly efficient and reliable

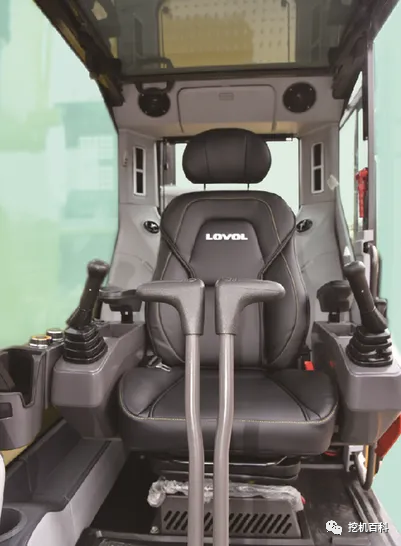

Smart interactions, safe and comfortable





• The new development of the F generation driving room, the appearance of novel, the overall layout in line with the computer engineering, enhance the visual experience, more storage space, more comfortable man-machine;

• New interiors, wind tunnel and vent design, and increased storage space;

• Seats have been improved and upgraded for greater comfort.

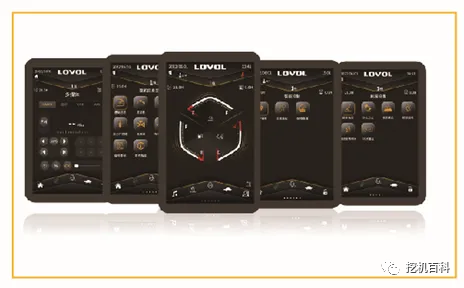

• The newly developed Levero intelligent operating system enables power system management, intelligent interaction, automated identification of work conditions, auxiliary operations, and customization.

• Smart components such as a 10.1-inch touch screen display, a one-click starter switch, etc. are introduced.
