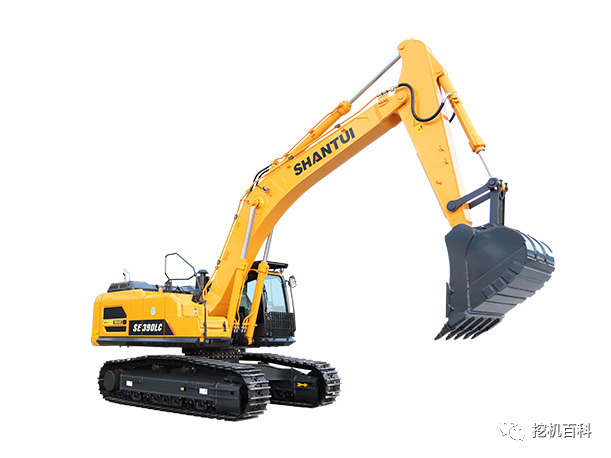

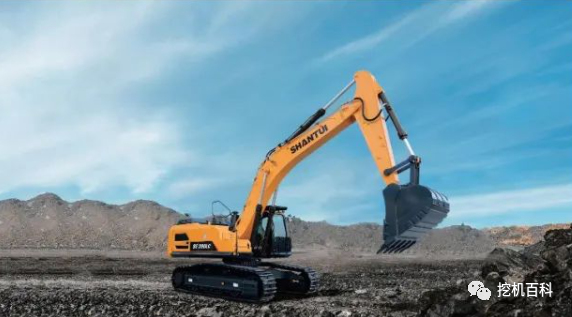

1. Performance parameters:
|
force |
Traction force |
315 |
kN·m |
|
Bucket Digging Force - ISO |
254 |
kN |
|
|
Bucket Rod Digging Force - ISO |
237 |
kN |
|
|
Rotation torque |
/ |
kN·m |
|
|
speed |
Reverse speed |
10.5 |
r/min |
|
行走高速/低速 |
5.3/3.2 |
km/h |
|
|
noise |
Operator voice pressure （ISO 6396:2008） |
/ |
dB（A） |
|
Average external sound pressure （ISO 6395:2008） |
/ |
dB（A） |
|
|
Other |
Ability to climb slopes |
70% |
|
|
Landing ratio 92.7 |
70.5 |
kPa |

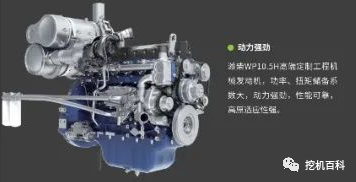

2. Powertrain:
|
Engine Model |
潍柴 WP10.5H |
|
|
form |
High-pressure co-rail, water-cooled, straight line, 6 tanks turbocharged |
|
|
rated power |
280/20900 |
kW/rpm |
|
Maximum torque |
/ |
Nm/rpm |
|
discharge volume |
10.5 |
L |
3. Hydraulic system:
|
The technical route |
Electrically controlled positive flow system |
|
|
Main Pump Brand / Model |
Lindh |
|
|
Main pump discharge |
210 |
cc |
|
Fixed work flow |
2x340+20 |
L/min |
|
Main valve brand / model |
/ |
|
|
Reverse motors and gearing brands / models |
/ |
|
|
Walking motors and gears brands / models |
/ |
|
4. Working appliance:
|
Boom (mm) |
6470 |
8900 |
11000 |
12000 |
铲斗 (m³) |
||
|
Arm (mm) |
2550 |
2800 |
3200 |
7100 |
8200 |
||
|
To configure |
● |
● |
● |
- |
- |
- |
△1.93 |
|
● |
- |
- |
- |
- |
- |
△2.0 |
|
|
◆ |
◆ |
▲ |
- |
- |
- |
□2.0 |
|
|
◆ |
▲ |
- |
- |
- |
- |
□2.2 |
|
|
- |
- |
- |
▲ |
▲ |
▲ |
□0.45 |
|
|
Maximum load material density (kg / m3): ≤ 2000 (wet mud, iron ore);■ ≤ 1800 (Granite, wet sand, good grade crushed stone);◆ ≤ 1500 (wet and clay, limestone, sandstone);≤ 1200 (coal, calcified layer, shale;- No provision |
|||||||
|
Shovels are classified by use: heavy rock shovels;△ The rock chute;Strengthening fights; Tang Fang Duo |
|||||||
5. The chassis system:
|
Weight of weight |
/ |
kg |
|
Number of trackpads - one side |
/ |
section |
|
Number of cogs - one side |
2 |
individual |
|
Number of support wheels - one side |
9 |
individual |
6. Amount of oil and water added:
|
Fuel tank capacity |
630 |
L |
|
Cooling system |
35 |
L |
|
Engine oil quantity |
30 |
L |
|
Hydraulic fuel tank |
300 |
L |
|
Hydraulic system |
420 |
L |
|
Reverse motor decelerator gear oil |
/ |
L |
|
Walking motor decelerator gear oil |
/ |
L |

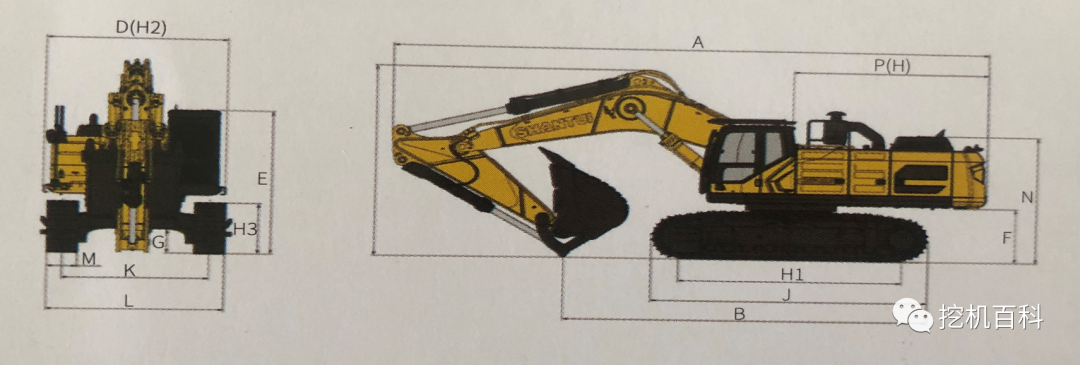

7. Form factor:
|
A |
total length |
11380 |
mm |
|
B |
Landing length (when transported) |
6930 |
mm |
|
C |
Total height (to the top of the moving arm) |
3800 |
mm |
|
D |
Total width |
3260 |
mm |
|
E |
Total height (to the top of the cab) |
3390 |
mm |
|
F |
Gap between weight and ground |
1320 |
mm |
|
G |
Minimum distance from the ground |
580 |
mm |
|
H |
Tail pivot radius |
3650 |
mm |
|
I |
Track length |
5095 |
mm |
|
J |
gauge |
2600 |
mm |
|
K |
Running bandwidth |
3200 |
mm |
|
L |
Standard track plate width |
600 |
mm |
|
M |
The width of the pivot platform |
3200 |
mm |
|
N |
Distance from center of turning circle to rear end |
3580 |
mm |

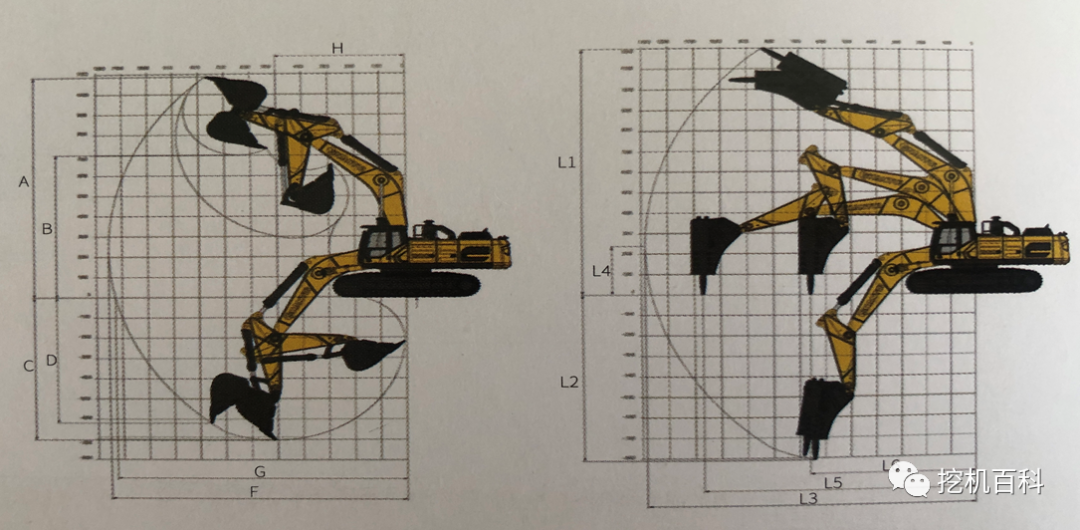

8. Operational scope:
|
Area of excavation work: |
|||
|
A |
Maximum excavation height |
10150 |
mm |
|
B |
Maximum removal height |
6940 |
mm |
|
C |
Maximum excavation depth |
7025 |
mm |
|
D |
Maximum vertical excavation depth |
6145 |
mm |
|
F |
Maximum excavation distance |
10840 |
mm |
|
G |
Maximum ground excavation distance |
10635 |
mm |
|
H |
Minimum rotation radius of working device |
4430 |
mm |
