SHANTUI SE600HB-10W Classic inheritance, brand new upgrade
SHANTUI SE600HB-10W Classic inheritance, brand new upgrade
Large excavator
SE600HB-10W
Configuration parameters
Standard: ● Option: x To be perfected: / Reference value: *
1. Performance parameters:
|
force |
Traction force |
364 |
kN·m |
|
Bucket Digging Force - ISO |
348 |
kN |
|
|
Bucket Rod Digging Force - ISO |
285 |
kN |
|
|
Rotation torque |
/ |
kN·m |
|
|
speed |
Reverse speed |
8 |
r/min |
|
行走高速/低速 |
5.6/3.3 |
km/h |
|
|
noise |
Operator voice pressure （ISO 6396:2008） |
/ |
dB（A） |
|
Average external sound pressure （ISO 6395:2008） |
/ |
dB（A） |
|
|
Other |
Ability to climb slopes |
70% |
|
|
Landing ratio 92.7 |
92.7 |
kPa |
2. Powertrain:
|

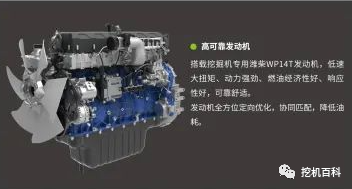

Engine Model |
潍柴 WP14T |
|
|
form |
Direct spray, water cool, four strokes, increased pressure, medium cool |
|
|
rated power |
562/1900 |
kW/rpm |
|
Maximum torque |
/ |
Nm/rpm |
|
discharge volume |
13.5 |
L |
3. Hydraulic system:
|
The technical route |
Electrically controlled positive flow system |
|
|
Main Pump Brand / Model |
Lindh |
|
|
Main pump discharge |
249 |
cc |
|
Fixed work flow |
/ |
L/min |
|
Main valve brand / model |
/ |
|
|
Reverse motors and gearing brands / models |
/ |
|
|
Walking motors and gears brands / models |
/ |
|
4. Working appliance:
|
Move your arms |
6500 |
mm |
|
Fighting clubs |
2550 |
mm |
|
The shovel fighter looks |
3.2~3.6 |
m³ |
|
A smashing hammer |
205~210 |
mm |
5. The chassis system:
|
Weight of weight |
/ |
kg |
|
Number of trackpads - one side |
/ |
section |
|
Number of cogs - one side |
3 |
individual |
|
Number of support wheels - one side |
9 |
individual |
6. Amount of oil and water added:
|
Fuel tank capacity |
720 |
L |
|
Cooling system |
60 |
L |
|
Engine oil quantity |
46 |
L |
|
Hydraulic fuel tank |
/ |
L |
|
Hydraulic system |
550 |
L |
|
Reverse motor decelerator gear oil |
/ |
L |
|
Walking motor decelerator gear oil |
/ |
L |

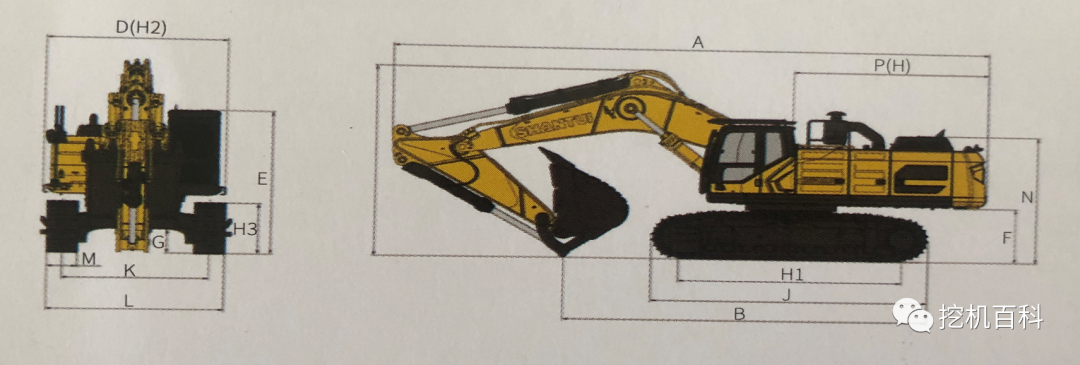

7. Form factor:
|
A |
total length |
11815 |
mm |
|
B |
Landing length (when transported) |
7580 |
mm |
|
C |
Total height (to the top of the moving arm) |
4165 |
mm |
|
D |
Total width |
3450 |
mm |
|
E |
Total height (to the top of the cab) |
3550 |
mm |
|
F |
Gap between weight and ground |
1375 |
mm |
|
G |
Minimum distance from the ground |
645 |
mm |
|
H |
Tail pivot radius |
3915 |
mm |
|
I |
tread |
4427 |
mm |
|
J |
Track length |
5550 |
mm |
|
K |
gauge |
2840 |
mm |
|
L |
Running bandwidth |
3440 |
mm |
|
M |
Standard track plate width |
600 |
mm |
|
H2 |
The width of the pivot platform |
3400 |
mm |
|
P |
Distance from center of turning circle to rear end |
3820 |
mm |

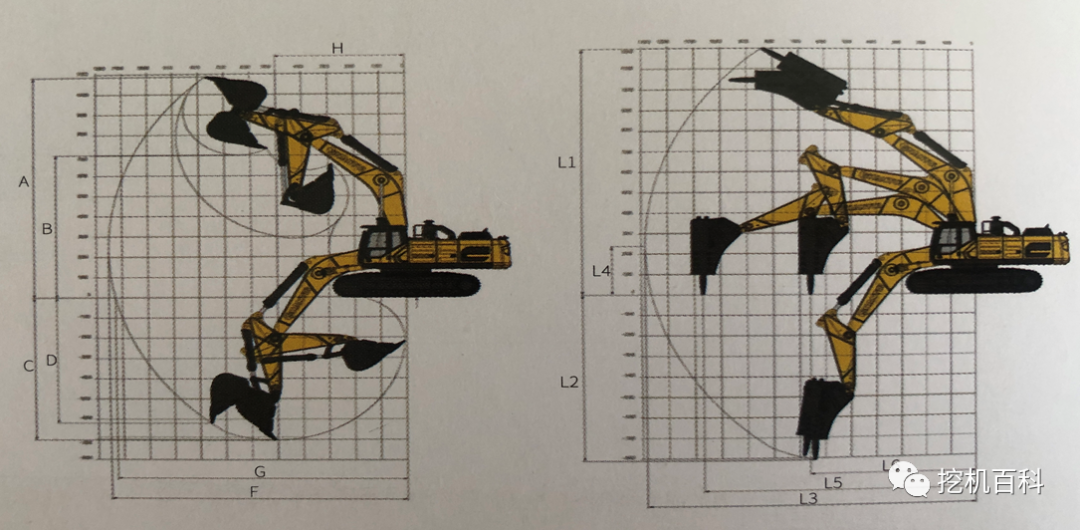

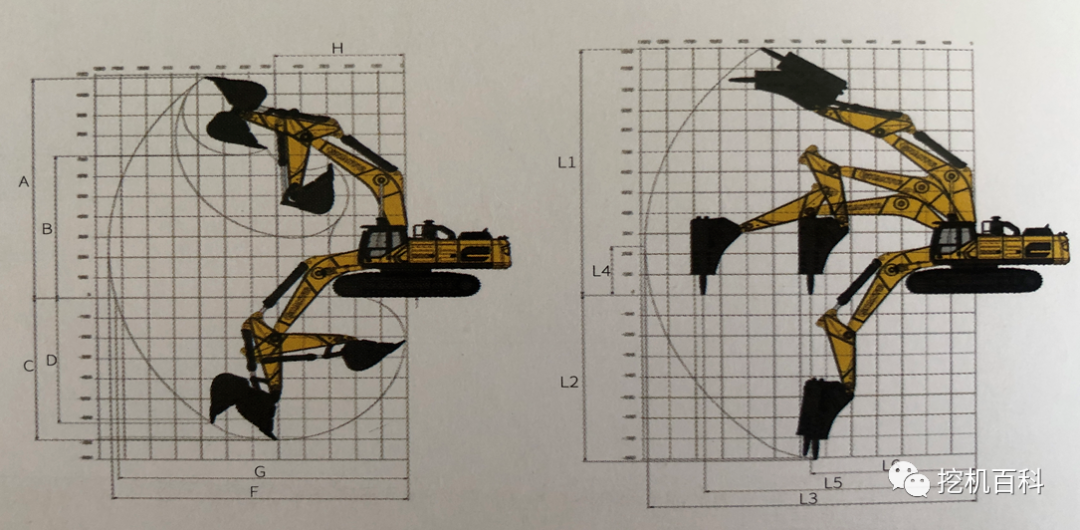

8. Operational scope:
|
Area of excavation work: |
|||
|
A |
Maximum excavation height |
10305 |
mm |
|
B |
Maximum removal height |
7290 |
mm |
|
C |
Maximum excavation depth |
6275 |
mm |
|
D |
Maximum vertical excavation depth |
4495 |
mm |
|
F |
Maximum excavation distance |
10770 |
mm |
|
G |
Maximum ground excavation distance |
10510 |
mm |
|
H |
Minimum rotation radius of working device |
5000 |
mm |
|
Scope of Broken Operations: |
|||
|
L1 |
Maximum breaking height |
11089 |
mm |
|
L2 |
Maximum breaking depth |
7645 |
mm |
|
L3 |
Maximum rupture distance |
12310 |
mm |
|
L4 |
Maximum fracture distance at ground level |
1860 |
mm |
|
L5 |
Maximum ground excavation distance |
10070 |
mm |
|
L6 |
Minimal excavation distance on the ground |
6845 |
mm |
Looking forward to more detailed physical images.
