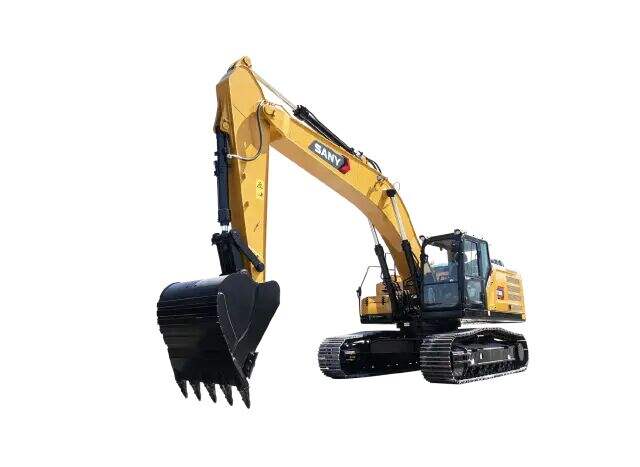

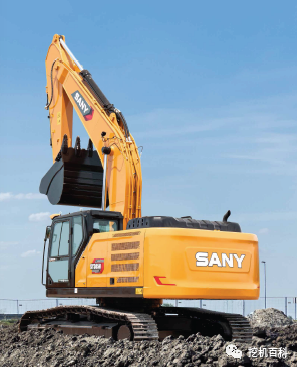

SANY SY305H Classic inheritance, brand new upgrade

Summary

The mining power is strong and the efficiency is excellent

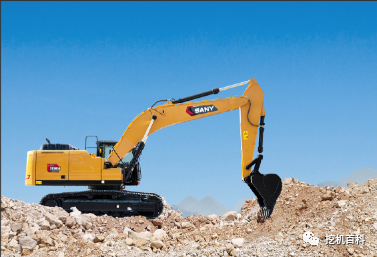

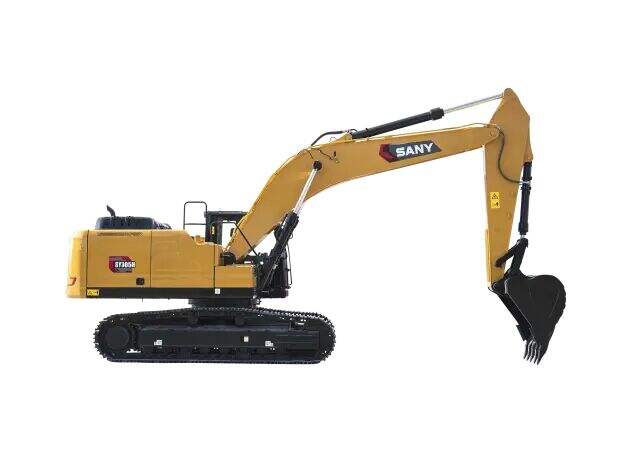

The SY305H is a 30T-class mining hydraulic excavator produced by Sany Heavy Machinery , designed for heavy load operation in small and medium-sized mines . It is powerful and has high loading efficiency . It has won the China Construction Machinery " TOP50 Innovation Gold Award . "

The new generation of SY305H is fully upgraded around " new power " , " new shape " , " new technology , " with " ultra-super performance , ultra-high efficiency , ultra-long life , ultra-comfortable " and other characteristics , which can meet different customers ' operation needs .

Configuration parameters

Standard: ● Option: ○ Reference size: *

Bucket digging force 204 kN

Arm digging force 153 kN

Rotation speed 9 r / min

Walking speed 5.7 / 3.4 km / h

Powertrain:

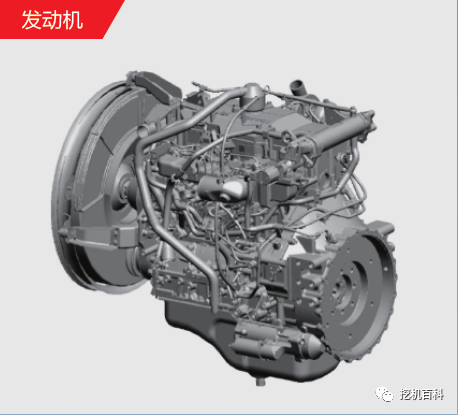

Engine Model Isuzu 6HK1

Emissions route DPD + EGR (no urea)

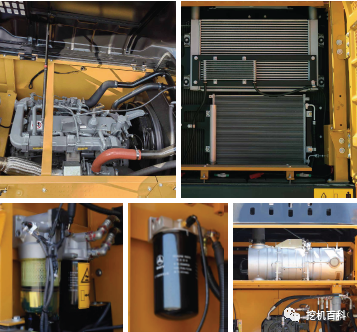

• Turbocharger upgraded to VGT (Variable Section Turbocharger), short response time, less speed drop, reduced fuel consumption loss, better performance at high altitude.

• The injection air of the injector increases, the rail pressure increases from 130Mpa to 200Mpa, and the combustion is more full and the fuel consumption is better.

• The EGR is upgraded to laminated type, which improves cooling capacity, increases air intake and reduces fuel consumption.

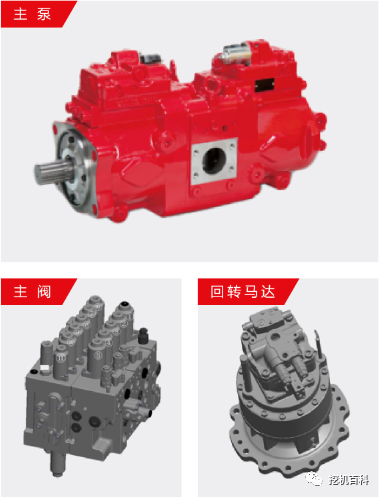

Hydraulic system:

Technical route Full electric control

Main pump displacement 180cc

Rotary speed reducer RG23

• Using fully electrically controlled hydraulic technology, we can optimize the oil recharge area of the arms, the cocker valve core, and adjust the logic valve to improve coordination and peaceability.

• Increase the cockpit buffer valve, optimize the walking valve core oil recovery area, and eliminate the walking speed shock.

• The speed reducer was upgraded to RG23 speed reducer, and the rotary device increased the rotary capacity by 12%.

The arms and arms are:

● 6150mm boom

● 3200 mm rod

●1.8 m³ 铲斗

The chassis system and structure:

● 5800kg weight

600mm track

• 47 sections of a trackpad

Eight support wheels on each side

• 2 chain wheels on each side

Oil and water injection:

Fuel Tank 540 L

Hydraulic Tank 415 L

Engine oil 36 L

Antifreeze 50 L

Final Drive 2 × 6.3L

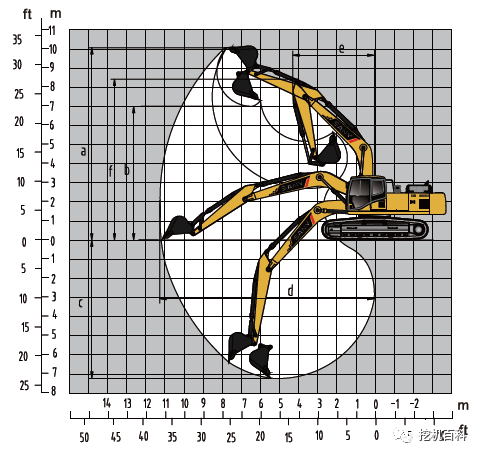

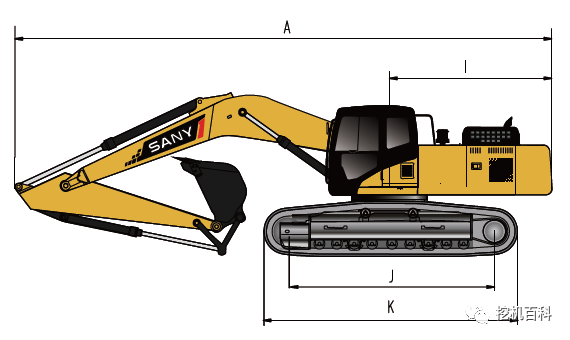

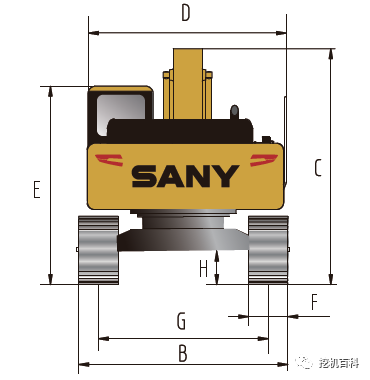

Operational scope:

A. Maximum excavation height 10500 mm

B. Maximum unloading height 7360 mm

C. Maximum excavation depth 6815 mm

d. Maximum excavation radius: 10870 mm.

E. Minimum radius of gyration 4000 mm

F. Maximum height at minimum radius of gyration 8405 mm

A new look

1. Intelligent:

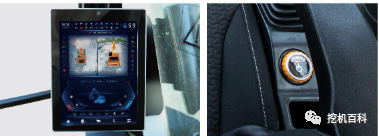

• The 10-inch screen is once again upgraded to be thinner, brighter and sharper;

• Higher system integration, multi-unit integration of body control and power management, and fewer components;

• Support 4G network OTA upgrade, faster and more secure, add a button call function;

• Night stop lights delay extinguishing, a key switch between the forehand and backhand display screen, rear camera configuration, to ensure safe driving.

2. New interior:

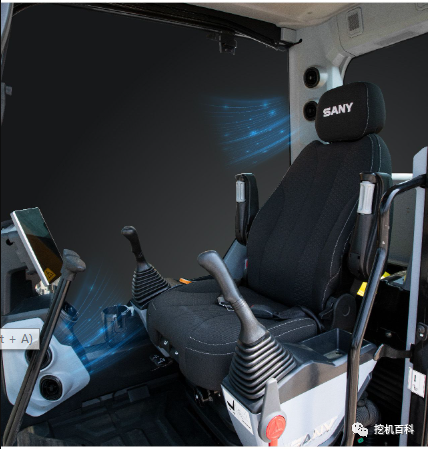

• The interior is fully upgraded, narrow armrest box, minimalist front control box, standard water cup seat, 24V power access port, USB interface, etc., with automotive quality interior.

• Equipped with comfortable shock-reducing seats, vibration comfort improves.

3. Structural upgrade:

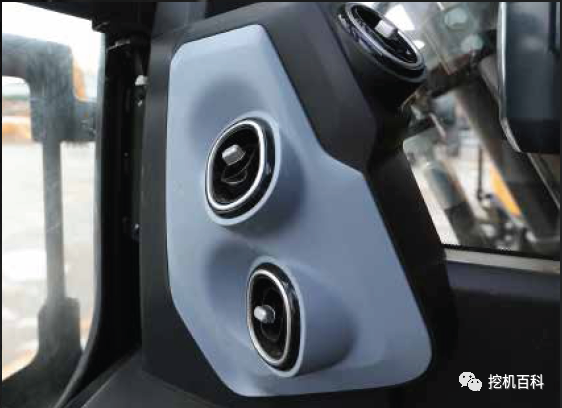

4. A new air conditioning system:

• Powered by a new air conditioning system, the air conditioning wind tunnel is optimized, the cooling effect is stronger, and the wind amount is allocated more reasonably. Air conditioning evaporators enable in-car cleaning and maintenance, making cleaning simpler.

5. Exterior upgrade:

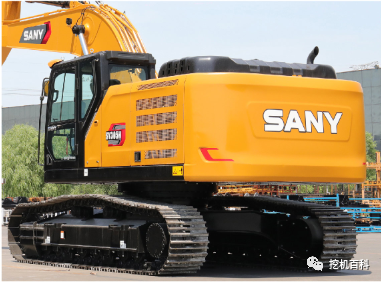

• Sany has worked with a well-known automotive design company, and its exterior has been upgraded completely, with a steady and robust style.

• Covered doors are highly designed, and side doors use a automotive double-layer door making process to strengthen.

• The engine casing and toolbox lids are powered by air springs, making the opening process more labor-efficient.

new technology

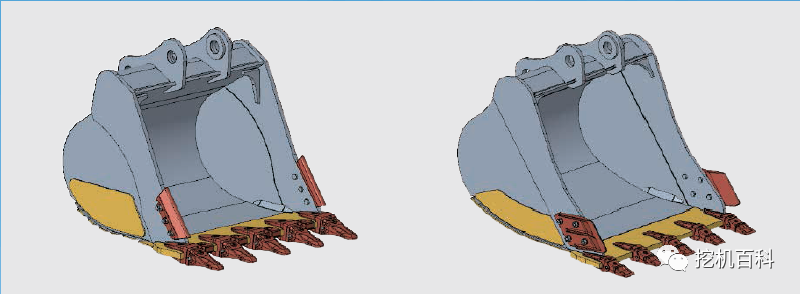

1. The shovel upgrade:

• The standard rock shovels are optional, and the earth shovels can be equipped to achieve "one condition, one blow" and meet the needs of different working conditions.

• Optimize the shovel hinge point, optimize the shovel thickness, increase the flow of material inflow and reduce friction.

• The angle between the front blade plate and the base plate is increased, increasing the thrust rate.

• Optimize the mining power cloud diagram, reduce the average resistance of the mining process, and increase the mining efficiency.

2. Rod Regeneration and Quick Oil Recovery:

• The light load shaft excavation increased the recovery flow from the small cavity to the large cavity of the cylinder by 30%, reducing the power of the engine.

• When heavy loads are excavated, the small cavity of the cylinder quickly returns oil, saving 18% of the power, faster speed and more fuel efficient.

• When the braid is unloaded, the cavity quickly returns to the fuel tank, reducing pressure loss, and the braid unloading speed is faster and more fuel efficient.

3. DPC technology

• Direct power control technology is used to dynamically adjust according to the load, so that all commonly used work stages are moved to the economic zone, and the power matching achieves "what is needed," reducing waste and achieving energy savings.

Functional setup

Engine:

• Isolated engines

• Dynamic tuning mode control

• Heatsink (with full protective net)

• 24V / 5kW Start Motor

• 50A AC motor

• Dry double filter air filter

• Lubrication oil filter

• Level 2 Fuel Filter

• Oil cooler

• Heater sub-water tank

• Fan curtain

• Automatic idling system

• Preheat plug (for starter in cold weather)

• 4000m operating altitude

• Work mode (fuel efficient mode, standard mode)

• Working at two speeds

Driver's Room:

• Ultra-silent frame cab room

• Strengthened light glass windows

• Silicone rubber shock absorbers

• Openable top, front enclosure window and left window

• Rain wiper (with a cleaning device)

• Multiple adjustable seats

• Feet boards, floor mats

• speaker

• Seat belts, fire extinguishers

• Drinking cup seats, lanterns

• Escape hammer

• Storage boxes, utility bags

• Lead control cutting rod

• Completely automatic air conditioning

○ Front protective net

The lower walking body:

• Walking motor pads

• H-type track guide mechanism

• Slip-on hydraulic tightening mechanism

• Piston-connected drive wheels

• Chain lifters and heavy lifting wheels

• Strengthened chain rails with shaft seal

• 600mm tread track

• Strengthened side pedals

• Bottom panels

Alarm system:

• Controller failure

• The pump pressure is abnormal

• Abnormal pre-emptive pressure for each action

• The power supply voltage is abnormal

• Exception in the start-up motor relay

• The hydraulic oil temperature is abnormal

• Insufficient oil pressure, overheating of engine coolant

• Insufficient amount of fuel.

• Reverse oil filter block alarm

• Engine fault alarm

• Fuel filter water level alarm

• Discrete water level alarm

Hydraulic system:

• Select a switch for working mode

• Control valve with primary overflow valve

• Control valve band backup oil outlet

• Oil absorption filter

• Reverse oil filter

• Leading Filter

• Oil leak filter

Front-end working devices:

• French sales

• Shovel gap adjustment agency

• Welding joints

• Integrated lubrication system

• All shovels are soldered with dust sealing rings

• Strengthening the fully wrought box arms

• Strengthening fully wrought box braces

• Crash shields

The upper pivot platform:

• Fuel Level Sensor

• Hydraulic Oil Level Meter

• toolbox

• Reverse parking brake

• Rearview mirror (right)

• BACK VIEW camera

○ Driver Room Alarm Light

Supervisory control system instrument:

• GPS satellite positioning system

• Color 10-inch display screen

• The Iveco system

• Hour meter, fuel level gage of fuel tank

• Engine Coolant Temperature Table

• It can increase altitude, track pressure, fuel consumption, etc.

Safety:

• Emergency stop switch

• Signal / alarm horn

• rearview mirror

• Back window emergency safe exit

• Battery negative electrode switch

Others:

• High-capacity electric bottle

• Lockable ceiling cover

• Lockable fuel filling cover

• Anti-sliding pedals, handrails and sidewalks

• Walking direction markers on the walking rack

• Manual Butter Gun
