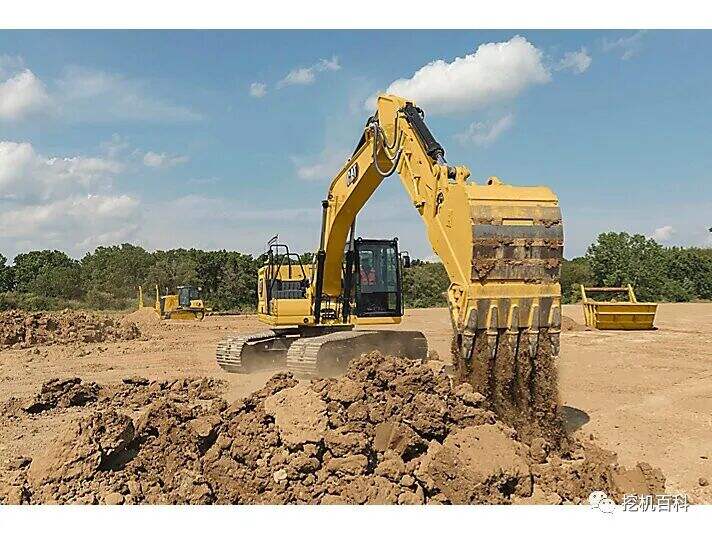

CAT 320GC Classic inheritance, brand new upgrade

Medium-sized excavator

320 GC

Summary

Reliability and low hourly operating costs.

The Cat320GC delivers an excellent balance of reliable performance, operator productivity features and reduced costs. Equipped with a C4.4 engine and aftertreatment system, the 320GC eliminates the need for shutdown and diesel engine exhaust treatment fluid (DEF), and complies with China's non-road fourth emission standards.

• Up to 20% lower fuel consumption

By precisely combining a lower engine speed with a large hydraulic pump, best-in-class performance can be delivered while reducing fuel consumption.

• Improved reliability and efficiency

The advanced electric hydraulic system not only achieves an excellent balance between power and efficiency, but also gives you the control devices you need to meet your precise excavation requirements.

• Up to 20% Lower maintenance costs

Compared to previous models, maintenance intervals are longer and more synchronous, so you can get more done at a lower cost.

Configuration parameters

Standard: ● Option: ○

Maximum turning torque 74.4 kN · m

Bucket digging force - ISO 129 kN

Arm Digging Force - ISO 99kN

Powertrain:

Engine Model: Cat C4.4

Hydraulic system:

Main System - Max Flow: 429 L / min

Maximum pressure - equipment: 35000 kPa

Maximum pressure - driving: 35000 kPa

Maximum Pressure - Turn: 29800 kPa

The arms and arms are:

● 5.7m boom

● 2.9m rod

Oil and water injection:

Fuel tank capacity 345 L

Cold Pepper System 25 L

Engine oil 15 L

Rotary Drive - 12 L each

Final Drive - 4 L each

Hydraulic pressure system - including tank 234 L

Hydraulic Tank 115 L

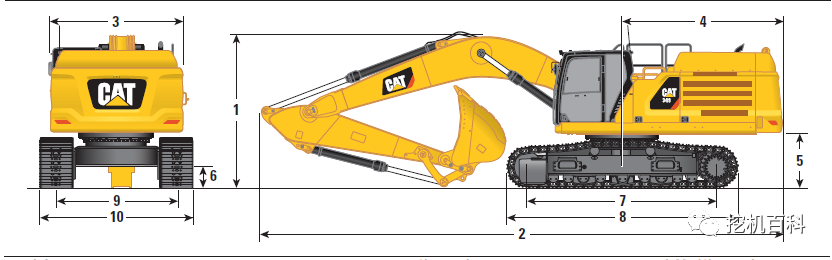

Form factor:

Loading height - top of driving room 2960 mm

Handrail height 2950 mm

Shipping Length 9530 mm

Rear radius of gyration 2830 mm

Counterweight clearance 1050 mm

Ground clearance 470 mm

Track length 4250 mm

Center spacing of support wheels 3450 mm

Track gauge 2380 mm

Transport width 2980 mm

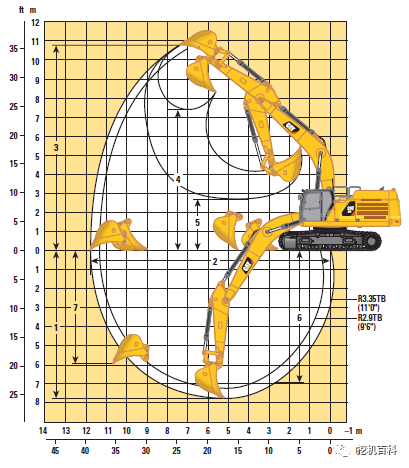

Operational scope:

Maximum excavation depth 6630 mm

Maximum ground extension 9770 mm

Maximum excavation height 9440 mm

Maximum loading height 6580 mm

Minimum loading height 2260 mm

Maximum excavation depth of 2440 mm flat bottom 6460 mm

Maximum vertical wall excavation depth 6010 mm

1. Low fuel consumption, high performance:

• The 320GC is in line with China's fourth non-road emission standard.

• In similar applications, the digging machine saves up to 20% more fuel than the 320 D2 GC.

• Use power mode to match the excavator to the job; And automatically matches engine and hydraulic power to your excavation conditions through smart mode.

• The advanced hydraulic system not only achieves an excellent balance between power and efficiency, but also gives you the control devices you need to meet your precise excavation requirements.

• The valve prioritization sets the hydraulic pressure and flow rate according to your instructions, enabling fast low- and medium-load cycle times.

• Add auxiliary hydraulics to do more with a variety of Cat tooling.

• Product Link™As standard, you can remotely monitor machine health, location, hours of operation and fuel consumption as needed via the VisionLink ® online interface.

2. Lower maintenance costs:

• It is expected to reduce maintenance costs by up to 20% compared to the 320 D2 GC (savings based on 12,000 machine hours).

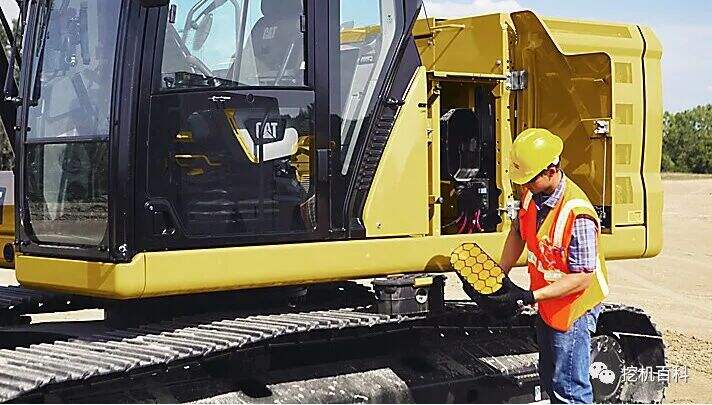

• Perform all daily maintenance work on the ground.

• Use new engine oil gauges near the ground to quickly and safely check engine oil levels; Using a second oil gauge at your fingertips, you can fill and check the engine oil at the top of the machine.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room.

• No maintenance is required for the Cat clean emission module.

• Using Cat OEM oils and filters and performing typical S.O.V. monitoring can double current maintenance intervals to 1,000 hours, which can increase uptime and get more done.

• The new hydraulic oil filter provides better filtration performance, and the reverse drain valve keeps the oil clean when the filter is replaced at a time of up to 3,000 working hours, giving a longer service life - 50% longer than previous filter designs.

• The new highly efficient electric cooling fans only operate when needed and are able to reverse to keep the filter free of debris.

• The S · O · S sampling port simplifies maintenance and enables quick and easy sampling for oil analysis.

3. Stable, reliable and trustworthy:

4. Safe Operation and Safe Home Every Day: Ping An

• All of the daily maintenance points are accessible from the ground - there is no need to climb to the top of an excavator.

• Use the operator ID to ensure the safety of the digging machine. Use a PIN code on the monitor to enable button activation.

• The standard ROPS driving room meets the requirements of ISO 12117-2: 2008.

• Thanks to the smaller cockpit columns and wide window designs, operators have an excellent view, whether on the inner side of the ditch, in each direction of rotation or in the rear of the operator.

• A rear view camera is standard, and a right side camera is optional.

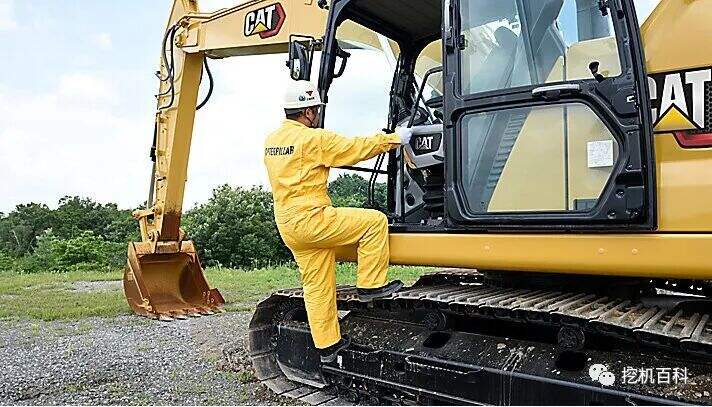

• The new right-side maintenance platform design makes it easy, safe and fast to reach the upper maintenance platform; The maintenance platform staircase uses slippery perforated plates to prevent sliding.

• The handrails meet the requirements of ISO 2867: 2011.

• The lower rack meets the lifting and tethering requirements of ISO 15818: 2017.

5. It's easy to do:

• The engine can be started with a button, a Bluetooth key fob or a unique operator ID function.

• Program each joystick button using the operator ID, including response and mode; It also remembers the settings for climate-controlled fans and radios.

• High resolution 203mm (8in) standard touch screen monitors or knob controls allow rapid navigation.

• Protect hydraulically powered impact hammer to prevent overheating and reduce wear. The Hydraulically powered impact hammer stops automatically after 15 seconds of continuous air impact and then shuts off the hammer after 30 seconds for extended tool life.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

6. Working in comfort:

• The comfortable driver's room is equipped with wide seats that can be flexibly adjusted to suit operators of all sizes.

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably.

• Standard automatic thermostats ensure a comfortable temperature throughout the operation.

• Compared to previous excavator models, the advanced adhesive mounting seat reduces vibration in the cab by up to 50 per cent.

• There is plenty of parking space under and behind the seats, overhead and in the control room to easily store your gear. Cup racks, document racks, bottle racks and hat hooks are also provided.

• Connect your personal devices using the standard wireless USB port and Bluetooth ® technology.
