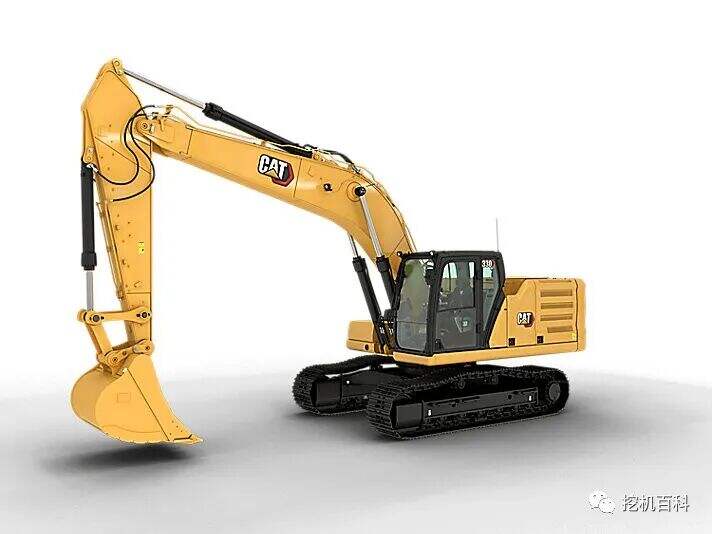

CAT 330 Classic inheritance, brand new upgrade

Summary

Improved benchmarks for performance and efficiency.

The 330 adopts C7.1 double turbo-charged fuel oil engine and mature and reliable aftertreatment system, which meets China's non-road national four emission standards. This excavator is carefully designed and built with unparalleled support from a dedicated team, reducing operating costs and maximizing uptime to help you on your path to success.

• Up to 20% more fuel efficient

This model is equipped with a larger hydraulic pump and a new electric hydraulic system, as well as a higher capacity of the shovel, which allows more work per unit of fuel.

• Up to 20% Lower maintenance costs

A reduction in maintenance projects coupled with longer maintenance cycles and greater synchronization can increase uptime and reduce costs.

• Up to 45% more productive

Provides the industry's highest factory standard, including Cat Grade with 2D, Grade Assist, and Payload.

Configuration parameters

Standard: ● Option: ○

Power:

Maximum turning torque 110 kN · m

Bucket digging force - ISO 179 kN

Arm Digging Force - ISO 126 kN

Speed:

Rotary speed 11.5 r / min

Powertrain:

Engine Model: Cat C7.1

Hydraulic system:

Main system - Maximum flow rate: 560 l / min

Maximum pressure - driving: 35000 kPa

Maximum Pressure - Turn: 29800 kPa

The arms and arms are:

● 6.15m HD large bucket boom

● 3.2m HD large bucket rod

○2.65 m（8'8" ) Heavy load stretchers

The chassis system and structure:

● 6700kgCounterweight

●600 mm（24" ) Double-clawed ground teeth track plate

○600 mm（24" ) Three-clawed ground teeth track plate

○800 mm（31" ) Three-clawed ground teeth track plate

Oil and water injection:

Fuel tank capacity 474 L

Cold Pepper System 25 L

Engine oil 25 L

Rotary Drive - 2.6L each

Final Drive - 5.5L each

Hydraulic pressure system - includes tank 310 L

Hydraulic Oil Tank 147 L

DEF 箱 41 L

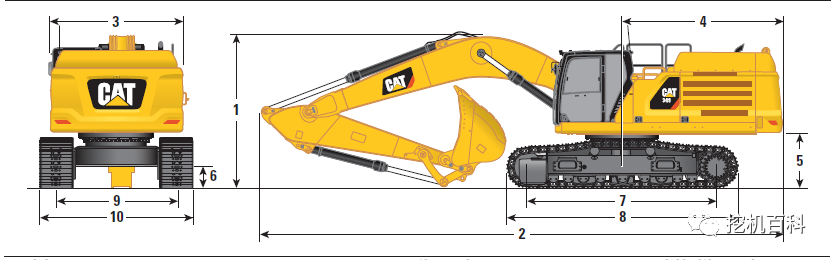

Form factor:

Loading height - top of driving room 3060 mm

Handrail height 3060 mm

Shipping Length 10420 mm

Tail radius of gyration 3130 mm

Counterweight clearance 1120 mm

Ground clearance 490 mm

Track length 4860 mm

Center spacing of loader 3990 mm

Track gauge 2590 mm

Transport width 3390 mm

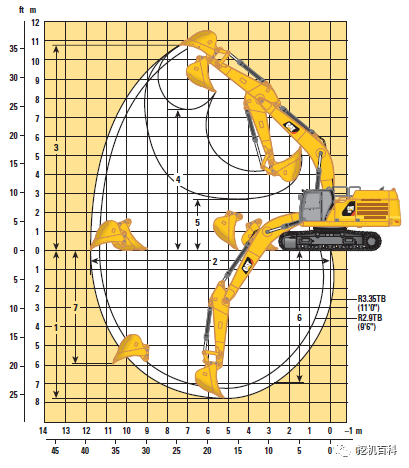

Operational scope:

Maximum excavation depth 7250 mm

Maximum ground extension distance 10690 mm

Maximum excavation height 10000 mm

Maximum loading height 6950 mm

Minimum loading height 2290 mm

Maximum excavation depth of 2440 mm flat bottom 7090 mm

Maximum vertical wall excavation depth 5790 mm

Functional setup

Powertrain:

● Cat C7.1 Dual Turbo Turbocharged Fuel Oil Engine

Three optional power modes

Automatic dual speed driving

Automatic engine idle shutdown

● 52 ° C (125 ° F) high temperature environment cooling capacity (with deductions)

Dual-core air filter with integrated prefilter

● Reverse electric cooling fan

Biodiesel with a maximum label of B20 can be used

○ -32 ° C (-25 ° F) cold start capability

Driver's Room:

Roll Protection Structure (ROPS)

Mechanically adjusted seats

● High resolution 203mm (8in) LCD touch screen monitor

○ Heated air conditioning seats (only in luxury cabs)

○ High resolution 254mm (10in) LCD touch screen monitor

○ Cat Single Handle

Assisted relays (only luxury models)

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Programmable delay time LED work light

● LED chassis lights, left and right arm lights, driving room lights

Hydraulic system:

● Regenerative circuits for the arms and poles

Automatic Preheating

Automatic dual speed driving

● Boom and arm settling pressure reducing valve

The arms and poles fall in a single-way valve

○ Hydraulically powered impact hammer return filter circuit

Tool control (double pump, single / two-way high pressure flow)

Base tool control (single pump, one-way high pressure flow)

Fast connector circuit

The chassis system and structure:

● The traction rings on the chassis

Safety and protective devices:

● rear view camera and right rear view mirror

• Ground engine stop switch

• Right handrails and handles

• Signal / alarm horn

○ Cat Detect - Personnel Detection

Right-View Camera

360 ° View

○ Turnaround alarm

○ Detecting lighting

CAT Technology:

●Cat Product Link

Remote refresh

Remote troubleshooting

Cat Grade with 2D system

● Cat Grade with Assist

●Cat Payload

● Electronic fences

Cat Grade with advanced 2D systems

Cat Grade with 3D system single GNSS technology

Cat Grade with 3D System Dual GNSS Technology

Repair and maintenance:

• Ground and platform engine oil gauges

● Planned analysis of oil sample (SOS) sampler

Electric refueling pump with automatic disconnect function

1. Latest features:

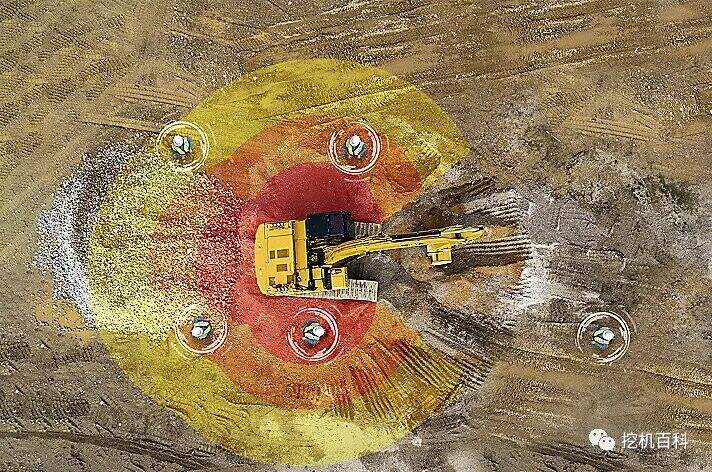

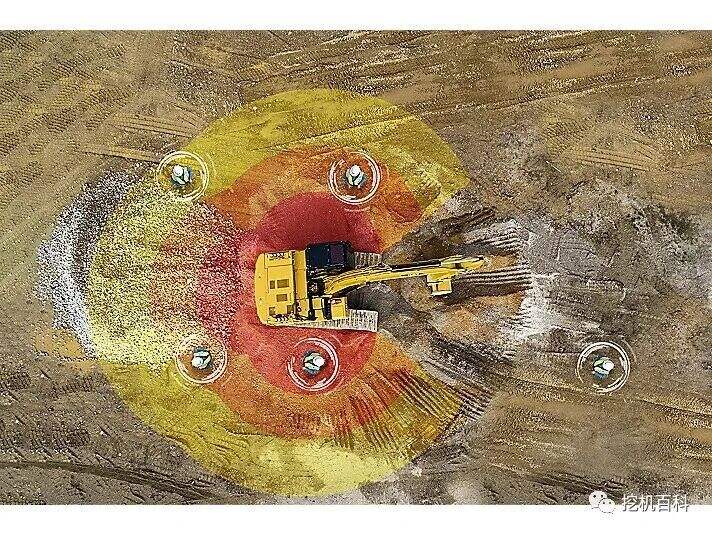

• Optional Cat Detect - Personnel Detection features help operators avoid personnel at the job site with visual and auditory alerts.

• The new single-antenna Global Navigation Satellite System (GNSS) option provides visual and acoustic guidance on slope.

• Optional auxiliary relays open and close CB radios, Denso lights and other fixtures without loosening the control handle.

• Turning alarms can be optional to enhance job site safety.

2. Strong and efficient:

• Fuel efficiency increases by up to 20% compared to the 330D2.

• The rotary torque is 5% higher than the 330D2 excavator, making it easier to work on slopes.

• Standard Cat technology reduces operator fatigue and saves operating costs (including fuel consumption and routine maintenance), increasing operational efficiency by up to 45 percent.

• The C7.1 engine can use up to B20 biodiesel, in line with China's fourth non-road emission standards.

• The advanced hydraulic system not only achieves an excellent balance between power and efficiency, but also gives you the control devices you need to meet your precise excavation requirements

• Match the excavator to the job using two power modes; The Smart mode automatically matches the engine and hydraulic power to the excavation conditions.

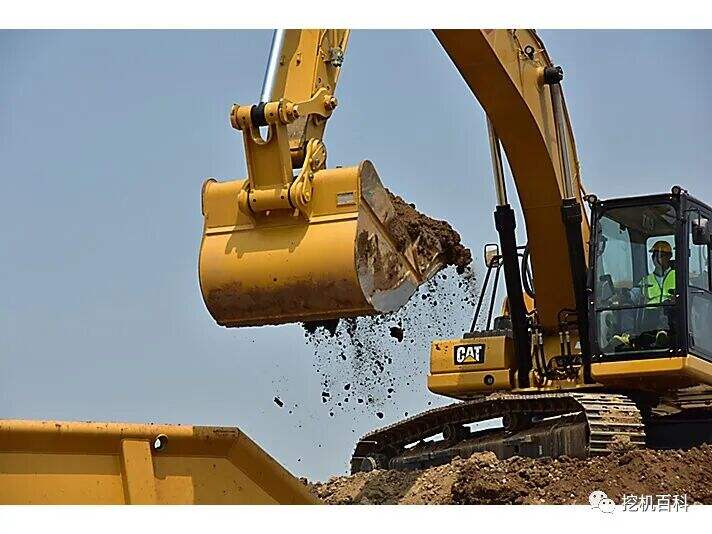

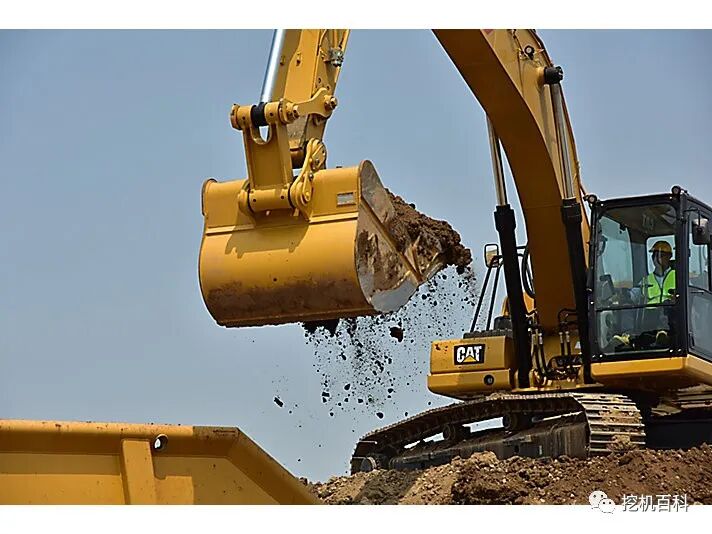

• Advansys™The shovel teeth improve the penetration capacity and shorten the cycle time. A simple lug wrench, rather than a hydraulically powered impact hammer or special tool, can be used to quickly change the tips for improved safety and extended uptime.

• Auxiliary hydraulic options give you the versatility you need to use a wide range of Cat tooling.

• Perfect for temperature challenges and safeguard your normal work.The excavator can operate at high temperatures of up to 50 ° C (122 ° F) (with deductions) and has a cold start capability as low as -18 ° C (0 ° F).Optional -32 ° C (-25 ° F) starter kits are available.

3. Boosting productivity with technology:

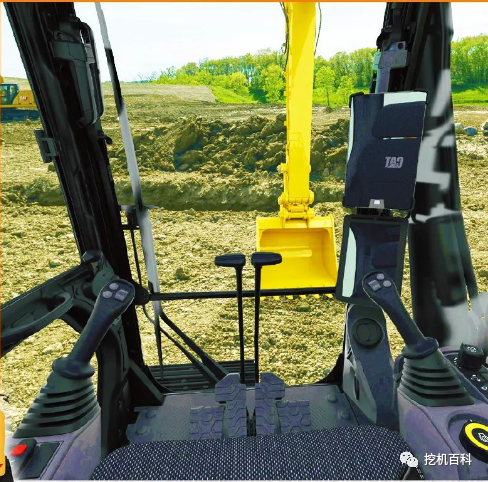

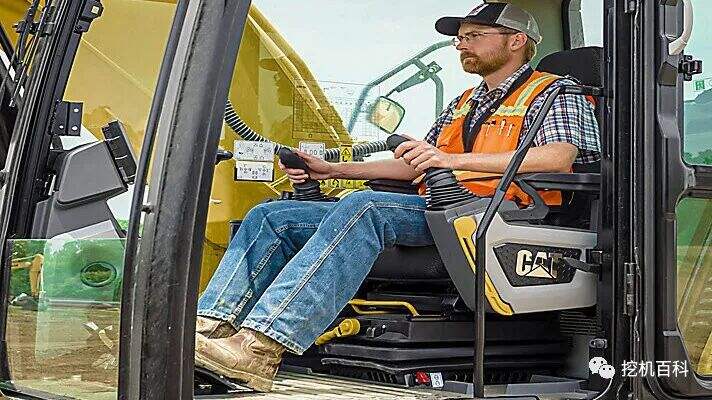

4. Better comfort and handling:

• With the flip-up left console, you can get in and out of the cab more easily.

• The advanced rigid base reduces vibration in the cab by up to 50 per cent compared to previous excavator models.

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably.

• There is plenty of parking space under and behind the seats, overhead and in the control room to easily store your gear. Cup racks, document racks, bottle racks and hat hooks are also provided.

• Connect personal devices and make hands-free calls easily with a standard wireless USB port and Bluetooth ® technology.

5. It's easy to do:

• The engine can be started with a button, a Bluetooth key fob or a unique operator ID function.

• Use the operator ID to set the power mode and joystick preferences; Every time they work, the excavator remembers these preferences.

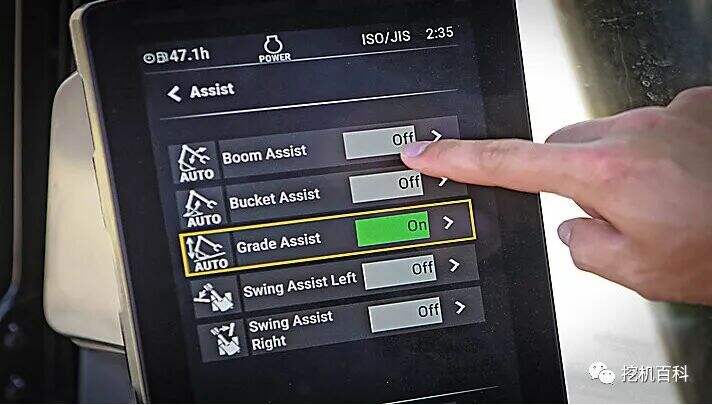

• High resolution 203mm (8in) standard touch screen monitors or, optionally, 254mm (10in) touch screen monitors or knob controls are available for fast navigation.

• Prevent hydraulically powered impact hammer overload. The hydraulically powered impact hammer stop signal lasts for 15 seconds and then shuts off automatically after 30 seconds to prevent tool and excavator wear.

• For advanced grade control, an additional 254 mm (10 in) monitor is available.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

• Find the tool you need - even if it's hidden under grass or debris. The excavator's onboard Bluetooth reader can locate any tooling equipped with Cat asset tracking devices with a search range of up to 60 meters (200 feet).

• The Cat PL161 Tooling Positioner is a Bluetooth device that helps you quickly and easily find tooling and other equipment. The excavator's onboard Bluetooth reader or the Cat app on your phone can automatically locate the device.

• Available appliance identification functionality helps save more time and energy. You can confirm its identity by shaking the accompanying tool; It also ensures that all work setups are accurate, allowing you to work quickly and efficiently.

• The automatic excavation enhancements can increase power by up to 8%, resulting in stronger shovel penetration, shorter cycle times and greater payload.

• The Cat single handle makes it easier to control the movement of the digging machine. With the press of a button, you can control driving and steering with one hand without having to control the steering lever with both hands or both feet on the pedal.

6. Lower maintenance costs:

• It is expected to reduce maintenance costs by up to 20% compared to the 330D2 (savings based on 12,000 machine hours).

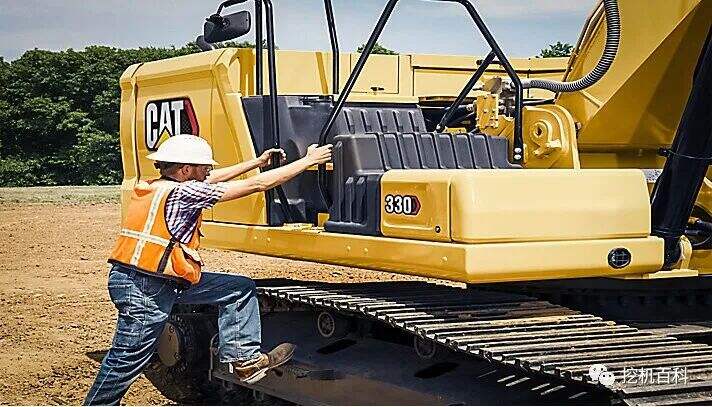

• Perform all daily maintenance work on the ground.

• Use new engine oil gauges near the ground to quickly and safely check engine oil levels; Using a second oil gauge at your fingertips, you can fill and check the engine oil at the top of the machine.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room.

• No maintenance is required on the Cat clean emission module.

• Using Cat OEM oil and filters and performing typical S.O.S. monitoring can extend current service intervals to 1,000 hours, twice as long as before, allowing you to get longer uptime to get more work done.

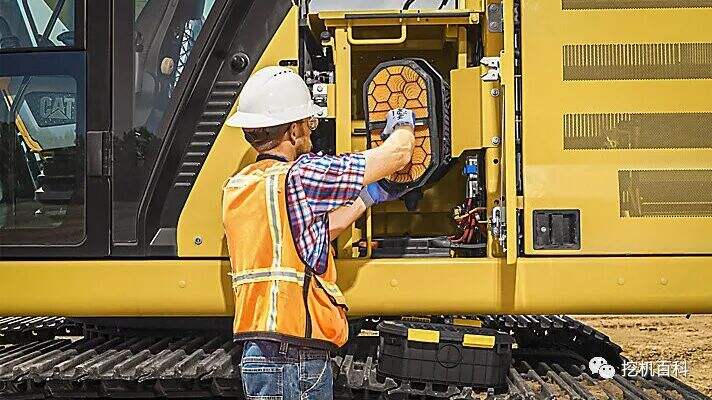

• The new inlet filter with a prefilter is expected to work for up to 1,000 hours - a 100% increase in service life compared to previous filters.

• The new hydraulic oil filter provides better filtration performance, and the reverse drain valve keeps the oil clean when the filter is replaced at a time of up to 3,000 hours, giving a longer service life - 50% longer than previous filter designs.

• Efficient cooling fans only operate when needed; You can set the interval so that it can automatically reverse to keep the radiator core clean without interrupting your work

• The ground-mounted S · O · S sampling port simplifies maintenance and enables quick and easy extraction of oil samples for analysis.

7. Built-in security features:
