SANY SY18U Classic inheritance, brand new upgrade

Summary

Flexible and efficient and versatile

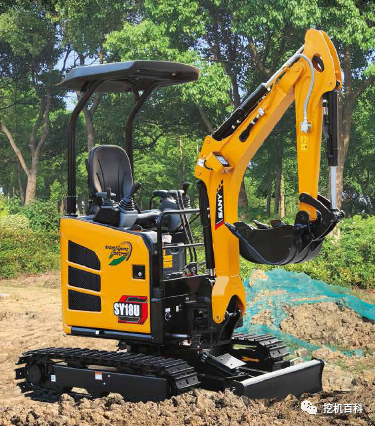

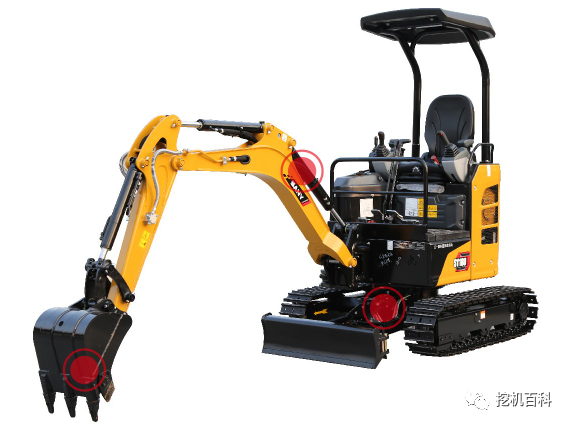

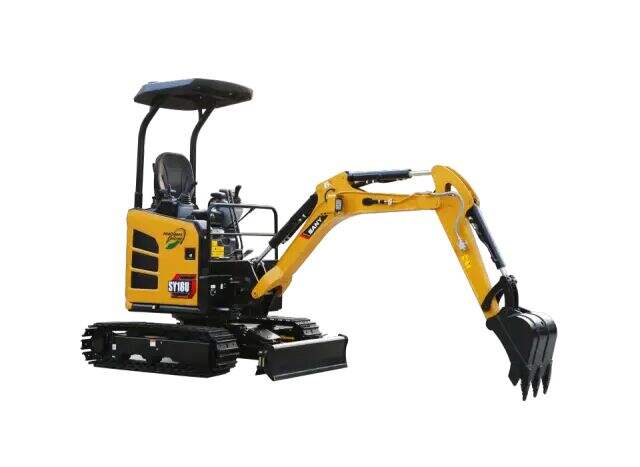

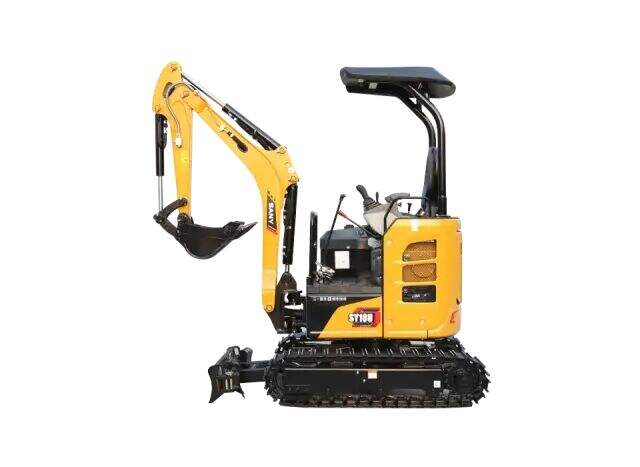

The SY18U is a 1-2T class micro excavator product with no tail rotation , boom side shift and undercarriage telescoping function . It is equipped with high-end suspension seats to effectively reduce the driver 's fatigue .

The new SY18U is upgraded around " new power , " " new shape " and " new technology . " It is faster and more efficient . The details are well designed , and a variety of attachments and configurations are available , making it a versatile mini excavator .

Main technical specifications:

Configuration parameters

Standard: ● Option: ○ Reference: *

Bucket digging force 16.6kN

Arm digging force 9.2 kN

Rotation speed 10 r / min

Walking speed 4.0 / 3.0 km / h

Slope ability 70 per cent (35 per cent)

Ground specific pressure 30kPa

Powertrain:

Engine 3 TN80F (Yanmar)

Frontal fixed power 14.6kW / 2400rpm

Displacement 1.226 L

Emissions Standards Country IV

Hydraulic system:

Technical route load-sensitive flow distribution system

The arms and arms are:

●0.04 m³ 铲斗

250mm narrow bucket

The chassis system and structure:

230mm track (steel / rubber)

• 3 axles on each side

• 2 chain wheels on each side

Oil and water injection:

Fuel Tank 21 L

Hydraulic Tank 21 L

Engine oil 2 L

Antifreeze 3.8L

Final drive 2 × 0.4L

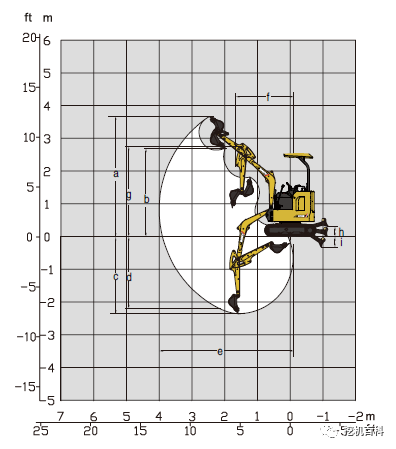

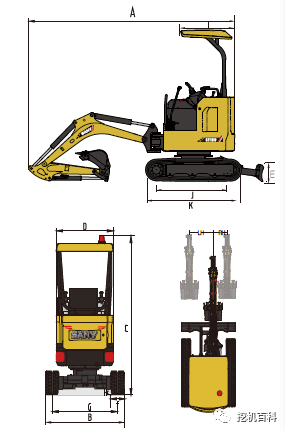

Operational scope:

A. Maximum excavation height 3410 mm

B. Maximum unloading height 2350 mm

C. Maximum excavation depth 2385 mm

D. Maximum vertical arm excavation depth 2100 mm

E. Maximum excavation radius 4010 mm

F. Minimum radius of gyration 1705 mm

G. Maximum height at minimum radius of gyration 2550 mm

H. Maximum ground clearance of bulldozer lift 310 mm

I. Maximum depth of bulldozer down 320 mm

Rh / lh. Maximum bucket offset 400 / 625 mm

New upgrade - superior performance

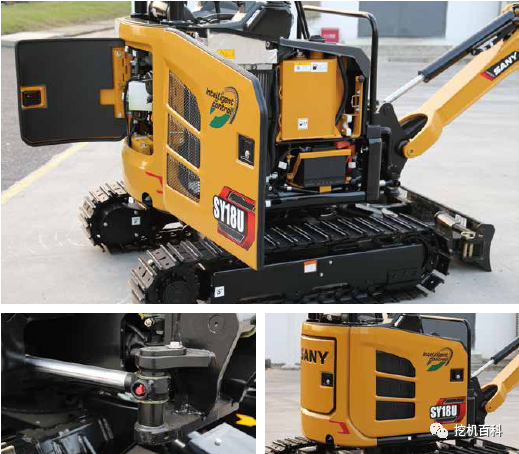

1. Powertrain:

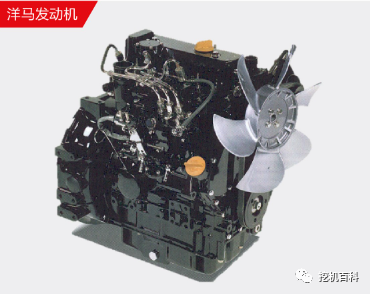

• SY18U adopts SANY custom Yanmar 3 TNV80F engine, power 14.6kW, meet the national four emission standards, powerful, reliable and durable, to meet the diversified power needs of customers.

• Using a high-precision oil-water separator with a filter, the water can be separated while effectively filtering impurities in the fuel, providing multiple protection for the engine and extending the service life of the engine.

2. Hydraulic system:

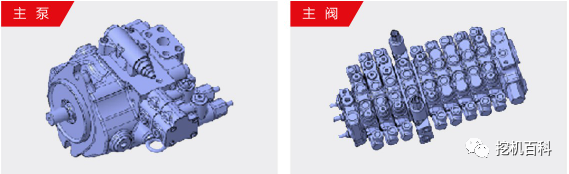

• The hydraulic system uses a large torque main pump and a large flow main valve to ensure the efficiency of excavation and crushing operations.

• Load-sensitive traffic allocation system: It can provide and allocate traffic according to the system's needs for traffic to meet regulations

• Line component speeding and composite motion requirements. By optimizing the hydraulic system to achieve a precise match with the engine, achieving precise movement and smooth handling.

Optimization of structural components - durability

1. Structural component upgrades

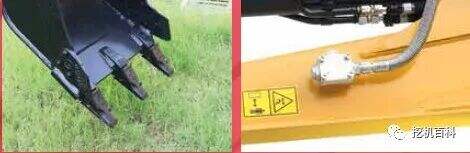

• Based on the finite element analysis, optimize the frame and work device, prolong the service life.

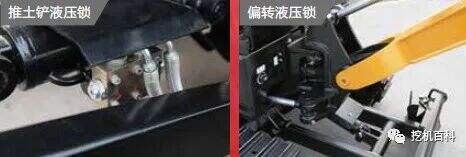

2. Standard hydraulic lock

• Increase the deflation hydraulic lock and the bulldozer hydraulic lock to enhance the maintenance function of the bulldozers and work unit.

3. Improved excavatoring and walking power

• The standard high-torque walking motor improves walking capacity by 13%.

3. Upgrade the cockpit and arm fuel tank

• The cockpit is mounted horizontally, making it easy to disassemble.

• The length is increased and the service life is extended.

• The bulk of the arms cylinder increases the lift.

Upgrade the driver's room - a new experience

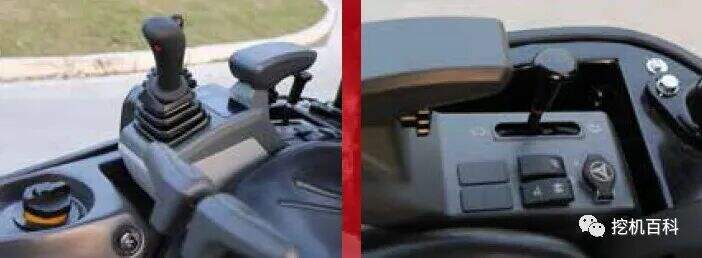

1. Seat upgrade:

• High-end levitating seats, djustable wristrests, comfortable operation

2. Optimize key switches and power interfaces:

• The newly developed high floor pad, the floor pad to the seat installation surface of the distance compared to the three countries reduced by 20mm, improve operating comfort. The floor mat is simple in pattern and at the same time is slippery resistant, making it easy to clean.

Trinity Digging - A Multi-Faced Expert

1. Multiple uses of a single machine

• SANY Micro Excavator is equipped with standard auxiliary pipeline and cut-off valve, which can be directly installed with breaking hammer and other auxiliary tools. Legendary Weapons of China are proficient in everything.

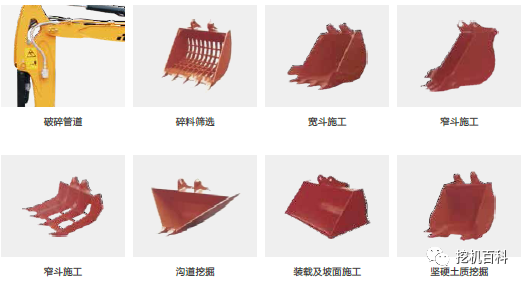

• Sany Min digging originally had narrow trenches, wide trenches, weed rakes and other tools, with different working conditions and different tools, and higher efficiency.

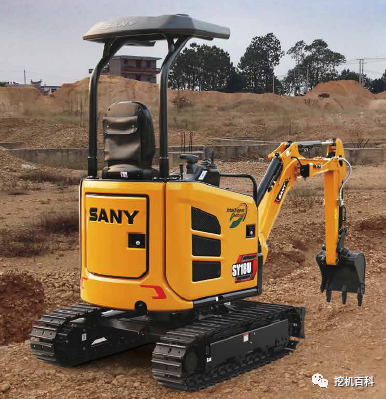

2. Applicable scenarios:

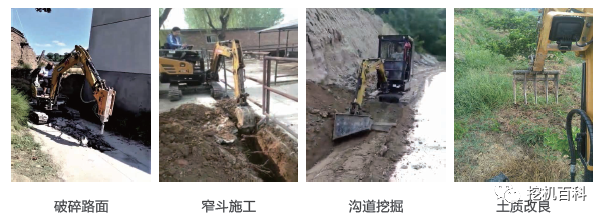

• Standard auxiliary pipes and cut-off valves can be directly installed as auxiliary tools such as crushing hammers, and originally adapted narrow bore, wide bore, and weed brushes, with different tools and greater efficiency. Housing renovation, landscaping, vegetable sheds, trench excavation and soil improvement can be done

3. A deflable device

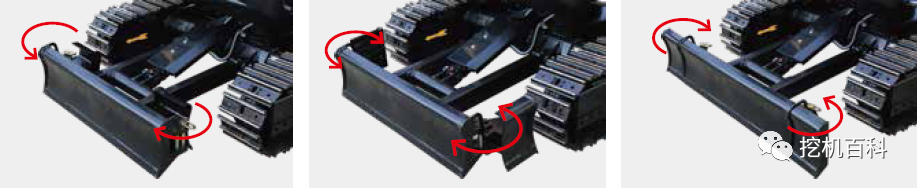

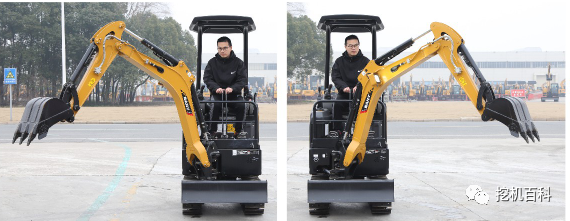

• The deflection working device range is: 625mm left, 400mm right, both sides can easily dig to the outer edge of the track,

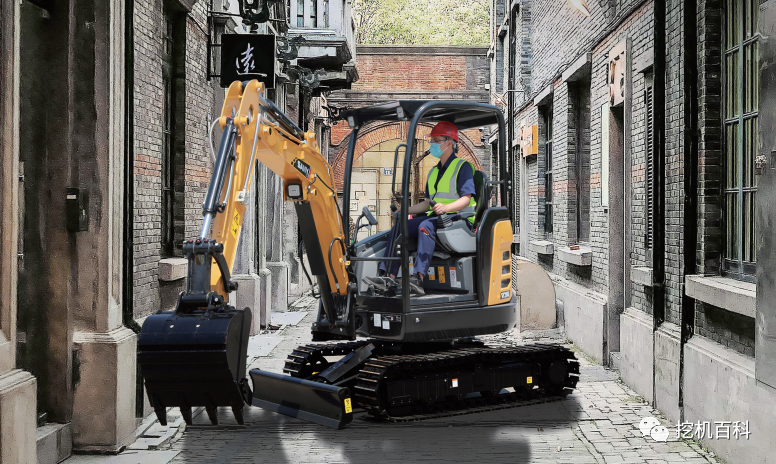

• You can operate in space-limited locations such as wall corners.

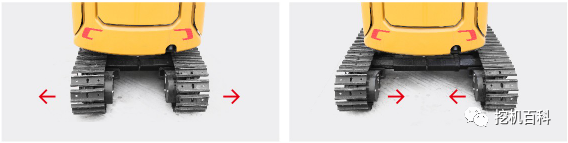

4. Stretchable walking rack

• The width adjustment range of the retractable walking frame is 980mm ~ 1350mm, which improves the stability of the whole machine.

• The interchange of steel tracks and rubber tracks can be achieved to meet the needs of various work conditions.

5. Rotatable earth shovel

• The rotary inserted bulldozer can ensure passability, so that the excavator can easily pass through the working space of less than 1 m, and improve the working efficiency.

Functional setup

Engine:

• Yanmar 3TNV80F

• 12V-55A Hair Motor

• Dry double filter air filter

• Cylindrical lubrication oil filter

• Bulk fuel filter

• The engine warms up

• Oil cooler

• Fan curtain

• Isolated engines

• 21L fuel tank

The lower walking body:

• Walking motor pads

• Performance-oriented tightening of institutions

• drive wheel

• Double shoulder support wheel

• 300mm wide steel tracks

• The bottom panel of the lower carriage frame

• High-strength rolling support

• Ground plates

Hydraulic system:

• Lead switch control rod

• Energy Storage

• Road 1 auxiliary oil road

• Hydraulic oil cooling

• 21L hydraulic oil tank

• Ground shovel oil cylinder hydraulic lock

• Steering cylinder hydraulic lock

○ Single / Two-Way Switching valve

Driver's Room:

• Detachable driving shelter

• Stretchable seat belt

• Adjustable levitating seats

• Feet boards, floor mats

The lower walking body:

• 230mm wide steel track

• Foldable bulldozer blade

• Walking at double speed

• Stretchable Get Out of the Car

Electrical control system:

• 12V Power Supply Interface

• Power main switch

Alarm system:

• The oil pressure is too low

• Fuel levels are too low

• The coolant temperature is too high

• Filter blockage

• Voltage below level

• The voltage is too high.

Others:

• 60Ah battery

• Lockable rear hood

• Lockable fuel filling cover

• Left and right armcases

• Walking direction markers on the walking rack

• Working lights

Supervisory control system instrument:

• LED Display Control Panel

• Fault diagnosis and alarm system

• Hour gauge, fuel level gage

• Engine coolant temperature

Optional devices:

• Rubber trainers

• 250mm 窄斗

• Multifunctional handle + electrical interface

• Walking alarm device
