SANY SY16C Classic inheritance, brand new upgrade

Summary

Flexible and efficient and versatile

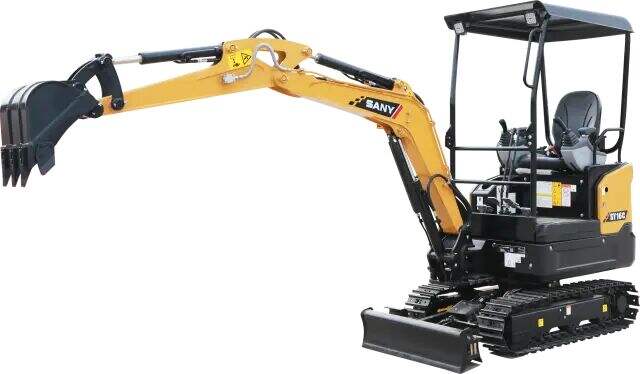

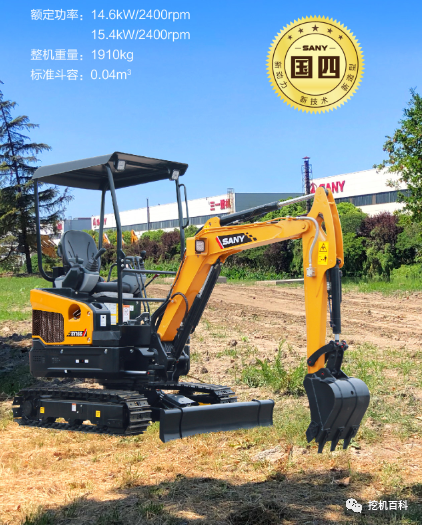

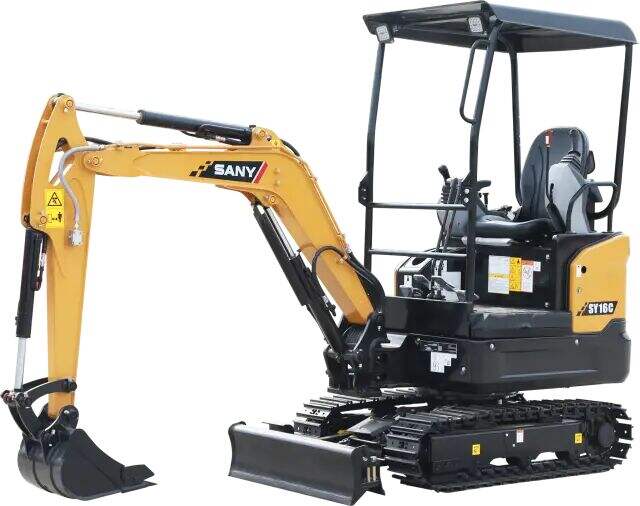

SY16C is a 1-2T class mini excavator product created by Sany Heavy Machinery . It has won the " Construction Machinery User Satisfaction Award . "

SY16C is upgraded around " new power , " " new shape " and " new technology . " It is faster and more efficient . The detail design is well thought out , and a variety of attachments and configurations are available , making it a versatile mini excavator .

Main technical specifications:

Configuration parameters

Standard: ● Option: ○ Reference: *

Bucket digging force 16.6kN

Arm digging force 10 kN

Rotation speed 10 r / min

Walking speed 4.0 / 2.7 km / h

Slope ability 58 per cent

Ground specific voltage 29.1kPa

Powertrain:

Engine Yanmar 3 TNV80F / Kubota D1105

Frontal fixed power 14.6kW / 2400rpm / 15.4kW / 2200rpm

Displacement 1.267 L (Yanmar) / 1.123 L (Kubota)

Emissions Standards Country IV

Hydraulic system:

Technical route load-sensitive flow distribution system

Working appliance:

●0.04 m³ 铲斗

The chassis system and structure:

230mm track (steel / rubber)

• 3 axles on each side

• 2 chain wheels on each side

Oil and water injection:

Fuel Tank 23 / 20 L

Hydraulic Tank 21 L

Engine oil 3.4 / 3.5 ~ 4.5L

Antifreeze 4.5L

Final Drive 2 × 0.33L

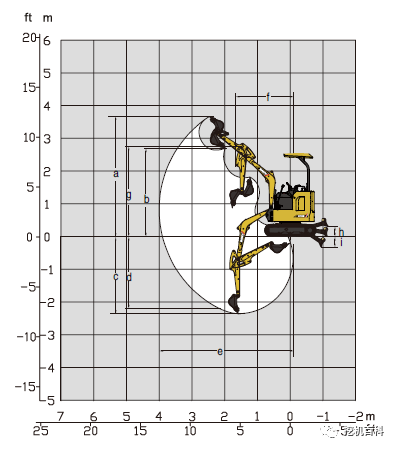

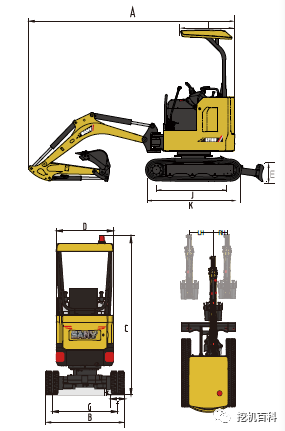

Operational scope:

A. Maximum excavation height 3665 mm

B. Maximum unloading height 2635 mm

C. Maximum excavation depth 2360 mm

D. Maximum vertical arm excavation depth 2215 mm

E. Maximum excavation radius 4000 mm

F. Minimum radius of gyration 1655 mm

G. Maximum height at minimum radius of gyration 2745 mm

H. Maximum ground clearance of bulldozer lift 310 mm

I. Maximum depth of bulldozer down 320 mm

Rh / lh. Maximum bucket offset 350 / 595 mm

New upgrade - superior performance

1. Powertrain:

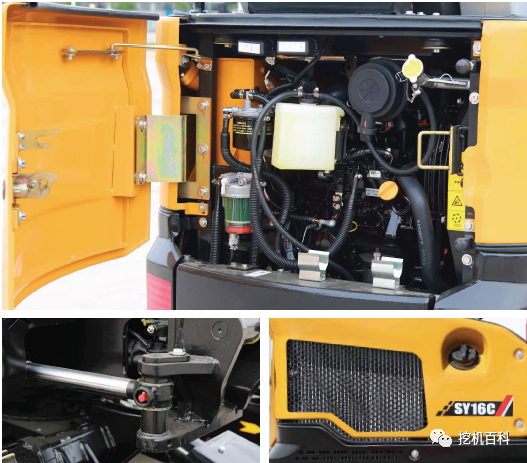

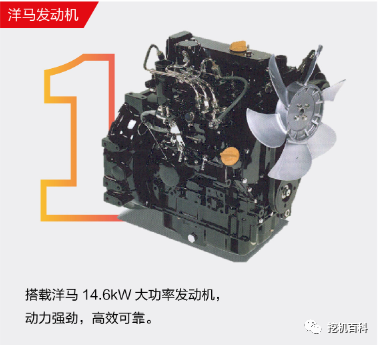

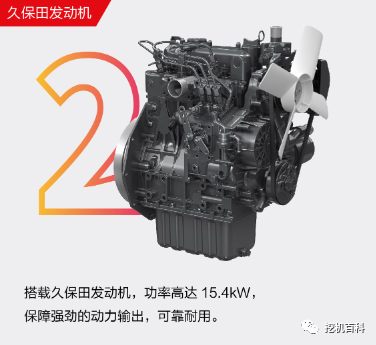

• SY16C can provide two kinds of power solution, both to meet the national four emission standards, powerful, reliable and durable, to meet the customer's diversified power needs.

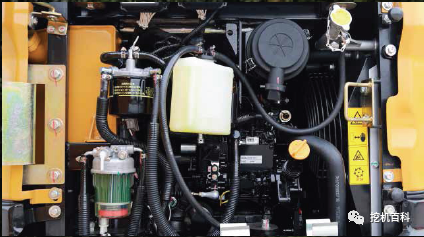

• Using a high-precision oil-water separator with a filter, the water can be separated while effectively filtering impurities in the fuel, providing multiple protection for the engine and extending the service life of the engine.

2. Hydraulic system:

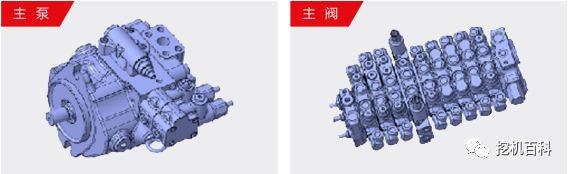

• Powered by well-known brand pump and valve systems, the reliability is high, pressure loss is small, compound action is smooth, and the auxiliary valve electric control is upgraded *, making auxiliary control more convenient and creating greater value for customers.

3. Load-sensitive traffic allocation system:

• Can provide and allocate traffic according to the needs of the system for traffic, meeting the requirements of execution element speed up and compound action

Optimization of structural components - durability

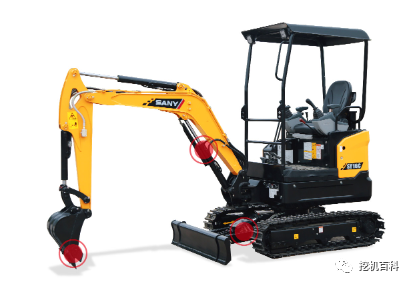

1. Upgrade the cockpit and arm fuel tank

• The cockpit is mounted horizontally, making it easy to disassemble. The length is increased and the service life is extended.

• The arms cylinder is 15% thicker, increasing lift capacity.

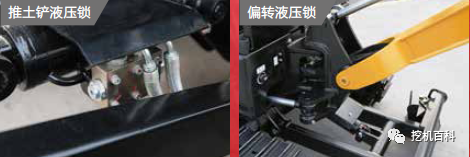

2. Standard hydraulic lock

• Increase the deflation hydraulic lock and the bulldozer hydraulic lock to enhance the maintenance function of the bulldozers and work unit.

3. Improved excavatoring and walking power

• The digging force of bucket is 16.6kN, the digging force of bucket rod is 10kN, and the work is more powerful.

• The walking strength increased by 13 per cent and the speed increased by 12-17 per cent.

Upgrade the driver's room - a new experience

1. Seat upgrade:

• Seat installation height reduced by 50 mm, high back seat, retractable

• Seat belts to relieve fatigue.

• The surface temperature of the covering material is greatly reduced, which greatly improves thermal comfort.

2. Optimize key switches and power interfaces:

• The key switch adds a lock cover to prevent Rain Water from entering. The 12V power supply interface is changed from the small hole to the general hole, which improves the adaptability, changes the position, and is easier to operate.

3. The handle electric control upgrade:

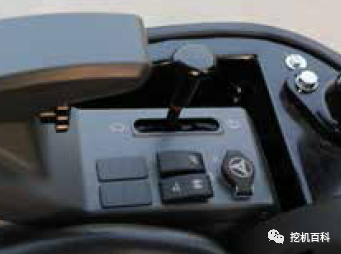

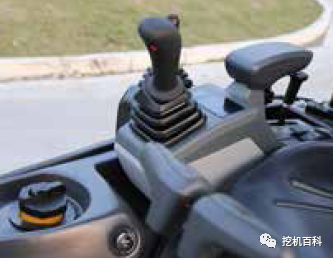

• The earth shovel handle incorporates high and low speed switching switches, the waterproof and dust prevention of the entire vehicle line beam is upgraded, and the electrical system is optimized and upgraded to improve the operational experience.

• The right hand handle was upgraded to a multifunctional handle with integrated fracture function, and the fracture control was upgraded from the foot to manual proportion control, accurate and comfortable.

4. The convertible upgrade:

• Improve comprehensive disassembly of the cape. With 3 sets of fasteners, it is possible to complete the rapid disassembly of the convertible and efficiently cope with low-lying operational environments.

Trinity Digging - A Multi-Faced Expert

1. Multiple uses:

• Two-way auxiliary tubes with large aperture, large flow and high pressure can be equipped with different instruments for a variety of operations, and the operation is convenient and quick. (Classic version auxiliary piping is optional, taking full account of customer needs)

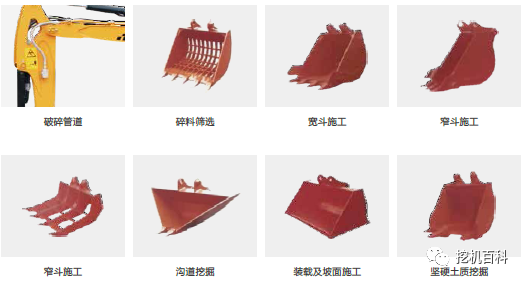

• Sany Min digging originally had narrow trenches, wide trenches, weed rakes and other tools, with different working conditions and different tools, and higher efficiency.

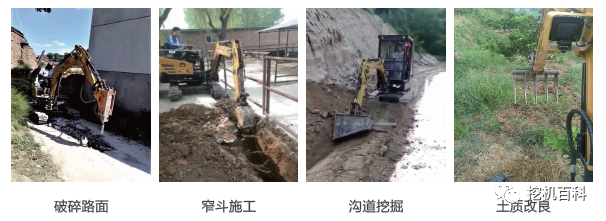

2. Applicable scenarios:

• Standard auxiliary pipes and cut-off valves can be directly installed as auxiliary tools such as crushing hammers, and originally adapted narrow bore, wide bore, and weed brushes, with different tools and greater efficiency. Housing renovation, landscaping, vegetable sheds, trench excavation and soil improvement can be done

3. A deflable device

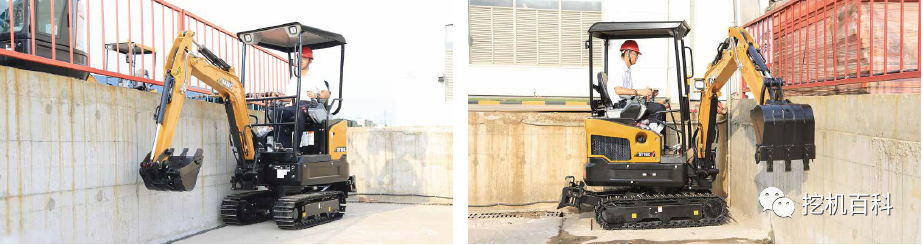

• The range of deflectable working device is: 595 mm left, 350 mm right, both sides can easily dig to the outer edge of the track,

• You can operate in space-limited locations such as wall corners.

4. Stretchable walking rack

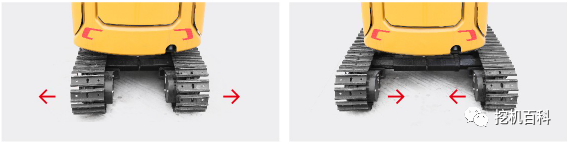

• The width adjustment range of the retractable walking frame is 980mm ~ 1350mm, which improves the stability of the whole machine.

• The interchange of steel tracks and rubber tracks can be achieved to meet the needs of various work conditions.

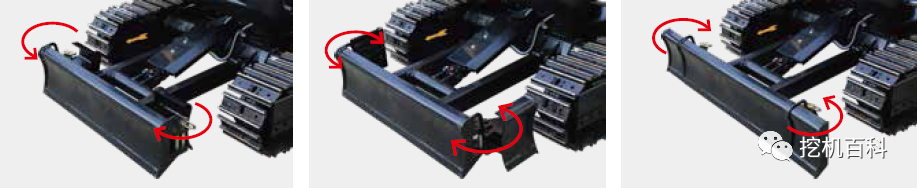

5. Rotatable earth shovel

• The rotary inserted bulldozer can ensure passability, so that the excavator can easily pass through the working space of less than 1 m, and improve the working efficiency.

• Can easily switch between 980mm-1165mm-1350mm three widths.

Functional setup

Engine:

• Oil and water separator with filter cartridge

• Road 1 auxiliary oil road

• Auxiliary tube control (manual proportions / pedals)

• Dry double filter air filter

• Cylindrical lubrication oil filter

• Bulk fuel filter

• The engine warms up

• Fan shield

• Isolated engines

• 12V-1.4kW Starter Motor

The convertible:

• 4 columns detachable convertible hood

• Stretchable seat belt

• Back and rear seats can be adjusted up and down

• Feet boards *, floor mats

• High-back seat

Front-end working devices:

• Longer poles

• Remove the teeth of the shovel.

• Welding deflection joint

Driver's Room:

• Detachable driving shelter

• Stretchable seat belt

• Adjustable levitating seats

• Feet boards, floor mats

The lower walking body:

• Ground shovel hydraulic lock - Classic version optional

• Reverse Hydraulic Lock - Classic Edition Option

• Ground Gear Walking Switching High and Low Speed - Classic Edition Option

• The chassis width is variable

• The width of bulldozers can vary

• The earth shovel widening part can be rotated

• Walking at double speed

• Stretchable Get Out of the Car

• Trajector holes

• 230mm wide steel track

Hydraulic system:

• Keep your arms around.

• Fighting Stick Keeps -- Classic Edition Without

• Lead switch control rod

• Energy Storage

• Hydraulic oil cooling

• Oil tank protection

• 21L hydraulic oil tank

• The arms hold the valve

Supervisory control system instrument:

• LED Display Control Panel

• Fault diagnosis and alarm system

• Hour gauge, fuel level gage

• Engine coolant temperature

Electronic control system instrumentation:

• 12V Power Supply Interface

• Power main switch

Alarm system:

• The oil pressure is too low

• Fuel levels are too low

• The coolant temperature is too high

• Filter blockage

• Voltage below level

• The voltage is too high.

Others:

• 60Ah battery

• Lockable rear hood

• Lockable fuel filling cover

• Left and right armcases

• Walking direction markers on the walking rack

• Working lights
