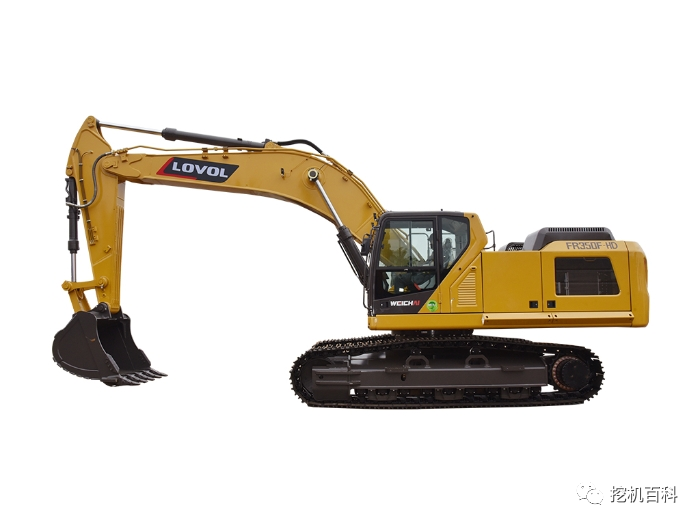

LOVOL FR350F-HD Classic inheritance, brand new upgrade

LOVOL FR350F-HD Classic inheritance, brand new upgrade

Summary

Harmony of earth and stone - pioneers in construction

FR350F-HD is Weichai + Linde gold hydraulic powertrain products. Weichai high-end H platform engine thermal efficiency leads the industry, the minimum fuel consumption of 180 g / kWh. The overall operating efficiency of the machine is 15% higher than that of the E generation, and the fuel efficiency is more than 20% higher.



Main technical specifications:

Power: 260 / 2000 kW / rpm

Machine weight: 37000 kg

Bucket capacity: 1.9 m3



Configuration parameters



Standard: ● Option: ○ Reference value: * To be refined: /



1. Performance parameters:



force	Traction force	252	kN·m
	Bucket Digging Force - ISO	224.5	kN
	Bucket Rod Digging Force - ISO	193	kN
	Rotation torque	137	kN·m
speed	Reverse speed	9.5	r/min
	行走高速/低速	5.1/	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	degree
	Ground is higher than pressure	/	kPa



2. Powertrain:



Engine Model	潍柴 WP10.5H
rated power	260/2000	kW/rpm
Maximum torque	1600/1300~1500	Nm/rpm
discharge volume	/	L
Emissions Level	Country 4
Emissions technology routes	DOC+DPF+SCR





3. Hydraulic system:



The technical route	Electrically controlled positive flow
Main Pump Brand / Model	Lindh /
Main pump discharge	210	cc
Main valve brand / model	Lindh /
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*357	L
Maximum working oil pressure	37.3	MPa
Maximum pressure of the leading system	3.9	MPa







4. Working appliance:



Move your arms	6500	mm
Fighting clubs	2800	mm
The shovel fighter looks	1.9	m³
A smashing hammer	175	mm





5. The chassis system:



Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	2	individual
Number of support wheels - one side	9	individual
Running board width	600	mm





6. Amount of oil and water added:



Fuel tank	670	L
Hydraulic system	465	L
Hydraulic fuel tank	265	L
Engine oil	30	L
Antifreeze Solution	30	L
Walking brake gear oil	2*6.3	L
Reverse gear oil	8	L

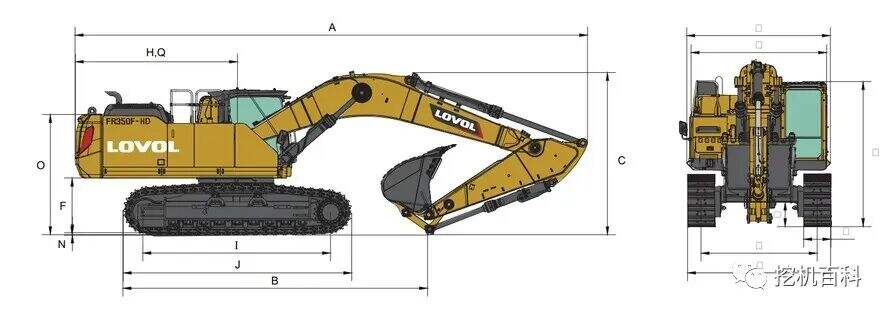

7. Form factor:



A	Total length	11350	mm
B	Landing length (transportation)	6760	mm
C	Total height (to the top of the arm)	3615	mm
D	Total width	3200	mm
E	Total height (to the top of the cab)	3246	mm
F	Gap between weight and ground	1224	mm
G	Minimum distance from the ground	516	mm
H	Tail pivot radius	3610	mm
I	Track grounding length	4040	mm
J	Track length	4950	mm
K	gauge	2590	mm
L	The chassis width	3190	mm
M	Trackboard width	600	mm
N	High teeth	36	mm
O	Height of the machine cover	2690	mm
P	On-platform width	3025	mm
Q	Distance from center of turning circle to rear end	3610	mm

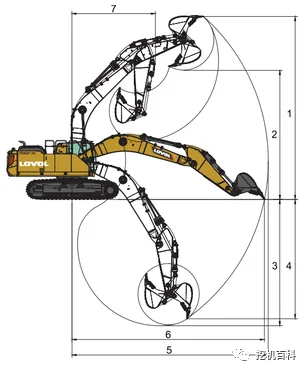

8. Operational scope:



1	Maximum excavation height	10025	mm
2	Maximum removal height	7070	mm
3	Maximum excavation depth	6960	mm
4	Maximum vertical excavation depth	4780	mm
5	Maximum excavation radius	10770	mm
6	Maximum excavation radius of the operating surface	10555	mm
7	Minimum rotation radius	4430	mm



Harmony of earth and stone - pioneers in construction

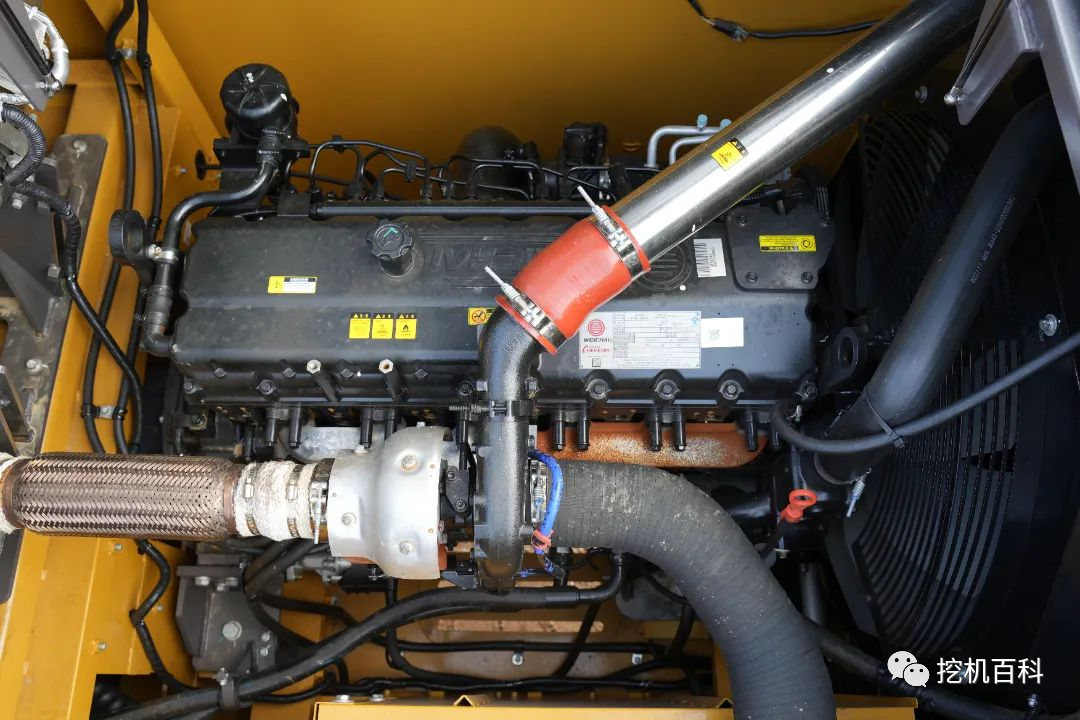

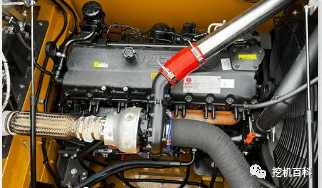

• The engine leads the industry in thermal efficiency, with minimum fuel consumption of 180 g / kWh. The overall operating efficiency is increased by 15% compared with the E generation, and the fuel efficiency is increased by more than 20%;

• Weichai high-end H platform four engine life up to 30000hours;

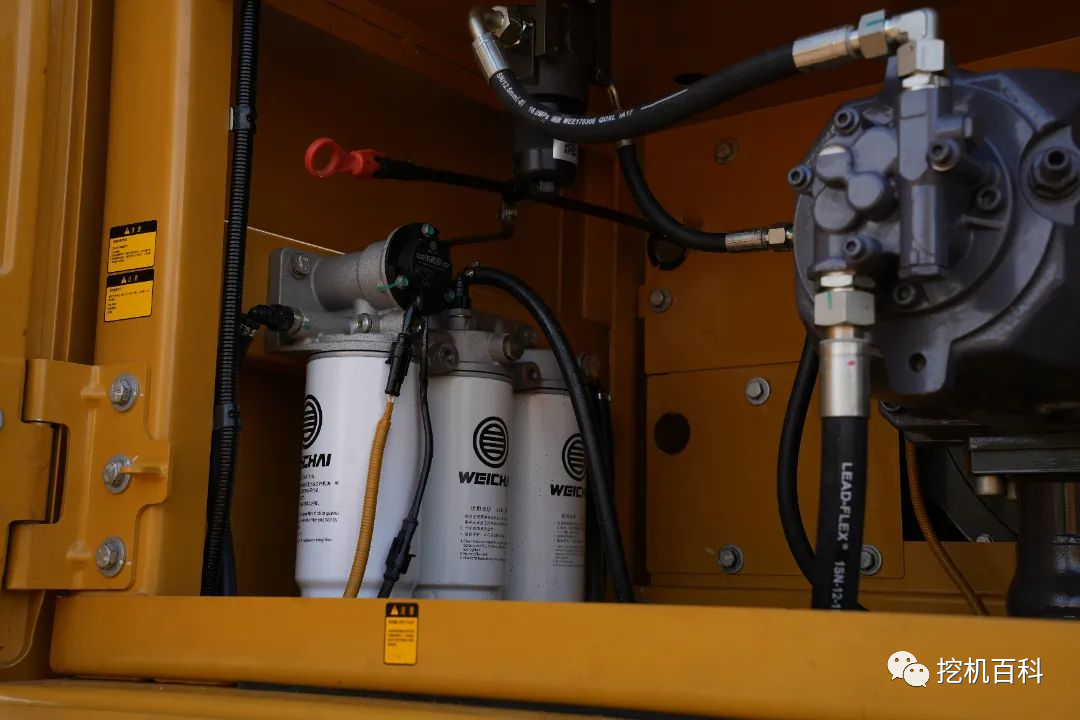

• Filter and burner filter are transmitted far away, maintenance is convenient, and standard fuel water is cold treasure;

• A high-capacity oil bottom shell that meets the 35 ° inclination requirement and a 500-hour oil change cycle.





• The main pump discharge increased by 12.5%, using a piston bag slipper counterweight structure, a 21 ° pendulum technology, a compact structure and a high power density;

• Double variable cylinder precise vertical control, good consistency, faster response speed, higher accuracy of main pump discharge output, and accurate output of required flow.





• The diameter of the spool of the main valve is increased by 21.4%, and the flow capacity is increased by 50L / min.

• Linde exclusively tailor-made tuning of internal channels optimizes for less pressure loss and better response.

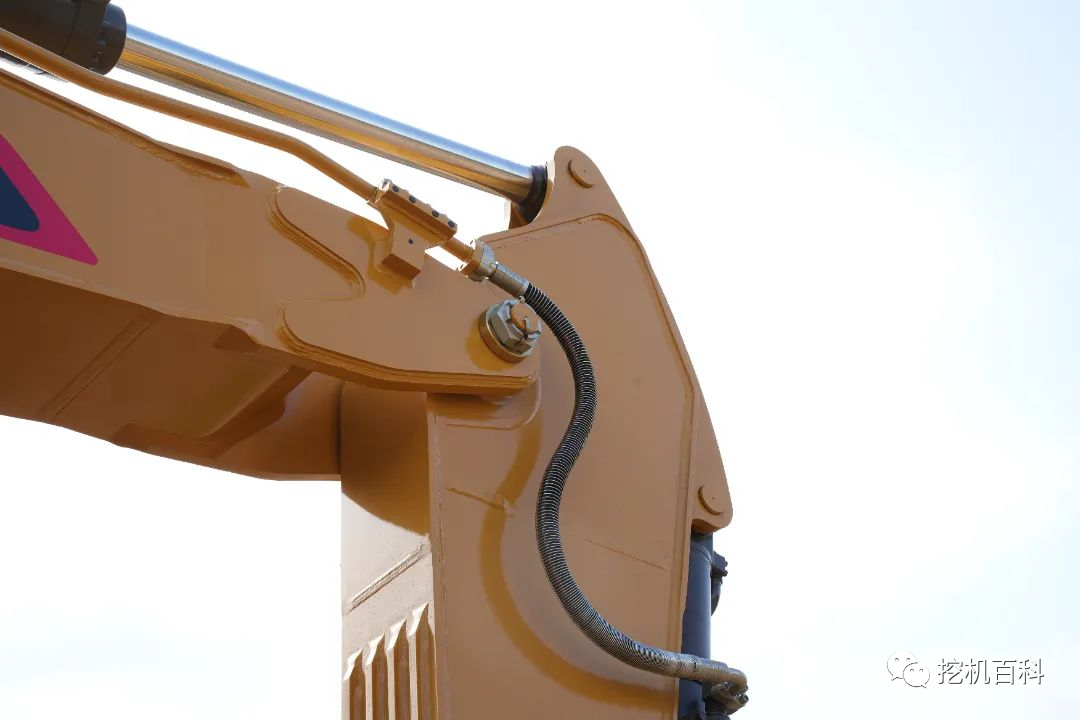

• The arms use a large cross sectional three-sectional design, the tail transitions to a cross sectional, and a reinforcing plate is added inside the middle section.

• The cockpit has a large sectional design, the front and back axles are widened at the opening, the sectional is widened by 11%, and the overall strength and stiffness are improved.

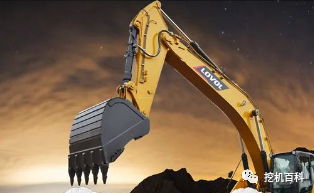

• Utilizes a high-capacity rock-specific shovel, which is optimized and upgraded, and has less resistance to insertion.





• The pivot platform uses a heavy load architecture, reducing stress by more than 40%.

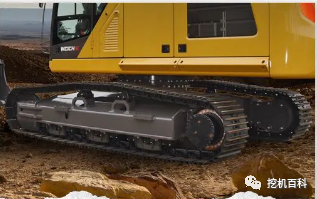

• The chassis uses a mine-specific chassis with a 45 tonne strengthened four-wheeled belt.





Smart interactions, safe and comfortable

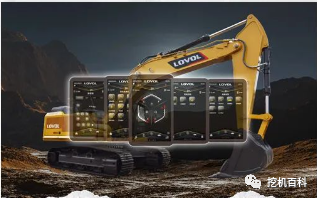

• The newly developed Levero intelligent operating system enables power system management, intelligent interaction, condition self-identification, auxiliary operation, and personal customization.







• The newly developed F generation driving room, the appearance is novel, the overall layout is in line with the machine engineering, improve the visual experience, more storage space, more comfortable driving;

• Panoramic skylights break out of conventional construction machinery concepts;

• Equipped with 10.1 inch touch display screen, one button start switch and other equipment, easy to operate;

• New wind tunnel and vent design, increased storage space;

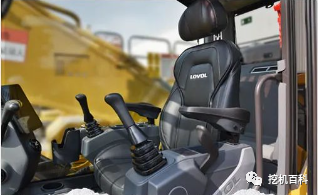

• The driving room is equipped with high-quality mechanical suspension seats, making driving comfortable and productive.





4. Easy maintenance:

• New walkway design makes it easier to get in and out of the car.

• Standard rear-view camera to improve driving safety.

• The filter uses Weichai 3D nanny filter, which is simple to fix and easy to maintain.
