XCMG XE650GK Classic inheritance, brand new upgrade

XCMG XE650GK Classic inheritance, brand new upgrade

The Very Large Excavator



XE650GK

Main technical specifications:

Power: 563 / 2000 kW / rpm

Machine weight: 64800 kg

Bucket capacity: 4 ~ 4.5 m3



Overview

The XE650GK is a new excavator in the G series of Xugong , which has been upgraded in terms of power , emission and operating performance . It has high efficiency , low fuel consumption and intelligent advantages , which are loved by customers .

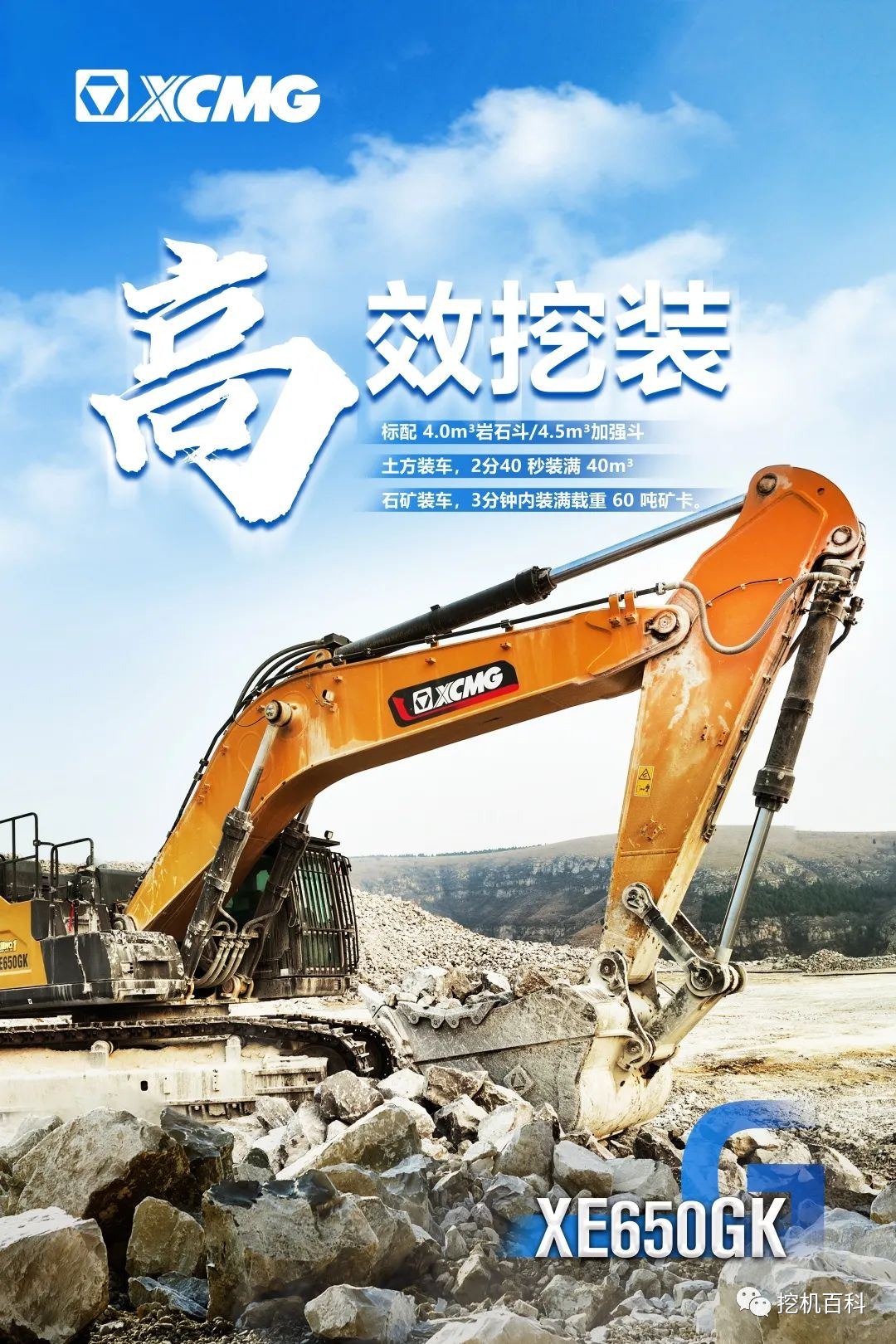

• In the surface stripping operation of Inner Mongolia coal mine, XE650GK is equipped with 4.5 square bucket, less than 3 minutes, only 11 bucket can be filled with 40 square wide-body unloading car, the average fuel consumption is not more than 40L / h.

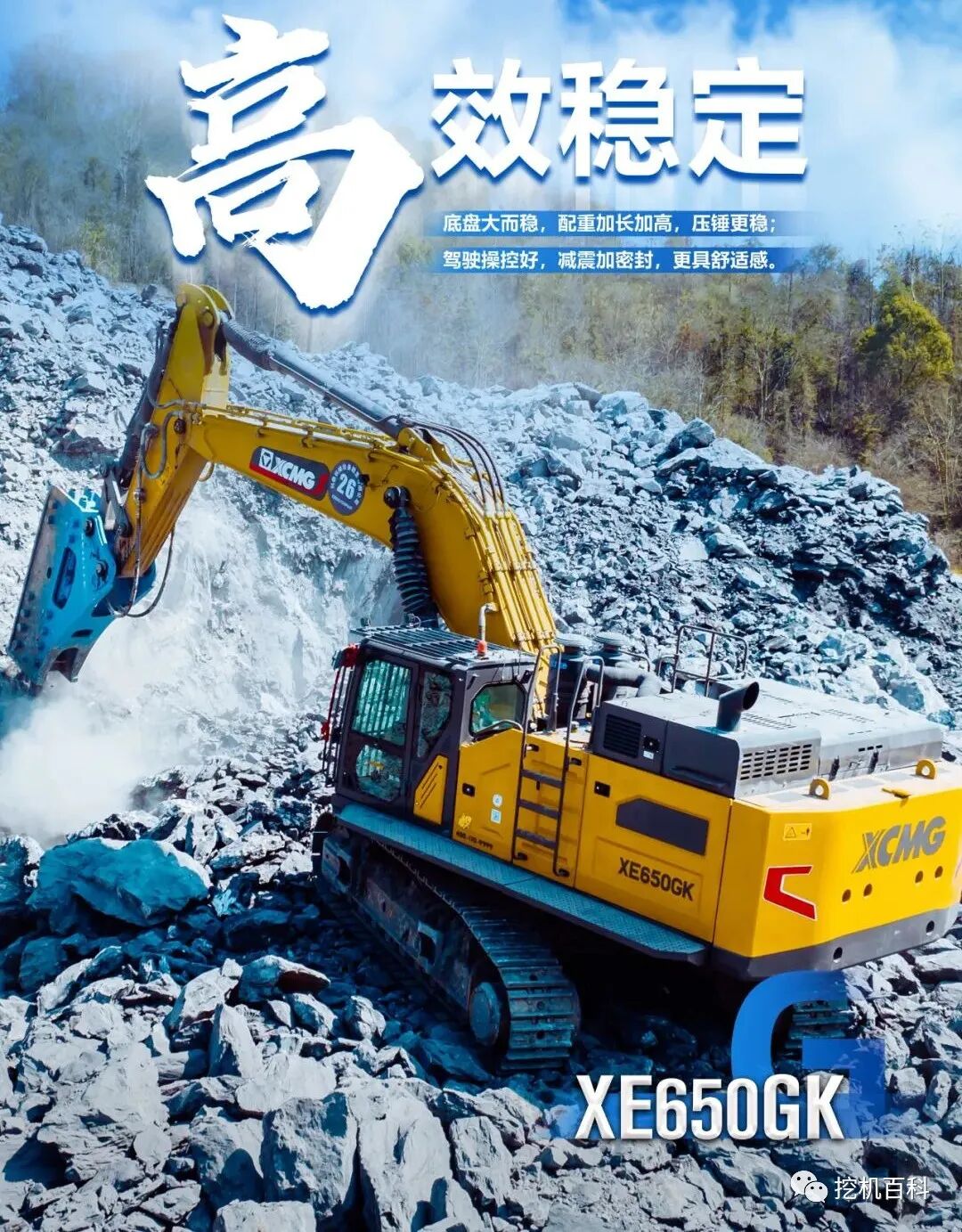

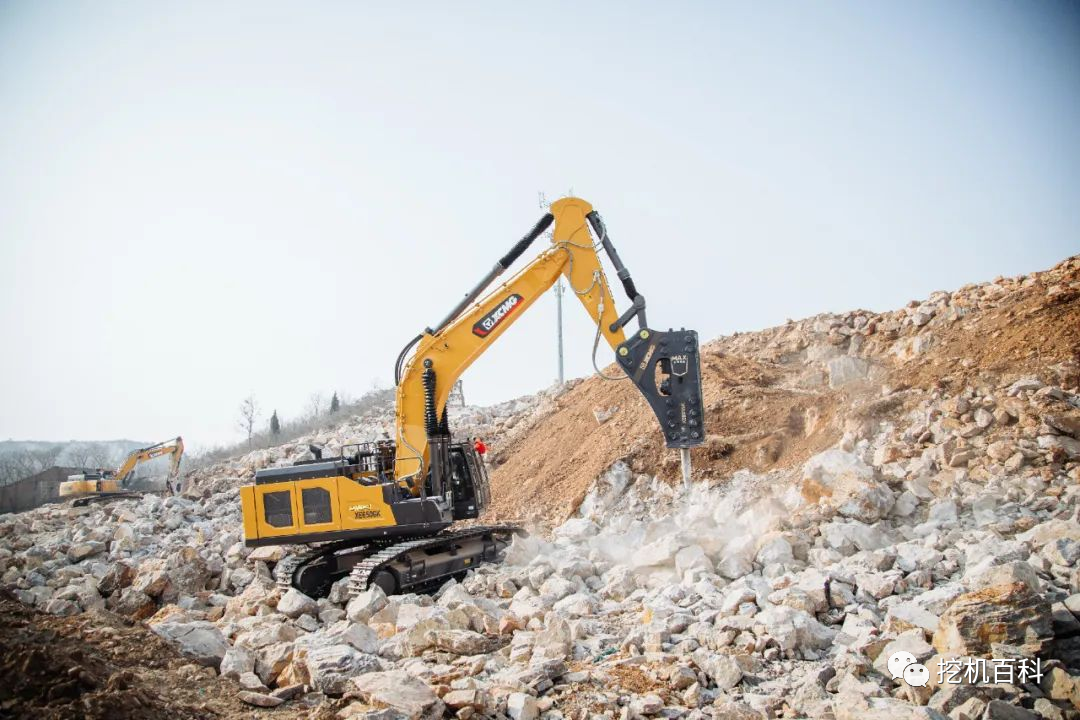

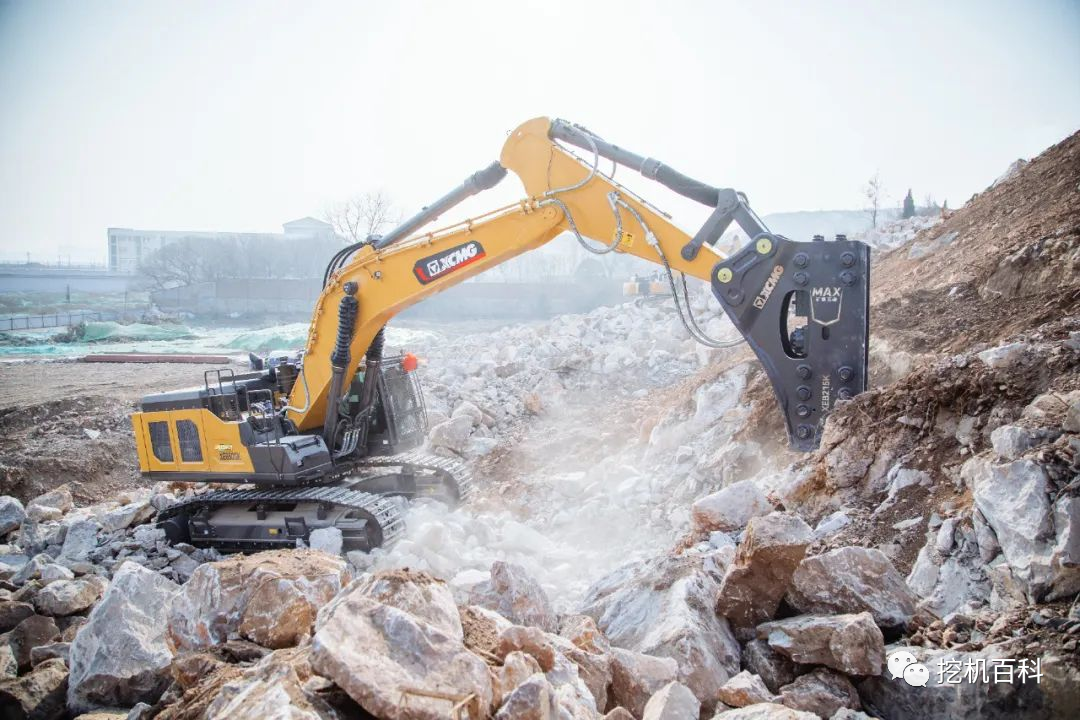

• In the crushing operations of mines such as Shandong and Jiangxi, 2.5m special crushing rods + 215 specification crushing hammers are equipped with high stability, non-ballistic hammers, higher capacity than the same tonnage products at the site, and an average fuel consumption of no more than 38L / h.



Configuration parameters

Standard: ● Option: x To be perfected: / Reference value: *





1. Performance parameters:



force	Traction force	/	kN·m
	Bucket Digging Force - ISO	382	kN
	Bucket Rod Digging Force - ISO	/	kN
	Rotation torque	/	kN·m
speed	Reverse speed	/	r/min
	行走高速/低速	/	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	/	degree
	Ground is higher than pressure	/	kPa



 2. Powertrain:



Engine Model	Cummins QSM15?
rated power	563/2000	kW/rpm
Maximum torque	/	Nm/rpm
discharge volume	15	L



3. Hydraulic system:



The technical route	Fully electrically controlled hydraulic system
Main Pump Brand / Model	Kawasaki
Main pump discharge	280	cc
Main valve brand / model	川崎/36E
Reverse motors and gearing brands / models	Kawasaki	Double turnaround
Walking motors and gears brands / models	/

4. Working appliance:



Move your arms	7000	mm
Fighting clubs	2900	mm
Short clubs	2500	mm
The shovel fighter looks	4. 0 Rock Bucket	m³
	4.5 Intensify Fighting	m³
A smashing hammer	215	mm

 5. The chassis system:



Trackless chassis
Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	3	individual
Number of support wheels - one side	/	individual



6. Amount of oil and water added:



Fuel tank	/	L
Hydraulic system	/	L
Hydraulic fuel tank	/	L
Engine oil	/	L
Cooling system	/	L
Walking brake gear oil	/	L
Reverse gear oil	/	L

 7. Form factor:



A	Total Length (at the time of transport)	/	mm
B	Total width	/	mm
C	Total height (at the time of transport)	/	mm
D	Upper width	/	mm
E	Total height (top of the cab)	/	mm
F	Standard track plate width	/	mm
G	gauge	/	mm
H	Minimum distance from the ground	/	mm
I	Tail pivot radius	/	mm
J	Track grounding length	/	mm
K	Track length	/	mm

8. Operational scope:



a.	Maximum excavation height	/	mm
b.	Maximum removal height	/	mm
c.	Maximum excavation depth	/	mm
d.	Maximum excavation radius	12240	mm
e.	Minimum rotation radius	/	mm
f.	Maximum height at minimum rotation radius	/	mm





G is higher.

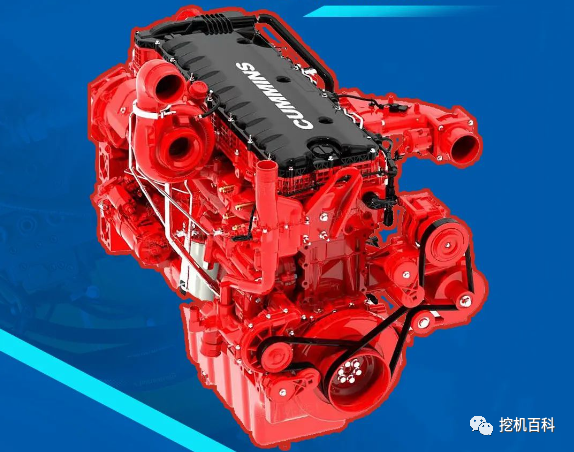

• Cummins high-power engine with 100 tons of power and lower fuel consumption;

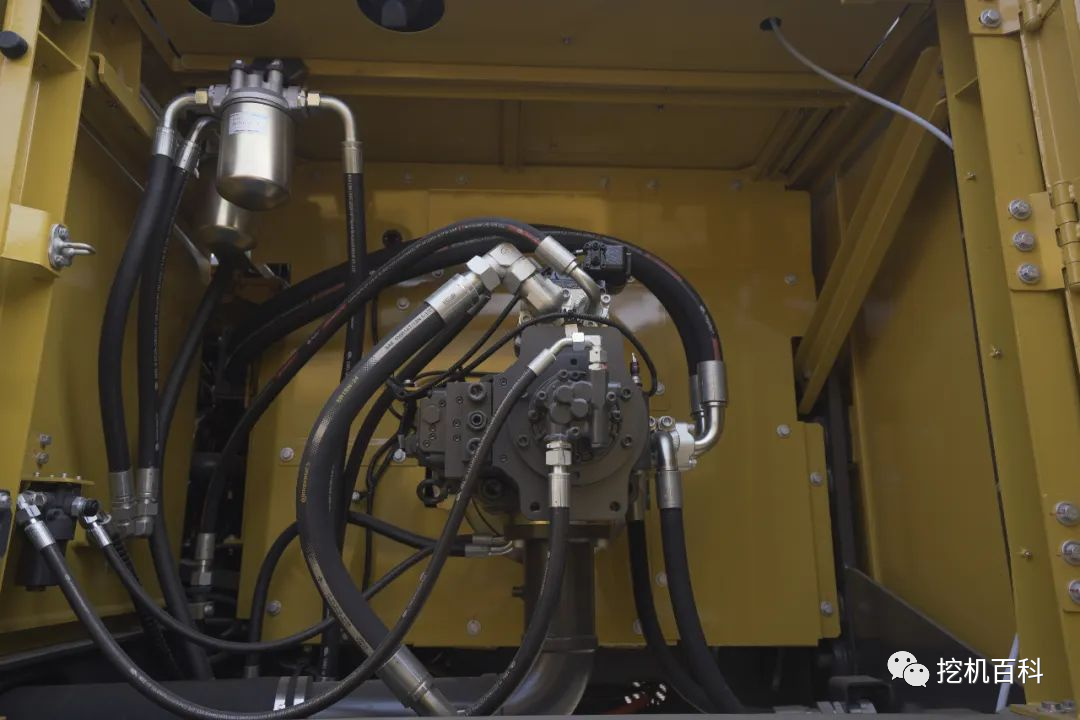

• Import Kawasaki large-discharge main pump with sufficient flow, fast speed and high efficiency;
• Kawasaki imported a large-throughput main valve, which has a smoother compound motion and better handling.
• Double independent and fully combined heat dissipation system, water dissipation and oil dissipation are independently controlled, and the heat dissipation performance is better.





G quality experience

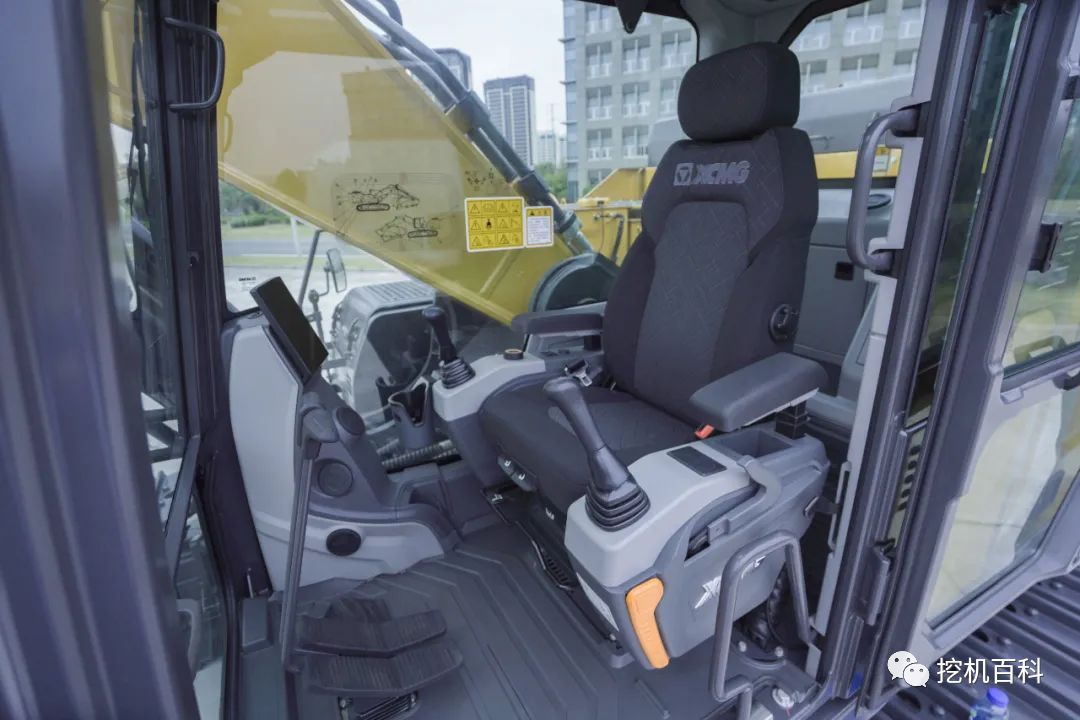

• The positive pressure seals the driver's room, prevents dust infestation, reduces noise by 1.5 decibels, and makes the working environment more refreshing and comfortable.
• Ergonomic seats, pedal designs, light grips, 15% lower torque, and more effortless handling.
• Equipped with four sunshades and a push-and-pull window on both sides, it provides all-round care.
• One-click start switch, which is easy and fast to start and shut down.
• 8 inch touch high-definition instrument , display clear , smooth operation , the whole car information at hand .
• Bluetooth telephone function, one-click calls, work and talk without delay.
• High brightness LED lights, photoelectric conversion efficiency increased by more than 5 times, compared to the traditional halogen light brightness increased by more than 3 times, more bright at night, a wider range of illumination.





• The new electrically controlled positive flow hydraulic system is delivered on demand and pump control is more precise.

• With Kawasaki's large torque double rotation, the rotation drift is small and the parking is smoother.



G To Care





• High-strength heterogeneous steel is a fully pressed cab, fitted with roof protection and front protection, ensuring the safety of the driver in all respects.

• In the crushing work, add a cylinder protective case and fender to effectively prevent the splashing of gravel under the crushing process.

• The emergency stop switch can quickly disconnect the power of the entire machine, stop the operation of the equipment, and protect the safety of the person and equipment.

• Large size touch screen instrument, integrated menu display, delicate screen;

• High-definition rear camera, 140 ° view angle, full color design, automatic white balance adjustment, and real-time monitoring of rear-end conditions.



G Limit Applications







• Long work assembly design, wide range of operation, high efficiency of loading, and a variety of shovel combinations to meet the needs of mining, earth and stone engineering, soft coal bed digging and packing.

• Standard 215 hammer, hardness of more than 60 trillion Pa rock bottom rock, bottom picking construction adaptability, high efficiency;

• Add a high-capacity, low-temperature double battery, increase the capacity by 20%, and start at -30 ° C with no worries.
