Large excavator

333

Summary



Maximized performance for demanding applications .

The Cat ® 333 excavator offers greater digging power and bucket size so you can tackle any job。When operating in harsh application situations, reinforced structures and widened tracks improve stability and durability.The 333 is equipped with an after-treatment system that does not require downtime and complies with China's non-road Tier 4 emission standards .



• The cost per hour is low

The machine uses intelligent mode, a high fuel efficiency hydraulic system and a longer maintenance period, which helps to reduce overall costs.

• Up to 15% greater excavation power

The machine's power reached its optimum level and the size of the shovel increased, resulting in a 15% increase in excavation power.

• Designed for demanding application situations

The machine's reinforced construction, super-large shovel joints to improve durability, and wide track lengths to improve stability help you meet demanding operational requirements.



Main technical specifications:

Power: 223.7kW

Machine weight: 32900 kg

Bucket capacity: 2 m3

* Load extended chassis system, load stretching arm, load R3.2 (10 '6 ") barrel, load 2 m3 (2.62 yd3) shovel, 600 mm (24") three-clawed track plate and 7700 kg (16,980 lb) weight.



Configuration parameters



Standard: ● Option: x To be perfected: / Reference value: *



1. Performance parameters:



force	Maximum traction force	248	kN·m
	Bucket Digging Force - ISO	197	kN
	Standard Arm Digging Force - ISO	164	kN
	Digging Force for Short Hopper - ISO	147	kN
	Rotation torque	111	kN·m
speed	Reverse speed	11.6	r/min
	Traveling at high speed	5.9	km/h
noise	Operator voice pressure （ISO 6396:2008）	76	dB（A）
	Average external sound pressure （ISO 6395:2008）	103	dB（A）
Other	Ability to climb slopes	35	degree
	Ground is higher than pressure	63	kPa





2. Powertrain:



Engine Model	Cat 7.1
rated power	223.7	kW
discharge volume	7.01	L
Emissions Level	Country 4
The technical route	DOC+DPF+SCR



3. Hydraulic system:



Fully electrically controlled hydraulic system
Stress:
Working pressure - equipment	35000	kPa
Working pressure - equipment - pressure increase	38000	kPa
Working Stress - Driving	35000	kPa
Stress at work - turnaround	29800	kPa
Traffic:
Main System	560	L/min
Reverse System	/	L/min
Fuel tank:
Armed cylinder: cylinder length - stroke	140-1407	mm
Bulk cylinder: cylinder length - stroke	160-1646	mm
Shovel oil tank: cylinder length - stroke	145-1151	mm





4. Working appliance:



Move your arms	6150	mm
Standard clubs	3200	mm
Short clubs	2800	mm
The shovel fighter looks	1.64/1.88/1.9/2	m³
A smashing hammer	165	mm





5. The chassis system:



Trackboard width	600/800	mm
Number of trackpads - one side	50	section
Number of support wheels - one side	9	individual
Torch wheel - one side	2	individual
Weight of weight	7700	kg



6. Amount of oil and water added:



Fuel tank	474	L
Hydraulic system	310	L
Hydraulic fuel tank	147	L
Engine oil	25	L
Cooling system	25	L
Urin tank capacity	41	L
Reverse motor gear oil	11.5	L
Walking motor gear oil	4.5*2	L

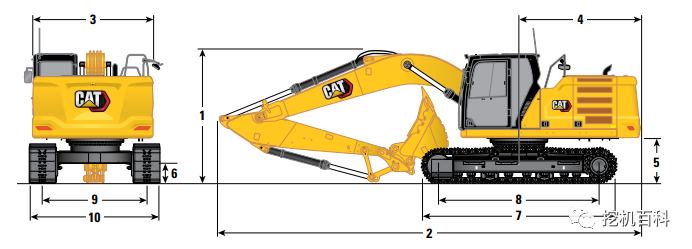

7. Form factor:



		Fighting Stick 1		Fighting Stick 2
		2800	mm	3200	mm
1.	Height of the machine
	Height of the top of the cab	3060	mm	3060	mm
	Total height (at the time of transport)	3650	mm	3580	mm
2.	Machine length	10450	mm	10450	mm
3.	Height of the upper rack	2930	mm	2930	mm
4.	Tail pivot radius	3130	mm	3130	mm
5.	Weight Gap	1120	mm	1120	mm
6.	Gaps between ground level	480	mm	480	mm
7.	Running belt length - center distance of the wheel	3990	mm	3990	mm
8.	Track length - total length	4860	mm	4860	mm
9.	Track length	2740	mm	2740	mm
10.	The chassis width	3340	mm	3340	mm

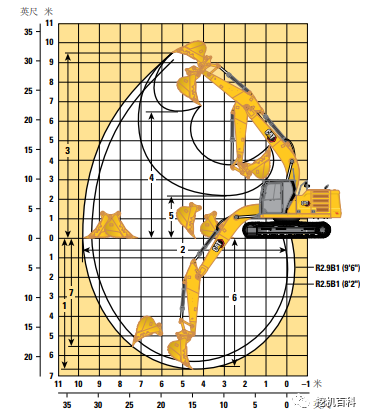

8. Operational scope:



		Fighting Stick 1		Fighting Stick 2
		2800	mm	3200	mm
1.	Maximum excavation depth	6970	mm	7370	mm
2.	Maximum stretch distance of the ground	10390	mm	10680	mm
3.	Maximum mining height	9770	mm	9660	mm
4.	Maximum loading height	6540	mm	6510	mm
5.	Minimum load height	2580	mm	2170	mm
6.	2440mm Flat Maximum Dig Depth	6800	mm	7200	mm
7.	Maximum vertical excavation depth	5270	mm	6240	mm





Functional configuration



Standard: ● Option: ○



1. Troops, clubs, and clubs:



	Standard	Matching
6.15 m（20'2" ) Heavy load stretching arms	●
3.2 m（10'6" ) Load stretcher pole		○
2.8 m（9'6" ) Heavy load stretchers		○
10.2 m（33'6" ) Very long stretching arms		○
7.85 m（25'9" ) Extended stretcher pole		○



2. Electrical systems:



	Standard	Matching
1000 CCA maintenance-free battery (× 2)	●
Centralized Electrical Shutdown Switch	●
Programmable Time Lapse LED Work Light	●
LED chassis lights, left and right extension arm lights, driving room lights	●
High quality ambient lighting suite		○
1000 CCA maintenance-free battery (× 4)		○



3. Engine:



	Standard	Matching
Cat C7.1 Dual Turbo Diesel Engine	●
Strong and intelligent modes	●
Automatic engine speed control function	●
Operating at altitudes up to 4500 m (14,760 ft) and above 3000 m (9,840 ft), the engine power decreases	●
52 ° C (125 ° F) High temperature ambient cooling capacity (with deductions)	●
18 ° C (0 ° F) cold start capability	●
Dual-core air filter with integrated prefilter	●
Electric cooling fan with automatic reverse function	●
Centralized lubrication oil filter and fuel filter	●
Planned analysis of oil sample (S · O · S) sampler	●
-32 ° C (-25 ° F) cold start capability		○



4. Hydraulic system:



	Standard	Matching
The arms and pole regeneration circuit	●
Electronic main control valve with tool control device	●
Automatic hydraulic oil preheating	●
Automatic two-speed travel	●



5. The chassis system and structure:



	Standard	Matching
Lubricating oil to lubricate track joints	●
7.7 mt (16980 lb) Counterweight	●
600 mm（24" ) Double-clawed ground teeth track plate		○
600 mm（24" ) Three-clawed ground teeth track plate		○
800 mm（31" ) Three-clawed ground teeth track plate		○

6. Safety and protective devices:



	Standard	Matching
Maintenance platform equipped with anti-skateboarding and embedded bolts	●
BACK VIEW camera	●
Right- and Side-View Cameras	○
Turnaround alarm	○



7. Driver's Room:



	Standard	Matching
High resolution touch screen monitor	●
Mechanical levitating seat	●
Cat Single Handle		○

8. CAT Technology:



	Standard	Matching
Cat Product Link™	●
Hydraulically powered impact hammer	●





Performance Overview



1. High performance and lower fuel consumption:



• High fuel efficiency allows you to focus on your job and budget.

• The C7.1 engine complies with China's fourth non-road emission standard and can use biodiesel.

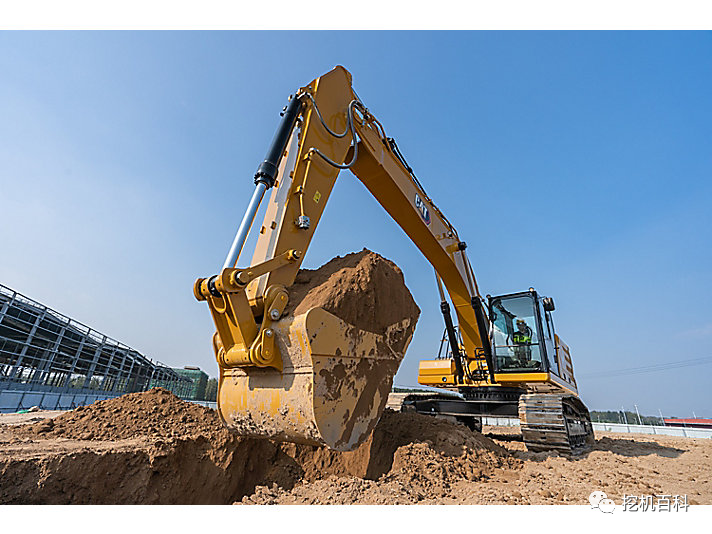

• The large shovel capacity means that materials can be moved more quickly with fewer operating trips.

• Compared to 330, the thrusters and poles are more powerful, and the excavation power increases by as much as 15 percent.

• Provides both powerful and intelligent power modes, making the excavator suitable for the appropriate type of operation. Smart mode automatically matches engine and hydraulic power to excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel.

• Highly efficient hydraulic fans cool the engine on demand to help reduce fuel consumption; The provided reverse function makes it easy to keep the core clean.

• Self-sharpening Advansys™The choice of shovel teeth improves production and reduces costs.

• Auxiliary hydraulic options give you the versatility you need to use a wide range of Cat tooling.

• Perfect for temperature challenges and safeguard your normal work.The excavators can operate in high temperatures up to 52 ° C (125 ° F) and have cold start capabilities as low as -18 ° C (0 ° F).Optional -32 ° C (-25 ° F) starter kits are available.



2. Reliable performance under harsh conditions:



• Reinforced boom, bucket and link arms make it easy to move from one job site to another。The machine is equipped with a reinforced frame for greater durability.

• The + 150mm (6in) increase in track width allows the machine to perform on a large shovel or on uneven surfaces with improved stability, a key performance, while still meeting transport width requirements.

• The automatic hydraulic oil preheating function allows you to work faster in cold weather and helps extend the service life of your components.

• Double filtering prevents the engine from being affected by diesel fuel.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

• A sloping track rack prevents the accumulation of dirt and debris, helping to reduce the risk of track damage.

• Operating at altitudes up to 4500 m (14,760 ft) and above 3000 m (9,840 ft), the engine power will decrease.

3. It's easy to do:



• Use the one-button starter button to start the engine.

• Each joystick button is programmed using the operator ID, and programmable items include power mode, response and control mode; The machine remembers these settings and calls them every time you operate the machine.

• The Cat single handle makes it easier to control the movement of the digging machine. With the press of a button, you can control driving and steering with one hand without having to control the steering lever with both hands or both feet on the pedal.

• Don't know how a particular function works or how to maintain an excavator? Operator manual with touch screen monitor

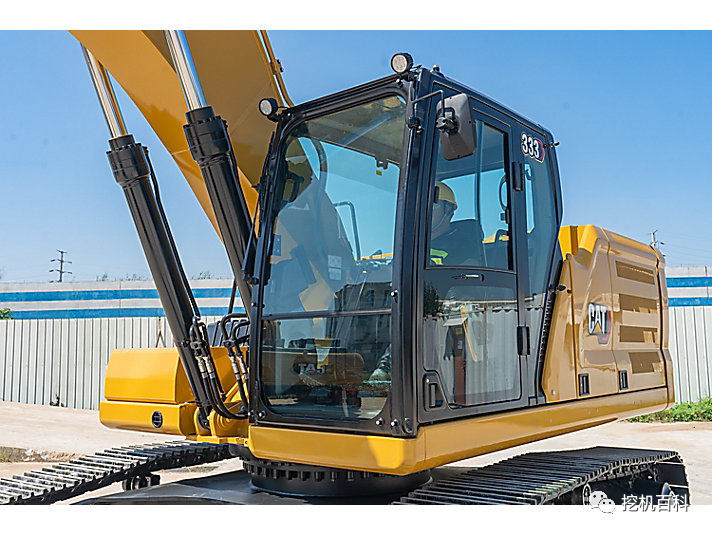

4. Working comfortably in a new cab:



• The new comfortable driver's room features mechanically adjusted seat suspension and an automatic heating / air conditioning system.

• A high-resolution 203mm (8in) touch screen monitor provides quick navigation to view machine information.

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably.

• There is plenty of parking space under and behind the seats, overhead and in the control room to easily store your gear.

• Connect personal devices and make hands-free calls easily with a standard wireless USB port and Bluetooth ® technology.



5. Easy to maintain:



• The long service life of the fuel, lubrication oil and air filters allows you to reduce the number of repairs and extend the working hours.

• Lubrication oil filter and fuel filter are assembled on the right side for easy maintenance.

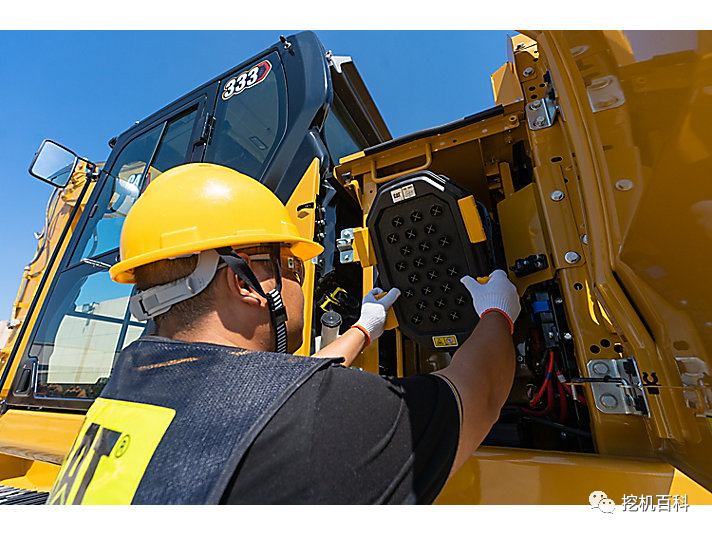

• The intake filter has a prefilter with twice the dust containing capacity of the previous intake filter.

• From the ground, it is possible to inspect the oil of the hydraulic system and easily release water from the fuel system and fuel tank.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room. The new engine oil sensor, which is optional, can track the oil level of the engine, which can help speed up routine maintenance procedures.

• Hydraulic oil filters provide better filtering performance, and the reverse drain valve keeps the oil clean when the filter is replaced, with a replacement cycle of up to 3000 working hours and a longer service life, 50% longer than previous filter designs.

• Highly efficient hydraulic fans have optional automatic reverse function that eliminates debris on the core and does not require operator intervention.

• Ground-based S · O · SSM sampling ports simplify maintenance and enable quick and easy oil sampling for analysis

6. Work safely every day and come home safely:



• The standard ROPS driving room meets the requirements of ISO 12117-2: 2008.

• Thanks to smaller cockpit columns, wide windows and a flat engine casing design, operators have an excellent view on both the inner side of the ditch, in every turning direction and behind.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.

• Add optional cameras on the back and right side to give a wider view of your surroundings.

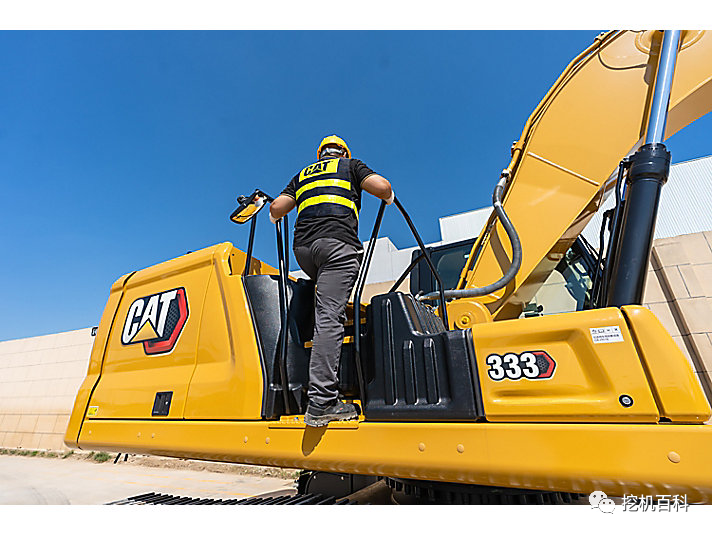

• Maintenance of the jagged steps and slippery perforations on the platform help prevent slips.
