CAT 355 Classic inheritance, brand new upgrade

Summary

Built for overloaded working conditions.

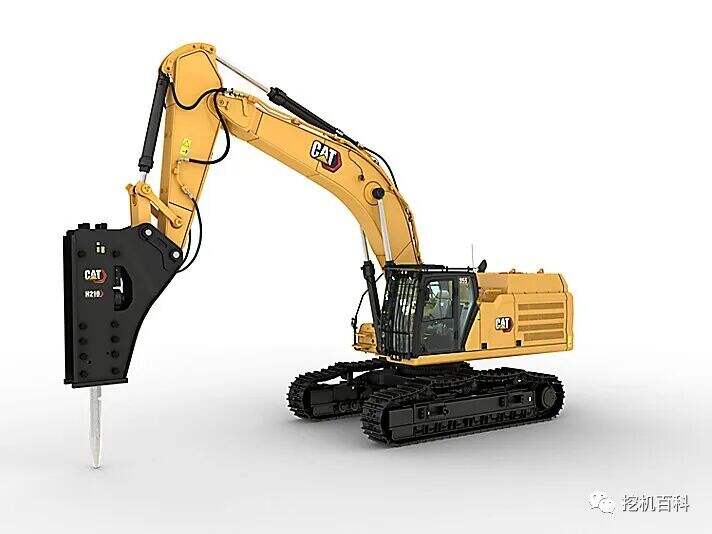

The Cat 355 is designed for working conditions with heavy loads. With a highly durable front construction, heavy counterweight and enhanced windshield protection, the unit is ideal for use with dimensions up to 210 mm (8 " Hydraulically powered impact hammer.

• High productivity

  Larger hydraulically powered impact hammer and bucket and heavy counterweight options for more work

• Low cost of ownership and operation

• High durability.

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●6.55 m（21'6" ) HD Large Bucket Boom

●2.5 m（8'2" ) HD Large Bucket Rod

○6.9 m（22'8" ) HD Stretch Boom

○3.35 m（11'0" ) HD Stretch Rod

○3.0 m (9’10”) HD large capacity bucket arm

○2.9 m（9'6" ) Heavy load stretching rod

Driver's Room:

● High resolution 203 mm (8" LCD touch screen monitor

Automatic two-level air conditioning

● Pressed starting engine control without a key

● Air suspension Seat Basic Seat

●51 mm（2" ) Seat belts

● Bluetooth radio with USB / auxiliary port

● 24V DC socket

● Beverage cup rack

● Two-sided front windows that can be opened

● Emergency exit from the back window

• Radial wiper with a washer

● Openable steel hatch

●LED 顶灯

● Sunscreen in front of wheel

• Cleanable floor mats

○ High resolution 254 mm (10" LCD touch screen monitor

○ A sunscreen behind a wheel

○ROPS

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Central Electrical Shutdown Switch

●LED 灯

○ Inlet Heater

Powertrain:

Three optional power modes: Power, Smart and Fuel Efficient

Automatic engine speed control

● Working altitude up to 4500 m (14760 ft)

● 52 ° C (126 ° F) high temperature environment cooling capacity

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

Remote disabling

Cool starting cylinder heater

○ -32 ° C (-25 ° F) cold start capability

Hydraulically able to turn the fan

Hydraulic system:

● Regenerative circuits for the arms and poles

Electronic main control valve

Automatic hydraulic oil preheating

Automatic reverse parking brake

● High performance hydraulic oil recovery filter

● Running at two speeds

Combined two-way auxiliary circuit

○ One-way single pump auxiliary circuit

The chassis system and structure:

● The traction rings on the chassis

●9.8 mt（21605 lb）配重

● Variable track length wide chassis system

●600 mm（24" ) Double-clawed ground teeth track plate

Heavy load supports heavy wheels

Fixed track chassis system

○750 mm（30" ) Three-clawed ground teeth track plate

Safety and protective devices:

Maintenance platform equipped with anti-skateboarding and embedded bolts

● rear view camera

○ Detecting lighting

CAT Technology:

●Cat Product Link

Remote refresh

Remote troubleshooting

Repair and maintenance:

● Group arrangement of lubrication oil filter and fuel filter

● Planned analysis of oil sample (SOS) sampler

1. High performance and low fuel consumption:

• The C13 engine and electro-hydraulic pressure system power the handling of all types of materials.

• This excavator is especially suitable for quarrying and mining applications.

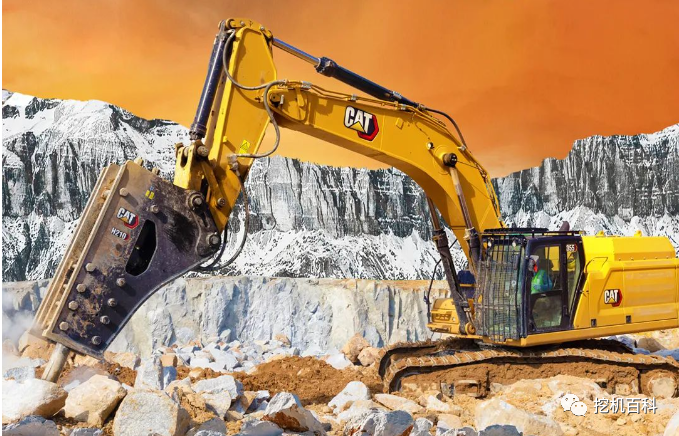

• The Cat 355 can be equipped with a wide variable gauge undercarriage, heavy-duty counterweight, reinforced boom and stick, making it ideal for large tools such as 210 mm (8 " Hydraulically powered impact hammer.

• It provides three power modes - powerful, intelligent and fuel efficient - to suit the appropriate types of operations. Smart mode automatically matches engine and hydraulic power to excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel.

• Highly efficient hydraulic fans cool the engine on demand to help reduce fuel consumption; The provided reverse function makes it easy to keep the core clean.

2. Reliable performance under harsh conditions:

• The arms and poles are able to handle heavy loads, so the machine is more durable in harsh applications.

• Working altitudes up to 4,500 m (14,760 ft).

• According to the standard configuration, it can operate at high temperatures up to 52 ° C (125 ° F) and cold start capability as low as -18 ° C (0 ° F).

• The automatic hydraulic oil preheating function can help you get work done faster in cold weather and help extend the service life of your components.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

3. Easy to operate and comfortable:

4. Easy to maintain:

• The long service life of the fuel, lubrication oil and air filters allows you to extend the working hours.

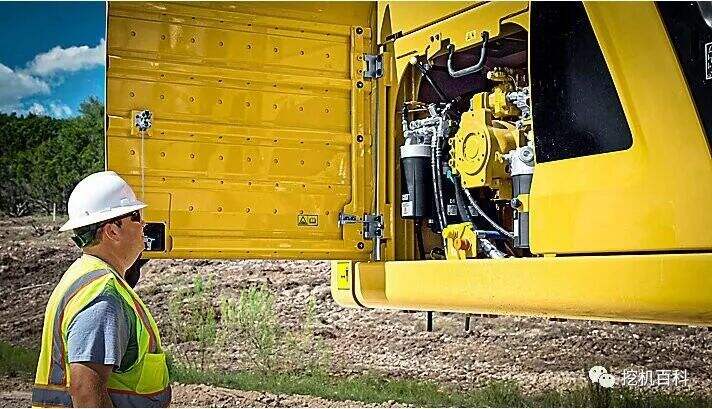

• From the ground, it is possible to inspect the oil of the hydraulic system and easily release water from the fuel system and fuel tank.

• Add an optional inlet heater to help improve cold start performance.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room.

• Replace all fuel filters after 1,000 hours of sync. The filters are centrally distributed together to facilitate maintenance.

• Inlet air filter with prefilter has high dust containing capacity.

• The hydraulic oil filter has better filtering performance, and the back vent valve keeps the oil clean when the filter is replaced.

• Highly efficient hydraulic fans have optional automatic reverse function that eliminates debris on the core and does not require operator intervention.

• The S · O · S sampling port simplifies maintenance and enables quick and easy oil sampling for analysis.

5. Safe Operation and Safe Home Every Day: Ping An

• The steering direction indicator helps you understand which direction to activate the steering wheel.

• Thanks to a narrow cockpit pillar, wide windows and a flat engine casing design, operators have an excellent view on both the inner side of the ditch, in every turning direction and behind.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.

• A standard rear view camera.

• Maintenance of the jagged steps and slippery perforations on the platform help prevent slips.

• Use the operator ID to ensure the safety of the digging machine. Use a PIN code on the monitor to enable button activation.
