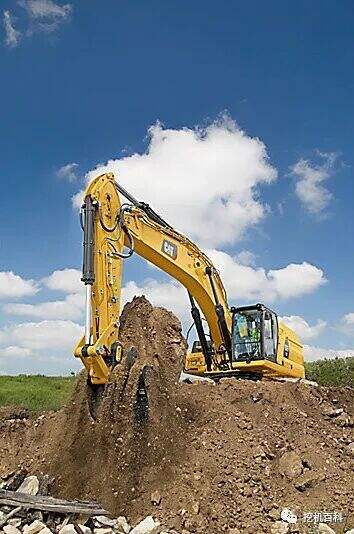

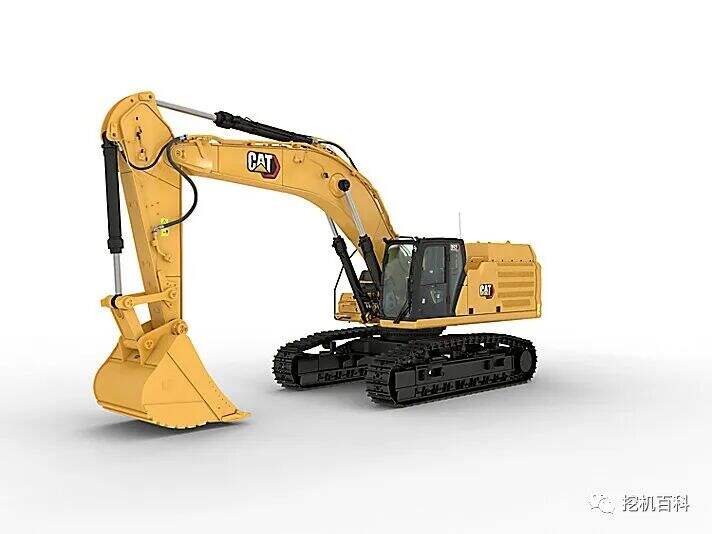

CAT 352 Classic inheritance, brand new upgrade

Summary

Strong driving forces achieve world-class production.

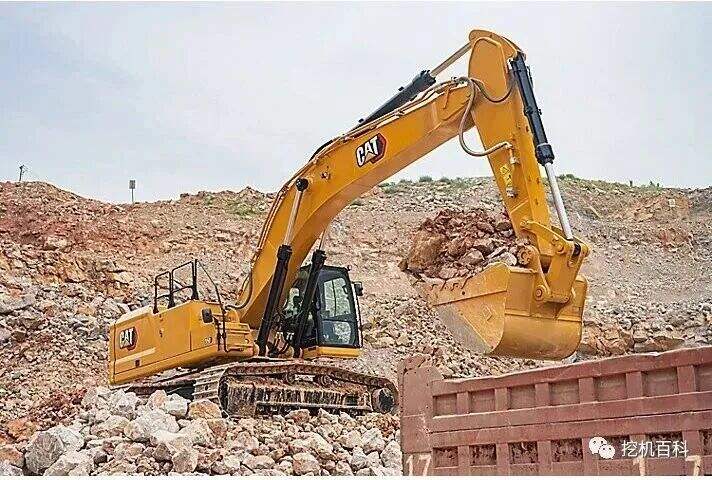

The Cat 352 delivers powerful hydraulic power and is rugged enough to handle any large job with large tooling, increasing payload capacity. Longer maintenance intervals and lower fuel consumption help cut costs. Equipped with C13B engine, in line with China's fourth non-road emission standards.

• Up to 5% productivity improvement

• Low operating costs

• High durability.

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●6.55 m（21'6" ) HD Large Bucket Boom

●3.0 m (9’10”) HD large capacity bucket arm

○6.9 m（22'8" ) HD Stretch Boom

○3.35 m（11'0" ) HD Stretch Rod

○2.9 m（9'6" ) Heavy load stretchers

○2.5 m (8'2") HD large capacity bucket arm

Driver's Room:

● High resolution touch screen monitor

Automatic two-level air conditioning

● Pressed starting engine control without a key

Air suspension seats

● Bluetooth radio with USB / auxiliary port

● 24V DC socket

● Beverage cup rack

● Two-sided front windows that can be opened

●LED 顶灯

● Sunscreen in front of wheel

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Central Electrical Shutdown Switch

●LED external light

Powertrain:

Three optional power modes: Power, Smart and Fuel Efficient

Automatic engine speed control

● Working altitude up to 4500 m (14760 ft)

● 52 ° C (126 ° F) high temperature environment cooling capacity

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

Remote disabling

Cool starting cylinder heater

○ -32 ° C (-25 ° F) cold start capability

Hydraulically able to turn the fan

Hydraulic system:

● Regenerative circuits for the arms and poles

Electronic main control valve

Automatic hydraulic oil preheating

Automatic reverse parking brake

● High performance hydraulic oil recovery filter

● Running at two speeds

Combined two-way auxiliary circuit

The chassis system and structure:

● The traction rings on the chassis

● Reverse shield

● Heavy load bottom guard

● Motor shield for high load driving

● Grease to lubricate the track belt

● Heavy load shifting rack

● Heavy load shift bearing

Heavy load supports heavy wheels

○600 mm（24" ) Double-clawed ground teeth track plate

○750 mm（30" ) Three-clawed ground teeth track plate

Safety and protective devices:

● Caterpillar Single Key Safety System

Lockable external toolbox / storage box

Lockable security doors, fuel tank and hydraulic fuel tank locks

● Lockable oil vent chamber

Maintenance platform equipped with anti-skateboarding and embedded bolts

○ Detecting lighting

CAT Technology:

●Cat Product Link

Remote refresh

Remote troubleshooting

Repair and maintenance:

● Group arrangement of lubrication oil filter and fuel filter

● Planned analysis of oil sample (SOS) sampler

1. High performance and low fuel consumption:

• The C13 engine and electro-hydraulic pressure system provide excellent power for all types of jobs quickly and efficiently.

• Auxiliary hydraulic options give you the versatility you need to use a wide range of Cat tooling.

• The 352 can be fitted with a large hydraulically powered impact hammer for excellent performance in quarries, demolition and road applications.

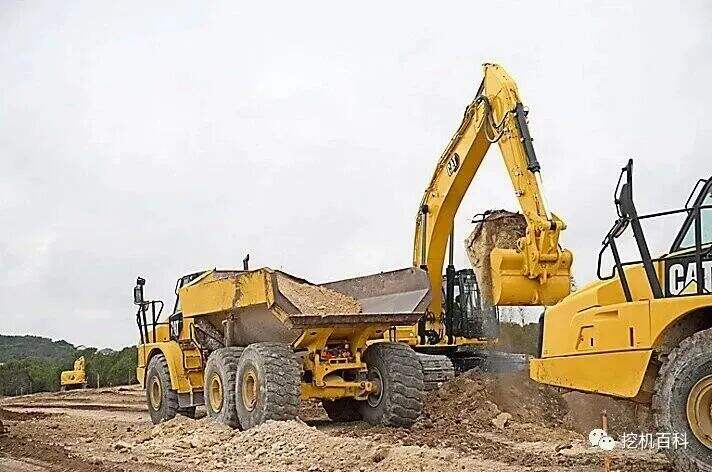

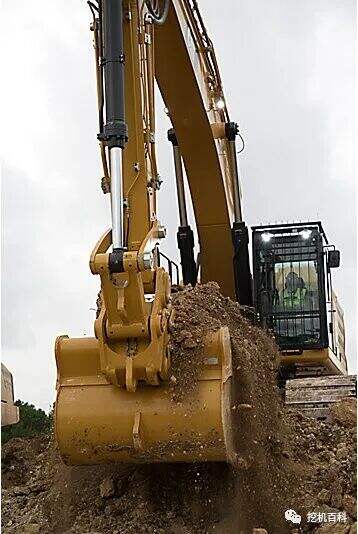

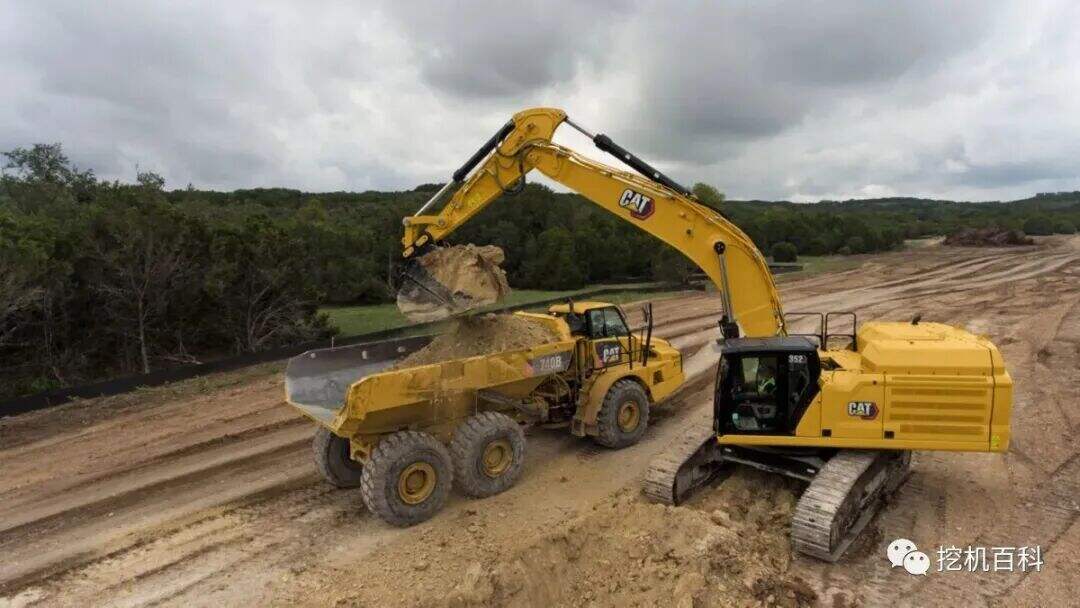

• The large shovel capacity means that materials can be moved more quickly with fewer operating trips.

• Self-sharpening Advansys™The shovel teeth increase production and reduce costs.

• It provides three power modes - powerful, intelligent and fuel efficient - to suit the appropriate types of operations. Smart mode automatically matches engine and hydraulic power with excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel.

• Highly efficient hydraulic fans cool the engine on demand to help reduce fuel consumption; The provided reverse function makes it easy to keep the core clean.

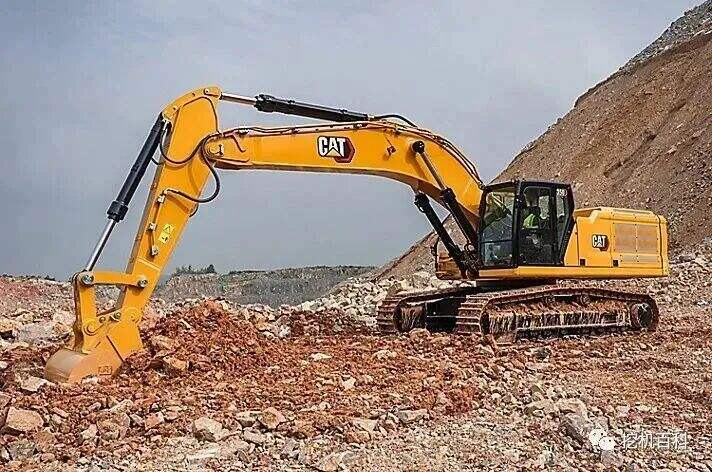

2. Reliable performance under harsh conditions:

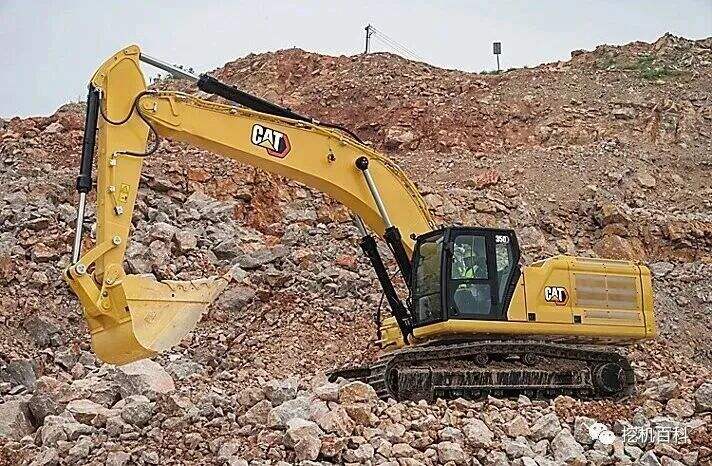

• The machine is more durable with reinforced arms, poles and racks.

• The maximum operating altitude can be up to 4500 m (14,760 ft), and the engine power will decrease when the operating altitude exceeds 2600 m (8530 ft).

• According to the standard configuration, it can operate at high temperatures up to 52 ° C (125 ° F) and cold start capability as low as -18 ° C (0 ° F).

• The automatic hydraulic oil preheating function can help you get work done faster in cold weather and help extend the service life of your components.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

• A sloping track rack prevents the accumulation of dirt and debris, helping to reduce the risk of track damage.

3. Working in comfort:

4. It's easy to do:

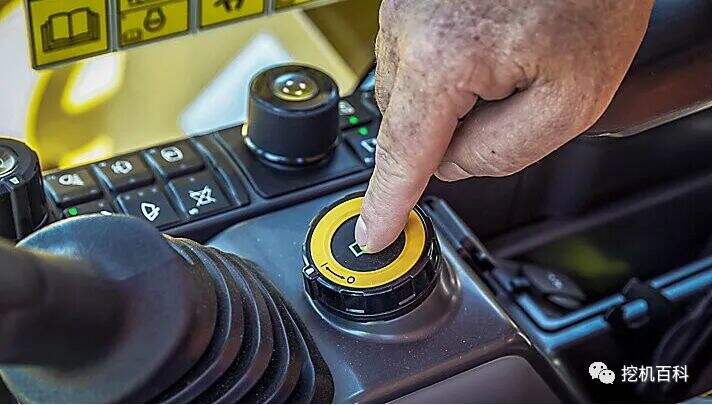

• The engine can be started with a button, a Bluetooth ® key fob, or a unique operator ID function.

• Each joystick button is programmed using the operator ID, and programmable items include power mode, response and control mode; The machine remembers these settings and calls them every time you operate the machine.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

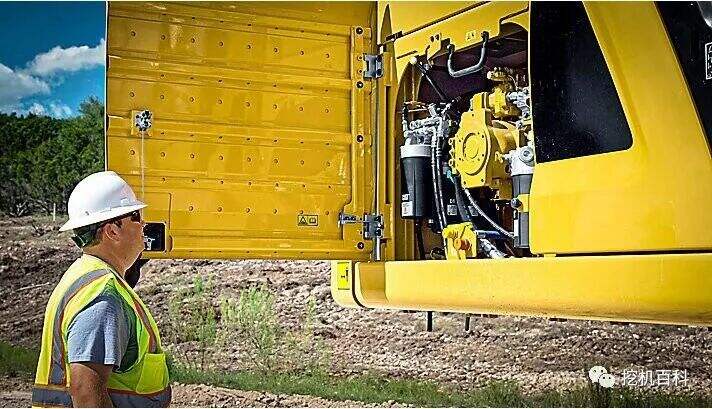

5. Easy to maintain:

• Long service life of fuel, lubrication oil and air filters maximizes uptime.

• It is possible to check the oil of the hydraulic system from the ground and easily release water from the fuel system.

• Replace all fuel filters after 1,000 hours of sync. The filters are centrally distributed together to facilitate maintenance.

• Inlet air filter with prefilter has high dust containing capacity.

• The hydraulic oil filter has better filtering performance, and the back vent valve keeps the oil clean when the filter is replaced.

• Highly efficient hydraulic fans have optional automatic reverse function that eliminates debris on the core and does not require operator intervention.

• The SOSM (Scheduled Oil Sampling) sampler simplifies maintenance and allows quick and easy analysis of oil samples.

6. Safe Operation and Safe Home Every Day: Ping An

• The steering direction indicator helps the operator understand which direction to activate the steering lever.

• Thanks to a narrow cockpit pillar, wide windows and a flat engine casing design, operators have an excellent view on both the inner side of the ditch, in every turning direction and behind.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.

• Maintenance of the jagged steps and slippery perforations on the platform help prevent slips.

• Use the operator ID to ensure the safety of the digging machine. Use a PIN code on the monitor to enable button activation.
