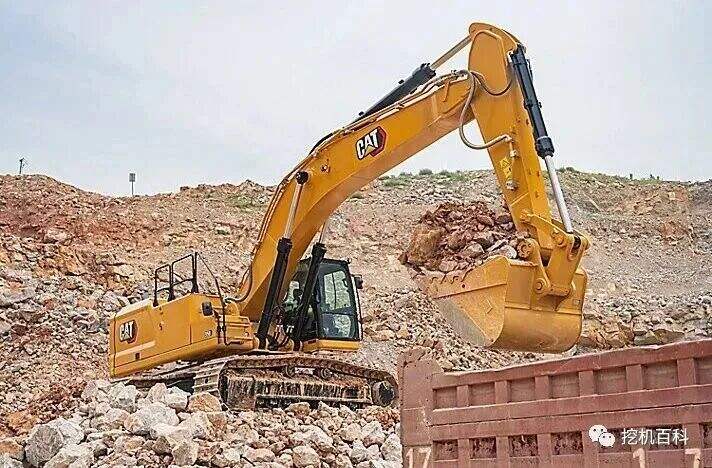

CAT 350 Classic inheritance, brand new upgrade

Summary

Obtain high production capacity at low cost.

The Cat 350 is reliable and efficient with high productivity features. Its filter has been improved and the maintenance interval has been extended.

• High productivity

  Greater excavatoring power and turning torque and larger shovels

• Greater excavatoring power and turning torque and larger shovels

  Improved uptime with proven undercarriage, HD (Heavy Duty) boom and boom, and SD (Severe Duty) bucket.

• Reduce ownership and operating costs

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●6.55 m（21'6" ) Take a big fight to move your arms

●3.0 m (9’10”) large capacity bucket boom

○6.9m（22'8" ) Stretch your arms

○3.35m（11'0" ) Stretch the pole

○2.5 m (8'2") large capacity bucket arm

Driver's Room:

● High resolution LCD touch screen monitor

Mechanically adjusted seats

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Central Electrical Shutdown Switch

●LED external light

Powertrain:

Two optional modes: Power and Smart

Automatic engine speed control

● Can work at altitudes up to 3000 m (9840 ft)

● 52 ° C (126 ° F) high temperature environment cooling capacity

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

Biodiesel with a maximum label of B20 can be used

Cool starting cylinder heater

○ -32 ° C (-25 ° F) cold start capability

Hydraulic system:

● Regenerative circuits for the arms and poles

Electronic main control valve

Automatic hydraulic oil preheating

● Reverse reverse vibration reduction valve

Automatic reverse parking brake

● High performance hydraulic oil recovery filter

● Running at two speeds

● The ability to use bio-hydraulic oil

The chassis system and structure:

● The traction rings on the chassis

●9000 kg（19842 lb）配重

●600 mm（24" ) Double-clawed ground teeth track plate

○750 mm（30" ) Double-clawed ground teeth track plate

○750 mm（30" ) Three-clawed ground teeth track plate

Safety and protective devices:

● Caterpillar Single Key Safety System

Lockable security doors, fuel tank and hydraulic fuel tank locks

● Lockable oil vent chamber

Maintenance platform equipped with anti-skateboarding and embedded bolts

• Right handrails and handles

● rearview mirror kit

• Signal / alarm horn

• Ground Assist Engine Stop Switch

● rear view camera

CAT Technology:

●Cat Product Link

Repair and maintenance:

● Group arrangement of lubrication oil filter and fuel filter

● Planned analysis of oil sample (SOS) sampler

1. High performance and low fuel consumption:

• The C9.3B engine meets China's fourth non-road emission standard.

• Two power modes are offered to make the excavator suitable for the appropriate type of operation. Smart mode automatically matches engine and hydraulic power to excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel.

• The advanced hydraulic system not only achieves an excellent balance between power and efficiency, but also gives you the control devices you need to meet your precise excavation requirements.

• The valve prioritization sets the hydraulic pressure and flow rate according to your instructions, enabling fast low- and medium-load cycle times.

• Product Link™As standard, you can remotely monitor machine health, location, hours of operation and fuel consumption as needed via the VisionLink ® online interface.

2. Reliably operates in a variety of weather conditions:

• Can work at altitudes up to 3000 m (9,840 ft) without loss.

• Can operate at high temperatures up to 52 ° C (125 ° F).Excellent cold start capability at low temperatures up to -18 ° C (0 ° F) and cold start options at -32 ° C (-25 ° F).

• Automatic hydraulic oil preheating allows you to work faster in cold weather and helps extend the service life of your components.

• Level 3 filtration prevents the engine from being affected by dirty diesel fuel.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

• Standard built-in protections include a bottom guard, a drive motor guard and a steering joint guard.

• A sloping track rack prevents the accumulation of dirt and debris, helping to reduce the risk of track damage.

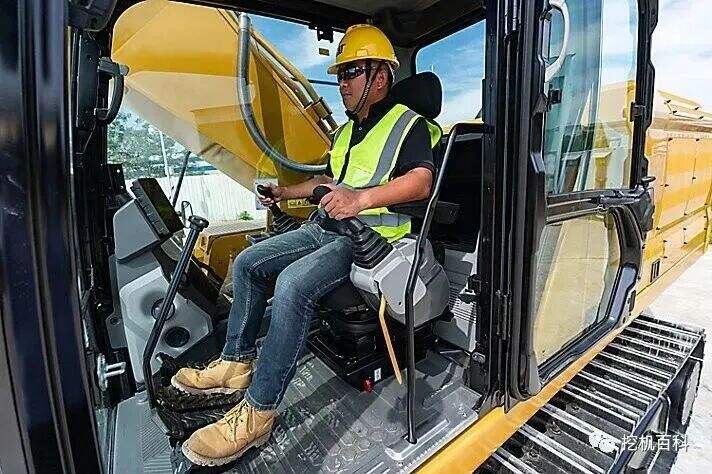

3. Working in comfort:

4. It's easy to do:

• The engine can be started with a button, a Bluetooth key fob, a smart phone app or a unique operator ID.

• Each joystick button is programmed using the operator ID, and programmable items include power mode, response and control mode; The machine remembers these settings and calls them every time you operate the machine.

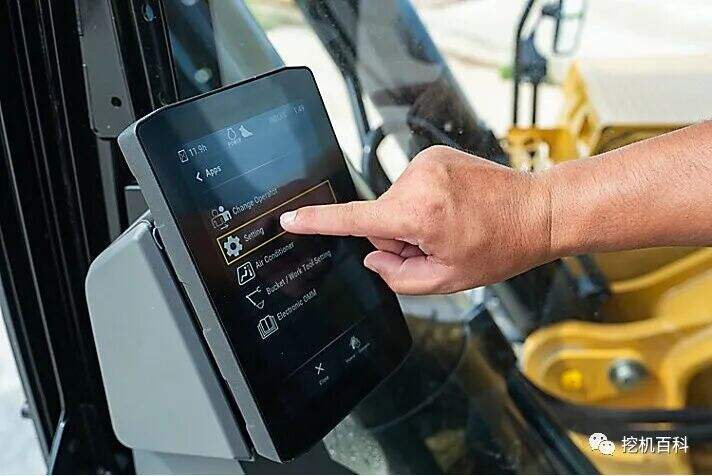

• High resolution 203mm (8in) standard touch screen monitors or knob controls allow rapid navigation.

• Don't know how a function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

5. Easy to maintain:

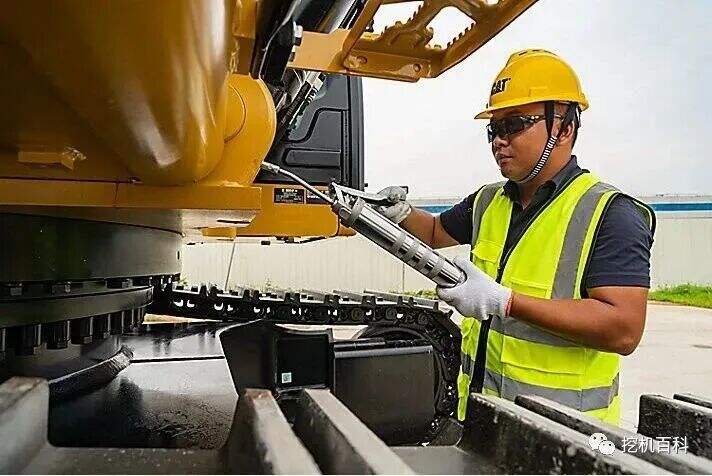

• Maintenance costs are expected to be reduced as maintenance intervals are longer and synchronized.

• It is possible to check the oil of the hydraulic system from the ground and easily release water from the fuel system.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room.

• Lubrication oil filter and fuel filter are assembled on the right side for easy maintenance.

• The intake filter has a prefilter with twice the dust containing capacity of the previous intake filter.

• Hydraulic oil filters have better filtering performance; The anti-filter valve keeps the oil clean when the filter is replaced.

• The ground-mounted S · O · S sampling port simplifies maintenance and enables quick and easy extraction of oil samples for analysis.

6. Higher security:

• Use the operator ID to ensure the safety of the digging machine. Use a PIN code on the monitor to enable button activation.

• The steering direction indicator helps the operator understand which direction to activate the steering lever.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.

• With a narrow cab pillar and wide window design, operators have an excellent view, whether on the inner side of the ditch, in each turning direction or in the rear of the operator.

• Maintenance of the jagged steps and slippery perforations on the platform help prevent slips.

• A standard rear view camera.
