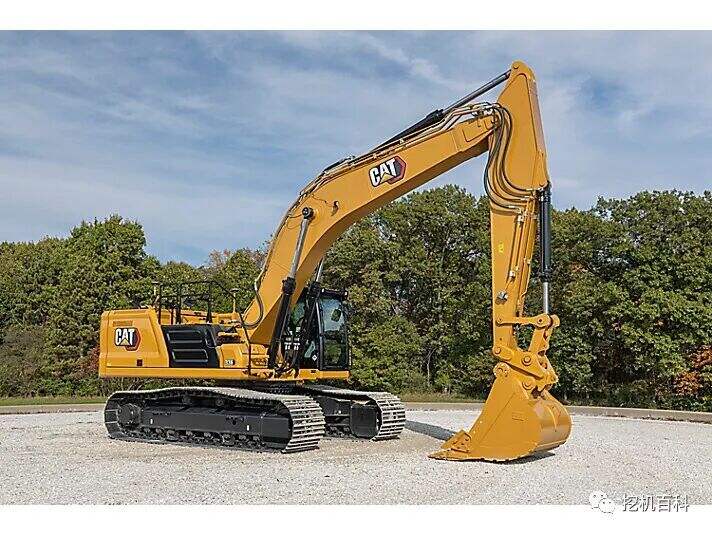

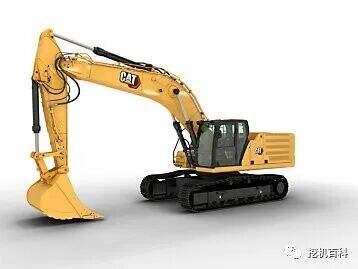

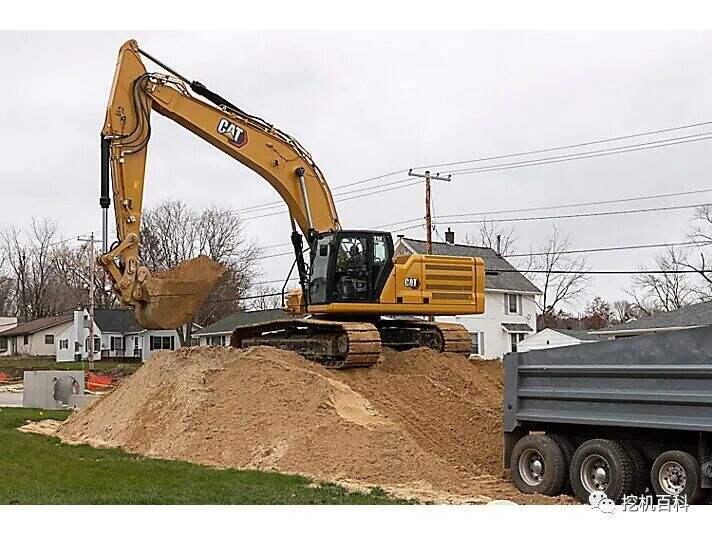

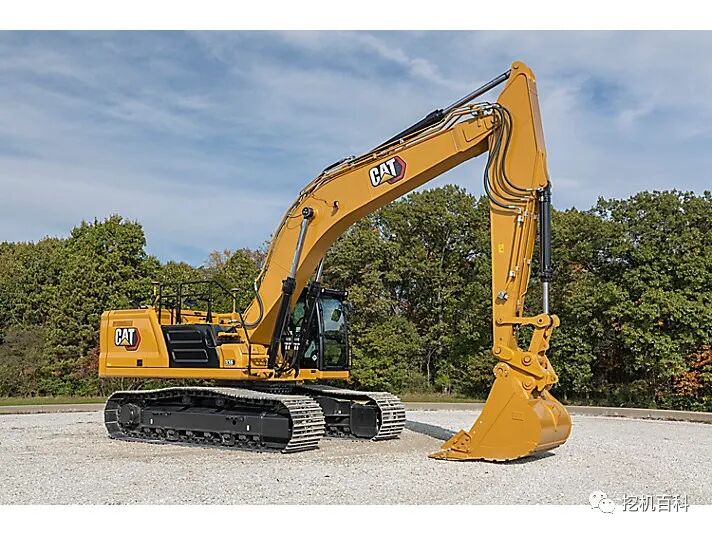

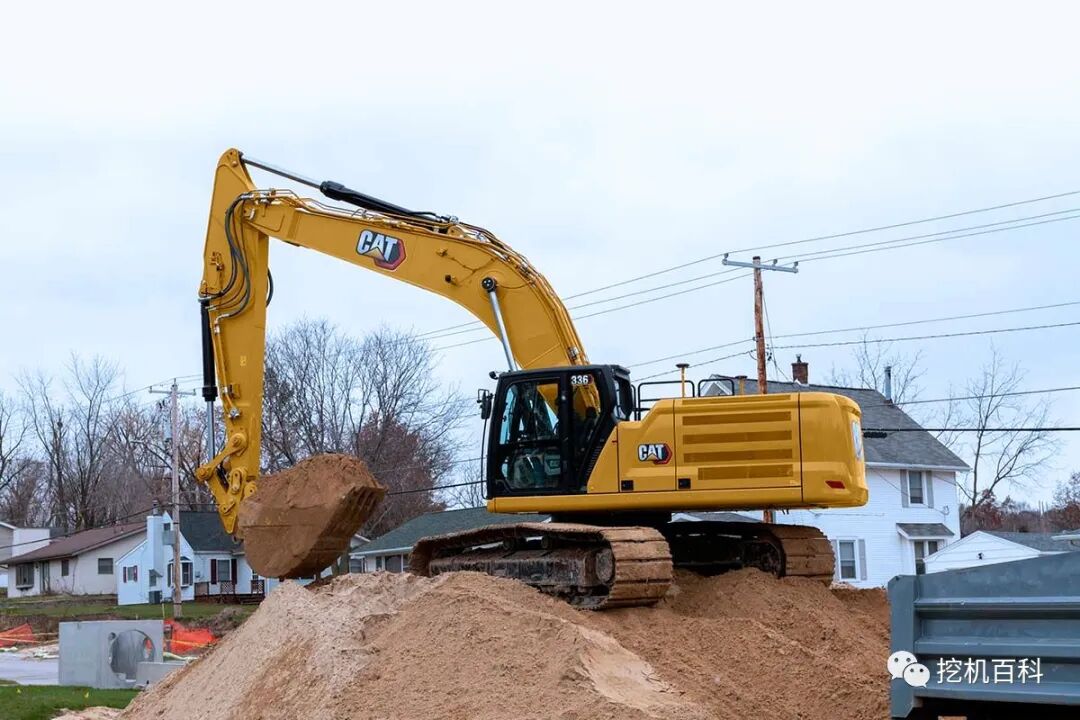

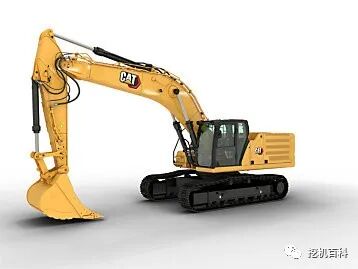

CAT 336 - Classic inheritance, brand new upgrade

Summary

First-class production efficiency, low cost of ownership and operation.

The Cat 336 is an efficient digging machine with low ownership and operating costs.

• High production efficiency

• Low cost of ownership and operation

• Designed for demanding application situations

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●5.7 m（18'8" ) Stretch your arms

○6.5 m（21'4" ) Stretch your arms with heavy loads

○2.8 m（9'2" ) Load stretcher pole

○3.2 m（10'6" ) Load stretcher pole

○ DB Series Bucket Link (with / without lugs)

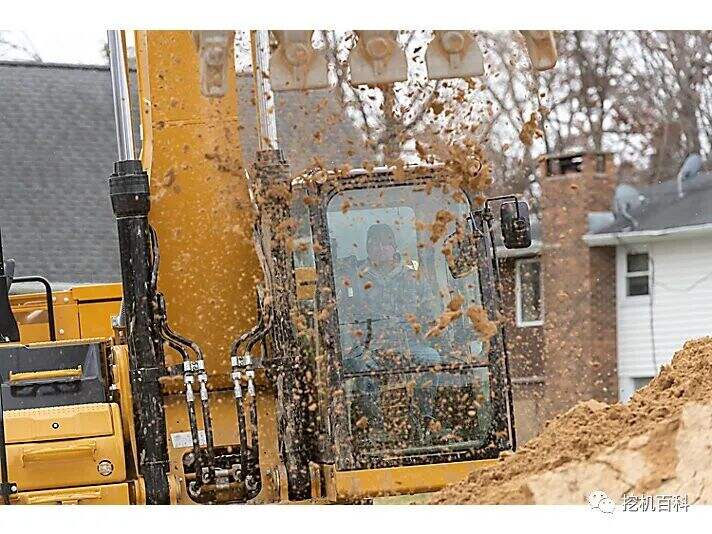

Driver's Room:

● High resolution 203 mm (8" LCD touch screen monitor

Automatic two-level air conditioning

● Pressed starting engine control without a key

Air suspension seats

● Bluetooth radio with USB / auxiliary port

● 24V DC socket

● Beverage cup rack

● Openable steel hatch

●LED 顶灯

● Sunscreen in front of wheel

○ High resolution 254 mm (10" LCD touch screen monitor

○ A sunscreen behind a wheel

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Central Electrical Shutdown Switch

● LED external chassis and boom lights

○ Maintenance-free 1000CCA battery (4 units)

Powertrain:

Three optional power modes: Power, Smart and Fuel Efficient

Automatic engine speed control

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

Remote disabling

Cool starting cylinder heater

○ 52 ° C (126 ° F) High temperature ambient cooling

Hydraulically able to turn the fan

○ -32 ° C (-25 ° F) cold start capability

Hydraulic system:

● Regenerative circuits for the arms and poles

Electronic main control valve

Automatic hydraulic oil preheating

● The ability to use bio-hydraulic oil

● Reverse reverse vibration reduction valve

Automatic reverse parking brake

● High performance hydraulic oil recovery filter

● Running at two speeds

A single one-way loop

Combined two-way circuit

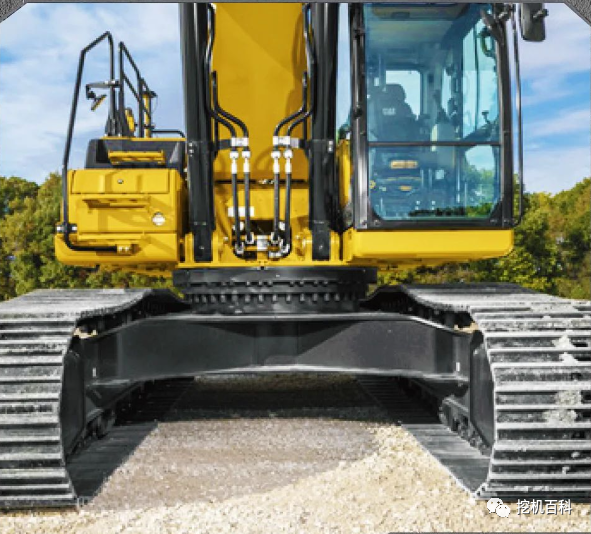

The chassis system and structure:

Extended wide chassis system

● The traction rings on the chassis

● Reverse shield

● Heavy load bottom guard

● Motor shield for high load driving

● Grease to lubricate the track belt

○ Full length track steering shield

Segmented two-piece track leading guard

Heavy load supports heavy wheels

Heavy load shift frames

Heavy load shift bearing

○6.8 mt（14991 lb）配重

○ 7.56 mt (16,667 lb) Counterweight

○600 mm（24" ) Double clawed ground teeth, heavy load triple clawed track plate

○700 mm（28" ) Three-clawed ground teeth track plate

Safety and protective devices:

● Caterpillar Single Key Safety System

Lockable external toolbox / storage box

Lockable security doors, fuel tank and hydraulic fuel tank locks

● Lockable oil vent chamber

Maintenance platform equipped with anti-skateboarding and embedded bolts

• Right handrails and handles

• Signal / warning speakers

• Ground Assist Engine Stop Switch

● rear view camera

CAT Technology:

●Product Link™

Remote refresh

Remote troubleshooting

Repair and maintenance:

● Group arrangement of lubrication oil filter and fuel filter

● Planned analysis of oil sample (SOS) sampler

1. High performance:

• The C7.1 dual turbocharged engine provides reliable power to the pump,
  In this way, yields are maximized.

• Electro-hydraulic systems are capable of performing tasks at hand
  A quick and effective response.

• Offering three power modes: powerful, intelligent and fuel efficient,
  The excavator can be adapted to the corresponding type of work. The strong mode always outputs maximum power. Smart mode automatically matches engine and hydraulic power with excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel. Fuel saving mode reduces engine speed and maintains it constant to reduce fuel consumption.

2. Improving efficiency and productivity:

• You can use the remote troubleshooting feature to contact agent service professionals at any time to help resolve your issues and get back to work quickly.

• The remote refresh function runs as planned to ensure the machine
  Software is kept up to date to optimize performance.

• Product Link as standard™Online interface via VisionLink as needed
  Provide the location of the machine, the number of hours the machine has worked, fuel consumption, productivity, idle time,
  Diagnostic code and other machine data to help you
  Improve site efficiency and reduce operational costs.

3. Made specifically for harsh conditions:

• Reinforced structures ensure harsh environments
  Long-term durability.

• Working altitudes up to 4,500 m (14,764 ft).

• As standard, the excavator can operate in high temperatures up to 52 ° C (125 ° F) and cold start temperatures as low as -18 ° C (0 ° F).

• The automatic hydraulic oil preheating function can help you get work done faster in cold weather and help extend the service life of your components.

• Two-level filtering prevents the engine from being affected by diesel fuel.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

4. Working in comfort:

• Automatic thermostats create a comfortable experience all the time without fear of changing weather.

• Excavators are equipped with ergonomically designed controls that make them easy to operate.

• Under and behind the seats and in the control room provide plenty of parking space in the driver's room for easy storage of operator equipment.

• Connect personal devices and make hands-free calls easily with a standard wireless USB port and Bluetooth ® technology.

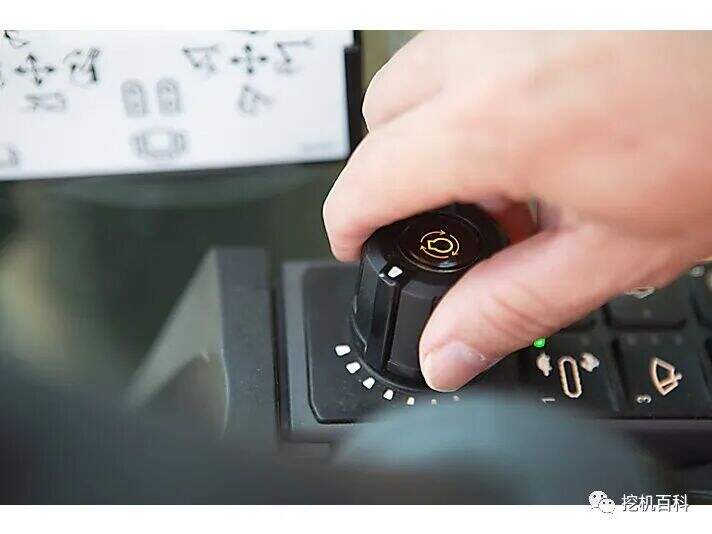

5. It's easy to do:

• Press the button to start the engine.

• Each joystick button is programmed using the operator ID. Programmable items include power mode, response

• And the means of control; The machine will remember these settings,
  And it's called every time you operate the machine.

• With the help of high resolution 203mm (8in) standard touch screen display or optionally 254mm (10in) display, fast navigation can be carried out.

• Prevent hydraulically powered impact hammer overload. The hydraulically powered impact hammer stops automatically

• Warning after 15 seconds of continuous air impact and automatically shuts off hydraulically powered impact hammer after 30 seconds to prevent tool and excavator
  Wear and damage.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

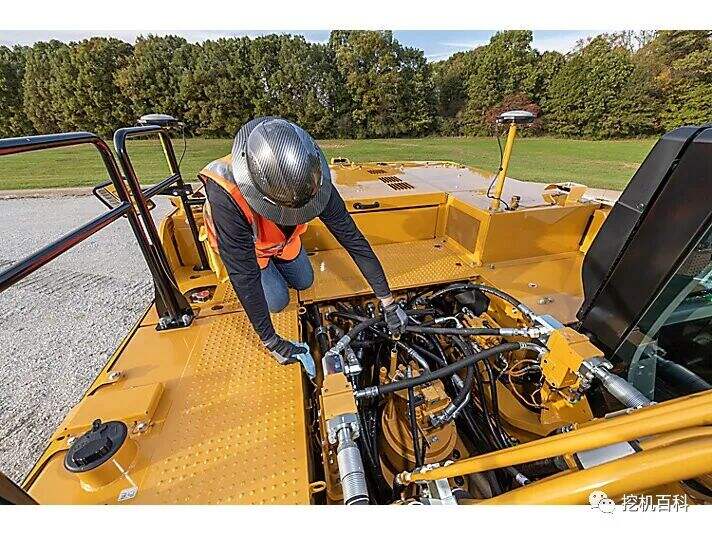

6. Easy to maintain:

• The engine oil replacement interval of up to 1,000 hours is expected to reduce maintenance costs.

• Replace all fuel filters after 1,000 hours of sync. The filter is centrally installed on the right side of the machine for easy maintenance.

• Check hydraulic system oil from the ground and easily emit it
  Water in the fuel system and fuel tank.

• Inlet air filter with prefilter has high dust containing capacity.

• The hydraulic oil filter has excellent filtering performance, while the back vent valve keeps the oil clean when the filter is replaced.

• Highly efficient hydraulic fans have optional automatic reverse function that eliminates debris on the core and does not require operator intervention.

• The S · O · S sampling port set on the ground simplifies the maintenance work,
  It also enables quick and easy extraction of oil samples for analysis.

7. Higher security:
