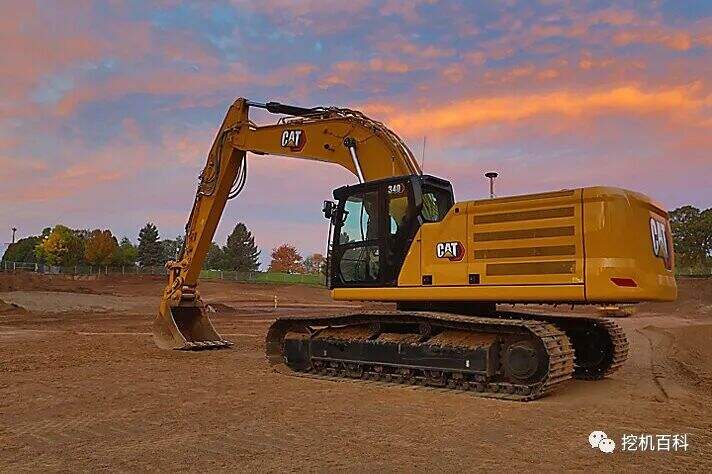

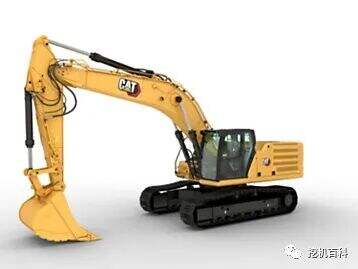

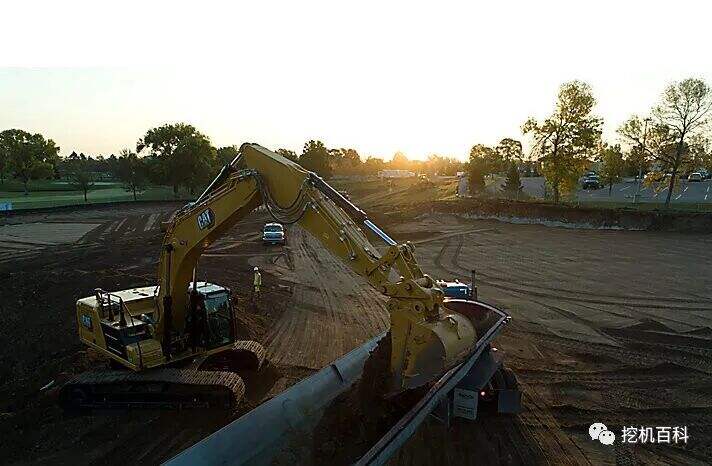

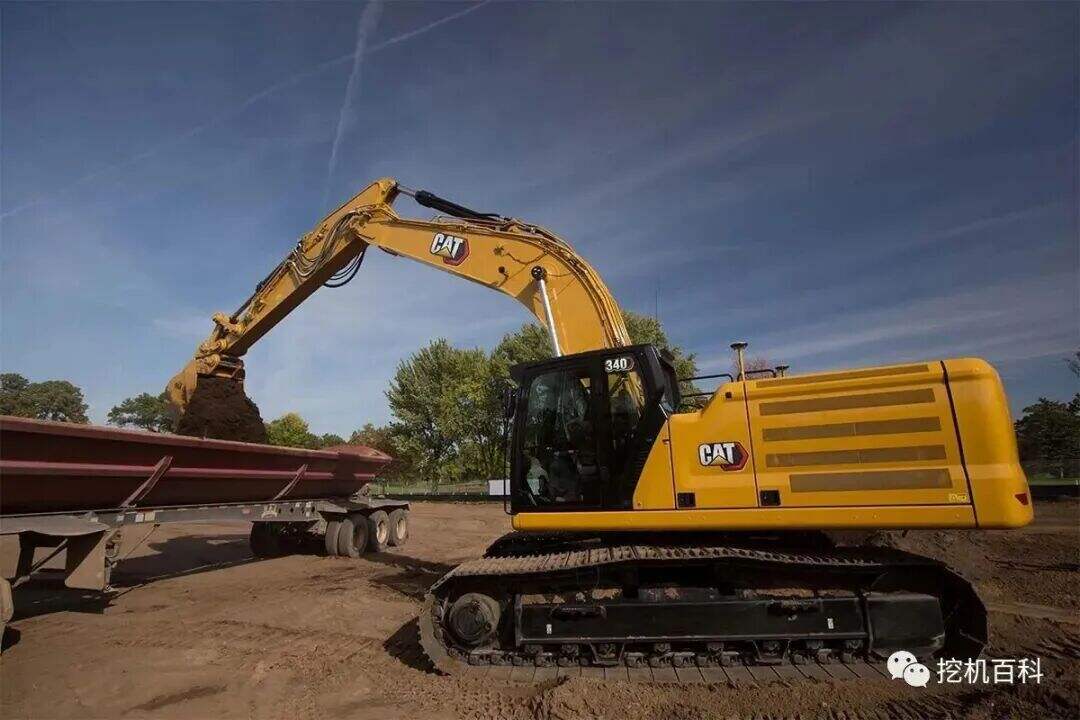

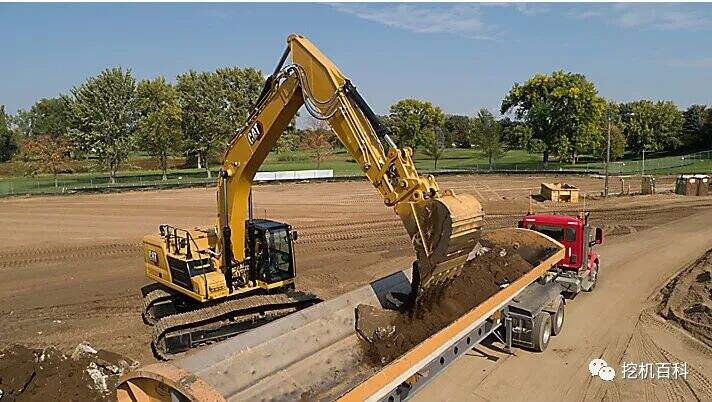

CAT 340 Classic inheritance, brand new upgrade

Summary

The production capacity is first-class and the cost of ownership and operation is low.

The production efficiency of the Cat340 is at least 10% higher than the model it replaces, and the handling workload per hour is among the best in its class.

• Up to 10% productivity improvement

  Greater engine power, a wider chassis and a heavier weight make it possible for a larger payload and first-class production.

• Low cost of ownership and operation

• High durability.

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●6.5 m（21'4" ) Stretch your arms with heavy loads

●3.2 m（10'6" ) Load stretcher pole

○2.8 m（9'2" ) Load stretcher pole

○ DB Series Bucket Link (with / without lugs)

● High resolution 203 mm (8" LCD touch screen monitor

Automatic two-level air conditioning

● Pressed starting engine control without a key

Air suspension seats

● Bluetooth radio with USB / auxiliary port

● 24V DC socket

● Beverage cup rack

● Openable steel hatch

●LED 顶灯

● Sunscreen in front of wheel

○ High resolution 254 mm (10" LCD touch screen monitor

○ A sunscreen behind a wheel

Electrical systems:

● Maintenance-free 1000CCA battery (2 units)

● Central Electrical Shutdown Switch

● LED external chassis and boom lights

○ Maintenance-free 1000CCA battery (4 units)

Powertrain:

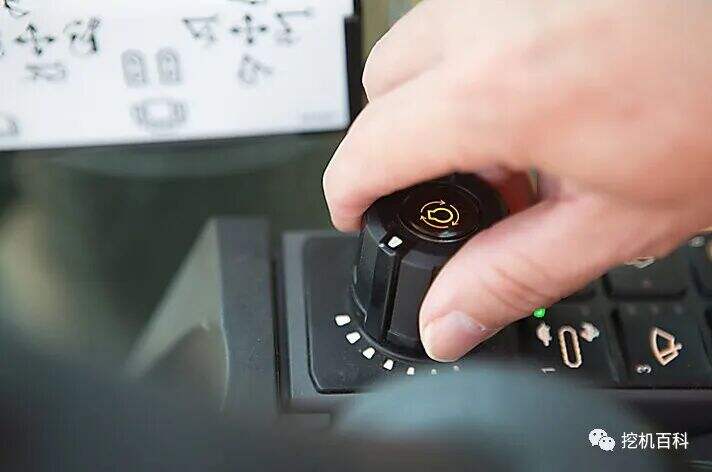

Three optional power modes: Power, Smart and Fuel Efficient

Automatic engine speed control

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

Remote disabling

Battery-powered engine heater

Cool starting cylinder heater

○ 52 ° C (126 ° F) High temperature ambient cooling

Hydraulically able to turn the fan

○ -32 ° C (-25 ° F) cold start capability

Hydraulic system:

● Regenerative circuits for the arms and poles

Electronic main control valve

Automatic hydraulic oil preheating

● The ability to use bio-hydraulic oil

● Reverse reverse vibration reduction valve

Automatic reverse parking brake

● High performance hydraulic oil recovery filter

● Running at two speeds

A single one-way loop

Combined two-way circuit

The chassis system and structure:

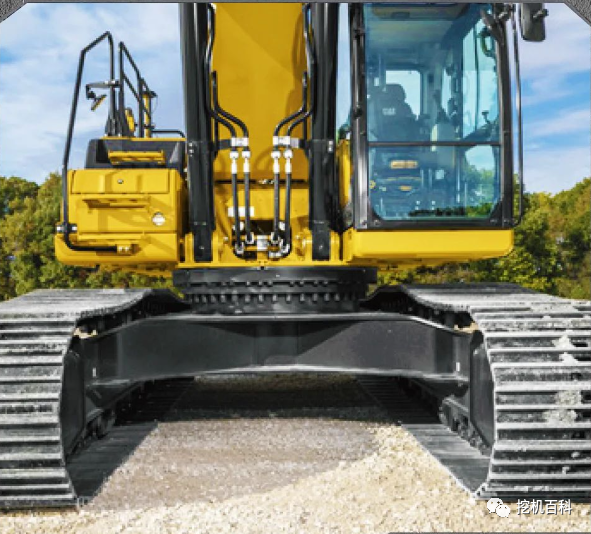

Extended wide chassis system

● The traction rings on the chassis

● Reverse shield

● Heavy load bottom guard

● Motor shield for high load driving

● Grease to lubricate the track belt

● Heavy load shifting rack

● Heavy load shift bearing

● 7.56 mt (16,667 lb) Counterweight

○ Full length track steering shield

Segmented two-piece track leading guard

Heavy load supports heavy wheels

○600 mm（24" ) Double grip, triple grip, heavy load triple grip track plate

○700 mm（28" ) Three-clawed ground teeth track plate

Safety and protective devices:

● Caterpillar Single Key Safety System

Lockable external toolbox / storage box

Lockable security doors, fuel tank and hydraulic fuel tank locks

● Lockable oil vent chamber

Maintenance platform equipped with anti-skateboarding and embedded bolts

• Right handrails and handles

• Signal / warning speakers

• Ground Assist Engine Stop Switch

● rear view camera

○ Detecting lighting

CAT Technology:

●Product Link™

Remote refresh

Remote troubleshooting

Repair and maintenance:

● Group arrangement of lubrication oil filter and fuel filter

● Planned analysis of oil sample (SOS) sampler

1. High performance:

• The C9.3B is more powerful than the 2020 Model 336.

• By increasing the power delivered to the pump and adopting a widened chassis system and heavier weighting, production efficiency improved by up to 10 per cent.

• Offering three power modes: powerful, intelligent and fuel efficient,
  The excavator can be adapted to the corresponding type of work. The strong mode always outputs maximum power. Smart mode automatically matches engine and hydraulic power with excavation conditions, providing maximum power as needed and reducing power when not needed to save fuel. Fuel saving mode reduces engine speed and maintains it constant to reduce fuel consumption.

2. Improving efficiency and productivity:

• You can use the remote troubleshooting feature to contact agent service professionals at any time to help resolve your issues and get back to work quickly.

• The remote refresh function runs as planned to ensure the machine
  Software is kept up to date to optimize performance.

• Product Link as standard™The location of the machine, machine hours, fuel consumption, productivity, idle time,
  Diagnostic code and other machine data to help you
  Improve site efficiency and reduce operational costs.

3. Made specifically for harsh conditions:

• Reinforced structures ensure long-term durability in harsh environments.

• Working altitudes up to 4,500 m (14,764 ft).

• As standard, the excavator can operate in high temperatures up to 52 ° C (125 ° F) and cold start temperatures as low as -18 ° C (0 ° F).

• Optional battery-powered engine heater, capable of starting in cold weather at -32 ° C (-25.6 ° F).

• The automatic hydraulic oil preheating function can help you get work done faster in cold weather and help extend the service life of your components.

• Two-level filtering prevents the engine from being affected by diesel fuel.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

4. Working in comfort:

• Automatic thermostats create a comfortable experience all the time without fear of changing weather.

• Excavators are equipped with ergonomically designed controls that make them easy to operate.

• Under and behind the seats and in the control room provide plenty of parking space in the driver's room for easy storage of operator equipment.

• Connect personal devices and make hands-free calls easily with a standard wireless USB port and Bluetooth ® technology.

5. It's easy to do:

• Press the button to start the engine.

• Each joystick button is programmed using the operator ID. Programmable items include power mode, response
  And the means of control; The machine remembers these settings and calls them every time you operate the machine.

• Fast navigation on the standard high definition 203mm (8in) touch screen monitor or the available 254mm (10in) monitor.

• Prevent hydraulically powered impact hammer overload. The hydraulically powered impact hammer stop function alerts you after 15 seconds of continuous air impact and automatically shuts off the hydraulic hammer after 30 seconds to prevent tool and excavator wear and damage.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

6. Easy to maintain:

• The engine oil replacement interval of up to 1,000 hours is expected to reduce maintenance costs.

• Replace all fuel filters after 1,000 hours of sync. The filter is centrally installed on the right side of the machine for easy maintenance.

• Check hydraulic system oil from the ground and easily emit it
  Water in the fuel system and fuel tank.

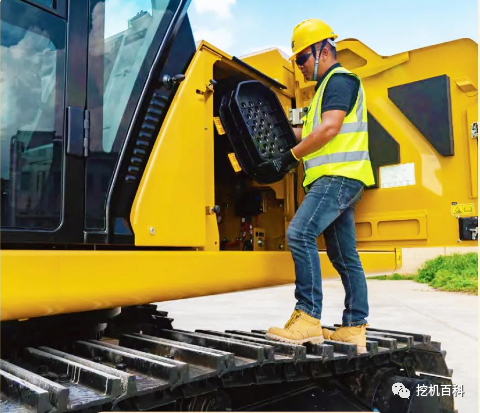

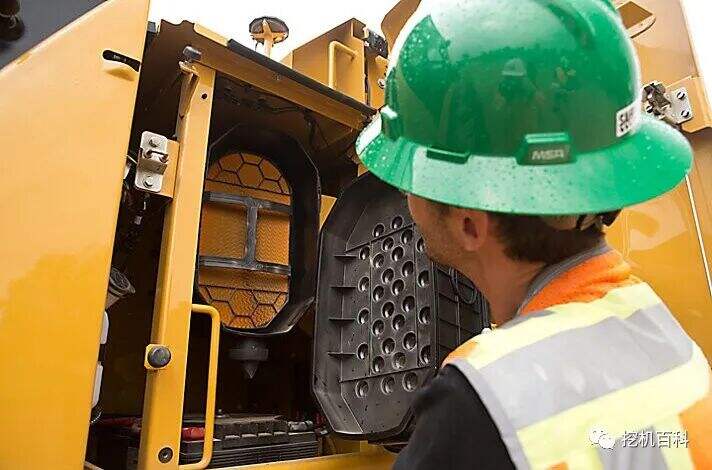

• Inlet air filter with prefilter has high dust containing capacity.

• The hydraulic oil filter has excellent filtering performance, while the back vent valve keeps the oil clean when the filter is replaced.

• Highly efficient hydraulic fans have optional automatic reverse function that eliminates debris on the core and does not require operator intervention.

• The S · O · S sampling port set on the ground simplifies the maintenance work,
  It also enables quick and easy extraction of oil samples for analysis.

7. Higher security:
