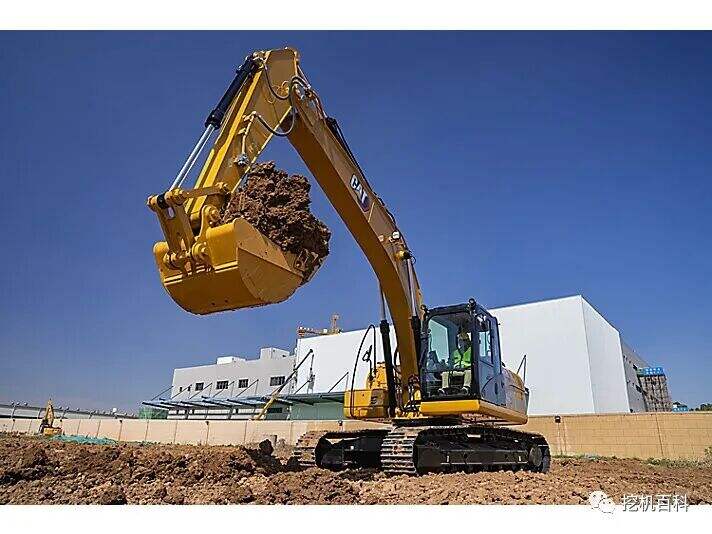

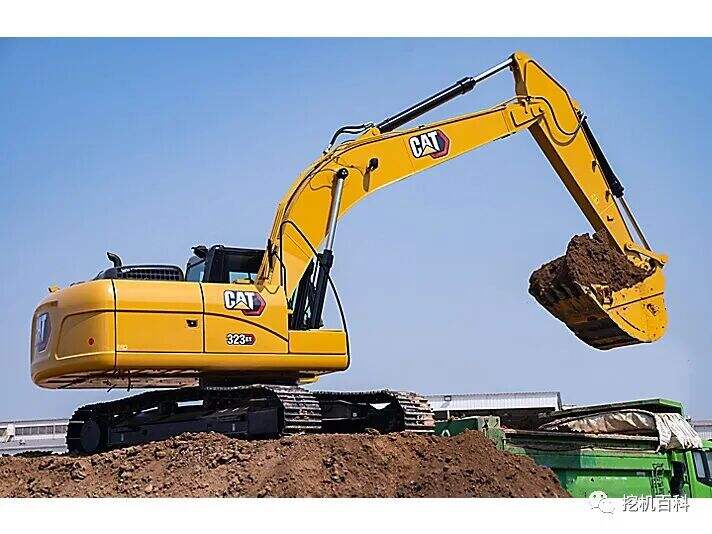

CAT 323 GX Classic inheritance, brand new upgrade

Medium-sized excavator

323 GX（NR4）

Summary

It's reliable. It's durable. Low cost.

323GX Description - An economical model that meets all of your expectations for reliability and operational convenience for Cat ® excavators, with easier maintenance and lower cost features designed to accelerate return on investment in equipment.

• Easy to operate and maintain

• Get rewarded quickly

• Up to 15 percent lower fuel consumption

• Up to 15 per cent reduction in CO2 emissions

Performance parameters, are being worked out. Stay tuned!

Configuration of the whole machine

Arm and pole:

●5.7 m（18'8" ) Stretch your arms

●2.9 m（9'6" ) Stretch the pole

○

Electrical systems:

● Two 750CCA maintenance-free batteries

● Electrical breaker switch

● Left arm, chassis and driving room LED lights

○ LED right arm light

Powertrain:

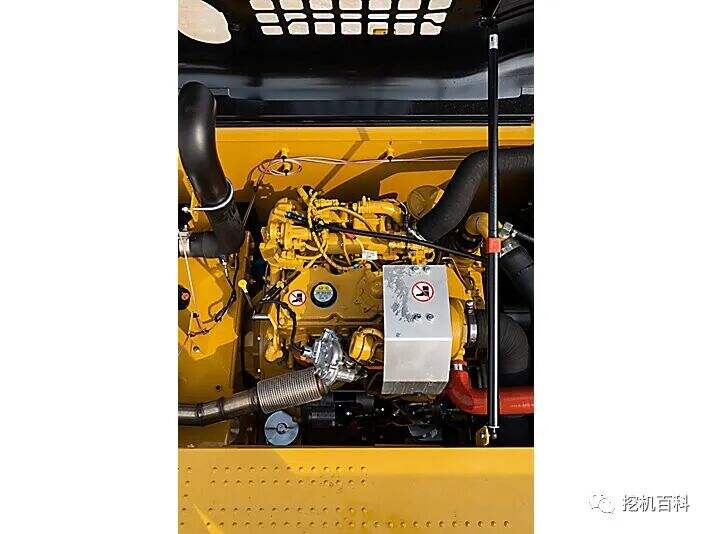

● Cat4.4 Dual Turbo Turbocharged Fuel Oil Engine

Two optional modes: Power and Smart

● Working altitude up to 4500 m (14760 ft)

● 52 ° C (125 ° F) high temperature environment cooling capacity

● -25 ° C (-13 ° F) cold start capability

● Electric fuel injection pump

• Level two fuel filtration system, with oil-water separator and indicator

● Sealed double-filter air filter with integrated prefilter

Biodiesel with a maximum label of B20 can be used

Hydraulic system:

● Electronic main control valve, reserved hydraulically powered impact hammer mounting position

Serial electric pump

● Regenerative circuits for the arms and poles

Automatic hydraulic oil preheating

Automatic dual speed driving

Hydraulically powered impact hammer oil return filter

● High performance hydraulic oil recovery filter

Hydraulically powered impact hammer line

The chassis system and structure:

● Medium chassis system

●4250 kg（9370 lb）配重

●600 mm（24" ) Three-clawed ground teeth track plate

Central track leading guard

● Grease to lubricate the track joint

● Chain Points

Driver's Room:

Noise-absorbing cab with a sticky plinth

● High resolution 203 mm (8" LCD touch screen monitor

● Mechanically adjusted seat with headrest

●51 mm（2" ) Seat belts

Automatic two-level air conditioning

● Pressed starting engine control without a key

● Adjustable console mounted on the floor

● One-click manipulation grip

● AM / FM without power, with USB, Bluetooth ® and auxiliary ports

● 24V DC socket

● Cupboard and Storage Room

70 / 30 steel windshield

● Upper radial wiper with a washer

● Openable steel hatch

● Top light

• Cleanable floor mats

○ Three-button manipulation grip

Safety and protective devices:

● Anti-skateboard with buckles

• Handrails and handles

Lockable external toolbox / storage box

• Signal / alarm horn

● Hydraulic Locking Grip

Fall Object Protection Structure (FOGS) with adapted lighting

○ BACK VIEW camera

○ Turnaround alarm

CAT Technology:

●Cat Product Link

Repair and maintenance:

● The filter is placed centrally

● Analysis of oil sample (SOS) sampler

○ Heater grille

1. Easy to operate:

• The machine's electric hydraulic system enables precise shovel control, ensuring the desired accuracy.

• The button starter engine is easy to operate.

• A high-resolution 203mm (8in) touch screen monitor enables fast navigation.

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably.

• Use the operator ID to set power mode, joystick mode, and joystick response. Mining opportunities automatically remembers your choices.

2. Easy to maintain:

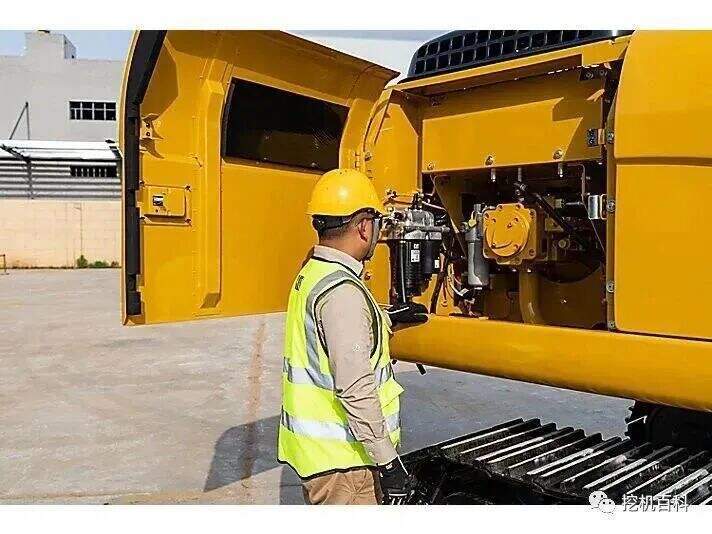

• Perform daily maintenance work on the ground.

• Due to improved filter performance, longer service intervals and synchronization, maintenance costs are reduced by up to 20% compared to 320 D2 L (savings based on 12,000 machine hours).

• The dust containing capacity of the new inlet filter is twice as much as that of the previous inlet filter. The final drive and rotary drive oils allowed for an initial service life increase from 250 hours to 500 hours, a full twice increase.

• All fuel filters are replaced synchronously every 1000 hours at twice the interval of the previous filters.

• The new hydraulic oil filter has better filtration performance, and the back-drain valve can keep the oil clean when the filter is replaced.

• And with replacement intervals of up to 3,000 work hours, the service life is longer - 50% longer than the previous filter design.

• Sealed between the track solder and the liner by grease can reduce driving noise and prevent debris from entering, thereby extending the service life of the chassis system.

• The automatic preheating function heats the hydraulic oil more quickly in cold weather and helps extend the service life of the components.

• Advansys™The shovel teeth improve the penetration capacity and shorten the cycle time. A simple lug wrench, rather than a hydraulically powered impact hammer or special tool, can be used to quickly change the tips for improved safety and extended uptime.

• The ground-mounted S · O · SSM oil sampling port simplifies maintenance and enables quick and easy oil sampling for analysis

3. Lower cost of ownership and operation:

4. Reliability of performance:

• The machine is fully functional and performs well in bucket and hydraulically powered impact hammer applications.

• The arms and poles are automatically wrought and undergo ultrasound inspection to ensure maximum durability.

• Using proven classic components, it is reliable and durable.

• The Cat C4.4 engine and the electro-hydraulic pressure system operate in sync, allowing you to move large quantities of material with less fuel.

• Fast cycle times provide excellent productivity.

• Hydraulically powered impact hammer valve assembly is standard for increased versatility.

• Double fuel filtering prevents the engine from being affected by polluted diesel.

• Cat undercarriage is rugged and absorbs job site stress for improved performance and durability.

• General load shovels are designed for rapid unloading of materials and rapid cleaning.

• Operating at altitudes up to 4500 m (14,760 ft) and above 3000 m (9,840 ft), the engine power will decrease.

• According to the standard configuration, it can operate in high temperatures up to 52 ° C (125 ° F) and cold start capability as low as -25 ° C (-13 ° F).

5. Working in comfort:

• The driver's room is equipped with wide seats that can be flexibly adjusted to the operator's personal preferences.

• Standard automatic thermostats help you stay comfortable throughout your job.

• The cab's excellent job site view improves productivity and safety.

• Optimized effort-saving handling of the handle control can alleviate operator fatigue.

• Convenient configurations such as a cassette player, headphone assist port and a USB port for connecting and charging the device; 24V DC socket can increase the charging speed of mobile phone.

• There is a cupholder and storage space in front of the control device for large-capacity water cups and a widescreen mobile phone; The storage space behind the seat holds a large lunch box and other items.

6. Security is higher:

• All the daily maintenance points (except engine oil levels) are accessible from the ground, so there is no need to climb to the top of the excavator to check the filters or lubrication hooks.

• Thanks to the smaller cockpit columns and wide window designs, operators have an excellent view, whether on the inner side of the ditch, in each direction of rotation or in the rear of the operator.

• The optional rear view camera provides the operator with a better view.

• The repair platform has anti-skateboards on it to help prevent slips and falls.

• Handrails comply with the requirements of ISO 2867: 2011, further improving safety.

• Use the operator ID to ensure the safety of the digging machine. Use a PIN code on the monitor to enable button activation
