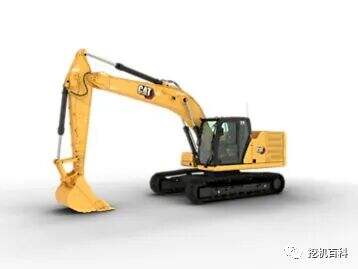

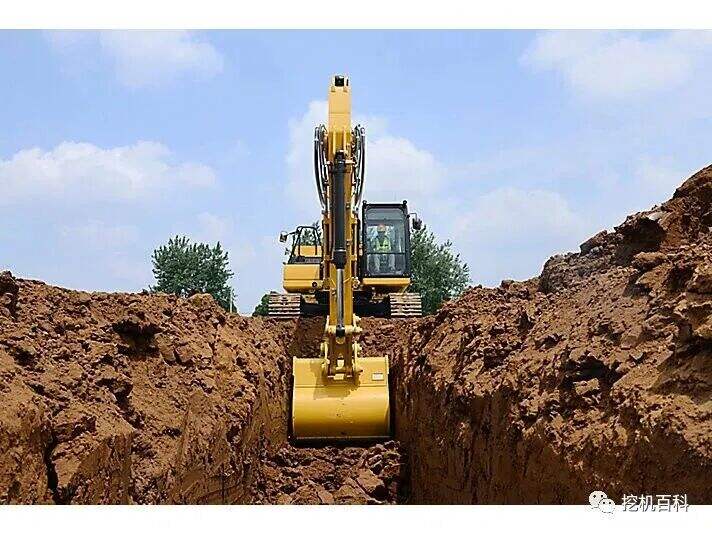

CAT 320 Classic inheritance, brand new upgrade

Electrical systems:

● Two 1000CCA maintenance-free batteries

● Programmable delay time LED work light

● LED chassis lights, left and right arm lights, driving room lights

Ultra luxury surround lighting suite

Powertrain:

● Cat C4.4 Dual Turbocharged Fuel Oil Engine

Three optional power modes

Automatic engine speed control function

Automatic engine idle shutdown

● 52 ° C (125 ° F) high temperature environment cooling capacity

● -18 ° C (0 ° F) cold start capability

Dual-core air filter with integrated prefilter

● Reverse electric cooling fan

Biodiesel with a maximum label of B20 can be used

○ -32 ° C (-25 ° F) cold start capability

Hydraulic system:

● Regenerative circuits for the arms and poles

Automatic Preheating

Automatic mining enhancements

Automatic dual speed driving

● Boom and arm settling pressure reducing valve

○ Hydraulically powered impact hammer return filter circuit

Tool control (double pump, single / two-way high pressure flow)

Base tool control (single pump, one-way high pressure flow)

Fast connector circuit

The chassis system and structure:

●600 mm（24" ) Three-clawed ground teeth track plate

● Chain points on the basic frames

○600 mm（24" ) Double-clawed ground teeth track plate

○ 3700 kg (8157 lb) counterweight

○ 4200 kg (9300 lb) counterweight

○ 4700 kg (10,400 lb) counterweight for SLR boom and stick

Safety and protective devices:

● rear view camera

● Right rear mirror

• Ground engine stop switch

• Right handrails and handles

• Signal / alarm horn

Cat Detect Personnel Detection

Right-View Camera

360 ° View

○ Turnaround alarm

○ Detecting lighting

CAT Technology:

●Cat Product Link

Remote refresh

Remote troubleshooting

Cat Grade with 2D system

●Cat Assist

●Cat Payload

● Electronic fences

Cat Grade with advanced 2D systems

Cat Grade with 3D system single GNSS technology

Cat Grade with 3D System Dual GNSS Technology

1. Latest features:

• Optional CatDetect - Personnel Detection features help operators avoid personnel at the job site with visual and auditory alarms;

• The new single-antenna Global Navigation Satellite System (GNSS) option provides visual and acoustic guidance on slope;

• Optional auxiliary relays open and close CB radios, Denso lights and other fixtures without loosening the control handle;

• Turning alarms can be optional to enhance job site safety.

2. Less fuel consumption and greater efficiency:

• Compared to previous models, fuel consumption is reduced by as much as 10%.

• Standard Cat technology reduces operator fatigue and saves operating costs (including fuel consumption and routine maintenance), increasing operational efficiency by up to 45%.

• The C4.4 engine complies with China's fourth non-road emission standard and can use biodiesel.

• The advanced hydraulic system not only achieves an excellent balance between power and efficiency, but also gives you the control devices you need to meet your precise excavation requirements.

• Use power mode to match the excavator to the job; And automatically matches engine and hydraulic power to your excavation conditions through smart mode.

• Advansys™The shovel teeth improve the penetration capacity and shorten the cycle time. A simple lug wrench, rather than a hydraulically powered impact hammer or special tool, can be used to quickly change the tips for improved safety and extended uptime.

• Auxiliary hydraulic options give you the versatility you need to use a wide range of Cat tooling.

• Perfect for temperature challenges and safeguard your normal work.The excavators can operate in high temperatures up to 52 ° C (125 ° F) and have cold start capabilities as low as -18 ° C (0 ° F).Optional -32 ° C (-25 ° F) starter kits are available.

3. Increasing efficiency through technology:

4. Designed for operators:

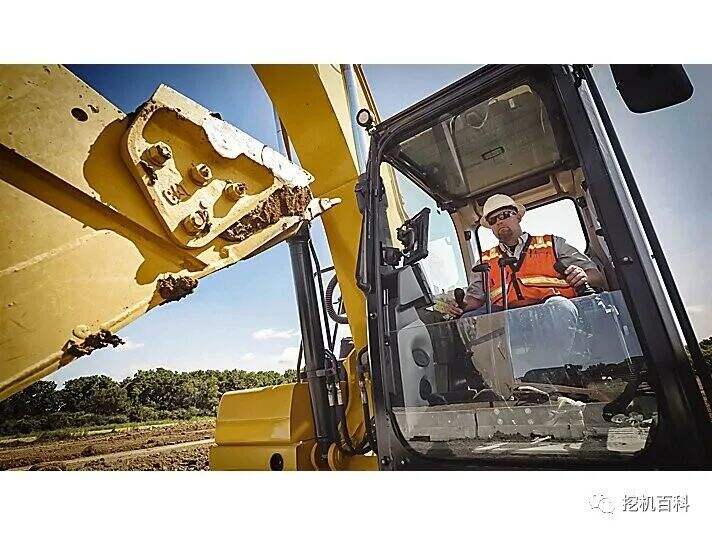

• Driver room options allow you to choose the comfort you need.

• The wide spacing between consoles provides a more comfortable and spacious environment.

• Sit in a brand new wide seat that can be adjusted to suit operators of all sizes (heating and heating / cooling options are available).

• Access to the driver's room (exclusive to luxury) is easier through the turned up left console.

• With a touch to manipulate the handle button, the operation is easier. You can switch on and off the CB powerless, signal lights, and even the dust sprinkler system without loosening the joystick via an additional auxiliary relay (luxury driving rooms only).

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably. Standard automatic thermostats ensure a comfortable temperature throughout the operation.

• The advanced adhesive mounting seat reduces vibration in the cab by up to 50 per cent compared to previous excavator models.

• The rear of the seats, overhead and in the control room provide plenty of drive room storage space to easily store your gear.

• The standard cordless uses USB port and Bluetooth ® technology to connect personal devices and make hands-free calls.

5. It's easy to do:

• The engine can be started with a button, a Bluetooth key fob or an operator ID password.

• Program each joystick button using the operator ID, including mode and response; The machine remembers these settings and calls them every time you operate the machine.

• You can set up to four depth and slope shifts and reach the desired slope with no slope checker, saving time and improving job site safety.

• Available appliance identification features help you save more time and energy. You can confirm its identity by shaking the accompanying tool; It also ensures that all work setups are accurate, allowing you to work quickly and efficiently.

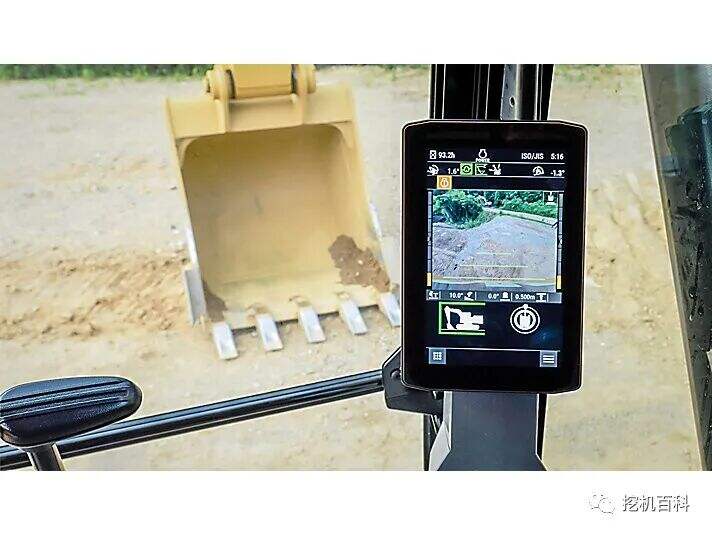

• High resolution 203mm (8in) standard touch screen monitors or, optionally, 254mm (10in) touch screen monitors or knob controls are available for fast navigation.

• For advanced grade control, an additional 254 mm (10 in) monitor is available.

• Prevent hydraulically powered impact hammer overload. The hydraulically powered impact hammer stop signal lasts for 15 seconds and then shuts off automatically after 30 seconds to prevent tool and excavator wear.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

• The Cat PL161 Tooling Positioner is a Bluetooth device that helps you quickly and easily find tooling and other equipment. The excavator's onboard Bluetooth reader or the Cat app on your phone can automatically locate the device.

• Available appliance identification functionality helps save more time and energy. You can confirm its identity by shaking the accompanying tool; It also ensures that all work setups are accurate, allowing you to work quickly and efficiently.

• The automatic excavation enhancements can increase power by up to 8%, resulting in stronger shovel penetration, shorter cycle times and greater payload.

• The Cat single handle makes it easier to control the movement of the digging machine. With the press of a button, you can control driving and steering with one hand without having to control the steering lever with both hands or both feet on the pedal.

• Do you need more motivation during work? Turning on the automatic load boost gives you an accurate 8% more power when you need it.

6. Save on repair and maintenance costs:

• Maintenance costs are expected to be as much as 10 percent lower than previous models.

• Perform all daily maintenance work on the ground.

• Use new engine oil gauges near the ground to quickly and safely check engine oil levels; Using a second oil gauge at your fingertips, you can fill and check the engine oil at the top of the machine.

• Reversable electric cooling fans help to easily clean radiators, oil coolers and condensers.

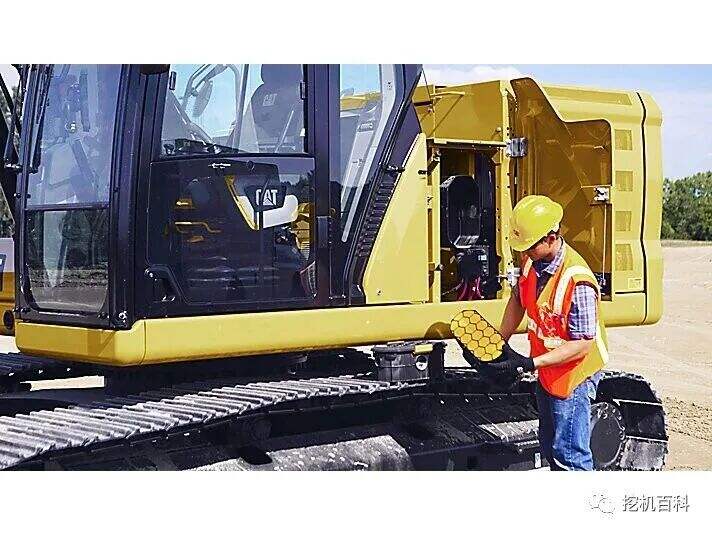

• The dust containing capacity of the new inlet filter is twice as much as that of the previous inlet filter.

• Using Cat OEM oil and filters and performing typical S.O.S. monitoring can extend current service intervals to 1,000 hours, twice as long as before, allowing you to get longer uptime to get more work done.

• The new hydraulic oil filter provides better filtration performance, and the reverse drain valve keeps the oil clean when the filter is replaced at a time of up to 3,000 working hours, giving a longer service life - 50% longer than previous filter designs.

• The ground-mounted S · O · S sampling port simplifies maintenance and enables quick and easy extraction of oil samples for analysis.

• The 2D electronic fence prevents the excavator from moving beyond the set point defined by the operator; The system uses a combination of thumb bucket and bucket and hydraulically powered impact hammer, grab bucket and bucket tooling.

• All of the daily maintenance points are accessible from the ground - there is no need to climb to the top of an excavator.

• The standard ROPS driving room meets the requirements of ISO 12117-2: 2008.

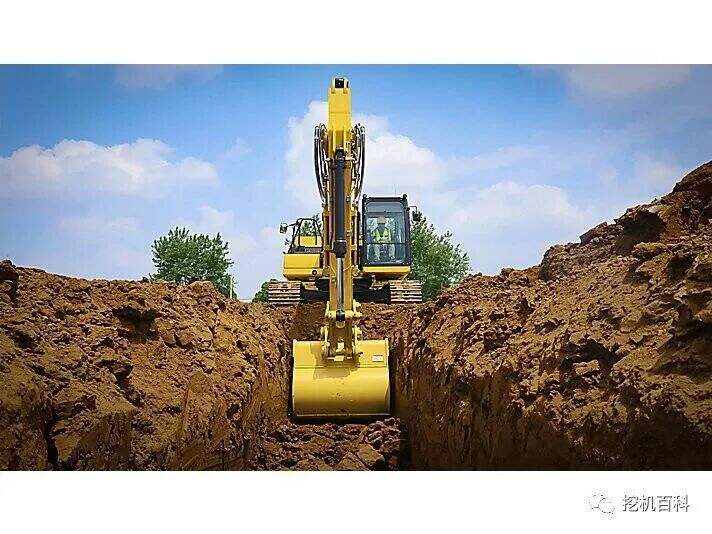

• Thanks to smaller cockpit columns, wide windows and a flat engine casing design, operators have an excellent view on both the inner side of the ditch, in every turning direction and behind.

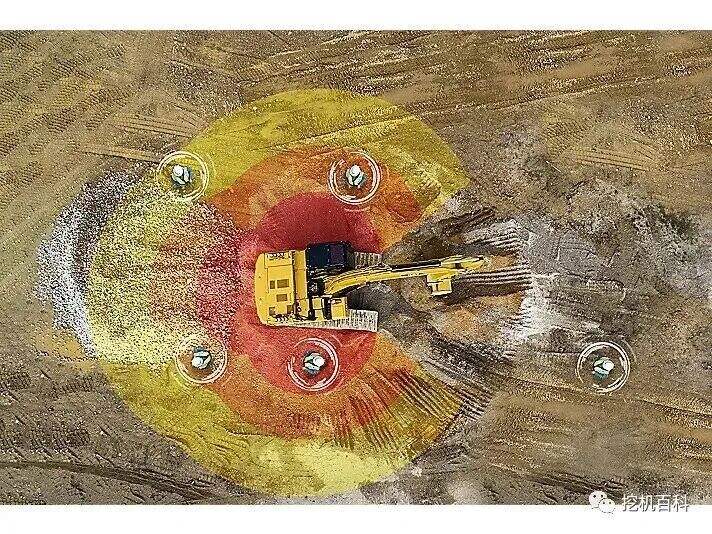

• Cat Detect - People detection helps protect the most valuable asset in any job site: people. The system uses a smart camera with a depth sensor that provides the operator with visual and auditory alerts to take immediate action if a person gets too close to the excavator.

• When the standard hydraulic lock lever is in a lower position, it blocks all hydraulic functions and driving functions.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.

• A standard rear view camera.Upon upgrading to 360 ° view, you will be able to view objects and people around the excavator in a single view.

• The right-side repair platform is designed to facilitate easy, safe and fast access to the upper repair platform; The maintenance platform staircase uses slippery perforated plates to prevent sliding.

• The handrails meet the requirements of ISO 2867: 2011.

• Detection lighting can be optional to make maintenance work easier and safer. When the switch is turned on, the light will illuminate the engine, pump, battery and radiator chamber to improve the view.

• Enhance job site safety. Add a turning alarm to alert the person concerned when rotating from the ditch to the pile and back again.
