XCMG XE500GK Classic inheritance, brand new upgrade

[Highly Efficient]

• The rated output power increased by 22.5 percent, compared to the industry at 70 tons;

• Constant power output, and when light load and heavy load switch, the power output is smooth.

• Highly efficient turbochargers, fast power response, and stronger instantaneous bursts;

• Kawasaki's large-throughput main valve has high flow distribution efficiency and smooth compound motion.

[More reliable]

• The maximum displacement of the Kawasaki 240 main pump of the same tonnage has increased by 13%, and the system flow is sufficient and the work efficiency is high.

[Greater durability]

• Optimizing the shovel thrusters, bearing joints, and fully surrounded by side plate wear-resistant castings increases the overall life to 2,000 hours.

[Stability]

• The large displacement rotary motor + high speed improves the output torque by 15% more than the decelerator, and the torque is large and powerful, the start capacity is good, and the rotary parking is smoother.

• The main beams of the turntable are thickened, the opening distance is increased, the large base and back base are thicker upgraded, and the resistance to bend and twist is increased.

• Both sides of the skirt frame beam with "U" bending the whole welded, good load carrying capacity, seismic crack capacity increased by 10%.

[Authorized]

• The electrically controlled positive flow system enables the delivery of the pump on demand, and the pump control is more precise and the response speed is fast. The system loss of throttle is small, pressure loss is small, motion is sensitive, and micro-control is soft.

[Silence]

• Positive pressure seals the driver's room, and a sunscreen on the top and front to block strong light and prevent dust from invading. Indoor noise was reduced to 65 dB.

[Easy]

• The arm control oil route sets up a buffered flexible control valve group, and the valve core opens and closes smoothly to reduce the motion impact. Composite work is more smooth and gentle;

• The light handling handle reduces torque by 15%, and the resistance is small, power saving, which can alleviate wrist fatigue caused by prolonged operation.

[Safety]

• Optimize the layout of emergency parking switches so that emergencies are within reach.

[Convenience]

• Launched with one click, easy, fast and efficient control;

• Highly integrated switch panels, working lights, lighting lights, rain wipes, multimedia knobs and other control keys are centrally arranged, making operation more convenient;

• The armrests and seats can be adjusted up and down, back and forth simultaneously, making the driving handling more comfortable.

[Comfort]

• The switch uses a waterproof key and has good pressing comfort.

• Ergonomic seats and pedals are designed for better packing and comfort.

• Multiple working modes support 10 levels of flow regulation, which can match the appropriate flow according to different work conditions, and achieve an optimal balance between efficiency and fuel consumption;

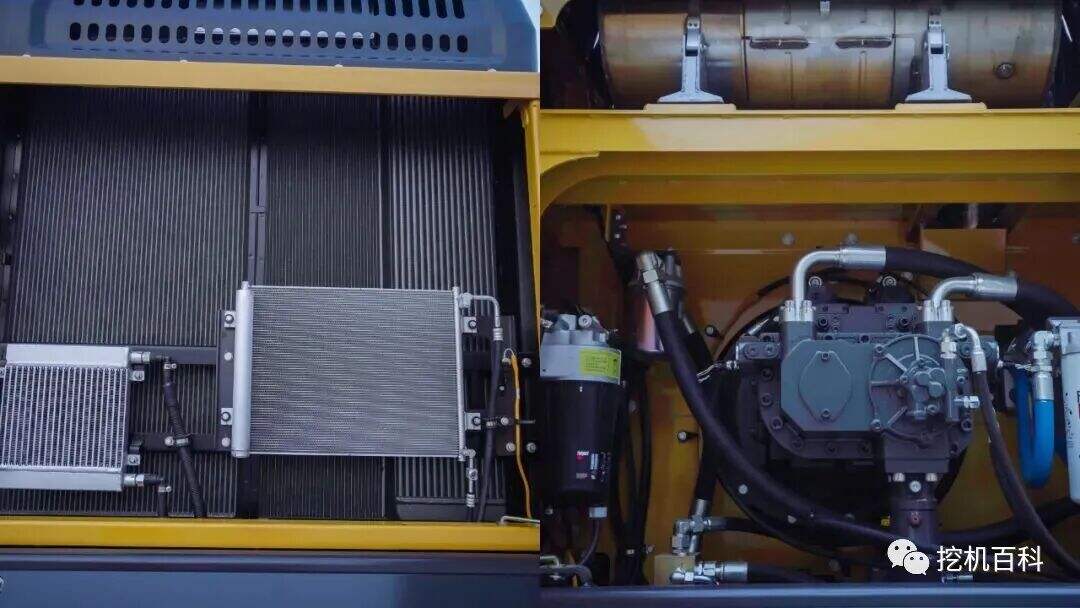

• Full parallel radiator, 20% increase in front projection area, 30% increase in heat dissipation capacity; Under high temperature environment, water temperature and oil temperature can always be maintained within a reasonable range;

• The fan rotates in reverse to dust, the mine has a high dust environment, decontamination and cleaning save time and effort;

• Pure parallel DC empty filter has a large ash capacity and high filtration accuracy. High dust environments such as open coal mines, cement fields, and rock mines are more adaptable.
