Medium wheel excavator



EW205 CN4

Summary

A richer suite

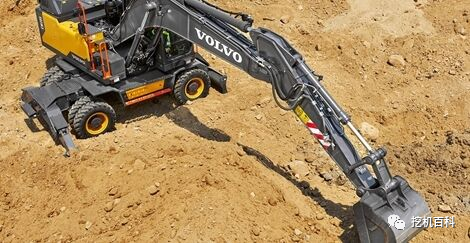

The Volvo EW205 wheel excavator can help you increase efficiency. Thanks to advanced technologies such as Volvo's unique ECO model and a powerful Volvo engine that meets Tier 4 standards, this machine performs better in both road and off-road conditions.



Main technical specifications:

Power: 129 kW

Machine weight: 19990 ~ 21180kg

Bucket capacity: 0.48 ~ 1.1 m3





Configuration parameters

Standard: ● Option: ○ Reference value: * To be refined: /





1. Performance parameters:



force	Traction force	108.9	kN·m
	Bucket Digging Force - ISO	144	kN
	Bucket Rod Digging Force - ISO	109	kN
	Rotation torque	83	kN·m
speed	Reverse speed	11.8	r/min
	Walking speed (road / field / crawl)	36/9/3.5	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	/	°
	Ground is higher than pressure	/	kPa





2. Powertrain:



Engine Model	Volvo D6J
rated power	129/2000	kW/rpm
Maximum torque	850/1350	Nm/rpm
discharge volume	/	L
Emissions Level	Country 4
Emissions technology routes	DOC+DPF+SCR





3. Hydraulic system:



The technical route	All-electric control
Main Pump Brand / Model	/
Main pump discharge	/	cc
Main valve brand / model	/
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*230	L
The overflow valve settings:
Execute a hydraulic circuit	32.4/34.3	MPa
Turning the oil road	27.9	MPa
Walking the oil road	34.3	MPa
Leading oil road	3.9	MPa
Tank specifications:
Armed cylinder	/	mm
Bulk fuel tank	/	mm
The shovel oil tank	/	mm





4. Working appliance:



Move your arms	5650	mm
Fighting clubs	2700	mm
The shovel fighter looks	0.86	m³







5. The chassis system:



Weight of weight	3400	kg
Number of tyres	4-4
Tire Specifications	10.00-20 18PR
tread	1914	mm
wheelbase	2850	mm





6. Amount of oil and water added:



Fuel tank	300	L
Urin boxes	25	L
Hydraulic system	335	L
Hydraulic fuel tank	148	L
Engine oil	25	L
Antifreeze Solution	30.4	L
Reverse gear oil	7	L
gearbox	2.5	L
Differential of car and bridge :
Maebashi	11	L
The back bridge	11	L
End drive mechanism	4x2.5	L

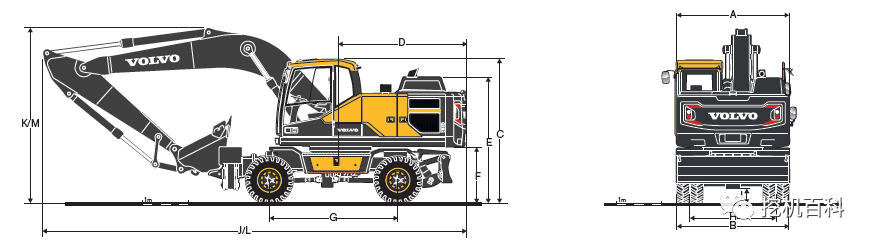

7. Form factor:





A	Total upper structure width	2500	mm
B	Total width	2500	mm
C	Total height of the driver's room	3180	mm
D	Tail pivot radius	2800	mm
E	Total height of engine cover	2790	mm
F	Weight-to-earth gap *	1255	mm
G	wheelbase	2850	mm
H	tread	1914	mm
I	Minimum distance from the ground *	337	mm
J	Total length (walking status)	9390	mm
K	Total arm height (walking status)	3960	mm
L	Total length (state of transport)	9510	mm
M	Total arm height (transport status)	3185	mm
*: No track plate teeth

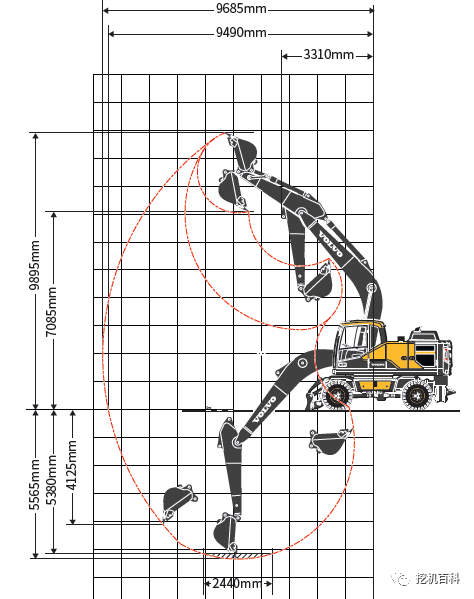

8. Operational scope:







Harmonious Hydraulic System



Equipped with an advanced hydraulic system, the fuel efficiency improved by about 7%. By using a fully electronic control system and advanced ECO mode, the optimized hydraulic system works with a country IV-compliant D6 engine to match engine power, reduce power loss and improve operational stability and responsiveness.

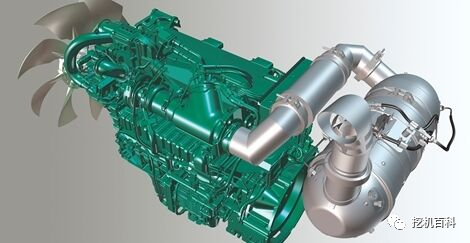

1. Mature engine technology





• Since 2014, Volvo D6 engines that meet the National IV standards have been validated worldwide.

• Thanks to nearly 10 years of technical testing, verification and improvement, this engine delivers exceptional quality, reliability and efficiency levels that customers can rely on.



2. Always be prepared for work







• Maintain high performance and low cost through integrated machine control systems. Select the settings that are best suited to your job task by selecting the most accurate engine speed in the nine speed ranges.

• The new ECO mode uses the latest electronic engine pump control technology to further improve fuel efficiency without any loss of performance.



3 Increased power, reduced fuel consumption





• Do larger tasks better, stronger, and faster. The EW205 is equipped with a powerful D6 Volvo engine that delivers high torque at low revs for consistently high productivity.

• When the steering wheel and pedals are not started, the automatic idling system reduces the engine speed to idle to reduce fuel consumption and cabin noise levels. At the same time, the optional engine automatic shutdown feature helps you shut down the machine after a preset period of inactive activity, saving you time and money.

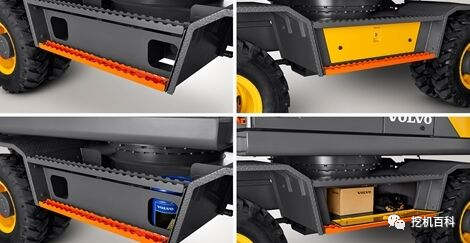

4. Get all the tools at once





• All tools are placed in a large toolbox, which is very conveniently installed in the middle of the side steps of the machine.

• To make it easier to operate, the grease tank can be placed on the other side of the machine to help you get back to work quickly.





Comfort is essential

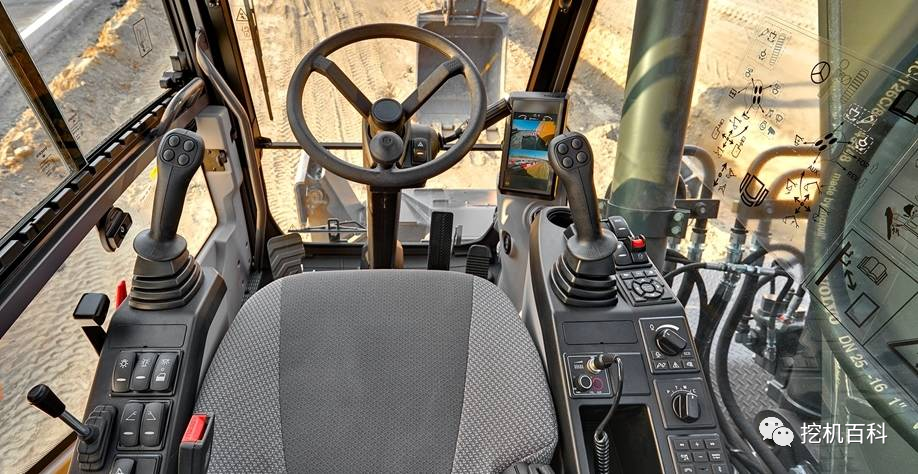

The Volvo ROPS Driving Room is comfortable to operate with seat belts and a range of features designed to maximize productivity and reduce operator fatigue. Sitting in adjustable seats, advanced climate control systems and ergonomic controllers enable you to experience a full range of visibility and ease of operation. The easy-to-operate monitor displays all the data related to profitability, allowing you to keep an eye on the productivity of your machine at all times.

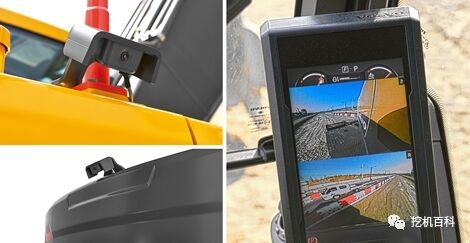

1. Excellent view.





• With rear-view and side-view cameras, you can ensure mobility and flexibility when walking - especially when driving on the highway. The camera is mounted on the machine to make it easy to see the conditions around the machine from different angles.

• Both views are shown on the color monitor, making the working environment more comfortable. Cruise control helps you focus on the road ahead, further enhancing transportation convenience.

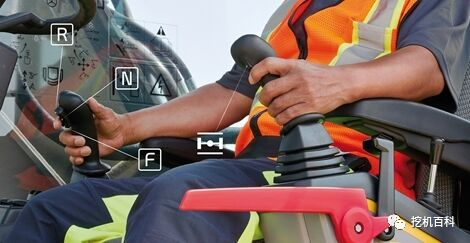

2. Easy operation, excellent control performance

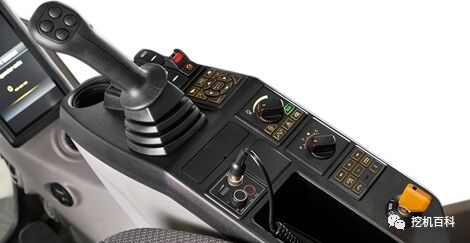

• Using an ergonomically designed control handle, the machine can be controlled with one click.

• The right lever controls forward and backward, and the left lever controls the bridge lock. A single action or a composite operation will respond quickly and run smoothly, with excellent operational performance.

• The electro-hydraulic system and the main control valve improve control performance and fuel efficiency, ensure that each operation can provide the appropriate flow.



3. Work easily





• For ease of operation and reduction of operator fatigue, the Comfort Drive Control feature enables the operator to drive the machine at speeds up to 20 km / h (12 mph) without having to take his hands off the joystick.

• Volvo's pioneered automatic excavator brakes allow you to start work straight after stopping. When the machine's speed is reduced to zero, the brake and swing lock automatically join together.







Long lasting.



The EW205 is equipped with durable components including rust-resistant silicone caulking, waterproof wiring harnesses and joints, and heavy duty hinges to perform even in harsh conditions. The smart engine delayed shutdown function turns off the engine after the turbocharger cools to the right temperature, further improving the durability and reliability of the engine.







1. Taking on a difficult task





• Volvo's durable design and perfectly matched Volvo transmissions provide excellent control that ensures smooth walking and superior performance, resulting in high productivity.

• The strong structure easily absorbs the shocks transmitted by excavators, and the durability is further improved by reinforced welding between the central rack and side frames and the arms and arms cylinder supports.

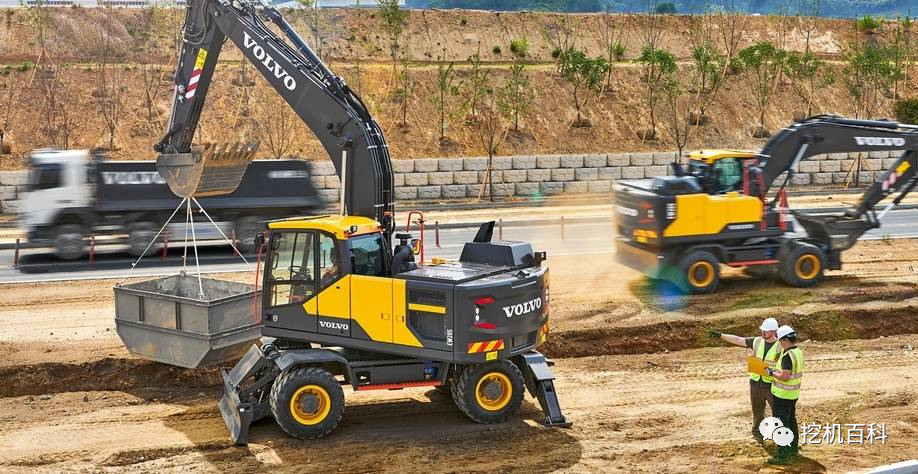

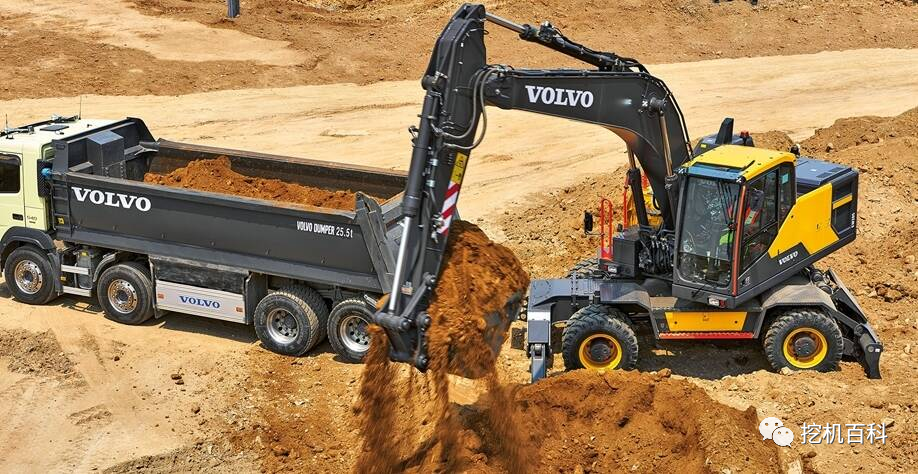

2. Lifting, loading and consolidating operations





• The reinforced arms and arms extend further, dig deeper, lift higher, operate at a maximum distance of 9.7 meters and have long-lasting performance.

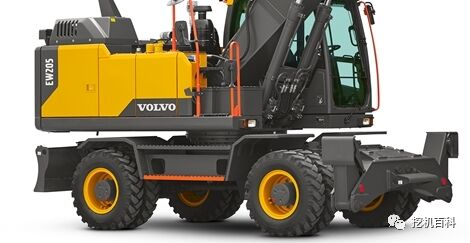

• The rigid earth shovels and legs improved machine stability and increased versatility, enabling the excavator to perform a variety of operational tasks.



3. Extending the uptime





• Anti-sliding boards, wide steps and enough handrails, as well as properly positioned guardrails, make the repairs quick and easy.

• Grouped filters and central lubrication points are easily accessible from the ground, making repair and maintenance operations more convenient.

• The new splash-proof protective device for urea tanks makes urea filling faster and more convenient, while also reducing the risk of spillage and subsequent corrosion.



4. Easily monitor the state of your machine

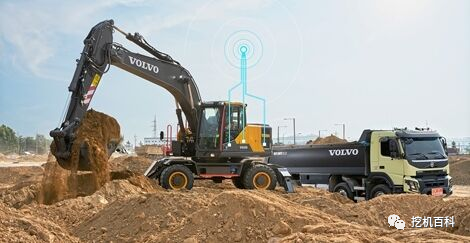

• The new generation of vehicle communication hardware PSR brings a new upgraded car networking service experience. WOW + Smart Cloud platform enables you to optimize your fleet and maximize productivity through real-time tracking, machine state in service, geographic / temporal fence management, and equipment utilization reporting.

• The system provides machine-related reports that show how each machine is being used and how efficiently the hands are working, and can help you determine training needs.

• Through WO + wisdom cloud platform or Volvo construction equipment APP to view the equipment real-time condition, WO peace of mind report, maintenance / alarm reminder, etc. The Volvo Maintenance Hours Centre provides 24 / 7 machine monitoring, provides monthly reports, and notifies you when preventive maintenance measures need to be taken.
