SHANTUI SE215-10W Classic inheritance, brand new upgrade

SHANTUI SE215-10W Classic inheritance, brand new upgrade

Medium-sized excavator

SE215-10W

Main technical specifications:

Power: 140 / 2000 kW / rpm

Machine weight: 22200 kg

Bucket capacity: 1.05 m3

Configuration parameters

Standard: ● Option: x To be perfected: / Reference value: *



 1. Performance parameters:



force	Traction force	212	kN·m
	Bucket Digging Force - ISO	148	kN
	Bucket Rod Digging Force - ISO	107	kN
	Rotation torque	/	kN·m
speed	Reverse speed	11	r/min
	行走高速/低速	5.3/3.3	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	70%
	Ground ratio	48.6	kPa

2. Powertrain:



Engine Model	潍柴WP7H
form	Electric injection, turbocharge, water cooling
rated power	140/2000	kW/rpm
Maximum torque	/	Nm/rpm
discharge volume	6.8	L
Emissions Level	Country 4
Emissions technology routes	DOC+DPF+SCR



3. Hydraulic system:



The technical route	Electrically controlled positive flow system
Main Pump Brand / Model	Lindh
Main pump discharge	135*	cc
Fixed work flow	2x270+20	L/min
Main valve brand / model	/	25 aperture *
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/

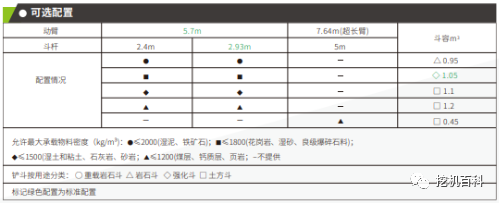

4. Working appliance:



Move your arms	5700	mm
Extremely long arms	7640	mm
Fighting clubs	2400/2930	mm
Extremely long poles	5000	mm
The shovel fighter looks	0.45~1.2(1.05)	m³

5. The chassis system:



Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	2	individual
Number of support wheels - one side	8	individual



6. Amount of oil and water added:



Fuel tank capacity	405	L
Cooling system	33	L
Engine oil quantity	26	L
Hydraulic fuel tank	266	L
Hydraulic system	400	L
Reverse motor decelerator gear oil	/	L
Walking motor decelerator gear oil	/	L

7. Form factor:

A	total length	9610	mm
B	Landing length (when transported)	4965	mm
C	Total height (to the top of the moving arm)	3040	mm
D	Total width	2980	mm
E	Total height (to the top of the cab)	3100	mm
F	Gap between weight and ground	1080	mm
G	Minimum distance from the ground	470	mm
H	Tail pivot radius	2980	mm
J	Track length	4270	mm
K	gauge	2380	mm
L	Running bandwidth	2980	mm
P	Standard track plate width	600	mm
N	The width of the pivot platform	2725	mm
Q	Distance from center of turning circle to rear end	2910	mm

8. Operational scope:

A	Maximum excavation height	10100	mm
B	Maximum removal height	7190	mm
C	Maximum excavation depth	6490	mm
D	Maximum vertical excavation depth	5770	mm
F	Maximum excavation distance	9865	mm
G	Maximum ground excavation distance	9680	mm
H	Minimum rotation radius of working device	2970	mm

Power is green and efficient



Powertrain:

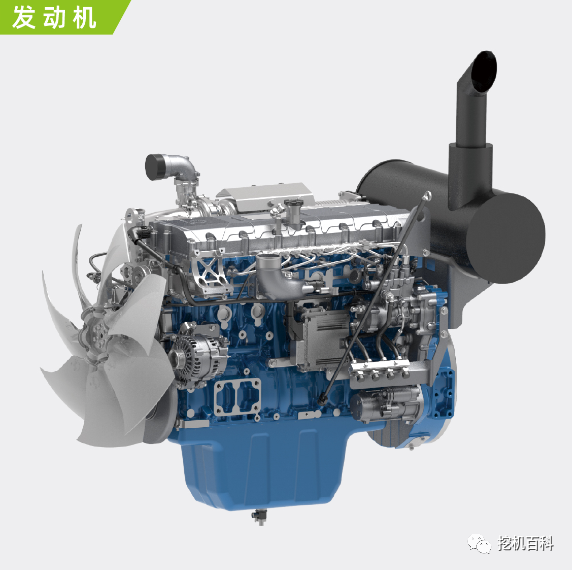

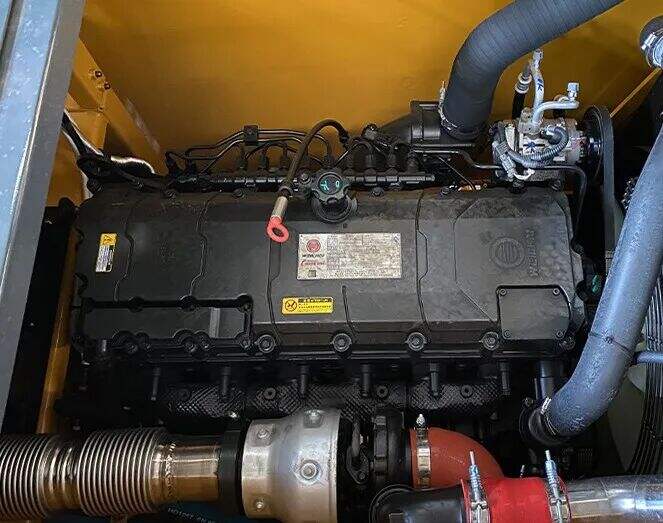

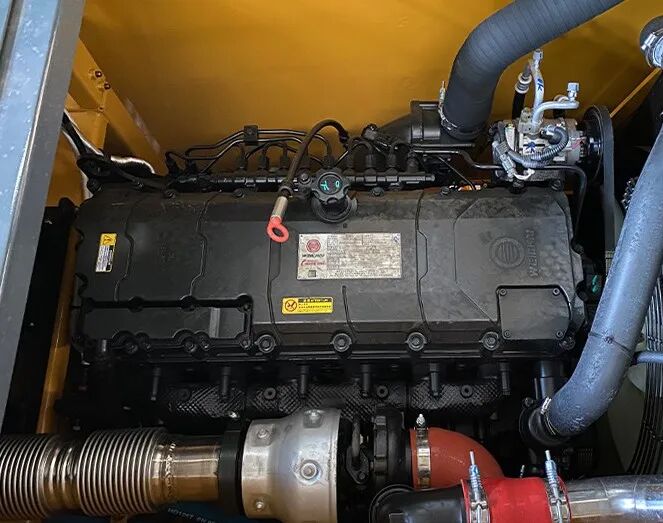

• Equipped with Weichai WP7H high-end engine, the fixed power of 140kW, low speed, large torque, strong power, 9 fuel saving and efficiency technology, the fuel consumption of the whole machine is 8% lower than the competition.
• Original AIOC working condition self-identification control technology, automatic identification loading, flat, both sides or broken conditions, accurate matching control parameters, improve operating efficiency.
• We have independently developed a new electrically controlled positive flow system for high-end hydraulics, with large flow and large torque, faster speed, smoother action, and more robust operation.





Safe and secure

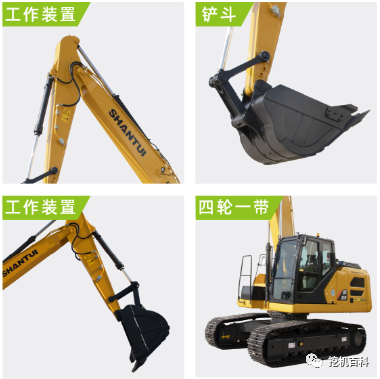

Workstation upgrades:

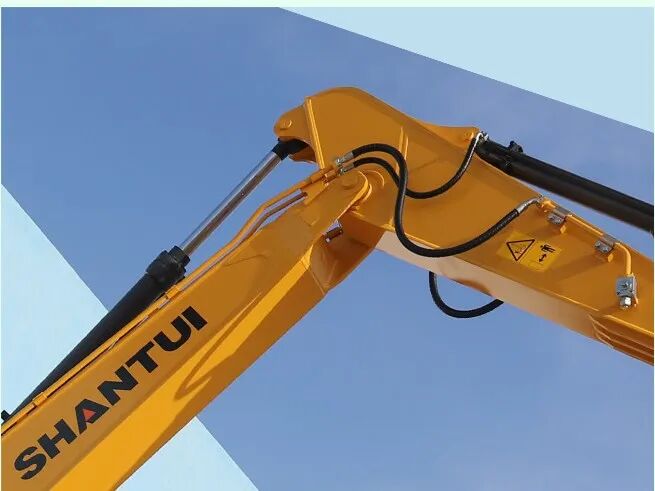

• The structural design is optimized across the board, and the moving arm struts use a large cross section box structure;
• Critical pressure locations are intensively treated and are not afraid of harsh working conditions.



The shovel upgrade:

• The bottom plate, side plate and reinforcing plate of the shovel are all made of high-strength wear-resistant materials to improve the durability of the shove.



The four-wheeled belt:

• 40 years of four rounds of regional R & D manufacturing experience, and world leading technology.
• The world's top forging heat treatment process, with stable and reliable quality.



Smart Comfort

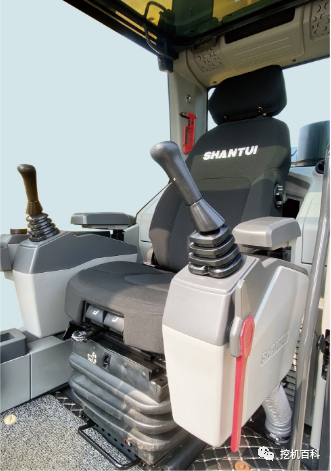

The driver's room was completely upgraded:

• The space is large, the view field is wide, the controls are selected and arranged in accordance with ergonomics, and the operation is convenient and comfortable.
• The new interior, which is effectively matched with interior colors according to human and machine engineering, is not easy to cause visual fatigue for the operator.
• Ergonomic configuration: air suspension seats, awnings, skylights, cup seats, charging ports, cell phone brackets, refrigerator, shoe box.





An intelligent upgrade:

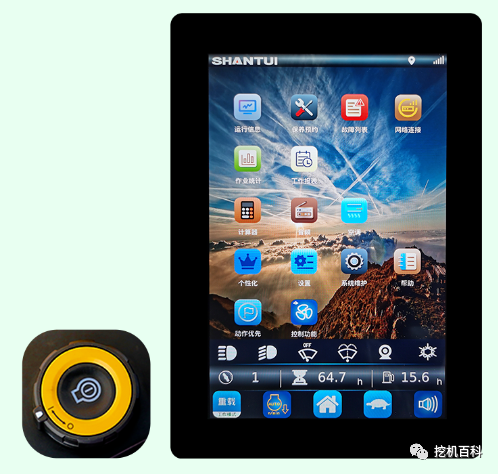

• 10.1 inch smart screen, full fit IPS screen, wide viewing angle, high brightness, visible under the sun.

• Integrated rich features to enhance the operational experience.

• Intelligent display and intelligent control provide interfaces and control interfaces for intelligent auxiliary construction and human-machine interaction functions.



Air conditioning system upgrade:

• High-power heating, cooling and air conditioning to ensure driving comfort.



Easy maintenance, quick maintenance

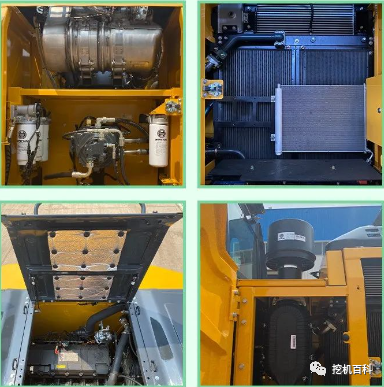

• Oil filters are centrally maintained, and maintenance and replacement are within easy reach;
• Configuration of nanoscale empty filters with long maintenance cycle;
• The engine casing is opened backwards at a large angle for easy maintenance;
