LOVOL FR18F-u Classic inheritance, brand new upgrade
LOVOL FR18F-u Classic inheritance, brand new upgrade
Tiny excavators

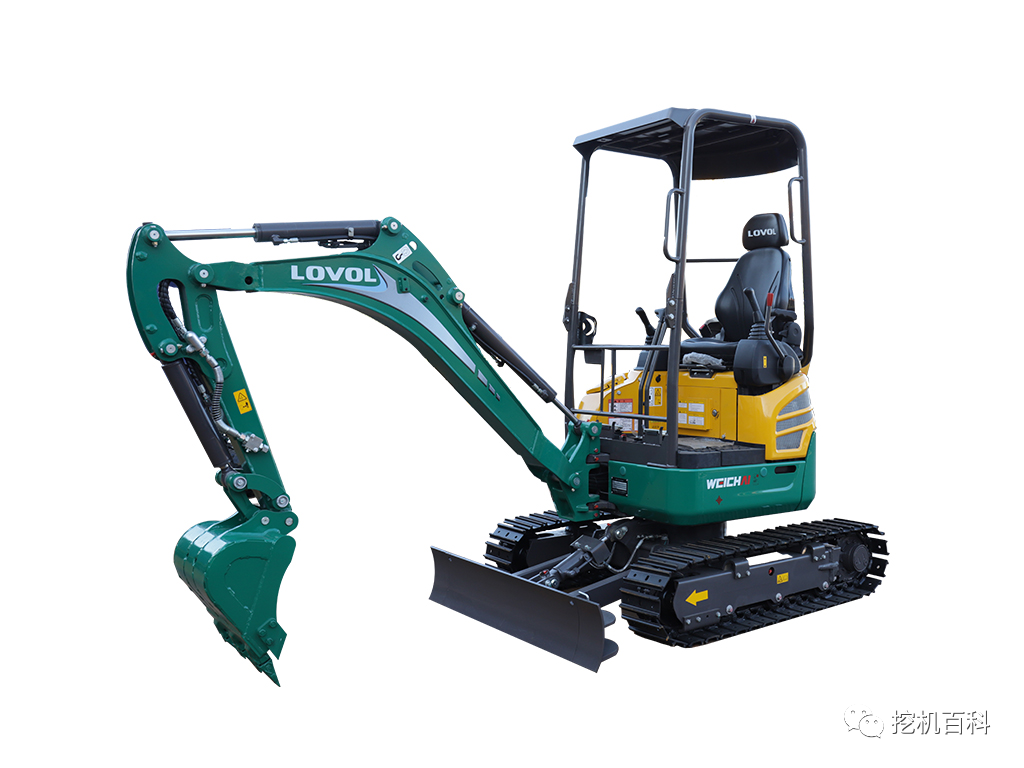

FR18F-u
Configuration parameters
Standard: ● Option: x To be perfected: / Reference value: *
1. Performance parameters:
|
force |
Traction force |
13.5 |
kN·m |
|
Bucket Digging Force - ISO |
15.2 |
kN |
|
|
Bucket Rod Digging Force - ISO |
8.5 |
kN |
|
|
Rotation torque |
2.49 |
kN·m |
|
|
speed |
Reverse speed |
9 |
r/min |
|
行走高速/低速 |
3.7 |
km/h |
|
|
noise |
Operator voice pressure （ISO 6396:2008） |
/ |
dB（A） |
|
Average external sound pressure （ISO 6395:2008） |
/ |
dB（A） |
|
|
Other |
Ability to climb slopes |
/ |
|
|
Ground is higher than pressure |
/ |
kPa |
2. Powertrain:
|
Engine Model |
Kubota D902 |
|
|
form |
Three tank direct spray |
|
|
rated power |
11.8/2300 |
kW/rpm |
|
Maximum torque |
52.1/1800 |
Nm/rpm |
|
discharge volume |
/ |
L |
|
Emissions Level |
Country 4 |
|
|
Emissions technology routes |
/ |
|
3. Hydraulic system:
|
The technical route |
/ |
|
|
Main Pump Brand / Model |
/ |
|
|
Main pump discharge |
/ |
cc |
|
Maximum traffic on the main system |
46.3 |
L/min |
|
Main valve brand / model |
/ |
|
|
Reverse motors and gearing brands / models |
/ |
|
|
Walking motors and gears brands / models |
/ |
|
|
Maximum working oil pressure |
21.6 |
MPa |
|
Maximum pressure of the leading system |
3.5 |
MPa |
4. Working appliance:
|
Move your arms |
1828 |
mm |
|
Fighting clubs |
950 |
mm |
|
The shovel fighter looks |
0.04 |
m³ |
5. The chassis system:
|
Weight of weight |
/ |
kg |
|
Number of trackpads - one side |
/ |
section |
|
Number of cogs - one side |
0 |
individual |
|
Number of support wheels - one side |
3 |
individual |
6. Amount of oil and water added:
|
Fuel tank capacity |
17 |
L |
|
Cooling system |
4.84 |
L |
|
Engine oil quantity |
3.7 |
L |
|
Hydraulic fuel tank |
21 |
L |
|
Reverse motor decelerator gear oil |
/ |
L |
|
Walking motor decelerator gear oil |
0.25*2 |
L |

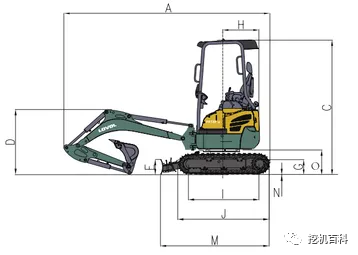

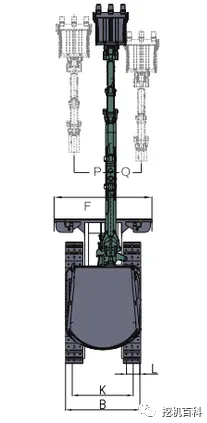

7. Form size and range of operation:
|
A |
Total length of transport |
3575 |
mm |
|
B |
All wide when transported |
990 |
mm |
|
C |
All high when transported |
2347 |
mm |
|
D |
Height of the working unit during transport |
1120 |
mm |
|
E |
The height of the earth shovel |
258 |
mm |
|

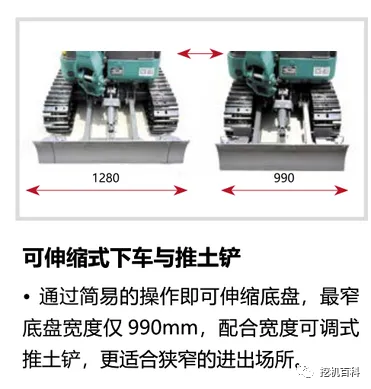

F |
Length of bulldozers |
990/1280 |
mm |
|
G |
Minimum distance from the ground |
150 |
mm |
|
H |
Tail pivot radius |
640 |
mm |
|
I |
tread |
1230 |
mm |
|
J |
Total track length |
1593 |
mm |
|
K |
gauge |
760/1050 |
mm |
|
L |
Running bandwidth |
230 |
mm |
|
M |
Landing length |
1895 |
mm |
|
N |
Height of the track teeth |
16.5 |
|
|
O |
Weight distribution altitude from ground |
438 |
mm |
|
P |
Left shift distance of the working unit |
480 |
mm |
|
Q |
Right shift distance of the working unit |
400 |
mm |
|
R |
Maximum excavation height |
3540 |
mm |
|
S |
Maximum removal height |
2440 |
mm |
|
T |
Maximum excavation depth |
3540 |
mm |
|
U |
Maximum vertical excavation depth |
1910 |
mm |

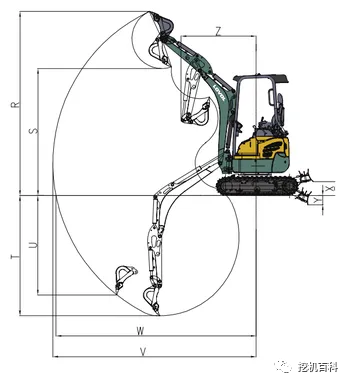

8. Operational scope:
|
R |
Maximum excavation height |
3540 |
mm |
|
S |
Maximum removal height |
2440 |
mm |
|
T |
Maximum excavation depth |
3540 |
mm |
|
U |
Maximum vertical excavation depth |
1910 |
mm |
|
V |
Maximum excavation radius |
3905 |
mm |
|
W |
Maximum excavation radius of the operating surface |
3845 |
mm |
|
X |
The earth shovel raised the height |
266 |
mm |
|
Y |
The depth of the earth shovel's descent |
176 |
mm |
|
Z |
Minimum rotation radius of working device |
1443 |
mm |
Flexible and Efficient Micromining Classics

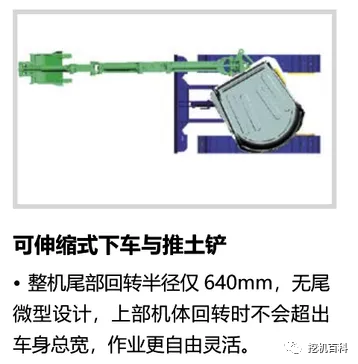

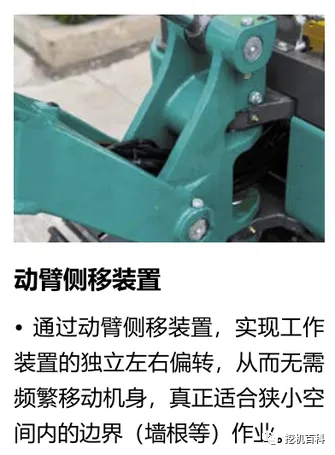

Small tailless rotation coupled with arm-side shifting devices makes the operation in a small space flexible and easy.
Safety and comfort, easy maintenance
