SHANTUI SE17SR-10 Classic inheritance, brand new upgrade

SHANTUI SE17SR-10 Classic inheritance, brand new upgrade

Tiny excavators

SE17SR-10

Main technical specifications:

Power: 11.8 / 2300 kW / rpm

Machine weight: 1880 kg

Bucket capacity: 0.04 m3

Configuration parameters

Standard: ● Option: x To be perfected: / Reference value: *



1. Performance parameters:

force	Traction force	18	kN·m
	Bucket Digging Force - ISO	16	kN
	Bucket Rod Digging Force - ISO	9.5	kN
	Rotation torque	/	kN·m
speed	Reverse speed	9.5	r/min
	行走高速/低速	4.3/2.2	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	58%
	Ground is higher than pressure	29	kPa



 2. Powertrain:



Engine Model	Kubota D902
form	Three tank direct spray
rated power	11.8/2300	kW/rpm
Maximum torque	/	Nm/rpm
discharge volume	0.898	L
Emissions Level	Country 4
Emissions technology routes	/





3. Hydraulic system:

The technical route	Load Sensitive Systems
Main Pump Brand / Model	/
Main pump discharge	/	cc
Fixed work flow	64.4	L/min
Main valve brand / model	/
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	/

4. Working appliance:

Move your arms	/	mm
Fighting clubs	/	mm
The shovel fighter looks	0.04	m³



5. The chassis system:



Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	0	individual
Number of support wheels - one side	5	individual



6. Amount of oil and water added:

Fuel tank capacity	21	L
Cooling system	5.05	L
Engine oil quantity	3.7	L
Hydraulic fuel tank	21.4	L
Reverse motor decelerator gear oil	/	L
Walking motor decelerator gear oil	/	L

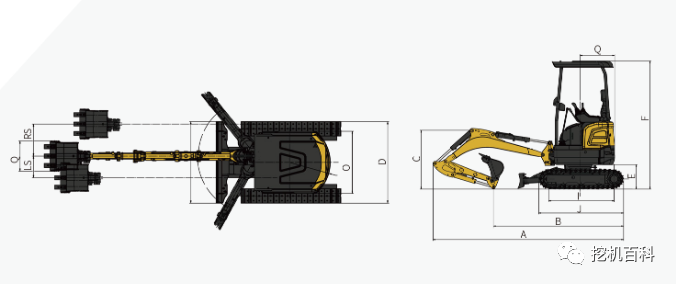

 7. Form factor:

A	total length	3575	mm
B	Landing length (when transported)	2440	mm
C	Total height (to the top of the moving arm)	1105	mm
D	Total width	990/1300	mm
E	Total height (to the top of the cab)	2405	mm
F	Gap between weight and ground	460	mm
G	Minimum distance from the ground	145	mm
H	Tail pivot radius	650	mm
I	tread	1230	mm
J	Track length	1593	mm
K	gauge	760/1070	mm
L	Running bandwidth	990/1300	mm
M	Standard track plate width	230	mm
O	The width of the pivot platform	990	mm
P	Distance from center of turning circle to rear end	650	mm
Q	Total width of shovel	485	mm
RS	Amount of right axial tilt in the arms	510	mm
LS	Left axial shift in the arms	385	mm
	Left axis of the arms	57	degree
	Boom angle to right	19	degree

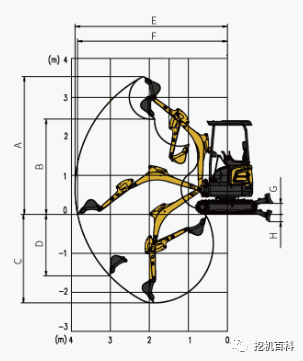

8. Operational scope:

A	Maximum excavation height	3535	mm
B	Maximum removal height	2445	mm
C	Maximum excavation depth	2270	mm
D	Maximum vertical excavation depth	1010	mm
F	Maximum excavation distance	3910	mm
G	Maximum ground excavation distance	3845	mm
I	Maximum height of bulldozers	280	mm
J	Maximum soil cutting depth of bulldozers	190	mm

Power is green and efficient

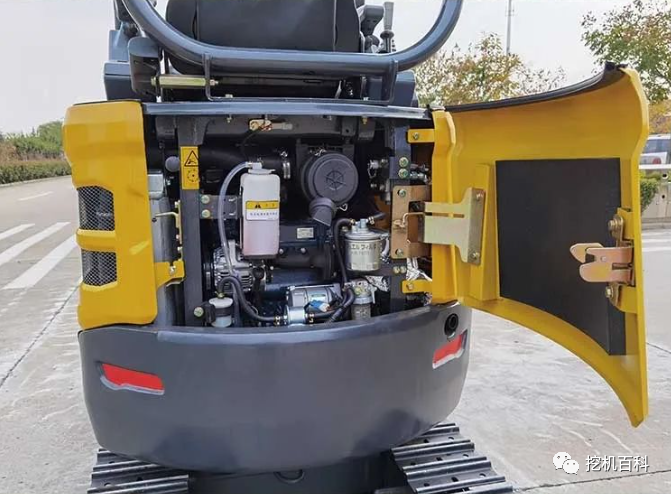

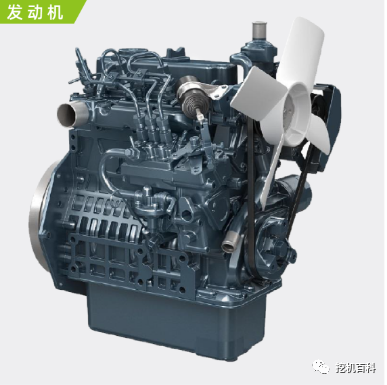

Diesel engine

• Imported Kubota engine, 11.8kW high power, meet the national four, European five emission standards.





Safe and secure

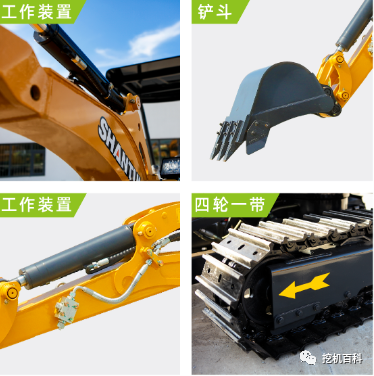

Upgrade of workstation

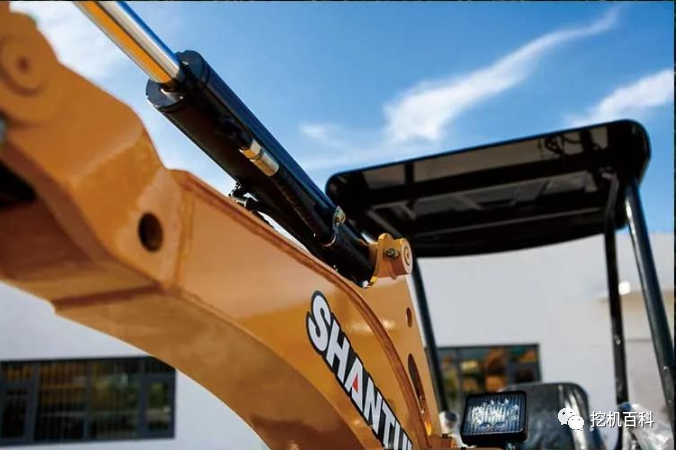

• Fluid working devices and walking ducts are built in and pose no risk of bumps
• Fixed arm fuel tank to effectively prevent construction bumps



Strong suitability

• Two-way backup pipeline, which can be configured with a crushing hammer, hydraulic cutter, spiral drill, etc.

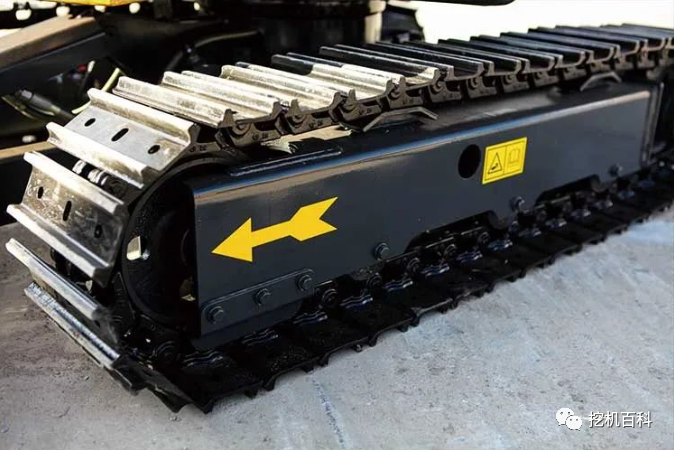

Chassis System

• Steel tracks, rubber tracks, steel tracks with rubber gaskets and other options.



Smart Comfort



A complete upgrade to the driver's room

• The space is large, the field of view is wide, the controls are selected and arranged in accordance with ergonomics, and the operation is convenient and comfortable



An intelligent upgrade

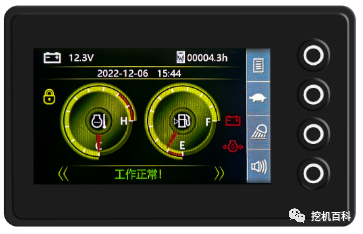

• The 4.3-inch smart screen is visible in the sun.
• Integrated rich features to enhance the operational experience.
• Intelligent display and intelligent control provide interfaces and control interfaces for intelligent auxiliary construction and human-machine interaction functions.
