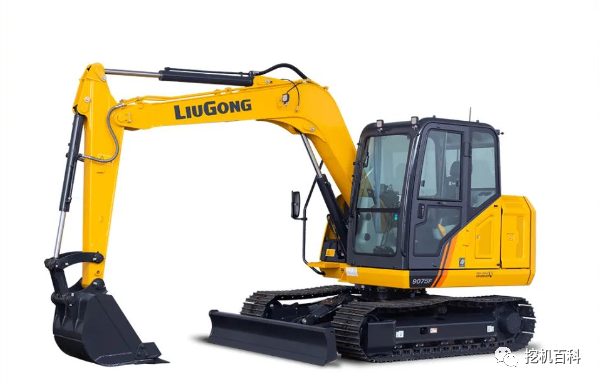

LIUGONG 9075F Classic inheritance, brand new upgrade
LIUGONG 9075F Classic inheritance, brand new upgrade
1. Performance parameters:
|
force |
Traction force |
73 |
kN·m |
|
Bucket Digging Force - ISO |
57 |
kN |
|
|
Bucket Rod Digging Force - ISO |
39 |
kN |
|
|
Rotation torque |
/ |
kN·m |
|
|
speed |
Reverse speed |
11 |
r/min |
|
行走高速/低速 |
/ |
km/h |
|
|
noise |
Operator voice pressure （ISO 6396:2008） |
/ |
dB（A） |
|
Average external sound pressure （ISO 6395:2008） |
/ |
dB（A） |
|
|
Other |
Ability to climb slopes |
35 |
degree |
|
Ground is higher than pressure |
33.15 |
kPa |

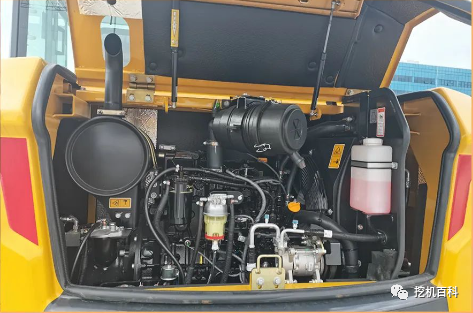

2. Powertrain:
|
Engine Model |
Yanmar 4TNV94L |
|
|
rated power |
35.9/2000 |
kW/rpm |
|
Maximum torque |
209/1400 |
Nm/rpm |
|
discharge volume |
3.054 |
L |
|
Emissions Level |
Country 4 |
|
|
Emissions technology routes |
/ |
|
3. Hydraulic system:
|
The technical route |
Load Sensitive Systems |
|
|
Main Pump Brand / Model |
Hengli |
Electrically controlled axial piston variable pump |
|
Main pump discharge |
/ |
cc |
|
Main valve brand / model |
/ |
|
|
Reverse motors and gearing brands / models |
/ |
|
|
Walking motors and gears brands / models |
/ |
Automatic double speed |
|
Stress: |
||
|
Main system pressure |
31 |
MPa |
|
Working pressure of the revolving cycle |
24.5 |
MPa |
|
Working pressure on walking circuits |
31 |
MPa |
4. Working appliance:
|
Move your arms |
3710 |
mm |
|
Fighting clubs |
1650 |
mm |
|
The shovel fighter looks |
0.32 |
m³ |
5. The chassis system:
|
Weight of weight |
/ |
kg |
|
Number of trackpads - one side |
/ |
section |
|
Number of cogs - one side |
1 |
individual |
|
Number of support wheels - one side |
5 |
individual |
6. Amount of oil and water added:
|
Fuel tank |
149 |
L |
|
Hydraulic system |
110 |
L |
|
Hydraulic fuel tank |
59 |
L |
|
Engine oil |
9.4 |
L |
|
Cooling system |
/ |
L |
|
Walking brake gear oil |
/ |
L |
|
Reverse gear oil |
/ |
L |

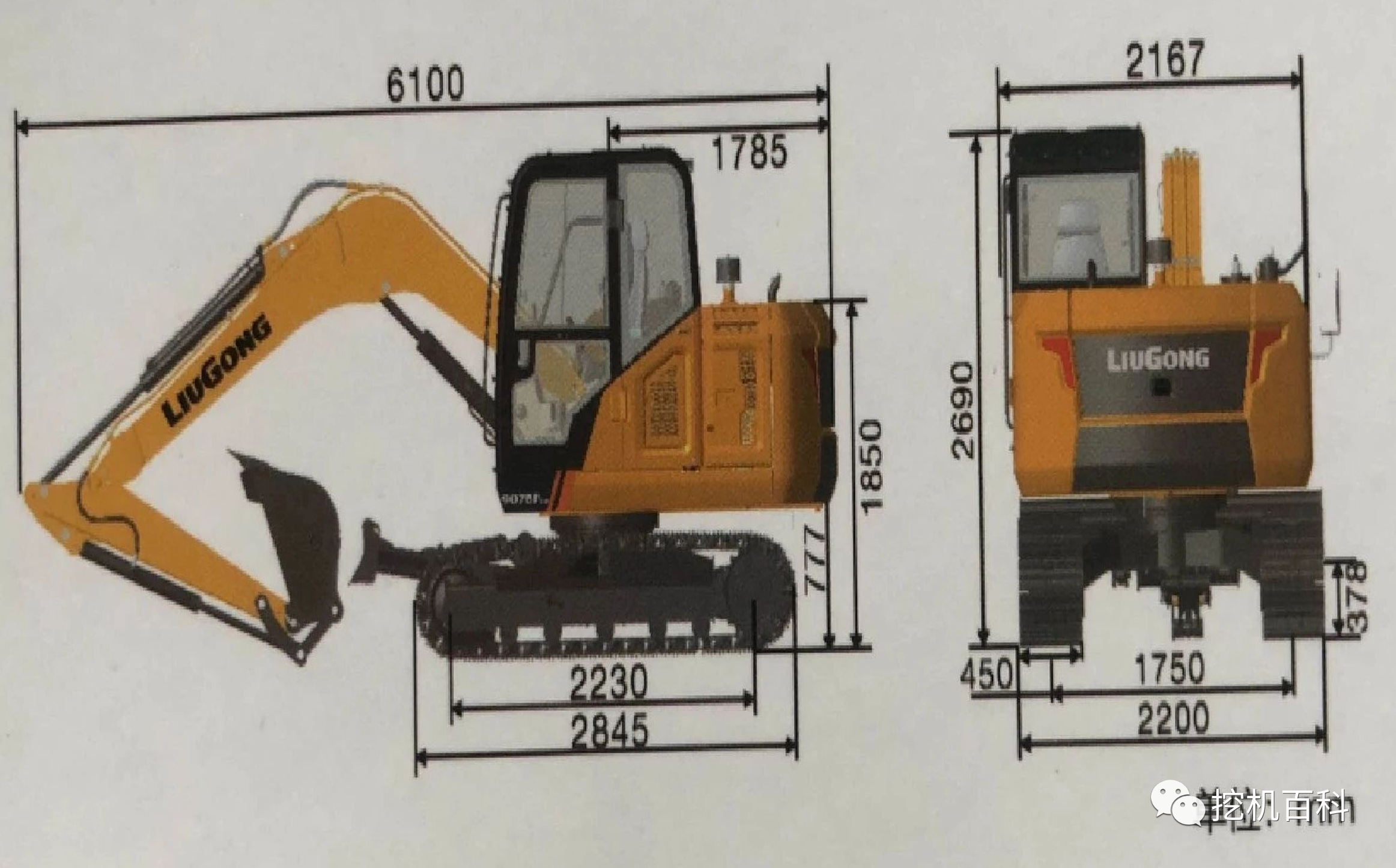

7. Form factor:

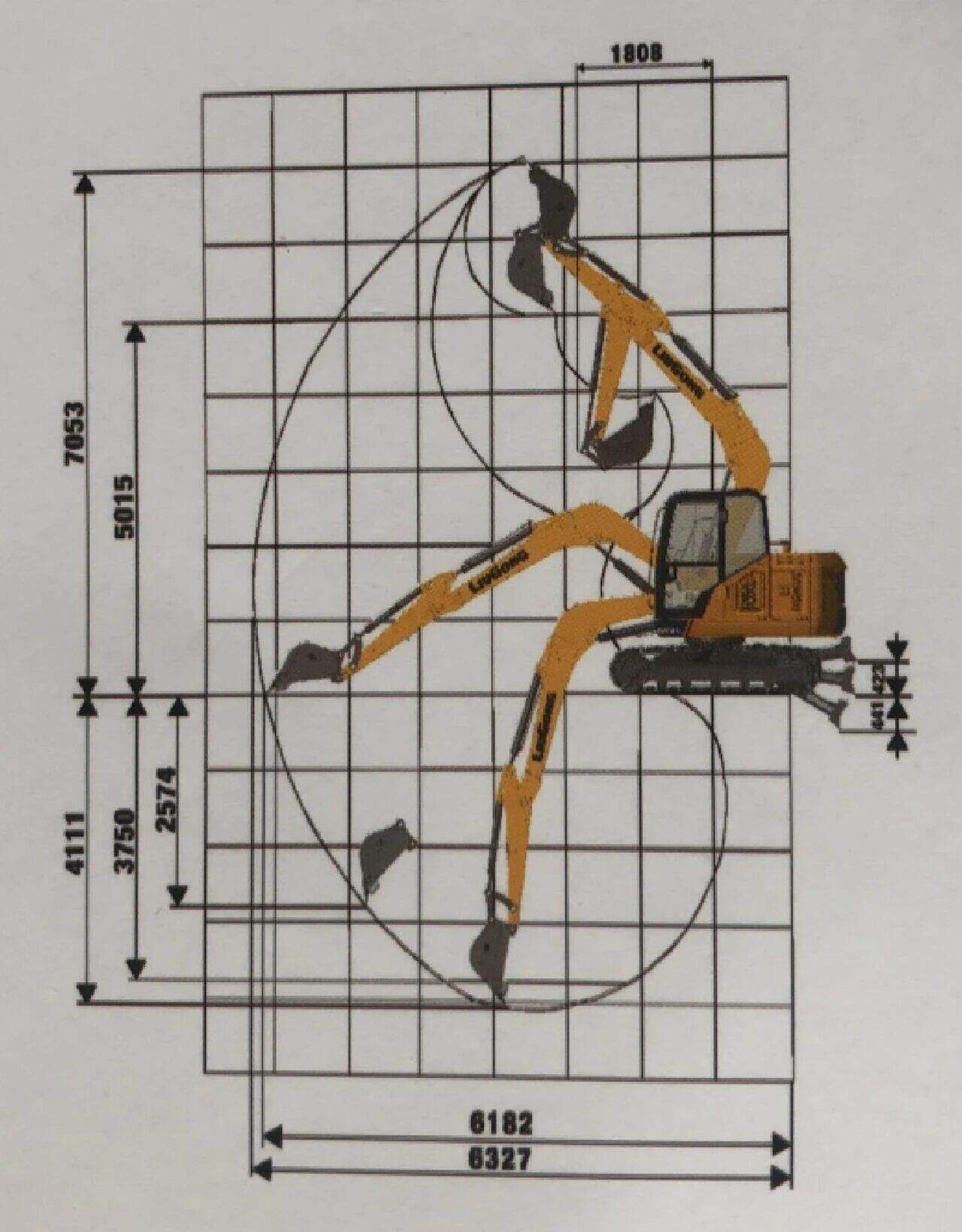

8. Operational scope:
-
Automatic idle speed + idle shutdown -
Empty Filter Double Grade Filter -
High temperature paint layer silencer -
○ Electric fuel pump
Hydraulic system:
-
Hydraulic lock rod
-
Reverse anti-reversal function
-
○ Accessory piping
-
○ Fast switch control pipeline
-

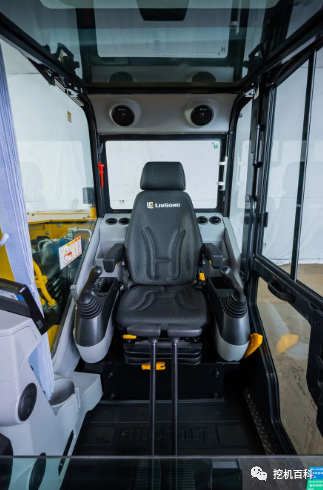

ROPS driving room (rollover protection structure) -
LED work light (with mounting rack) -
Curtain (skylight, right) -
2 'Seat belts -
Fabric fabric common seat -
Mechanical shock relief seat (back and rear adjustment, back adjustment) -
○ Anti-flying protective net (front + top) -
○ Anti-flying protective net (front) -
Spray-resistant protective net (front lower) -
○ A back-view camera
The chassis system:
-
Ground shoveling
-
The substrate plate
-
Metal track tape
-
Double-bared track pads
-
履带450mm
-
○ Rubber running belt block
-
○Track width: 600 mm
-
Single tracksuit sheath
