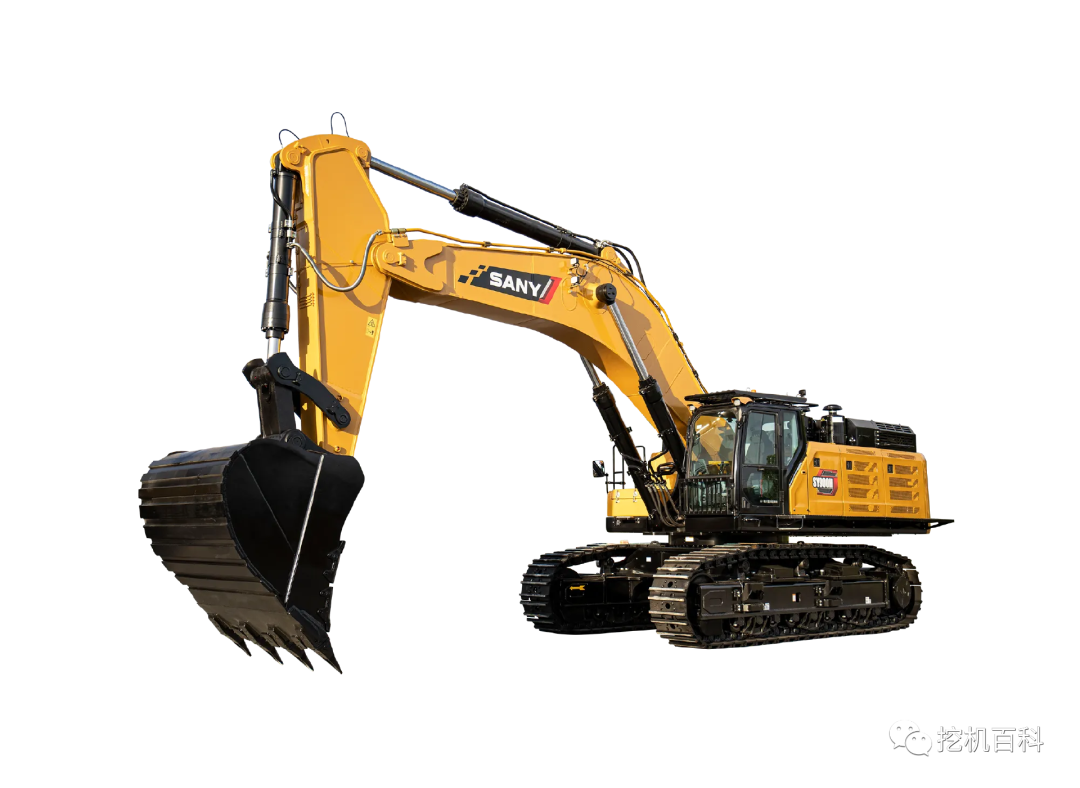

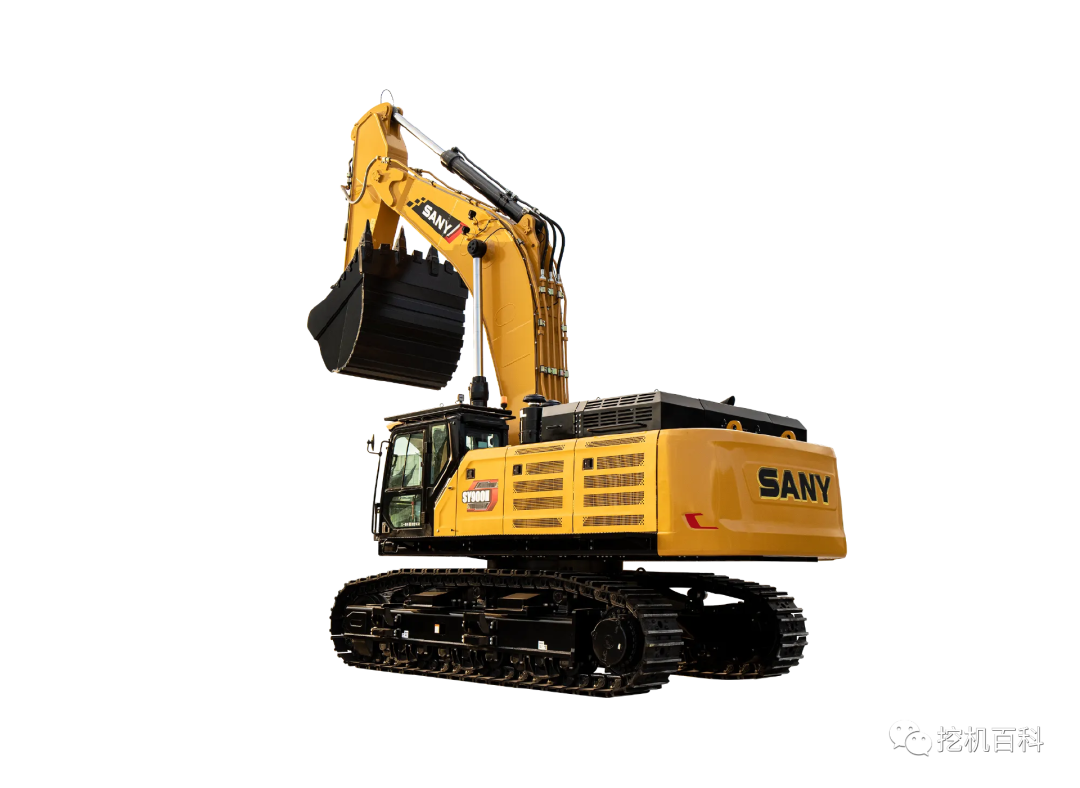

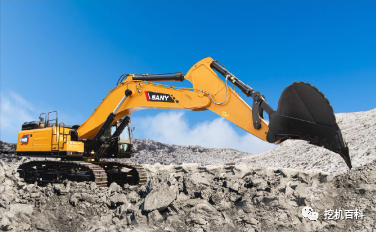

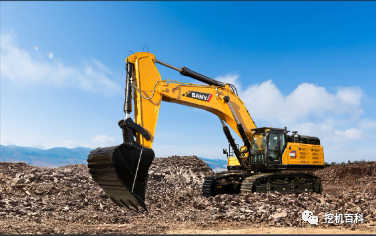

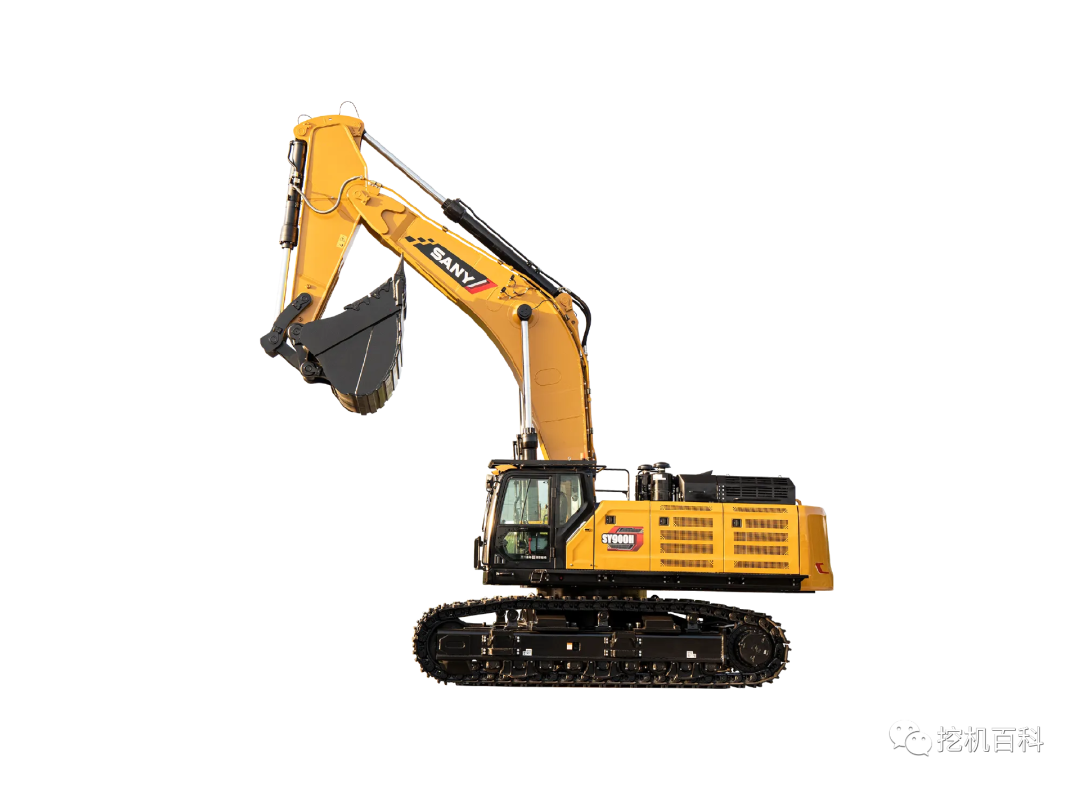

SY900H-S National Fourth Machine is a new generation of 90 T class super mining excavator products based on the guiding ideology of "new power," "new shape" and "new technology" of SANY Heavy Machinery. Its mining power is strong and durable, and it is suitable for various types of mine digging, trucking and rock crushing operations (loose earth tools) in coal and iron ore mines. It can be paired with 80 tons wide-body trucks, and its mine operation capacity is better.



Main technical specifications:



Power: 382 / 1800 kW / rpm

Machine weight: 85000 kg

Bucket capacity: 6.0 (5.0 ~ 7.0) m3



Configuration parameters

Standard: ● Option: x To be perfected: / Reference value: *



 1. Performance parameters:



force	Traction force	573	kN·m
	Bucket Digging Force - ISO	472	kN
	Bucket Rod Digging Force - ISO	396	kN
	Rotation torque	/	kN·m
speed	Reverse speed	6.2	r/min
	行走高速/低速	4.3/2.8	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	degree
	Ground is higher than pressure	114	kPa





2. Powertrain:

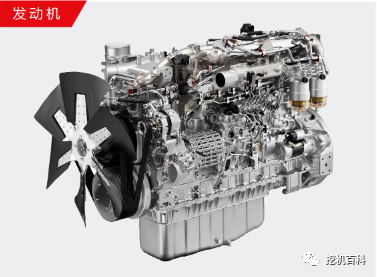

Engine Model	Isuzu 6WG1
rated power	382/1800	kW/rpm
Maximum torque	2250/1300	Nm/rpm
discharge volume	15.681	L
Emissions Level	Country 4

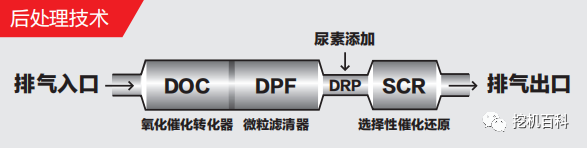

Emissions technology routes	DOC+DPF+SCR



3. Hydraulic system:



The technical route	All-electric control

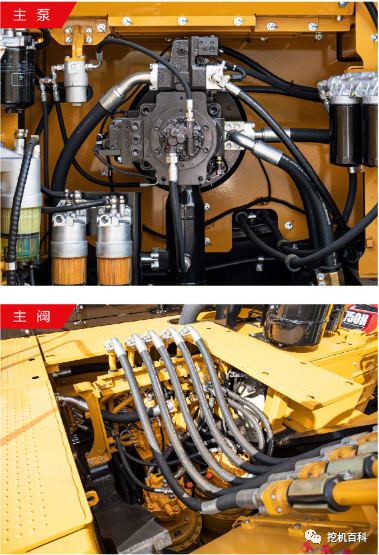

Main Pump Brand / Model	Kawasaki
Main pump discharge	/	cc
Main valve brand / model	Kawasaki
Reverse motors and gearing brands / models	/	Double turnaround
Walking motors and gears brands / models	KYB

4. Working appliance:



Move your arms	7250	mm
Fighting clubs	2800	mm
The shovel fighter looks	6.0	m³



5. The chassis system:



Weight of weight	14300	kg
Number of trackpads - one side	51	section
Number of cogs - one side	3	individual
Number of support wheels - one side	9	individual
Running board width	650	mm



6. Amount of oil and water added:



Fuel tank	950	L
Hydraulic system	/	L
Hydraulic fuel tank	700	L
Engine oil	42~57	L
Cooling system	75	L
Walking brake gear oil	2x20	L
Reverse gear oil	2x15	L

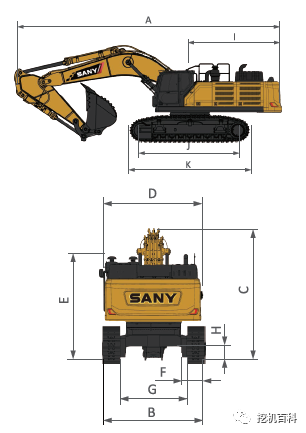

7. Form factor:



A	Total Length (at the time of transport)	13360	mm
B	Total width	4320/3720	mm
C	Total height (at the time of transport)	4780	mm
D	Upper width	4477	mm
E	Total height (top of the cab)	3800	mm
F	Standard track plate width	650	mm
G	gauge	3450/2790	mm
H	Minimum distance from the ground	880	mm
I	Tail pivot radius	4220	mm
J	Track grounding length	5110	mm
K	Track length	6361	mm

8. Operational scope:

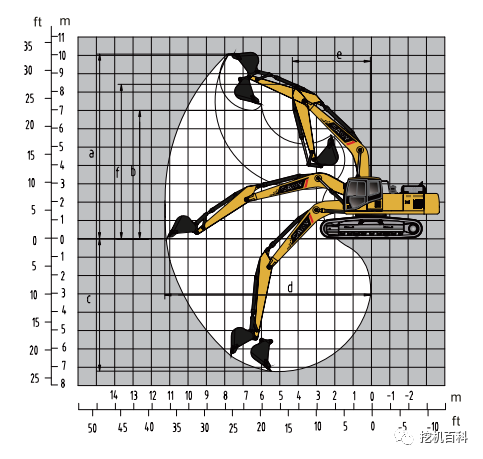

a.	Maximum excavation height	11961	mm
b.	Maximum removal height	7881	mm
c.	Maximum excavation depth	7331	mm
d.	Maximum excavation radius	12276	mm
e.	Minimum rotation radius	5361	mm
f.	Maximum height at minimum rotation radius	10539	mm

Functional configuration



Standard: ● Option: x To be perfected: / Reference value: *





1. Engine:



• Isolated engines

• Dynamic tuning mode control

• Heatsink (with protective net)

• 24V / 7.0kW Starter Motor

• 60A AC Motor

• Oil bath air filter

• Desert Air Filter

• Lubrication oil filter

• Level 3 Fuel Filter

• Oil cooler

• Heater sub-water tank

• Fan curtain

• Automatic idling system





2. Driver's Room:



• Ultra-silent frame cab room

• Strengthened light glass windows

• Silicone rubber shock absorbers

• Top, front window and left window (openable)

• Back window emergency safe exit

• Rain wiper (with a cleaning device)

• Multifunctional Air Suspension Seat

• Feet boards, floor mats

• Speakers, rear view mirrors

• Seat belts, fire extinguishers

• Drinking cup seats, lanterns

• Escape hammer

• Storage boxes, document bags

• Lead control cutting rod

• Completely automatic air conditioning

• Emergency stop switch

• Top protective net + front protective net





3. The lower walking body:



• Walking motor protective plate

• H-type track guide mechanism

• Running belt tightening device

• Piston-connected drive wheels

• Chain lifters and heavy lifting wheels

• Strengthened chain tracks (with shaft seal)

• 650mm two-rib track plate

• Strengthened double-layer side pedals

• Protective covering plate



4. Hydraulic system:



• Control valve (with main overflow valve)

• Control valve backup oil outlet

• Oil absorption filter

• Oil leak filter

• Reverse oil filter

• Leading Filter

• Hydraulic shock relief blind pipe

• Independent oil spill





5. Front-end working devices:



• French sales

• Welding joints *

• Fully automated central lubrication system

• Dust sealing rings (trawl solder configuration)

• Strengthening the fully wrought box arms

• Strengthening fully wrought box braces

• Crash shields



6. The upper pivot platform:



• Fuel Level Sensor

• Hydraulic Oil Level Meter

• toolbox

• Reverse parking brake

• Rearview mirror (right)

• Panoramic camera

• Driver Room Alarm Light





7. Alarm lights:



• Controller failure

• The pump pressure is abnormal

• Abnormal pre-emptive pressure for each action

• The power supply voltage is abnormal

• The hydraulic oil temperature is abnormal

• Insufficient oil pressure, overheating of engine coolant

• The accelerator knob failed

• Insufficient amount of fuel.

8. Supervisory control system instrument:



• Standard GPS satellite positioning system

• Touch color 10-inch display screen

• The Iveco system

• Hour meter, fuel level gage of fuel tank

• Engine Coolant Temperature Table

• Oil pressure gauge





9. Others:



• High-capacity batteries

• Lockable ceiling cover

• Lockable fuel filling cover

• Anti-sliding pedals, handrails and sidewalks

• Walking direction markers on the walking rack

• Manual Butter Gun

• ○ Electric diesel pump



10. Safety:



• Emergency stop switch

• Signal / alarm horn

• rearview mirror

• Back window emergency safe exit

• Battery negative electrode switch

• Panoramic camera



A new look



1. Intelligent :

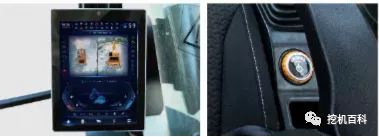

• Equipped with 10.4 inch intelligent display screen, integrated air conditioning, radio, Bluetooth, GPS and other functions, standard with a button to start the machine, support fault detection and alarm, intelligent debugging and diagnosis, a new button to invite function, more safe and intelligent.





2. Air conditioning upgrades:

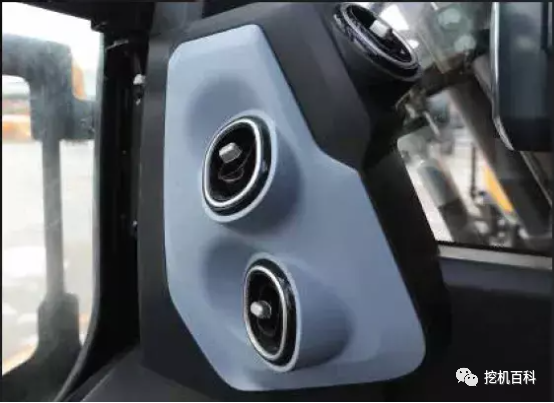

• The new air conditioning wind tunnel optimizes the outlet position, the cooling effect is 10% higher than the previous model, the condenser volume is 30% higher than that of the previous model. The air conditioning can be cleaned on-board and easy to maintain.



3. C12 Driving Room:



• The newly upgraded driver's room is developed according to the five features of "intelligent connectivity, intelligent interaction, intelligent construction, intelligent driving, and intelligent maintenance," to enhance entertainment, interaction and technology.

• The driving room size is 25mm wider than the previous generation, and the space is larger. The front window is 10 percent wider than the previous generation, the glass area of the vehicle is 10 percent larger, and the view is wider.



4. Interior upgrades:

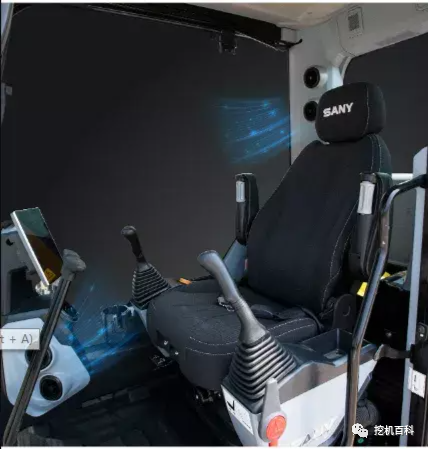

• A newly upgraded interior, with a suspension four-seat armrest, cup seat, refrigerator, 24V electrical outlet, USB interface, etc., introduced static and dynamic comfort standards for automobiles, and a newly developed "12h without fatigue" large damping suspension and vibration-reducing seat.





5. Sealing upgrade:



• The driver's sealing structure is optimized and upgraded, the leakage and indoor temperature are significantly reduced, effectively resolving the pain point of graying in the driver's room under harsh working conditions, and the thermal comfort is increased by 10% compared to the previous generation.



6. Safe and reliable:



• Skeleton reinforced cabs have a 30% higher safety performance than ordinary cabs.

• Equipped with emergency stop switch, anti-skid cover, anti-gravel side door, etc., to further enhance the safety of equipment mining operations.



new technology



1. The shovel upgrade:



• Standard with 6.0m3 bucket, to meet the needs of heavy load conditions.

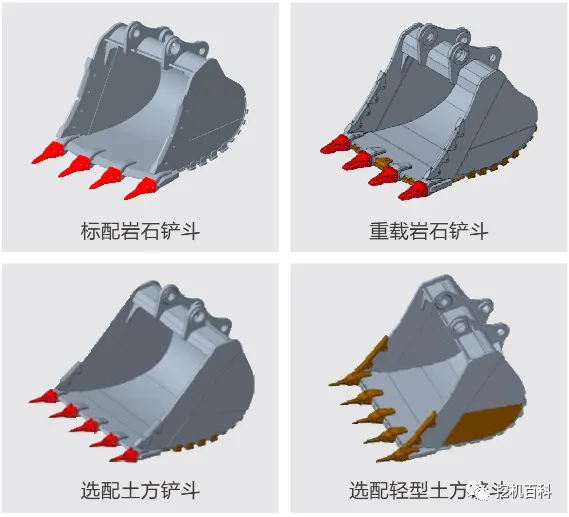

• Four series of shovels can be configured to meet "one situation, one fight," improve construction efficiency, easily handle multiple complex situations, and enhance product value and customer profitability.





2. ACE Full Electronic Control System:

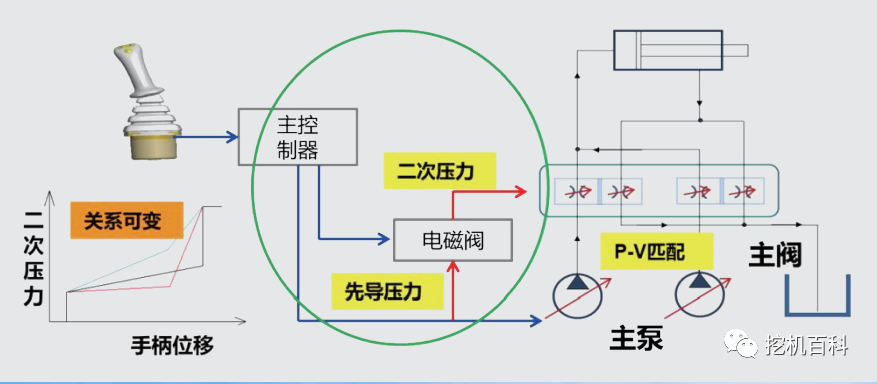

• Full electronic control ACE-P technology, improve operation adaptability, improve operation coordination, precise and soft control, easy and smooth operation. Dual microcomputer controller, high precision control, fast response, microaction control impact small.





3. Strengthening of workpiece structural components:



• The 20,000-hour work unit technology is fully applied to ensure that the work unit has high reliability and a longer life.

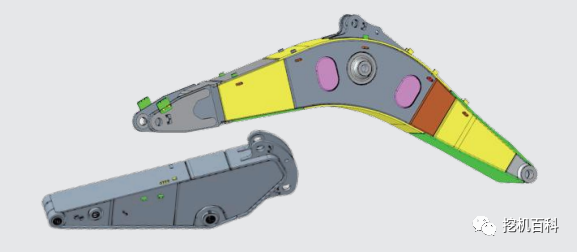

• Adopt high strength steel plate + high strength forging + wear-resisting steel, cast integral connecting rod, three-section box construction, section widened, increase box section area, bending section factor increased by 20%, high reliability, long life.



4. Get out of the car enhanced:

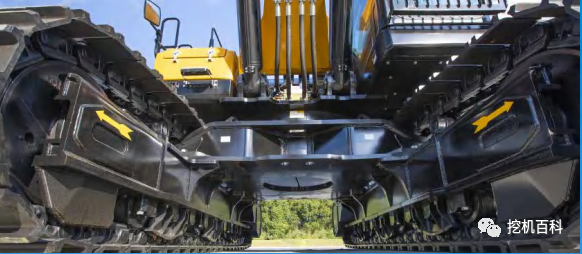

• Adopt imported KYB walking motor to provide strong driving torque; Strengthened two-stranded wear belts, heavy support wheels, fully protected wear belt guards and integrated welded lower vehicles ensure the strength of the walking equipment in harsh environments.



Maintenance & Service

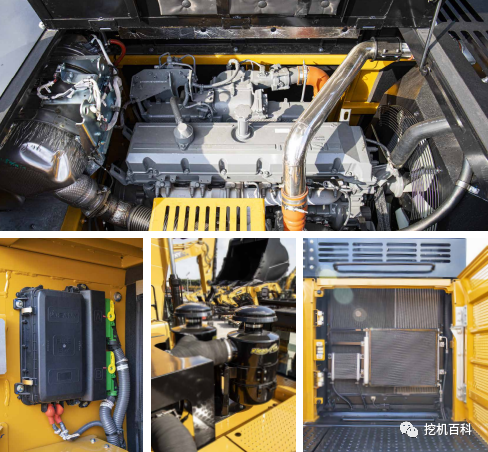

• In response to the harsh working conditions in the mine, the convenient design of maintenance service replacement is strengthened, "large space, easy to handle," and the operation space for various maintenance service service replacement increases by 20-30%, so as to achieve worry-free operation and easier and simpler equipment management.

• The dual pre-filter air filter system reduces the inlet resistance, improves the maintenance cycle, has low maintenance cost, and is adapted to high dust work conditions.

• Intelligent and convenient safe boxes are configured with high integration, small size, easy wiring and safety.

• The special return oil filter for a crushing hammer is reloaded, only by removing the top lid, and the filter can be unloaded. It does not leak oil, saves effort, and is convenient to maintain.
