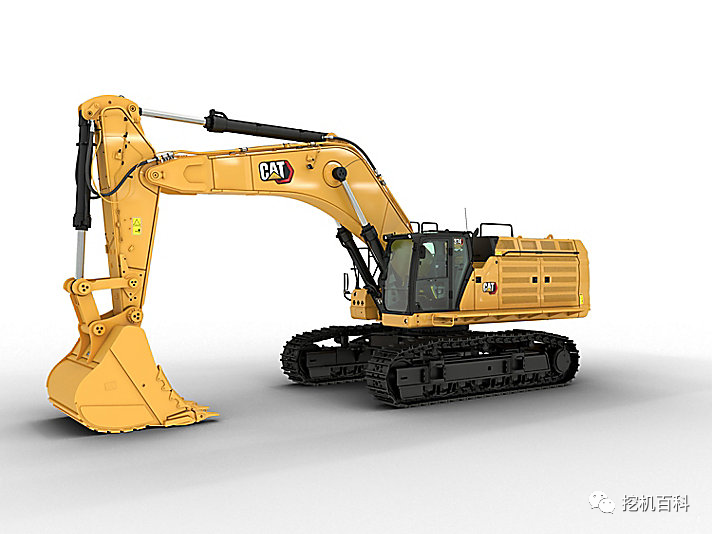

The Very Large Excavator

374

Summary



Low maintenance effort to achieve high production and high durability

374 The new generation of excavators will deliver higher yields, improved durability and reduced maintenance, giving your business a leg up.



• 10% increase in torque

Shorter cycle times and smoother and more predictable performance.

• Up to 2 times greater structural durability

The tough heavy load work was performed using reinforced arms, poles, and upper and lower racks.

• Up to 20% reduction in maintenance costs

Less oil consumption, better filters and longer maintenance cycles save you money and time.





Main technical specifications:

Power: 361kW

Machine weight: 74500 kg

Bucket capacity: 5 m3





Configuration parameters



Standard: ● Option: x To be perfected: / Reference value: *





1. Performance parameters:



force	Maximum traction force	/	kN·m
	Bucket Digging Force - ISO	405	kN
	Bucket Rod Digging Force - ISO	352	kN
	Rotation torque	247	kN·m
speed	Reverse speed	6.5	r/min
	行走高速/低速	/	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	/	degree
	Ground is higher than pressure	/	kPa





2. Powertrain:



Engine Model	Cat C15
Net power	361	kW
discharge volume	15.2	L
Emissions Standards	Country 4
Emissions routes	DPF (urea)





3. Hydraulic system - fully electrically controlled:



Stress:
Maximum pressure - equipment	37000	kPa
Maximum Stress - Upgrading Mode	38000	kPa
Working Stress - Driving	35000	kPa
Stress at work - turnaround	35000	kPa
Traffic:
Main system - equipment	896	L/min
Reverse System	/	L/min
Fuel tank:
Armed cylinder: cylinder length - stroke	/	mm
Bulk cylinder: cylinder length - stroke	/	mm
Shovel oil tank: cylinder length - stroke	/	mm





4. Working appliance:



Move your arms	7000	mm
Standard clubs	3000	mm
The shovel fighter looks	5	m³





5. The chassis system:



Trackboard width	650	mm
Number of trackpads - one side	/	section
Number of support wheels - one side	/	individual
Torch wheel - one side	3	individual
Weight of weight	/	kg



6. Amount of oil and water added:



Fuel tank	920	L
Hydraulic system	620	L
Hydraulic fuel tank	326	L
Engine oil	62	L
Cooling system	71	L
Reverse Drive	20	L
Ultimate drivers (each)	32	L
DEF箱	80	L

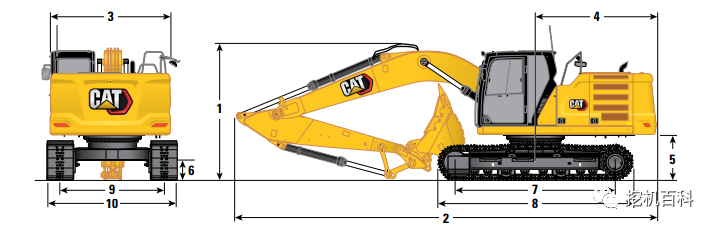

7. Form factor (reference picture):



1.	Height of the armrest	3982	mm
	Height of the top of the cab	3559	mm
	Total height (at the time of transport)	/	mm
2.	Shipping length	12978	mm
3.	Height of the upper rack	/	mm
4.	Tail pivot radius	4171	mm
5.	Weight Gap	1494	mm
6.	Gaps between ground level	782	mm
7.	Distance between centres of heavy rolling stock	4705	mm
8.	Track length	5873	mm
9.	Track length (stretchable)	2750/3410	mm
10.	Chassis transportation width	3400	mm

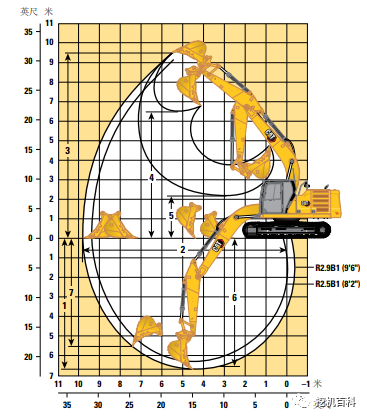

8. Scope of the job (reference image):



1.	Maximum excavation depth	7240	mm
2.	Maximum stretch distance of the ground	11470	mm
3.	Maximum mining height	11000	mm
4.	Maximum loading height	7050	mm
5.	Minimum load height	3470	mm
6.	2440mm Flat Maximum Dig Depth	7080	mm
7.	Maximum vertical excavation depth	3710	mm





Functional configuration



Standard: ● Option: ○





1 . Driver 's cab :



	Standard	Matching
High resolution 203 mm (8 " LCD touch screen monitor	●
Heated adjustable air suspension seats (exclusive to luxury cabs)	●
High resolution 254 mm (10 " LCD touch screen monitor		○
Assisted relays		○



2. CAT Technology:

	Standard	Matching
Cat Product Link	●
Remote service capabilities	●



3. Electrical systems:

	Standard	Matching
Maintenance Free 1400CCA Battery (2)	●
Centralized Electrical Shutdown Switch	●
The chassis lights	●
LED Boom and Driving Room Lights		○



4. Engine:



	Standard	Matching
Three optional power modes: Power, Smart and Fuel Efficient	●
Automatic engine speed control	●
Working altitude up to 4500 m (14760 ft)	●
52 ° C (126 ° F) High temperature ambient cooling capacity	●
-18 ° C (-0.4 ° F) cold start capability	●
Hydraulically able to turn the fan	●
Dual-core air filter with integrated prefilter	●
Remotely disable	●
Cold starting cylinder heater		○



5. Hydraulic system:



	Standard	Matching
The arms and pole regeneration circuit	●
Electronic main control valve	●
Specialized closed loop reverse loop	●
Heavy Load Upgrading Mode	●
Automatic hydraulic oil preheating	●
Automatic reverse parking brake	●
High Performance Hydraulic Oil Recovery Filter	●
Working at two speeds	●
Be able to use bio-hydraulic oil	●
Tool Control		○



6. Safety and protective devices:



	Standard	Matching
Caterpillar One Key Safety System	●
Lockable external tool / storage box	●
Lockable doors, fuel tanks and hydraulic tank locks	●
Maintenance platform equipped with anti-skateboarding and embedded bolts	●
Right handrails and handles	●
Rearview mirror kit	●
Signal / alarm horn	●
Ground-assisted engine stop switch	●
360 ° view		○
BACK VIEW camera		○
Turnaround alarm		○
Detecting lighting		○





7. Repair and maintenance:



	Standard	Matching
Easy to install an automatic lubrication system at any time	●
Group arrangement of lubrication oil filter and fuel filter	●
Planned analysis of oil sample (SOS) sampling port	●



8. The chassis system and structure:



	Standard	Matching
Lengthened variable track length chassis system	●
The traction rings on the chassis	●
Standard Weighting	●
650mm（26" ) Heavy load double clawed earthen track plate		○

9. Arm and pole:



	Standard	Matching
7.0 m (23 ') Large Bucket Boom		○
2. 57 m (8’5”) long bucket boom		○
3. 0 m (9’10”) large capacity bucket arm		○





Performance Overview



1. High performance:

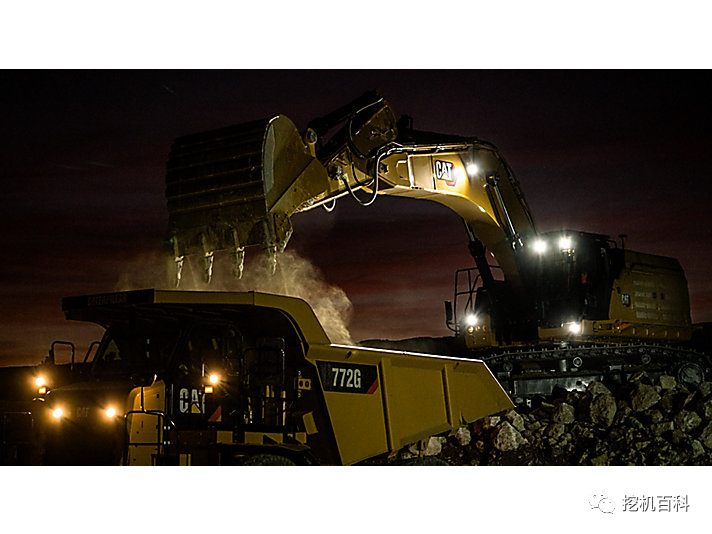

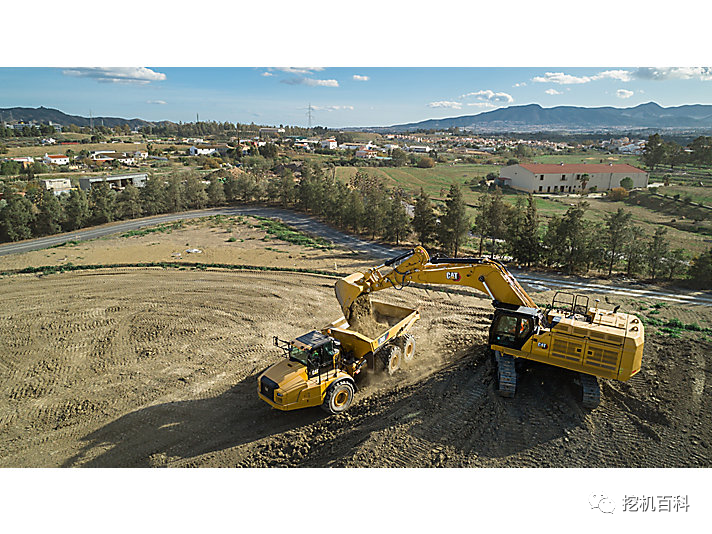

• 3 74 It can load up to 33 trucks with a load capacity of 36 metric tons （40 short tons） per hour.

• The rotational torque is increased by 10% and the cycle time is shorter compared to the previous series.

• The new static hydraulic reverse cycle makes multifunctional operations smoother and more efficient.

• The enhanced load lifting mode increases system pressure and helps you lift and place heavy materials with ease.

• The arms, poles and racks are twice as durable as the previous series, delivering reliable performance for years in the toughest environments.

• Available in three operating modes, the excavator is suitable for a variety of types of work: powerful, intelligent and fuel efficient.

• Advansys™The shovel teeth improve the penetration capacity and shorten the cycle time. A simple lug wrench, rather than a hydraulically powered impact hammer or special tool, can be used to quickly change the tips for improved safety and extended uptime.

• Auxiliary hydraulic options give you the versatility you need to use a wide range of Cat tooling.

• Perfect for temperature challenges and safeguard your normal work.The excavator has a high temperature operating capability of 52 ° C (125 ° F) and a standard cold start capability of -18 ° C (-0.4 ° F).





2 . Increasing efficiency and productivity with Cat technology :

• Standard equipment。Product Link™Machine location, machine hours, fuel consumption, productivity, idling time, diagnostic codes, and other machine data can be provided via the VisionLink online interface to help you improve shop floor efficiency and reduce operating costs.

• You can use the remote troubleshooting feature to contact agent service professionals at any time to help resolve your issues and get back to work quickly.

• The remote refresh function runs as planned, ensuring that the machine software remains up to date, thus optimizing performance.





3. It's easy to do:



• The engine can be started by button , Bluetooth key card or unique operator ID function .

• Each joystick button is programmed using the operator ID, and programmable items include power mode, response and control mode; The machine remembers these settings and calls them every time you operate the machine.

• The automatic hydraulic oil preheating function allows you to work faster in cold weather and helps extend the service life of your components.

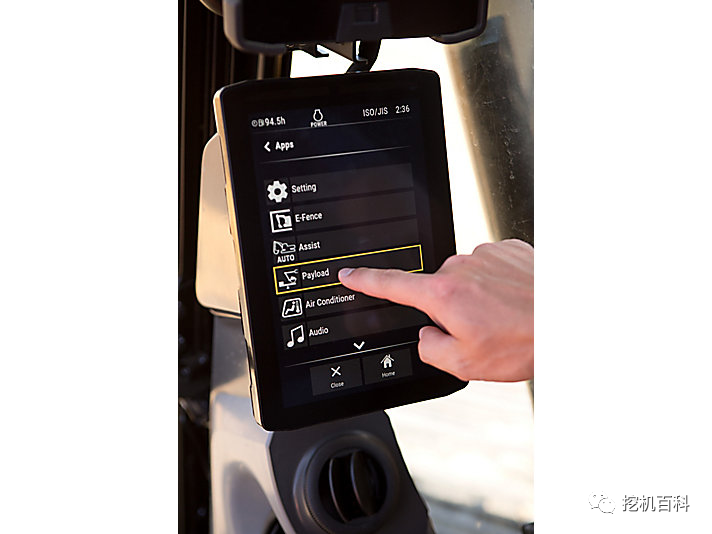

• High resolution 254mm (10in) standard touch screen monitors or knob controls allow rapid navigation.

• Don't know how a particular function works or how to maintain an excavator? The operator manual is accessible at any time with a touch of the finger on the touch screen monitor.

• The Cat single handle makes it easier to control the movement of the digging machine. With the press of a button, you can control driving and steering with one hand without having to control the steering lever with both hands or both feet on the pedal.

• Do you need more motivation during work? Turning on the automatic load boost gives you an accurate 8% more power when you need it.

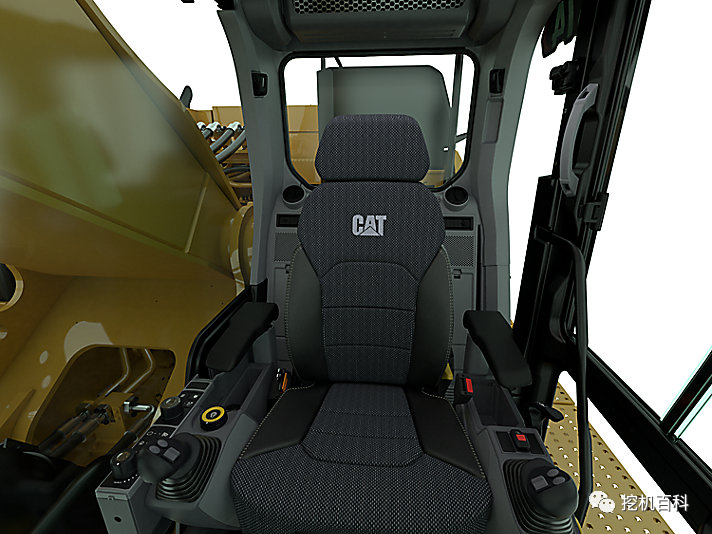

4 . Working comfortably in a brand new cab :

• It is equipped with automatic temperature control and heating seats . It can work all year round .

• With the flip-up left console, you can get in and out of the cab more easily.

• The advanced rigid base reduces vibration in the cab by up to 50 per cent compared to previous excavator models.

• The controlled devices at hand are all located in front of the operator, making it easy for the operator to control the excavator comfortably.

• There is plenty of parking space under and behind the seats, overhead and in the control room to easily store your gear.

• Connect personal devices and make hands-free calls easily with a standard wireless USB port and Bluetooth ® technology.





5. Lower maintenance workload:

• Due to reduced hydraulic oil capacity and longer , synchronized maintenance intervals , maintenance costs are expected to be up to 20 % lower than with the 374F

• The excavator has a built-in set-aside installation point, which makes it easy to add an automatic lubrication system at any time. The automatic lubrication modification kit, which is equipped, provides additional fasteners for the installation of lubrication pumps and piping shields.

• The filter life and maintenance cycle of the excavator can be tracked through a monitor in the driving room.

• Replace the fuel filter synchronously every 1000 hours; The replacement can be completed from the upper platform.

• The dust containing capacity of the new inlet filter is twice that of the old inlet filter.

• The new hydraulic oil filter provides better filtration performance, and the reverse drain valve keeps the oil clean when the filter is replaced at a time of 3,000 working hours, giving a longer service life - 50% longer than previous filter designs.

• The new highly efficient hydraulic fan has an automatic reverse function that eliminates debris on the core and does not require the intervention of the operator.

• The S · O · S sampling port simplifies maintenance and enables quick and easy oil sampling for analysis.



6. Higher security:



• A rear view camera is optional.Upon upgrading to 360 ° view, you will be able to easily view objects and people around the excavator in a single view.

• The 360 ° high-quality lighting components and 1800 lumen lights on the chassis, cab, arms, sides and back provide a complete view of the machine.

• Maintenance of the jagged steps and slippery perforations on the platform help prevent slips.

• The steering direction indicator helps the operator understand which direction to activate the steering lever.

• Thanks to smaller cockpit columns, wide windows and a flat engine casing design, operators have an excellent view on both the inner side of the ditch, in every turning direction and behind.

• Once activated, the ground downtime switch will completely stop the delivery of fuel to the engine and shut down the machine.
