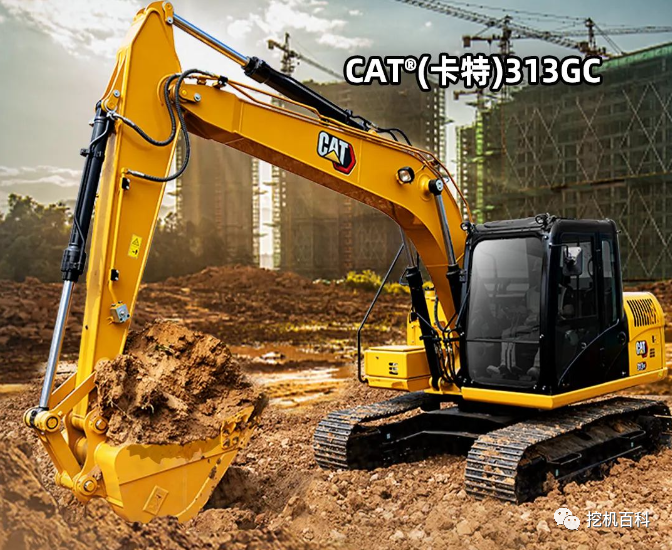

CAT 313GC Classic inheritance, brand new upgrade

Summary

Better performance and reliability

With high reliability, durability, productivity and low cost, the Cat ® 313GC is your choice.This excavator is carefully designed and built with unparalleled support from a team of professionals to help you on your path to success.

• Higher performance

The 313 GC can increase productivity by up to 5%. Greater excavatoring power and a faster new unloading shovel help you get more work done every day.

• Up to 20% Lower maintenance costs

Maintenance intervals are longer and more synchronised, so you can do more work at a lower cost.

• Built for everyday tasks

The 313GC is affordable, easy to operate, and delivers the reliability and durability expected of Cat ® products.

Configuration parameters

Standard: ● Option: ○

Maximum turning torque 43 kN · m

Bucket digging force - ISO 95.7kN

Arm Digging Force - ISO 68.2 kN

Powertrain:

Engine Model: Cat C3.6

Hydraulic system:

Main System - Maximum flow rate: 247 L / min

Maximum pressure - equipment: 35000 kPa

Maximum pressure - driving: 35000 kPa

The arms and arms are:

● 4.65m boom

● 2.5m bucket rod

● 0.53 ~ 0.6m3 GD bucket

Oil and water injection:

Fuel tank capacity 237 L

Cold Pepper System 11 L

Engine oil 11 L

Final Drive - 3 L each

Hydraulic pressure system - includes tank 145 L

Hydraulic Oil Tank 77 L

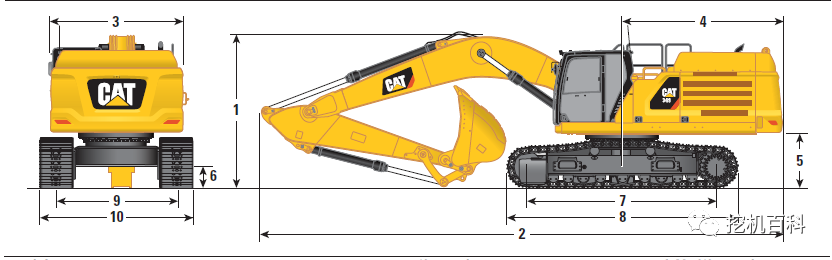

Dimensions （ can 't find the original picture ）：

Loading height - top of driving room 2780 mm

Handrail height 2820 mm

Shipping Length 7630 mm

Tail radius of gyration 2160 mm

Counterweight clearance 895 mm

Ground clearance 425 mm

Track length 3490 mm

Center Spacing of Load Wheels 2780 mm

Track gauge 1990 mm

Transport width 2490 mm

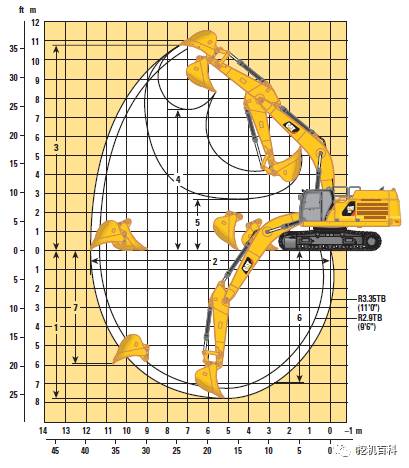

Scope of work （ can not find the original picture ） ：

Maximum excavation depth 5570 mm

Maximum ground extension 8210 mm

Maximum excavation height 8530 mm

Maximum loading height 6070 mm

Minimum loading height 1980 mm

Maximum excavation depth of 2440 mm flat bottom 5370 mm

Maximum vertical wall excavation depth 5040 mm

Standard: ● Option: ○

Driver's Room:

• Noise-absorbing cab with a sticky plinth

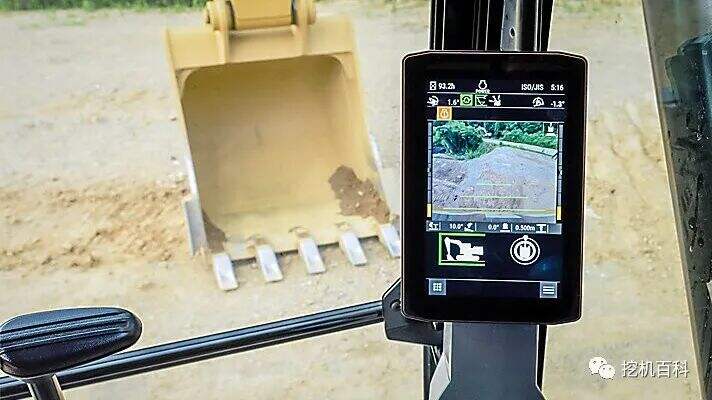

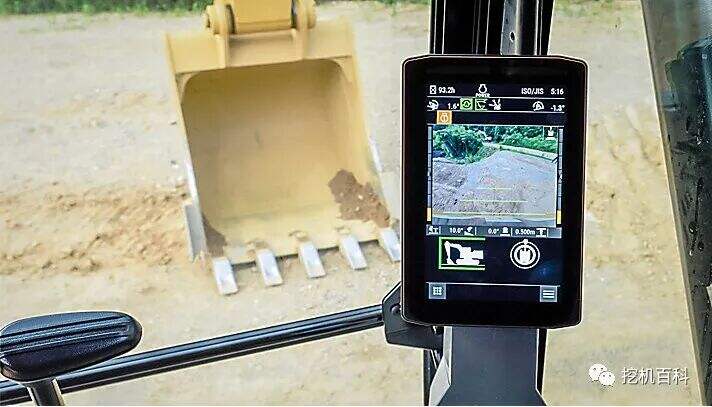

• High resolution 203 mm (8 " LCD touch screen monitor

• Mechanically adjusted seat with headrest

• Automatic two-level air conditioning

• Pressed starting engine control device without key

• Adjustable console mounted on the floor

• One-click manipulation of the handle

• AM / FM Recorder with USB and Auxiliary Ports

• 24V DC socket

• Cup holder and storage room

• 70 / 30 steel windshield

• Upper radial washer with a washer

• Steel hatch openable

• top light

• Cleanable floor mats

CAT Technology:

• Cat Product Link

Electrical systems:

• Maintenance-free 750CCA battery (2 units)

• Electrical circuit switches

• LED Left Arm and Chassis Light

○ LED Right Arm Light

○ LED Cab light

Engine:

• Three optional power modes: Power, Smart and Fuel Efficient

• 52 ° C (125 ° F) High temperature ambient cooling capacity

• 18 ° C (0 ° F) cold start capability

• Biodiesel up to B20 can be used

• Electric fuel injection pump

• Level 2 Fuel Filtration System

• Sealed double filter air filter with prefilter

○ -25 ° C (-13 ° F) cold start capability

Hydraulic system:

• Electronic main control valve, reserved hydraulically powered impact hammer mounting position

• Electronically Controlled Pump

• The arms and pole regeneration circuit

• Automatic hydraulic oil preheating

• Automatic two-speed travel

• High Performance Hydraulic Oil Recovery Filter

Hydraulically powered impact hammer line

○ Hydraulically powered impact hammer pedal kit

Safety and protective devices:

• Anti-skateboard with buckles

• Handrails and handles

• Lockable external toolbox / storage box

• Rearview mirror kit

• Signal / alarm horn

• Hydraulic Locking Grip

○ BACK VIEW camera

Repair and maintenance:

• The filter is placed centrally

• radiator grille

• S · O · S Sampling Port

The chassis system and structure:

• 500 mm（20" ) Three-clawed ground teeth track plate

• Central track leading guard

• Lubricating oil to lubricate track joints

• Bottom Protector

• Running motor shield

• 2.25 mt (7055 lb) Counterweight

• Chain points

○ 600 mm（24" ) Three-clawed ground teeth track plate

1. Performance reliable and durable:

• The 313 GC has been redesigned to increase productivity by 5% compared to the previous 313 D2 GC model.

• The C3.6 engine and the electro-hydraulic pressure system can operate in sync, allowing you to move large amounts of material without consuming too much fuel, and the C3.6 meets China's No Road Fourth Emission Standard.

• The new main hydraulic pump is electronically controlled and can provide a higher flow rate than previous models, thereby increasing control capacity and productivity.

• Excavation power was increased, and the revolving drive was redesigned to increase revolving torque and smoothness, thereby increasing productivity.

• The chassis system and track design provide a balanced combination of outstanding performance and stability.

• The arms, poles and shovel joints are reinforced to maximize durability.

2. Reduce ownership and operating costs:

• Provides three modes of operation to select power according to specific jobs: intelligent, which automatically adjusts power accordingly to demand; Save fuel and can reduce fuel consumption; Strong enough to achieve the highest productivity.

• Designed to simplify maintenance and reduce maintenance costs, the 313GC can reduce costs by up to 20%.

• Provides three modes of operation to select power according to specific jobs: intelligent, which automatically adjusts power accordingly to demand; Save fuel and can reduce fuel consumption; Strong enough to achieve the highest productivity.

• Designed to simplify maintenance and reduce maintenance costs, the 313GC can reduce costs by up to 20%.

• The service life of the hydraulic and air filters was extended, and the precursor filters and boiler exhaust filters were eliminated.

• Most day-to-day maintenance can be done on the ground, reducing the time spent on routine tasks.

• The reverse drive operates on a hydraulic system and does not require inspection or refueling of a separate oil system.

• The amount of hydraulic fluid and engine oil supplementation was reduced, without any change in performance or service life.

• When hydraulics are low, the AEC (Automatic Engine Control) system reduces the speed, which reduces your fuel costs.

• Cat Product Link™The system is standard, so you can remotely monitor fuel consumption, machine health, location, and hours as needed via VisionLink ®.

• The service life of the hydraulic and air filters was extended, and the precursor filters and boiler exhaust filters were eliminated.

• Most day-to-day maintenance can be done on the ground, reducing the time spent on routine tasks.

• The reverse drive operates on a hydraulic system and does not require inspection or refueling of other oil systems.

• The amount of hydraulic fluid and engine oil supplementation was reduced, without any change in performance or service life.

• When hydraulics are low, the AEC (Automatic Engine Control) system reduces the speed, which reduces your fuel costs.

• Cat Product Link™The system is standard, so you can remotely monitor fuel consumption, machine health, location, and hours as needed via VisionLink ®.

3. It's easy to do:

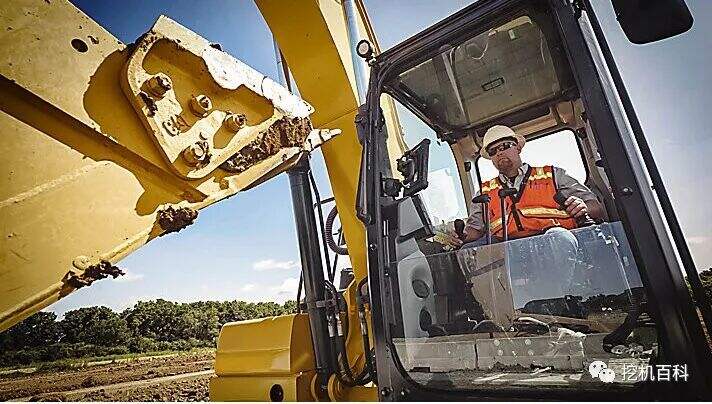

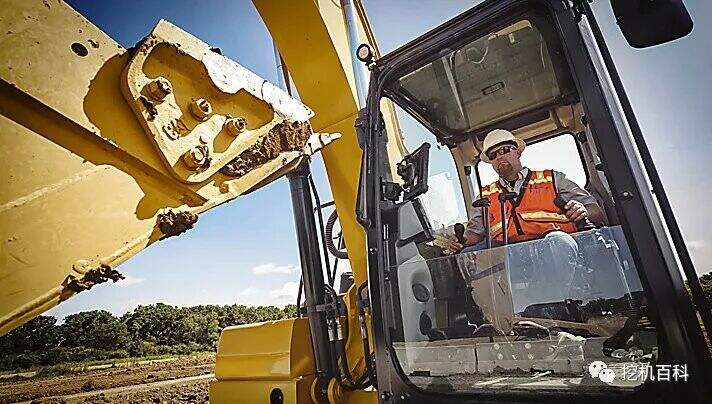

4. Working in comfort:

• The wide seat (larger than previous models) is suitable for operators of all sizes.

• Standard automatic thermostats ensure a comfortable temperature throughout the operation.

• Convenient configurations such as a cassette player, a headphone port, and a USB port for connecting and charging devices are available.

• There is a cupholder and storage space in front of the control device for large-capacity water cups and a widescreen mobile phone; The storage space behind the seat holds a safety helmet, a large lunch box and other items.

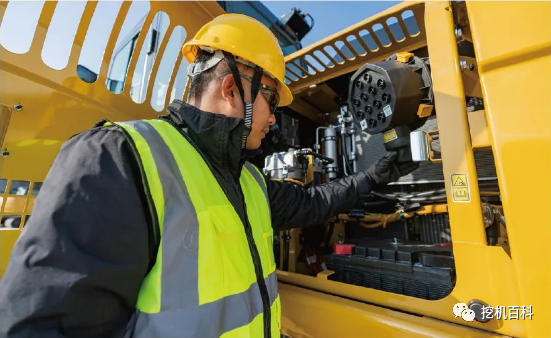

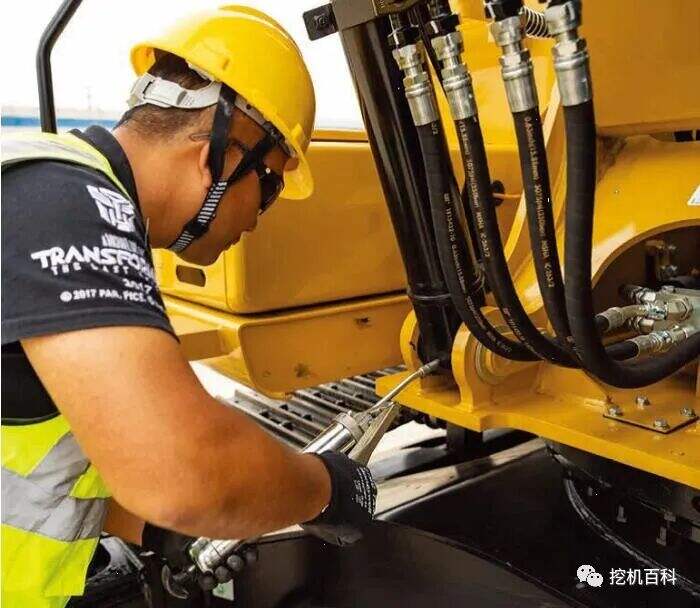

5. Easy to maintain:

• Almost all major mechanical components can be checked on the ground or on a maintenance platform.

• The radiator filter can be easily removed, is easy to clean, and can eliminate small debris, such as grass, that are difficult to remove on the radiator.

• Easily accessible to the engine room from the maintenance platform; The oil lid and level meter can be easily retrieved and released, and the automatic tightening ensures that you do not need to adjust the conveyor belt.

• Cat technology helps you monitor your machines, and the Caterpillar service network helps you maximize uptime.

6. Higher security:

• Most daily maintenance points are accessible from the ground.

• Emergency engines and electrical switches can also come into contact on the ground.

• Handrails comply with ISO 2867: 2011; Steps and platforms use anti-skateboards with buckles to prevent slips and tripping.

• In an emergency, the operator can climb out of the machine through a back window or steel skylight.

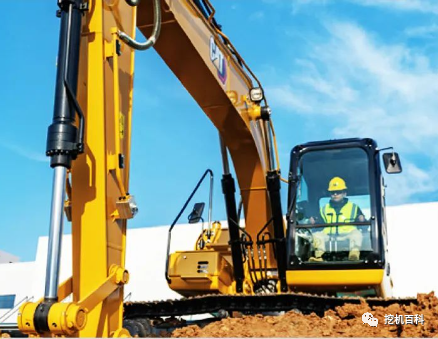

• The new cab uses a larger window and smaller cab pillar design to provide excellent views on the inner side of the ditch and in all directions.

• Bright external LED lights and an optional rear-view camera ensure that you are well aware of your surroundings at work.
