CAT 306.5 Classic inheritance, brand new upgrade

CAT 306.5 Classic inheritance, brand new upgrade

Small excavator

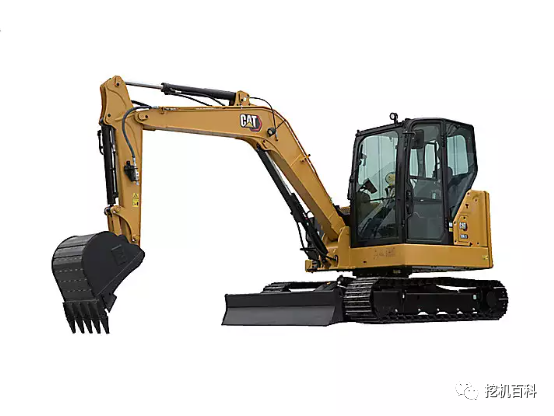

306.5

Summary

Small excavators inspired by customers

The compact size, power and performance of the Cat ® 306.5 Compact Excavators make it easy to handle any application.

• 4 Industry pioneering features

  Small digging machines from Cat-exclusive models.

• Up to 10% Reduced total cost of ownership

  More fuel efficiency and longer maintenance cycles.

• Up to 20% performance improvement

  It supports custom operator settings and improves lift capacity, turning ability, driving ability and versatility.



Main technical specifications:

Power: 34.9kW

Machine weight: 6175 kg

Bucket capacity: GD 0.25 m3

* Weight based on steel track , operator , full fuel tank , standard boom and bucket .

Configuration parameters

Standard: ● Option: ○



Performance parameters:



force	Traction - High Speed	31	kN·m
	Traction - Low Speed	51	kN·m
	Bucket Digging Force - ISO	/	kN
	Bucket Rod Digging Force - ISO	/	kN
	Rotation torque	/	kN·m
speed	Reverse speed	11.3	r/min
	Traveling at high speed	5	km/h
	Reduce speed as you go	3.1	km/h
noise	Operator Sound Pressure (ISO 6396: 2008)	72	dB（A）
	Average External Sound Pressure (ISO 6395: 2008)	/	dB（A）
Other	Ability to climb slopes	30	degree
	Ground is higher than pressure	33.7	kPa



Powertrain:

Engine Model	Cat C2.4 Turbo
rated power	34.9/2400	kW
discharge volume	2.43	L





The arms and arms are:

Move your arms	/	mm
Standard clubs	1650	mm
The shovel fighter looks	0.25	m³
* A positive shovel may be used



The chassis system:

The height of the shovel	375	mm
The width of the shovel	1980	mm



Amount of oil and water added:

Fuel tank	105	L
Hydraulic system	104	L
Hydraulic fuel tank	53	L
Engine oil	9.5	L
Cooling system	10	L

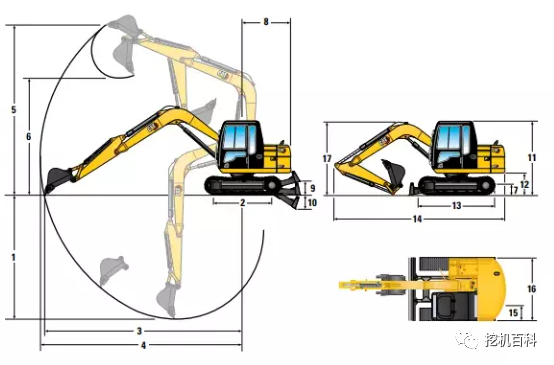

Overall dimensions :

O / A Shipment Length	5789	mm
Transport height	2206	mm
Gaps between ground and earth	306	mm
Tail pivot radius	1585	mm
Height of the cab	2540	mm
Width of the upper body	1950	mm
O / A Tracks	1980	mm
0 / A chassis system long length	2532	mm
Trackboard width	400	mm
Reverse support height	657	mm



Scope of work :

Maximum stretch distance	6090	mm
Maximum stretch distance of the ground	5975	mm
Maximum digging depth	3902	mm
Maximum removal height	3870	mm
Maximum shovel depth	615	mm
Maximum shovel height	420	mm
Maximum mining height	5490	mm
Maximum vertical wall excavation depth	2414	mm
Movement retreat position	2126	mm



Functional configuration

Standard: ● Option: ○

Engine:

• Automatic reverse brake
• Automatic engine shutdown
• Automatic engine idle speed
• Surface Seal - Double Filter Air Filter
• Automatic two-speed travel
• -37 ° C long-lasting coolant
• Cat C2.4 Fuel Fired (Non-Trial) Mechanical Turbine Engine
• Oil and water separator with indicator





Hydraulic system:

• variable discharge piston pump

• Smart power enhancement mode

• Certified energy storage

• Temperature monitoring of hydraulic systems

• Load sensing / Flow sharing hydraulic system

• Smart technology electric pump

• Hydro Advanced Liquid Pressure Oil



Operator environment:

• LED internal lighting fixture

• 12V power outlet

• Control mode converter

• Detachable and cleanable floor mats

• Pillars for the installation of neck and front shields

• A coat and hat hook

• Recorder - Bluetooth, USB, auxiliary, microphone

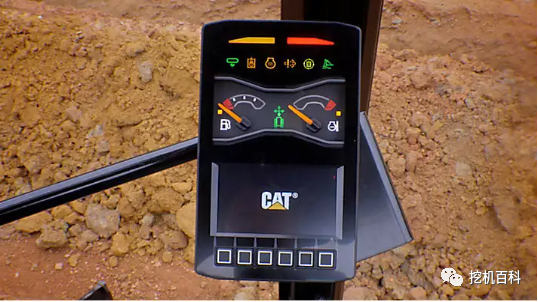

• Color LCD monitor

- Fuel level and coolant thermometer

- Maintenance and machine condition monitoring

- Performance and machine tuning

- Digital security code

- Support in multiple languages

- A clock with a wake switch

- Dial control interface

• skylight

• Accessory storage area at the top of the front window

• folder

• Running pedals and manual steering levers

• Hydraulic lock control device

• Single Handle Mode

• Emergency exit from the back window

• Pressed pedals

• Cup rack

• TOP - ISO 12117:119

• Sealed pressurized cab

• Adjustable wristrest

• Air conditioner with automatic temperature control

• Top guards - ISO 10262: 1998 (Level II)

• Cat key with password activation

• High-back cloth-fronted levitating seat

• Retractable seat belt (51 mm)

• ROPS - ISO 12117 - 2:2008

The chassis system:

• Socket points on a suspension rack

• Pre-lubricated track belt

• Hydraulic Slip-Band Regulator



Electrical systems:

• 12V electrical system

• Battery without maintenance

• circuit breaker

• Ignition key stop switching

• Signal / alarm horn

• Product Link Elite Lite (Regulations apply)

Others:

○ Single-phase assistance

Hydraulically powered impact hammer

Performance Overview

1. Comfort experience 24 / 7:

• The sealed, pressurized driver's room is equipped with an improved air conditioning system, adjustable wristrests and a levitating seat to help you work comfortably throughout the day.



2. Easy to operate:

• The control device is easy to use. The new generation of monitors provides customizable machine operator preferences and machine information is intuitively readable.

3. Single-handheld walking mode:

• The Cat Single Handle Walk mode makes it easier to control the movement of equipment across the job site. With just a tap of a button, you can switch from traditional driving control using a steering rod and pedal to manipulating handle control mode. The new control makes the operation easier and everything is in control.



4. Mini in shape but excellent in performance:

• Better lifting, turning, driving and versatility help you do your job more efficiently, and the "push and shovel" feature makes cleaning easier



5. Site Safety:

• Your safety is our top priority. Cat small digging machines are designed to help you always work safely. We have a number of safety features in the machine, such as a delayed turn off of the work light and a retractable fluorescent seat belt.

6. Simple and convenient repairs achieve shorter downtime:

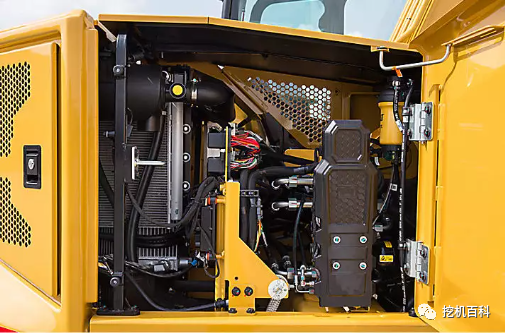

• Maintenance of Cat small excavators is easier and more convenient. Maintenance points are concentrated and maintenance panels are strong. Standing on the ground, you can easily check everyday checkpoints.



7. Reduced operating costs:

• Cat Compact Excavators are equipped with features such as automatic idle, automatic engine shutdown, and efficient liquid pressure systems with variable displacement pumps designed to reduce your operating costs.
