Summary

A new generation of machines

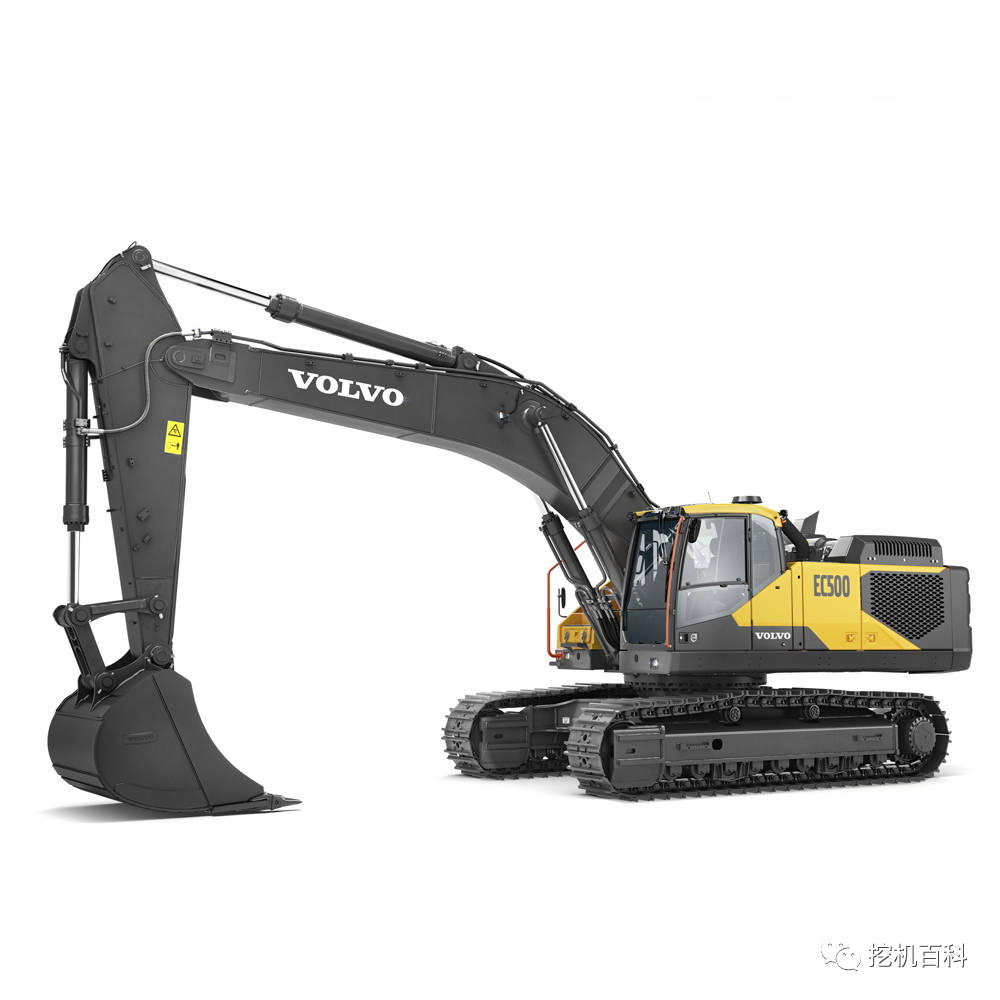

The new EC500, in line with China's fourth standard, is equipped with a mature Volvo D13 engine. The EC500 uses advanced technologies such as a new generation of electro-hydraulic control systems to increase fuel efficiency by about 5% and productivity by about 16%. Superior machine stability contributed to a full increase in production performance, an excellent driving environment and a range of Volvo accessories further increased productivity. The durable design, long component life and easy-to-maintain features ensure longer uptime, allowing machines to work at higher operating strengths for longer periods of time.



Main technical specifications:

Power: 312kW

Machine weight: 49800 ~ 51600 kg

Bucket capacity: 1.55 ~ 3.5m3





Configuration parameters

Standard: ● Option: ○ Reference value: * To be refined: /







1. Performance parameters:



force	Traction force	333.4	kN·m
	Bucket Digging Force - ISO	311	kN
	Bucket Rod Digging Force - ISO	231	kN
	Rotation torque	166.3	kN·m
speed	Reverse speed	8.9	r/min
	行走高速/低速	5.1/3.1	km/h
noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
	Average external sound pressure （ISO 6395:2008）	/	dB（A）
Other	Ability to climb slopes	35	°
	Ground is higher than pressure	/	kPa





2. Powertrain:



Engine Model	Volvo D13F
rated power	312/1800	kW/rpm
Maximum torque	1836/1400	Nm/rpm
discharge volume	/	L
Emissions Level	Country 4
Emissions technology routes	DOC+DPF+SCR





3. Hydraulic system:



The technical route	All-electric control
Main Pump Brand / Model	/
Main pump discharge	/	cc
Main valve brand / model	/
Reverse motors and gearing brands / models	/	Double turnaround
Walking motors and gears brands / models	/
Maximum traffic on the main system	2*355	L
The overflow valve settings:
Execute a hydraulic circuit	32.4/35.3	MPa
Turning the oil road	25.8	MPa
Walking the oil road	32.4	MPa
Leading oil road	/	MPa
Tank specifications:
Armed cylinder	/	mm
Bulk fuel tank	/	mm
The shovel oil tank	/	mm





4. Working appliance:



Move your arms	6500	mm
Fighting clubs	3000	mm
The shovel fighter looks	3.03	m³





5. The chassis system:



Weight of weight	9750	kg
Number of trackpads - one side	/	section
Number of cogs - one side	2	individual
Number of support wheels - one side	9	individual
Running board width	600	mm
Chainrail steering agency - single side	2	individual



6. Amount of oil and water added:



Fuel tank	680	L
Urin boxes	/	L
Hydraulic system	/	L
Hydraulic fuel tank	/	L
Engine oil	55	L
Antifreeze Solution	60	L
Walking brake gear oil	2*7.5	L
Reverse gear oil	2*6	L

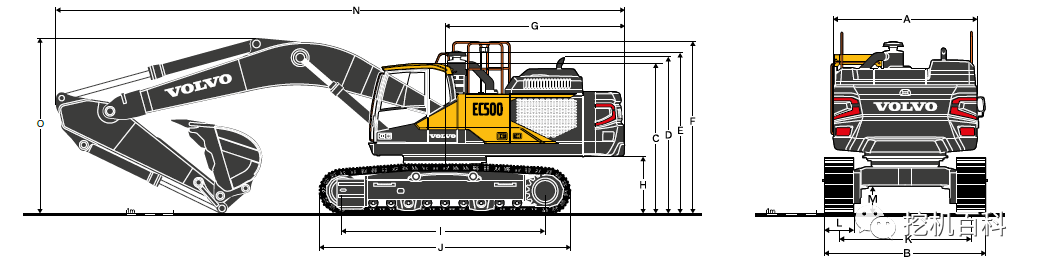

7. Form factor:



A	Total upper structure width *	2990	mm
B	Total width	3440	mm
C	Total height of the driver's room	3280	mm
D	Total height of exhaust pipe	3525	mm
E	Total height of railings	3500	mm
F	Total height of the guardrail (expands)	3745	mm
F'	Total height of guardrail (folding)	3270	mm
G	Tail pivot radius	3880	mm
H	Weight-to-earth gap *	1210	mm
I	Wheel spacing	4470	mm
J	Track length	5470	mm
K	Track length	2740	mm
J	Trackboard width	600	mm
M	Minimum distance from the ground *	515	mm
N	Total length	11715	mm
O	Total arm height	4000	mm
*: Does not include track plate flanges height



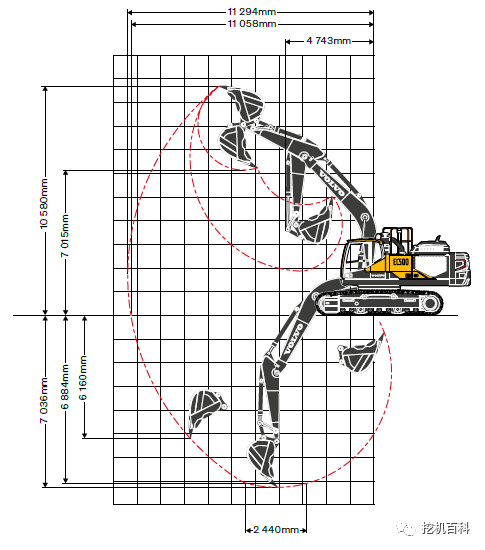

8. Operational scope:







Higher fuel efficiency

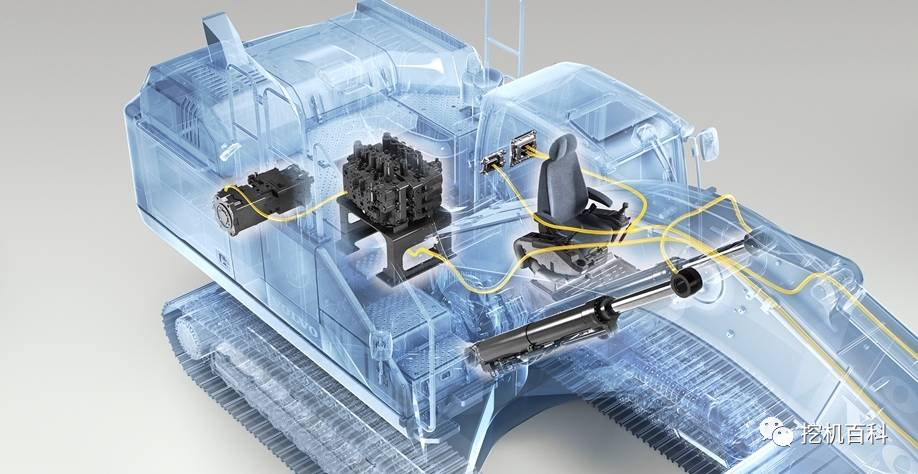

Compared to the previous generation, the new generation EC500 provides about 5% more fuel efficiency. Features such as ECO mode and the new generation of electronically controlled hydraulic pressure systems (positive flow) reduce internal losses, resulting in improved fuel efficiency.





1. Play its full part.





• Smart engine features, such as automatic engine idling and automatic engine downtime, eliminate unnecessary fuel consumption and various types of wear, while lowering operating costs and reducing environmental impact, so that every drop of oil makes a difference.



2. Various modes of work







• Using unique Volvo technology, a variety of operation modes are provided through accelerator control to achieve superior performance.

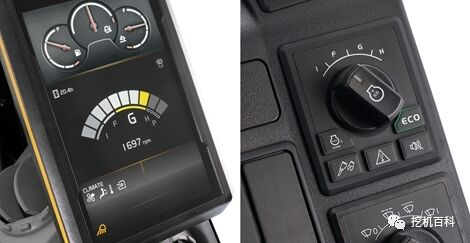

• When the operator selects a mode of operation: I (idle), F (fine), G (normal), H (heavy) and P (maximum power), the system has set the corresponding speed to achieve greater efficiency.



3. Core components have long-lasting performance





• Hydraulically driven, inverted cooling fans (electronically controlled) regulate the temperature of the core components to ensure longer-lasting performance.

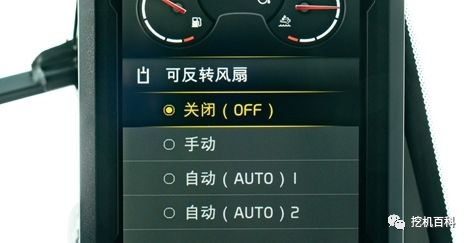

• The fan only starts automatically when needed, minimizing noise and fuel consumption. The inversion function allows the fan to blow in the opposite direction, allowing the fan to clean itself.



4. Stay up to date on what's happening





• The machine features, combined with Volvo services, help you monitor your fuel usage and further reduce your running costs.

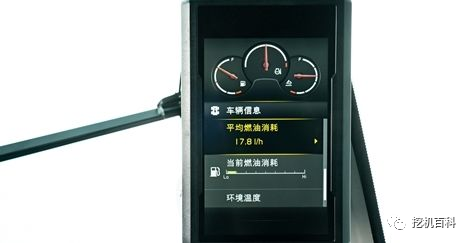

• The fuel meter displays real-time fuel consumption and average fuel usage information to keep you up to date.

• The Volvo + Fuel Consumption Report provides a clear explaination of the fuel consumption of a single machine and helps identify areas where fuel efficiency can be improved.





Productivity soared

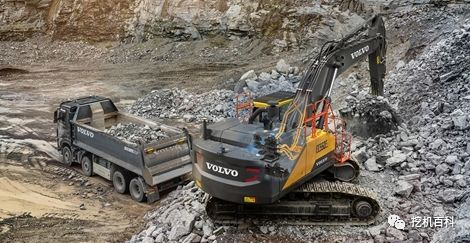

The EC500's increased bucket capacity allows more material to be scooped up with each bucket, increasing productivity by about 16%. The chassis is 100mm longer for easy digging, lifting and turning and provides rock-solid machine stability.





1. The industry famous driver's room

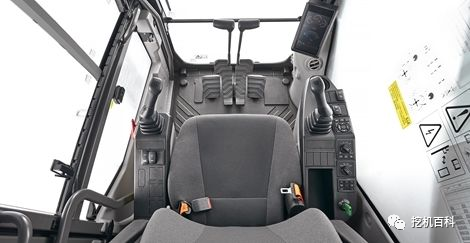

• Volvo's caring cabs, known for their low noise, low vibration and good visibility, make it comfortable and efficient for operators to operate in such an environment.

• The overall layout for easy operation, heating seats and ergonomic control devices further improve the operating environment of the driver's room, helping to improve the efficiency of operators.



2. Time-tested motivations





• The EC500 crawler excavator is based on proven Volvo engine technology and delivers very high torque at low speeds, with excellent reliability and performance.



3. Assisted mining systems

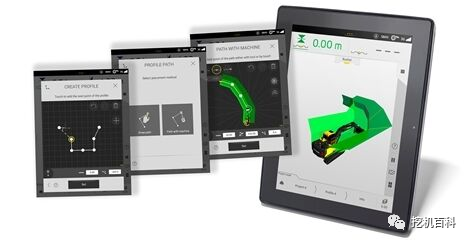

• The Volvo Assisted Mining System is supported by a 10-inch Volvo Assistive Driving System display, Equipped with a set of intelligent applications that optimize the mining process, including 2D, 3D, In Field Design, and On-Board Weighing, machine productivity can be maximized.



4. Clean air guns

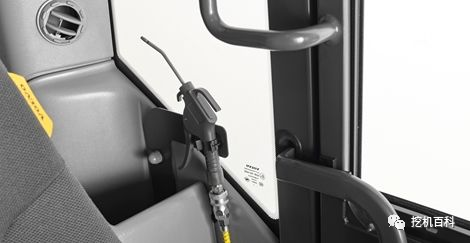

• Clean air guns are particularly useful when operating in dusty environments. The nozzle of the air gun can be used to clean the driving interior and other areas, making the operator more comfortable and maintaining more conveniently.





Quality comes from design



The EC500 uses the proven technology of the Volvo D13 engine with a higher level of quality. The durable design, easy repair and maintenance, and all-in-one safety features contribute to this high quality machine.







1. Time-tested engine technology

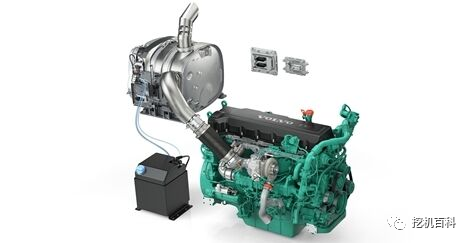

• Since 2014, the Volvo D13 engine, which is in line with the national fourth standard, has been tempered by the global market. With a decade of carefully honed technological advantages, its overall strength continues to strengthen, providing solid and reliable product quality and satisfactory operational efficiency to users around the world.



2. Safety of both interior and exterior repair

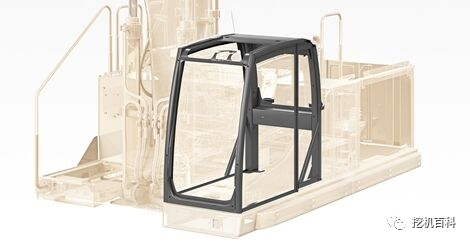

• Anti-skid plates and handrails ensure easy and safe access to the ROPS standard driving room.

• After entering the driver's room, the operator can obtain an excellent field of view through the rearview camera. If the operator does not properly tie the seat belt, the seat belt sound alarm function will issue a voice alarm.



3. Engine Protection

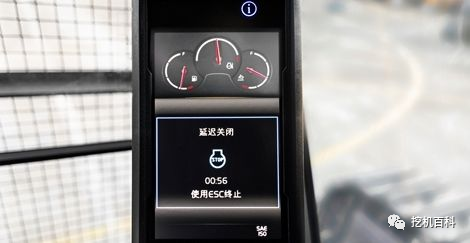

• Standard configurations of engine delayed downtime enable your turbocharger to work in excellent condition for longer periods of time.

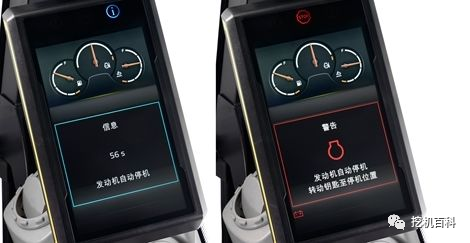

• To avoid overheating, when the turbocharger cools to a suitable temperature, the smart setting turns off the machine in time, or it can be set by the operator to turn it on automatically.



4. Repairs are quick





• The centralized arrangement of filters and lubrication points makes repairs and maintenance more convenient and faster, which can maximize uptime.

• Simply open the side door to service the single-layered chiller from the ground.

• Heat coolers, pressurized air coolers and hydraulic oil coolers are installed side by side in the same layer to maximize efficiency, reduce blockage and simplify cleaning operations.
