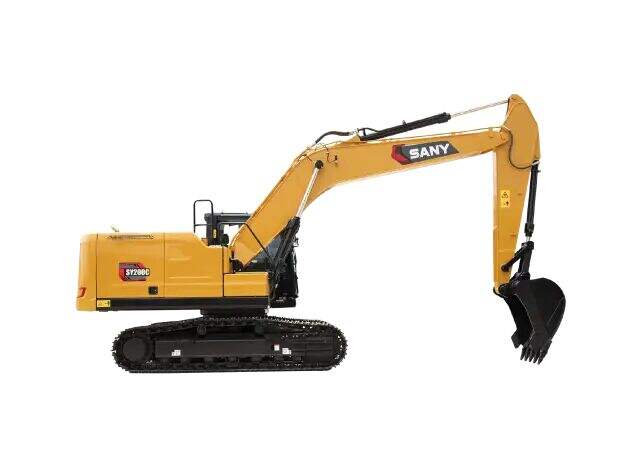

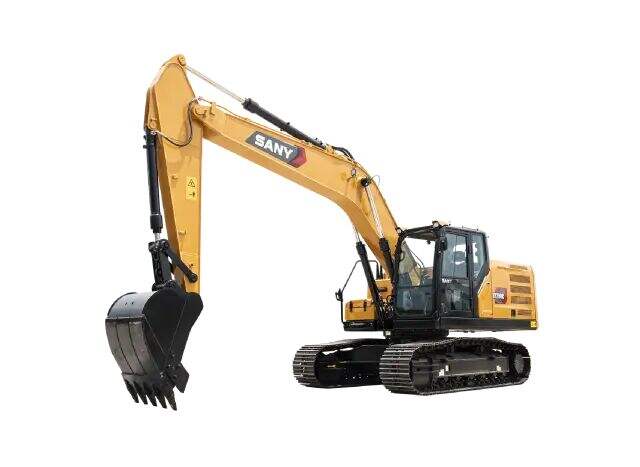

SNAY SY200C Classic inheritance, brand new upgrade

Medium-sized excavator

SY200C

Summary

Fuel saving pioneers. Entrepreneurs who can get rich

SY200C is a new generation of 20 ton earthen excavator products built by Sany Heavy Machinery, designed for Troop Brigade users. Its sales are high and its market share is high, and it has been awarded "Top 50 products of the year" in China's construction machinery.

The new generation of SY200C is around the "new power," "new technology" and "new shape" upgrade, its performance is stronger, the experience is better。Can easily handle earthwork, leveling, trenching and other engineering operations.

Configuration parameters

Standard: ● Option: ○ Reference: *

Power:

Bucket digging force 128 kN

Arm digging force 102 kN

Speed:

Slewing speed 11.6 r / min

Walking speed 5.4 / 3.4 km / h

Slope ability 70 per cent (35 per cent)

Ground specific voltage 47.4kPa

Powertrain:

Engine Mitsubishi 4 M50

Displacement 4.899L

Emissions Standards Country IV

Technical route EGR + DOC + DPF

Hydraulic system:

Technical route HSSC full electronic control technology

Main pump displacement 135cc

Rotary motor and speed reducer RG14 speed reducer

The arms and arms are:

● 5700 mm boom

●2919 mm bucket arm

●1.0 m³ 铲斗

The chassis system and structure:

● 5700kg weight

600mm double tooth track

46 tracks (one side)

• 7 axles on each side

• 2 chain wheels on each side

Oil and water injection:

Fuel Tank 370 L

Hydraulic Tank 240 L

20 L of engine oil

Heat Exchanger 25 L

Final Drive 2 × 5.0L

Rotary Motor 4 L

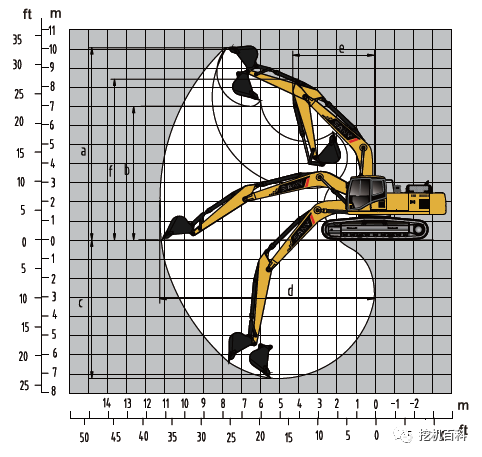

Operational scope:

A. Maximum excavation height 9600 mm

B. Maximum unloading height 6730 mm

C. Maximum excavation depth 6600 mm

D. Maximum excavation distance 10280 mm

E. Minimum radius of gyration 3730 mm

F. Maximum height at minimum radius of gyration 7680 mm

New Power

1. Powertrain:

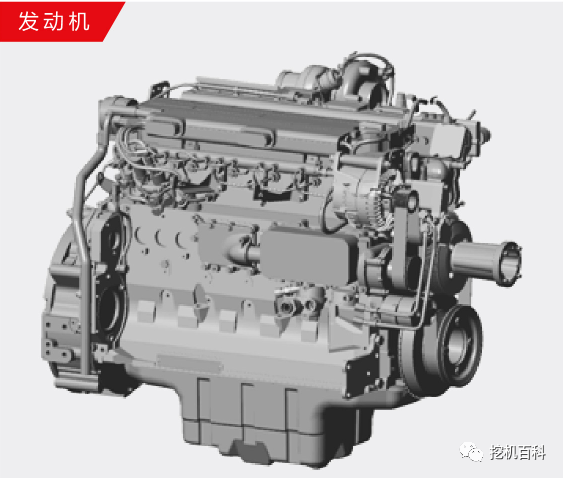

• Equipped with Mitsubishi Fuso 4 M50 engine, power 118 kW, torque, dynamic response faster. The use of EGR + DOC + DPF post-processing technology, to achieve accurate control of the intake flow and fuel injection, to meet the fourth national emission standards, reduce fuel consumption and emissions.

2. Hydraulic system:

• Powered by well-known brands of electrically controlled main valves and piston pumps, the control strategy is optimized to achieve drill regeneration and rapid oil return, and the valve core is precisely controlled to improve the overall excavator energy efficiency and handling.

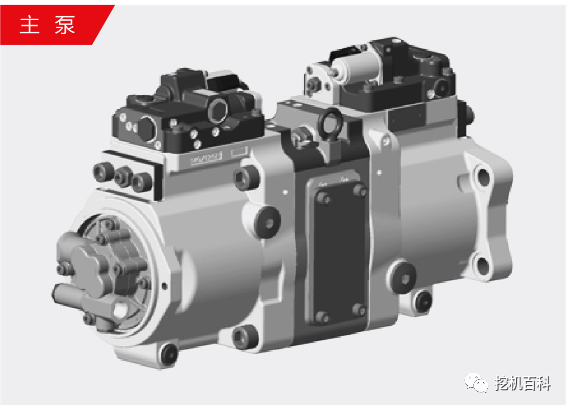

• Plunger pump displacement increased from 112cc to 135cc, the engine can use the speed range increased, easier to run in the economic fuel consumption zone.

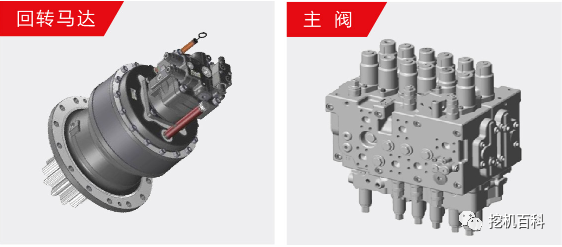

• The newly upgraded RG14 speed reducer, the rotary capacity is improved, the slope work capacity is stronger, the rotary start speed is accelerated. The revolving device increases revolving capacity by 12%. The machine's rotation drive is increased, its ability to work on the slope is improved, and the rotation start speed is increased.

A new look

1. Intelligent:

• The 10-inch screen is once again upgraded to be thinner, brighter and sharper; Higher system integration, multi-unit integration of body control and power management, and fewer components; Support 4G network OTA upgrade, faster and more secure, add a button call function; Night stop lights delay extinguishing, a key switch between the forehand and backhand display screen, rear camera configuration, to ensure safe driving.

2. C12 Driving Room:

• Sany has collaborated with renowned automotive design companies to completely upgrade the driver's room from the exterior to the user experience, following the concept of "comfort, convenience, autonomous and intelligent, connected ecosystem" to create a "first class" driving environment for customers.

3. New interior:

4. A new air conditioning system:

• Powered by a new air conditioning system, the air conditioning wind tunnel is optimized, the cooling effect is stronger, and the wind amount is allocated more reasonably. Air conditioning evaporators enable in-car cleaning and maintenance, making cleaning simpler.

new technology

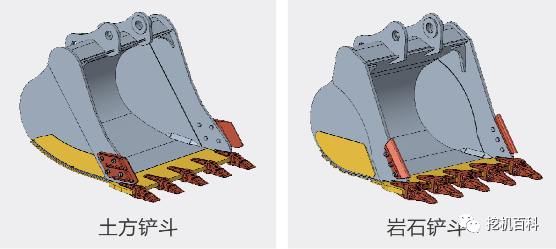

1. The shovel upgrade:

• The earthen shovel is standardized, and rock shovels can be optional, so as to achieve "one condition, one blow" and meet different working conditions.

• The thrusters are optimized, the average resistance of the excavation process is reduced by 5%, the efficiency is increased by 8-15%, and the excaves are smoother.

2. HSSC Electronic Control Technology

• Using HSSC electronic control technology, the load valve can independently control the incoming and returning oil to reduce the flow loss.

• The time series control solves the starting and stopping impact problem, makes the various operational actions flexible and easy to control, and the effective displacement control makes the tank action responsive.

• Banked direction control valve solves the control strategy of multi-way valve fully open and slightly open, making each movement smooth and natural.

• Applying composite action pump control technology, the flow provided by each pump is rationally distributed and the cylinder is controlled, improving handling and reducing pressure loss.

3. DPD + EGR Technical Route

• Part of the exhaust gas circulates into the gas admittance system, mixed with fresh air and burned to suppress the generation of NOX. EGR is upgraded from tubular type to laminated type, which cools faster.

Functional setup

Engine:

• 24V / 5.0kW starter motor

• 50A AC Motor

• Air Prefilter

• Dry double filter air filter

• Cylindrical lubrication oil filter

• Bulk fuel filter

• Oil cooler

• Heat heater with protective net

• Heater sub-water tank

• Fan curtain

• Isolated engines

• Automatic idling system

Driver's Room:

• Soundproofed steel cab room

• Strengthened light glass windows

• Silicone Oil Rubber Vibration Reduction

• Openable roof, front enclosure and door windows

• Back window emergency safe exit

• Rain wiper with a cleaner (silent)

• Adjustable reclining seat withdjustable armrests

• Feet boards, floor mats

• Speakers, rear view mirrors

• Seat belts, fire extinguishers

• Drinking cup seats, lanterns

• Escape hammer

• Storage boxes, utility bags

• Lead control cutting rod

• Completely automatic air conditioning

• Launch with one click

• 10 inch smart touch screen

• Bluetooth, multifunctional panels

• 24V power access port, USB interface

○ Front protective net

The lower walking body:

• Walking motor pads

• H-type track guide mechanism

• Slip-on hydraulic tightening mechanism

• Piston-connected drive wheels

• Chain lifters and heavy lifting wheels

• Strengthened chain rails with shaft seal

• 600mm tread track

• Strengthened side pedals

• Bottom panels

Hydraulic system:

• Select a switch for working mode

• Control valve with primary overflow valve

• A backup oil outlet for the control valve

• Oil absorption filter

• Reverse oil filter

• Leading Filter

• Oil leak filter

Front-end working devices:

• French sales

• Welding joints

• Central lubrication system

• All shovels are soldered with dust sealing rings

• Strengthening the fully wrought box arms

• Strengthening fully wrought box braces

The upper pivot platform:

• Fuel level float

• Hydraulic Oil Level Meter

• toolbox

• Reverse parking brake

• Rearview mirror (right)

Air conditioning system:

• Air conditioner

• Screened air conditioning, air conditioning

• Fresh air ventilation system (fresh air function)

Supervisory control system instrument:

• Hour gauge, fuel level gage

• Engine coolant temperature

Alarm lights:

• The oil pressure is inadequate

• The engine coolant overheated

• Insufficient amount of fuel.

• Fault Code Alarm

Others:

• Standard electric bottle

• Lockable ceiling cover

• Lockable fuel filling cover

• Anti-ski pads, handrails and sidewalks

• Walking direction markers on the walking rack

• Manual Butter Gun

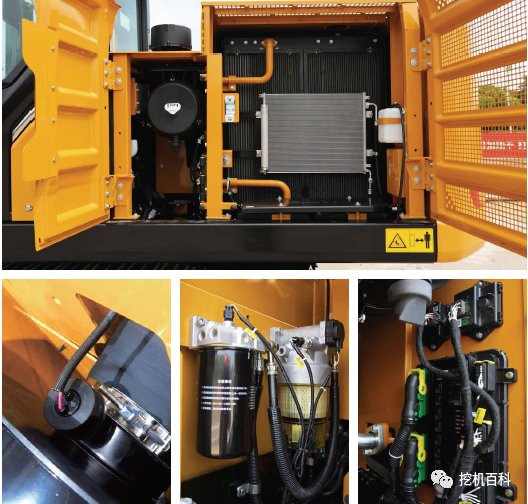

Easy maintenance
