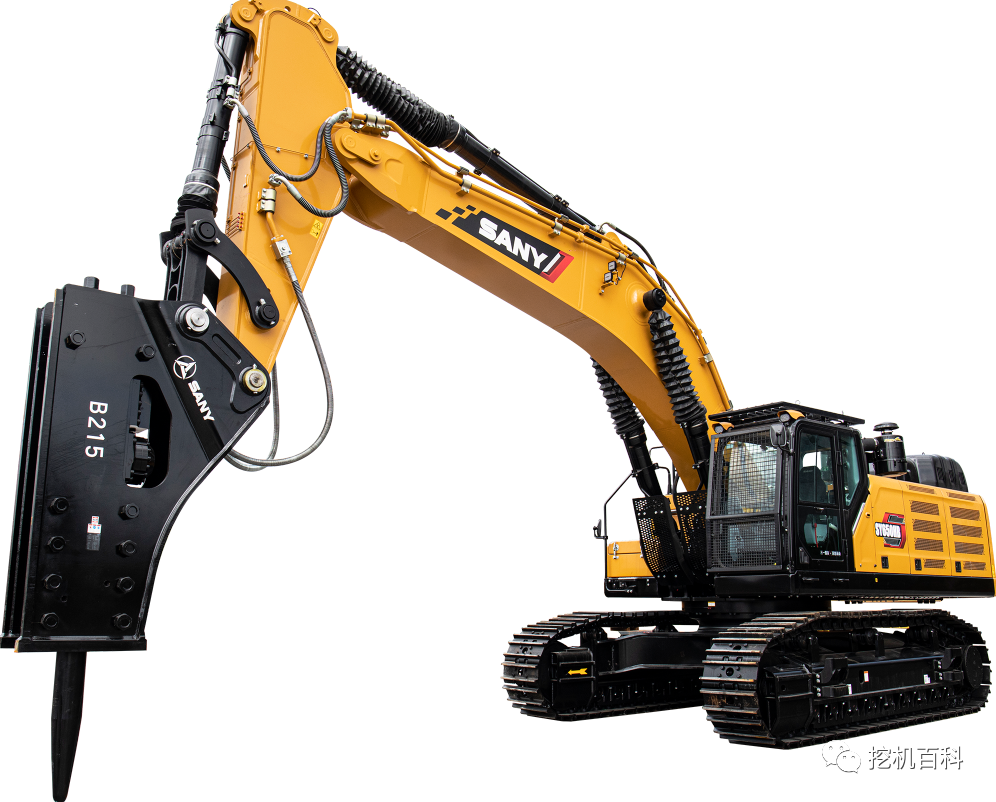

SY650H

Summary

Bone killer. Indomitable.

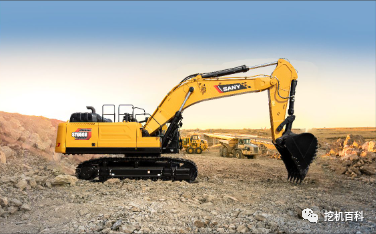

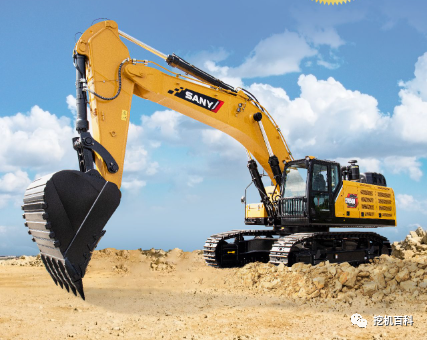

SY650H is a 65T class super-mining excavator product built by Sany Heavy Industries, which is designed for heavy loading conditions in mines. Its forcefulness, coordination and smoothness have won the "Top 50 Market Table Cash Award" of China's construction machinery.

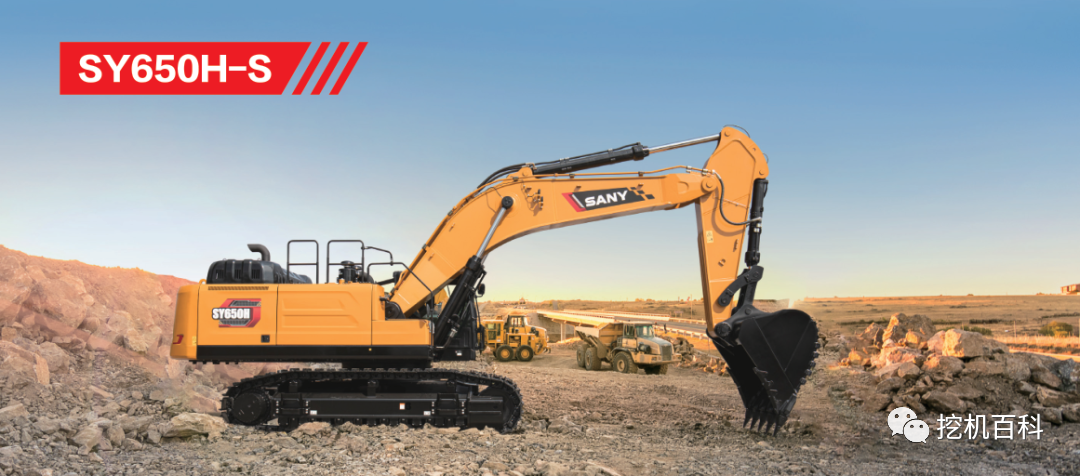

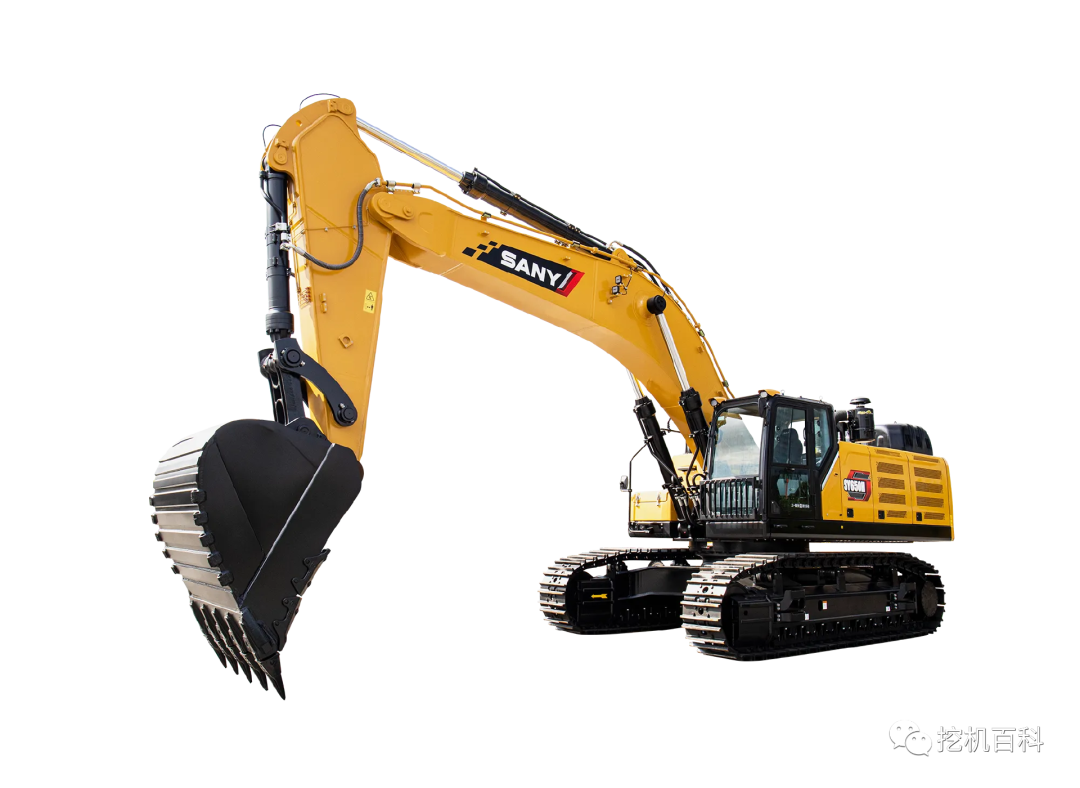

The new-generation SY650H-S is completely upgraded around "new power," "new styling" and "new technology," which is durable and easy to manage, meeting all operational needs and delivering a higher return on investment for customers.

Main technical specifications:

Power: 350 kW

Machine weight: 65000 kg

Bucket capacity: 3.8 (3.0 ~ 4.5) m3



Configuration parameters

Standard: ● Option: x To be perfected: /



1. Performance parameters:

force	Traction force	477	kN·m
	Bucket Digging Force - ISO	345	kN
	Bucket Rod Digging Force - ISO	293	kN
	Rotation torque	/	kN·m
speed	Reverse speed	7.3	r/min
	Traveling at high speed	4.6	km/h
	Reduce speed as you go	3.1	km/h
noise	Operator Sound Pressure (ISO 6396: 2008)	/	dB（A）
	Average External Sound Pressure (ISO 6395: 2008)	/	dB（A）
Other	Ability to climb slopes	35	degree
	Ground is higher than pressure	105	kPa



2. Powertrain:

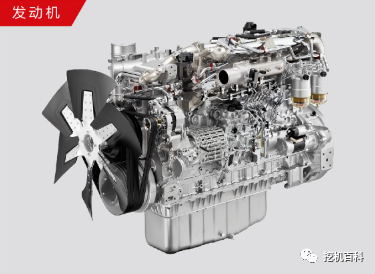

Engine Model	Isuzu 6WG1
rated power	350/1800	kW/rpm
Maximum torque	2050/1300	Nm/rpm
discharge volume	15.681	L
Emissions Level	Country 4

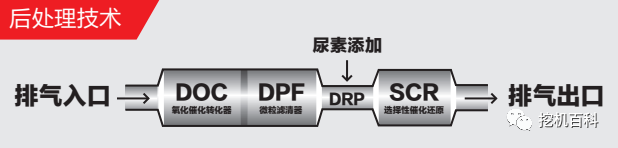

Emissions technology routes	DOC+DPF+SCR



3. Hydraulic system:

The technical route	All-electric control

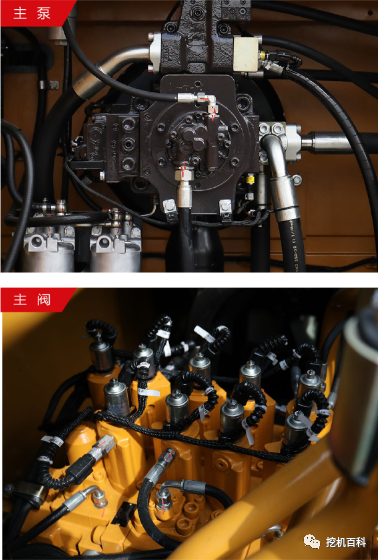

Main Pump Brand / Model	Kawasaki
Main pump discharge	/	cc
Main valve brand / model	Kawasaki
Reverse motors and gearing brands / models	/
Walking motors and gears brands / models	KYB



4. Working appliance:

Move your arms	7000	mm
Fighting clubs	3000	mm
The shovel fighter looks	3.8	m³



5. The chassis system:

Weight of weight	11000	kg
Number of trackpads - one side	52	section
Number of cogs - one side	3	individual
Number of support wheels - one side	9	individual
Running board width	600	mm



6. Amount of oil and water added:

Fuel tank	827	L
Hydraulic system	/	L
Hydraulic fuel tank	640	L
Engine oil	37~52	L
Cooling system	70	L
Walking brake gear oil	2x15	L
Reverse gear oil	2x10.5	L

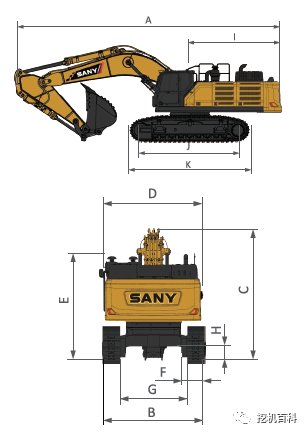

7. Form factor:

A	Total Length (at the time of transport)	12760	mm
B	Total width	3500	mm
C	Total height (at the time of transport)	4530	mm
D	Upper width	3400	mm
E	Total height (top of the cab)	3470	mm
F	Standard track plate width	600	mm
G	gauge	2890	mm
H	Minimum distance from the ground	615	mm
I	Tail pivot radius	4170	mm
J	Track grounding length	4600	mm
K	Track length	5720	mm

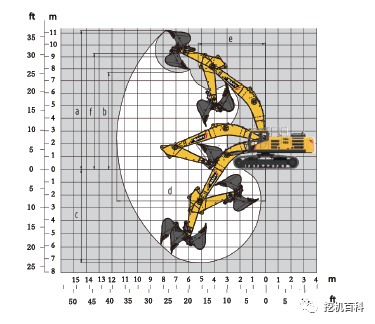

8. Operational scope:

a.	Maximum excavation height	11350	mm
b.	Maximum removal height	7770	mm
c.	Maximum excavation depth	4700	mm
d.	Maximum excavation radius	11800	mm
e.	Minimum rotation radius	5260	mm
f.	Maximum height at minimum rotation radius	9590	mm

Functional configuration

Standard: ● Option: ○



Engine:

• High power engine

• Dynamic tuning mode control

• radiator

• 24V / 7.0kW Starter Motor

• 60A AC Motor

• Oil bath air filter

• Lubrication oil filter

• Level 3 Fuel Filter

• Fuel radiators

• Heater sub-water tank

• Fan curtain

• Automatic idling system

• High-capacity urea container

• SCR post-processing

• Urine pump



Driver's Room:

• Automotive-grade cockpit

• Strengthened light glass windows

• Silicone rubber shock absorbers

• Top, front window and left window (openable)

• Back window emergency safe exit

• Rain wiper (with a cleaning device)

• Multifunctional mechanical levitation seat

• Feet boards, floor mats

• Speakers, rear view mirrors

• Seat belts, fire extinguishers

• Drinking cup seats, lanterns

• Escape hammer

• Storage boxes, document bags

• Lead control cutting rod

• Completely automatic air conditioning

• Emergency stop switch

• Front protective net

• ○ Anti-falling roof protection net



The lower walking body:

• Strengthened walking motor protection plate

• Strengthened suspension rack

• Running belt tightening device

• drive wheel

• Chain lifters and heavy lifting wheels

• Strengthened chain tracks (with shaft seal)

• 600mm two-rib track plate

• Strengthened double-layer side pedals

• Protective covering plate



Hydraulic system:

• Control valve (with main overflow valve)

• Control valve backup oil outlet

• Oil absorption filter

• Oil leak filter

• Reverse oil filter

• Leading Filter

• Hydraulic shock relief blind pipe

• Independent oil spill



Front-end working devices:

• French sales

• Casting rod

• Dust sealing rings (trawl solder configuration)

• Strengthening the fully wrought box arms

• Strengthening fully wrought box braces

• Forging arm fork

• Crooked cock teeth / sharp cock teeth



The upper pivot platform:

• Fuel Level Sensor

• Hydraulic Oil Level Meter

• toolbox

• Reverse parking brake

• Rearview mirror (right)

• BACK VIEW camera

• ○ Cab warning light

Alarm lights:

• Controller failure

• The pump pressure is abnormal

• Abnormal pre-emptive pressure for each action

• The power supply voltage is abnormal

• The hydraulic oil temperature is abnormal

• Insufficient oil pressure, overheating of engine coolant

• The accelerator knob failed

• Insufficient amount of fuel.

• DPD anomaly

• SCR anomaly

Supervisory control system instrument:

• Standard GPS

• Touch color 10.4 inch display screen

• The Iveco system

• Hour meter, fuel level gage of fuel tank

• Engine Coolant Temperature Table

• Oil pressure gauge

• Smart safe boxes

Others:

• High-capacity batteries

• Lockable ceiling cover

• Lockable fuel filling cover

• Anti-sliding pedals, handrails and sidewalks

• Walking direction markers on the walking rack

• Electric diesel pump



A new look

1. Intelligent :

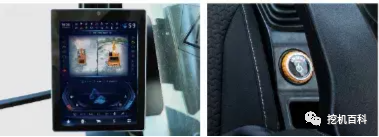

• Equipped with 10.4 inch intelligent display screen, integrated air conditioning, radio, Bluetooth, GPS and other functions, standard with a button to start the machine, support fault detection and alarm, intelligent debugging and diagnosis, a new button to invite function, more safe and intelligent.



2. Air conditioning upgrades:

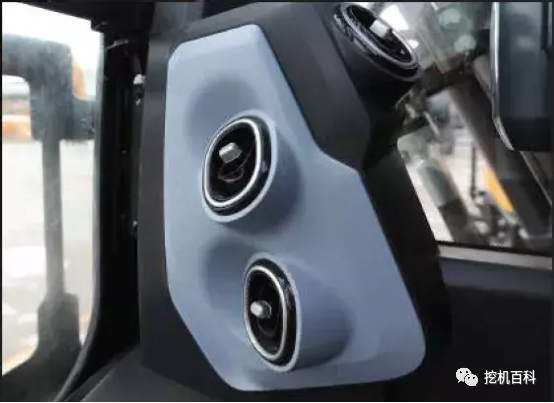

• The new air conditioning wind tunnel optimizes the outlet position, the cooling effect is 10% higher than the previous model, the condenser volume is 30% higher than that of the previous model. The air conditioning can be cleaned on-board and easy to maintain.

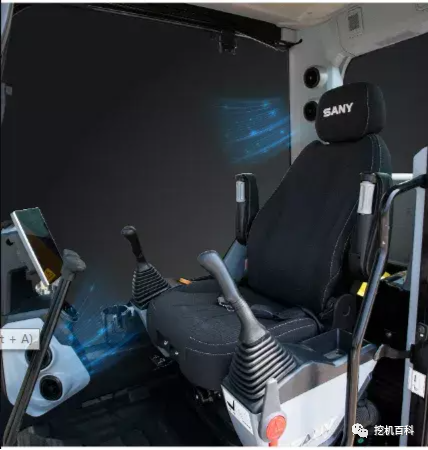

3. C12 Driving Room:

• The newly upgraded driver's room is developed according to the five features of "intelligent connectivity, intelligent interaction, intelligent construction, intelligent driving, and intelligent maintenance," to enhance entertainment, interaction and technology.

• The driving room size is 25mm wider than the previous generation, and the space is larger. The front window is 10 percent wider than the previous generation, the glass area of the vehicle is 10 percent larger, and the view is wider.



4. Interior upgrades:

• A newly upgraded interior, with a suspension four-seat armrest, cup seat, refrigerator, 24V electrical outlet, USB interface, etc., introduced static and dynamic comfort standards for automobiles, and a newly developed "12h without fatigue" large damping suspension and vibration-reducing seat.

5. Sealing upgrade:

• The driver's sealing structure is optimized and upgraded, the leakage and indoor temperature are significantly reduced, effectively resolving the pain point of graying in the driver's room under harsh working conditions, and the thermal comfort is increased by 10% compared to the previous generation.



6. Safe and reliable:

• Skeleton reinforced cabs have a 30% higher safety performance than ordinary cabs.

• Equipped with emergency stop switch, anti-skid cover, anti-gravel side door, etc., to further enhance the safety of equipment mining operations.



new technology

1. The shovel upgrade:

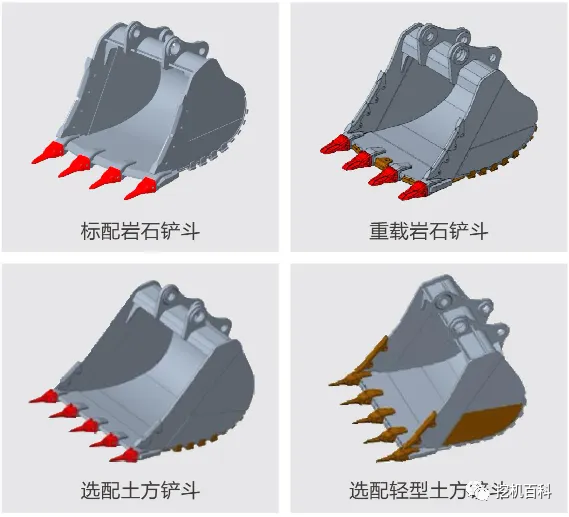

• Standard 3.8m3 bucket, suitable for harsh working environment of mine, can be configured with 4 kinds of series bucket, meet the "one bucket in one condition," improve construction efficiency, easily deal with a variety of complex working conditions.



2. Full electric control system:

• Full electronic control ACE-P technology, improve operation adaptability, improve operation coordination, precise and soft control, easy and smooth operation. Double microcomputer controller, high precision control, fast response, and small impact of microaction control.



3. Dynamic optimization intelligent control system:

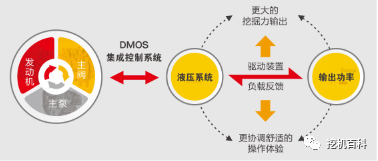

• Using the "positive flow" system and Sany's self-developed "DOMCS" engine-pump-valve integrated dynamic tuning intelligent control system, each step and mode works in the engine's optimum fuel consumption area, and is highly efficient and low-consumption.



4. Strengthening of workpiece structural components:

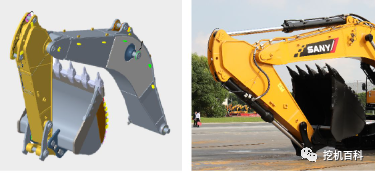

• Fully apply 20,000 hours working device technique, adopt high strength steel + high strength forging + wear-resisting steel plate, cast integral connecting rod, three-section box construction, section widened, box section increased, bending section factor increased by 20%, high reliability, long life.



5. Get out of the car enhanced:

• Adopt imported KYB walking motor to provide strong driving torque;

• Strengthened two-bared wear-resistant track, heavy support wheels, fully protected track pads and integrated welded vehicles ensure the strength of the walking equipment in harsh environments.



Maintenance & Service

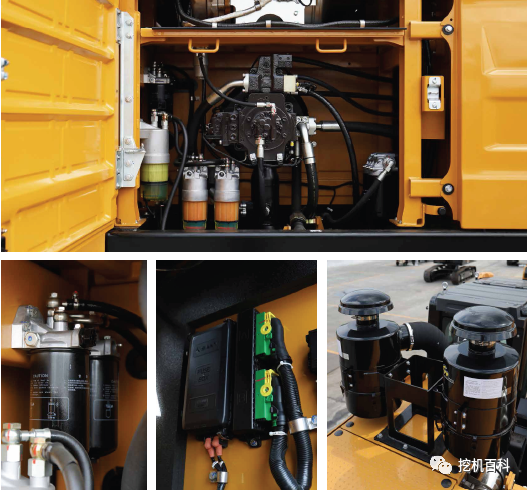

• In response to the harsh working conditions in the mine, the convenient design of maintenance service replacement has been strengthened, "large space, easy to handle," and the operation space for various maintenance service repair replacement has increased by 20-30%, enabling worry-free operation and easier and simpler equipment management.

• The dual pre-filter air filter system reduces the inlet resistance, improves the maintenance cycle, has low maintenance cost, and is adapted to high dust work conditions.

• Intelligent and convenient safe boxes are configured with high integration, small size, easy wiring and safety.
