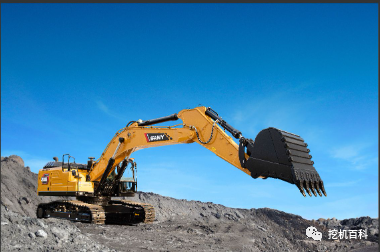

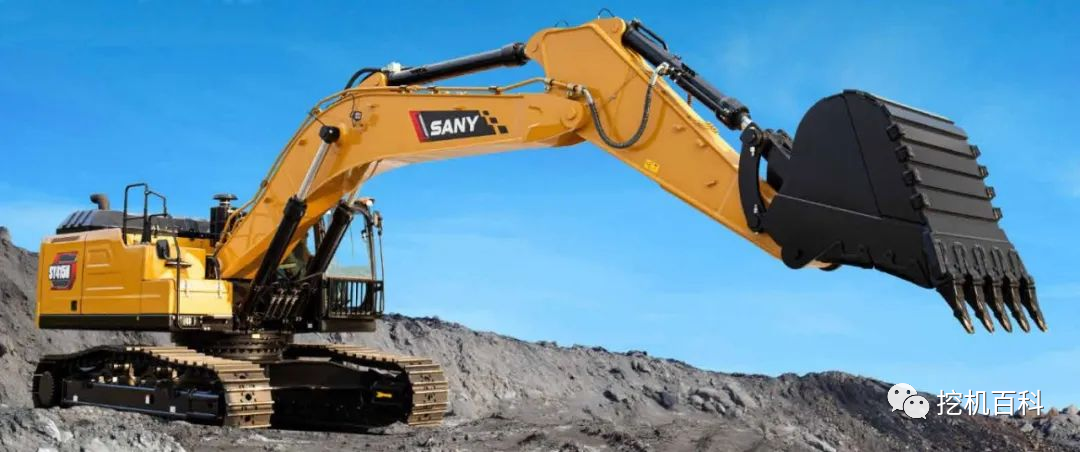

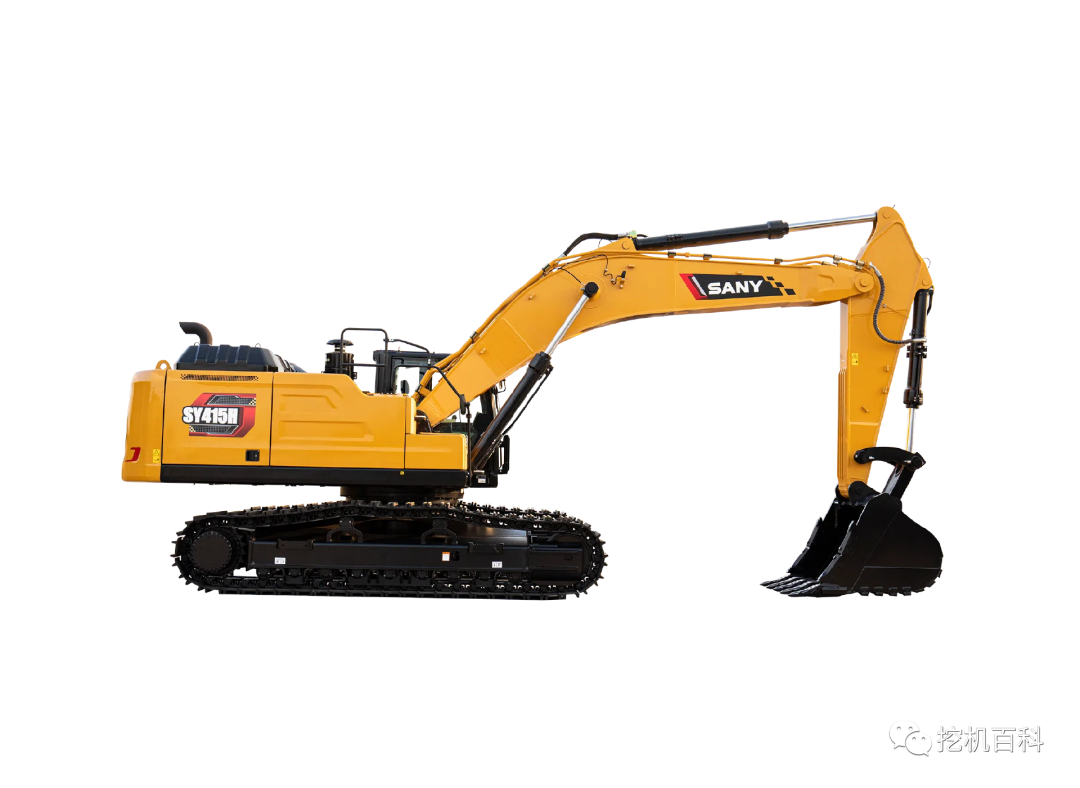

SANY SY415H Classic inheritance, brand new upgrade

Summary

Configuration parameters

Standard: ● Option: ○ Reference value: * To be refined: /

1. Performance parameters:

2. Powertrain:

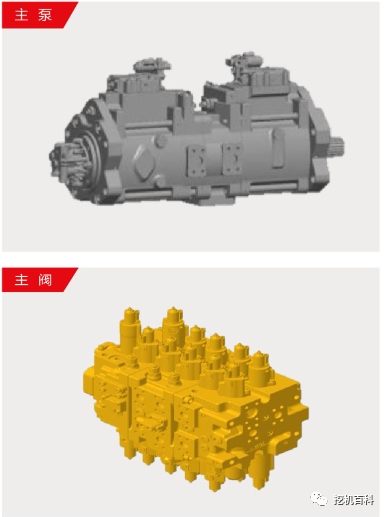

3. Hydraulic system:

4. Working appliance:

5. The chassis system:

6. Amount of oil and water added:

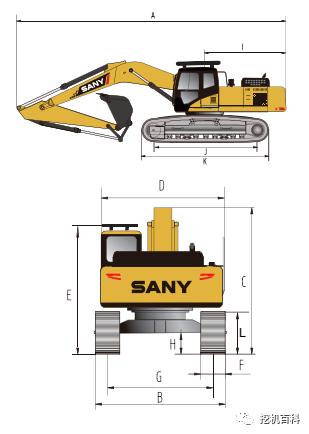

7. Form factor:

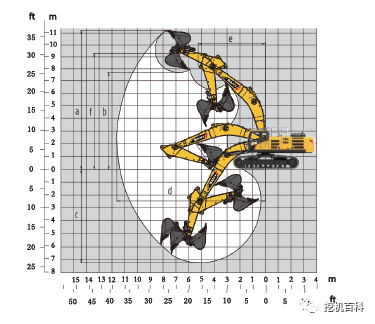

8. Operational scope:

Functional configuration

Standard: ● Option: ●

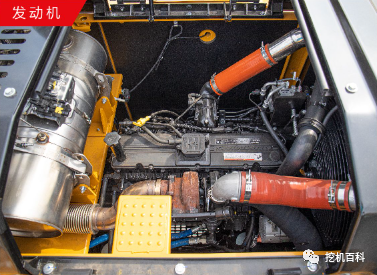

Engine:

• Isolated engines

• Dynamic tuning mode control

• Heatsink (with full protective net)

• 24V / 5.0kW Starter Motor

• 50A AC motor

• Air Prefilter

• Dry double filter air filter

• Lubrication oil filter

• Level 3 Fuel Filter

• Heater sub-water tank

• Fan curtain

• Automatic idling system

Driver's Room:

• Ultra-silent frame cab room

• Strengthened light glass windows

• Silicone rubber shock absorbers

• Openable top, front enclosure window and left window

• Back window emergency safe exit

• Rain wiper (with a cleaning device)

• Multi-directional mechanical levitation seat

• Feet boards, floor mats

• Speakers, rear view mirrors

• Seat belts, fire extinguishers

• Drinking cup seats, lanterns

• Escape hammer

• Storage boxes, utility bags

• Lead control cutting rod

• Completely automatic air conditioning

• Emergency stop switch

• Lockers and lower back protection nets

The lower walking body:

• Walking motor pads

• H-type track guide mechanism

• Performance-tightening institutions

• Piston-connected drive wheels

• Chain lifters and heavy lifting wheels

• Strengthened chain rails with shaft seal

• 600mm Two Rib Track Plate

• Strengthened side pedals

• Bottom panels

• ○ 800mmThree-ribbed track plate

Hydraulic system:

• Select a switch for working mode

• Control valve with primary overflow valve

• A backup oil outlet for the control valve

• Oil absorption filter

• Reverse oil filter

• Leading Filter

• Hydraulic shock relief blind pipe

• ○ Breaker pipe

Front-end working devices:

• French sales

• Welding joints

• Integrated lubrication system

• All shovels are soldered with dust sealing rings

• Strengthening the fully wrought box arms

• Strengthening fully wrought box braces

• Crash shields

The upper pivot platform:

• Fuel Level Sensor

• Hydraulic Oil Level Meter

• toolbox

• Reverse parking brake

• Rearview mirror (right)

• ○ Rear view camera

• ○ Cab warning light

Alarm lights:

• Controller failure

• The pump pressure is abnormal

• Abnormal pre-emptive pressure for each action

• The power supply voltage is abnormal

• The hydraulic oil temperature is abnormal

• Insufficient oil pressure, overheating of engine coolant

• The accelerator knob failed

• Insufficient amount of fuel.

Supervisory control system instrument:

• Standard GPS

• Touch color 10.4 inch display screen

• The Iveco system

• Hour meter, fuel level gage of fuel tank

• Engine Coolant Temperature Table

• Oil pressure gauge

Others:

• High-capacity batteries

• Lockable ceiling cover

• Lockable fuel filling cover

• Anti-sliding pedals, handrails and sidewalks

• Walking direction markers on the walking rack

• Manual Butter Gun

• Electric diesel pump

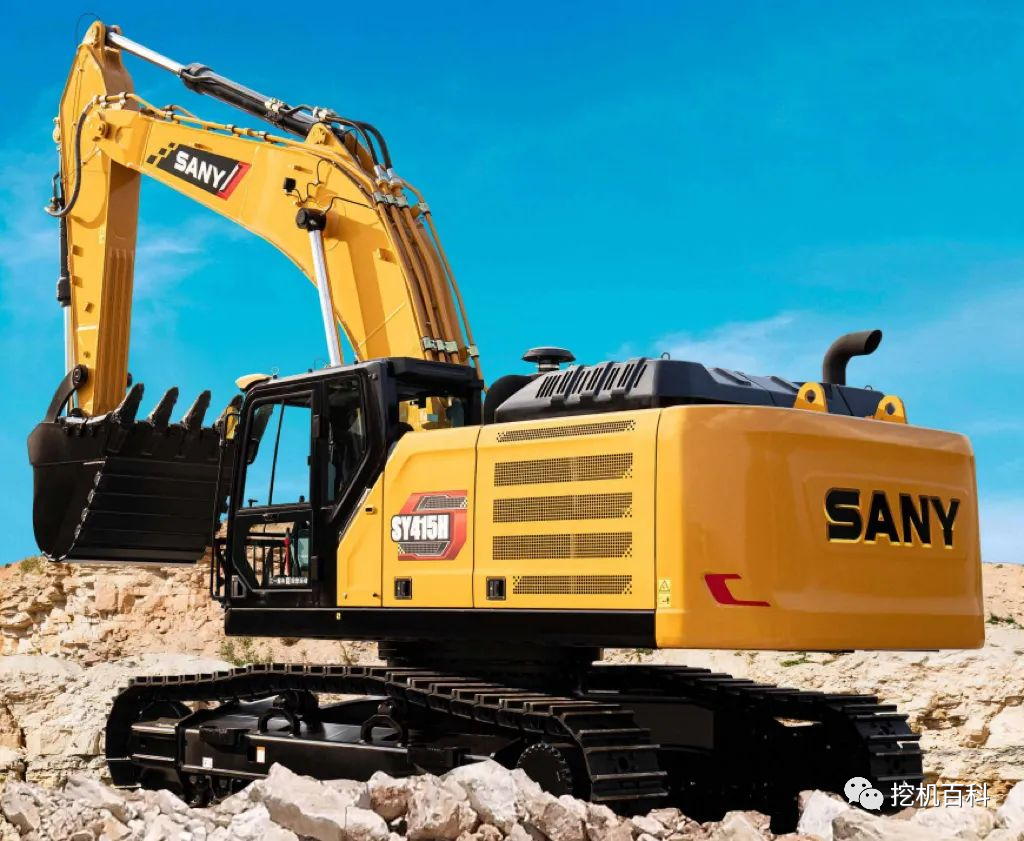

A new look

1. Intelligent :

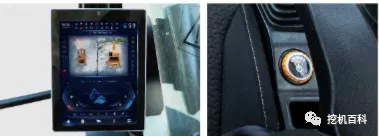

• Equipped with 10.4 inch intelligent display screen, integrated air conditioning, radio, Bluetooth, GPS and other functions, standard with a button to start the machine, support fault detection and alarm, intelligent debugging and diagnosis, a new button to invite function, more safe and intelligent.

2. Air conditioning upgrades:

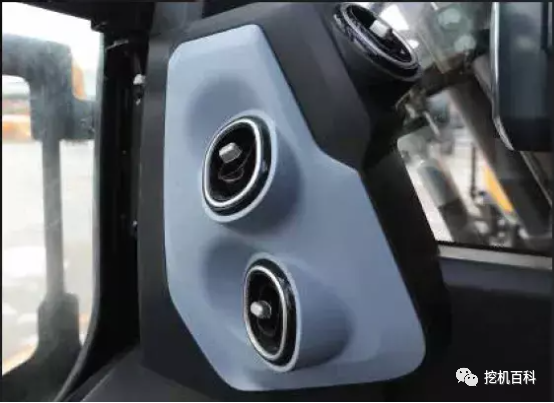

• The new air conditioning wind tunnel optimizes the outlet position, the cooling effect is 10% higher than the previous model, the condenser volume is 30% higher than that of the previous model. The air conditioning can be cleaned on-board and easy to maintain.

3. C12 Driving Room:

• The newly upgraded driver's room is developed according to the five features of "intelligent connectivity, intelligent interaction, intelligent construction, intelligent driving, and intelligent maintenance," to enhance entertainment, interaction and technology.

• The driving room size is 25mm wider than the previous generation, and the space is larger. The front window is 10 percent wider than the previous generation, the glass area of the vehicle is 10 percent larger, and the view is wider.

4. Interior upgrades:

• A newly upgraded interior, with a suspension four-seat armrest, cup seat, refrigerator, 24V electrical outlet, USB interface, etc., introduced static and dynamic comfort standards for automobiles, and a newly developed "12h without fatigue" large damping suspension and vibration-reducing seat.

5. Sealing upgrade:

• The driver's sealing structure is optimized and upgraded, the leakage and indoor temperature are significantly reduced, effectively resolving the pain point of graying in the driver's room under harsh working conditions, and the thermal comfort is increased by 10% compared to the previous generation.

6. Safe and reliable:

• Skeleton reinforced cabs have a 30% higher safety performance than ordinary cabs.

• Equipped with emergency stop switch, anti-skid cover, anti-gravel side door, etc., to further enhance the safety of equipment mining operations.

new technology

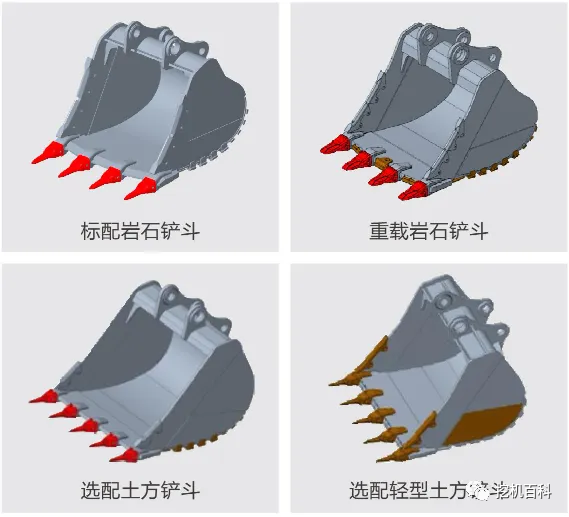

1. The shovel upgrade:

• Standard 2.2m3 big bucket, suitable for harsh working environment of mine, can be configured with 4 kinds of series bucket, meet "one bucket in one condition," improve construction efficiency, easily deal with a variety of complex working conditions.

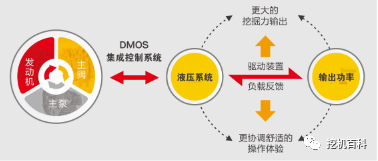

2. Dynamic optimization intelligent control system:

• Using the "positive flow" system and Sany's self-developed "DOMCS" engine-pump-valve integrated dynamic tuning intelligent control system, each step and mode works in the engine's optimum fuel consumption area, and is highly efficient and low-consumption.

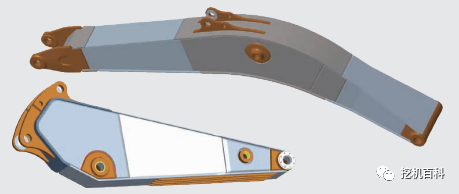

3. Strengthening of workpiece structural components:

• Fully apply 20,000 hours working device technique, adopt high strength steel + high strength forging + wear-resisting steel plate, cast integral connecting rod, three-section box construction, section widened, box section increased, bending section factor increased by 20%, high reliability, long life.

4. Mine type exit:

• Four round belt comprehensive upgrade, track upgrade from MH to MI;

• The track plate is optional for double and triple strains, and the double strain track plate offers a 600 / 700 / 800 option;

• The use of double support support sprocket, walking fully upgraded to GM75 turning reliability enhanced;

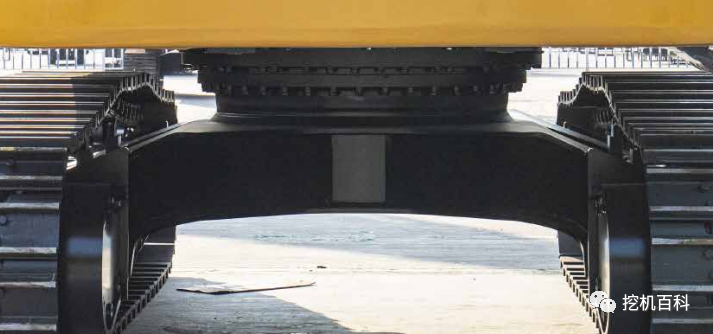

• 40 tons of back support, X frame section increased, higher reliability.

Maintenance & Service

• Joint specialized manufacturers have developed long-life oil, diesel filter, and hydraulic oil, and through market validation of up to two years, product maintenance costs have been reduced by 50%, and customer maintenance cycles have been doubled. The engine does not need a first insurance policy and is maintained after 500 hours.

• In response to the harsh working conditions in the mine, the convenient design of maintenance replacement has been strengthened, "large space, easy to take," and the operation space for various maintenance changes has increased by 20% -30%, so that the operation is worry-free.

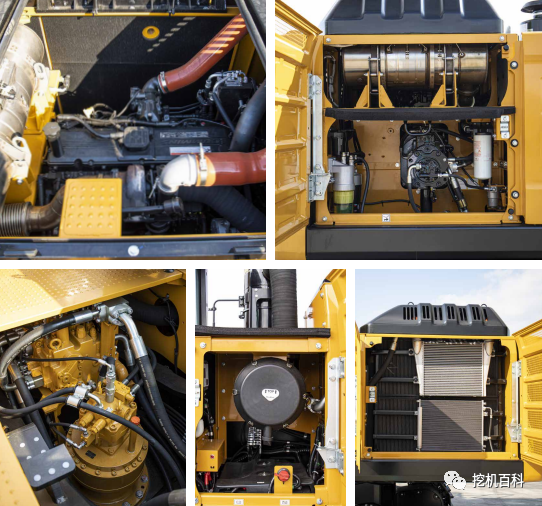

• The empty filter, diesel filter and oil filter are located in the side masks, and the filter cells can be easily replaced when the mask door is opened, which is convenient and quick.

• The electric control cabinet is independent of the driving room , which is convenient for the maintenance of the intelligent insurance distribution box .
