LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

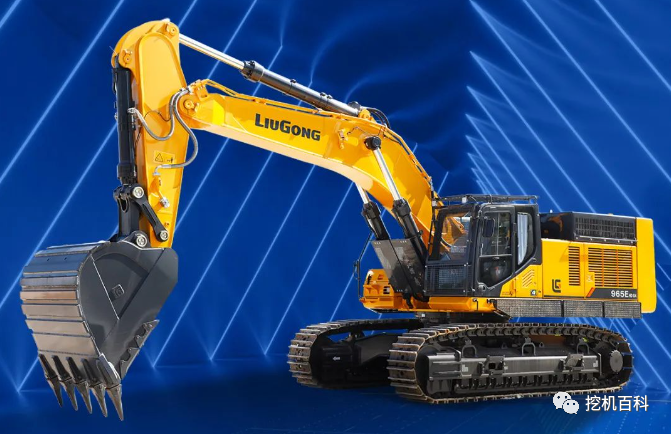

The Very Large Excavator

965EHDG4

Main technical specifications:

Power: 331 kW

Machine weight: 60000 ~ 64000 * kg

Bucket capacity: 4.1 m3

* Sample data

Summary

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

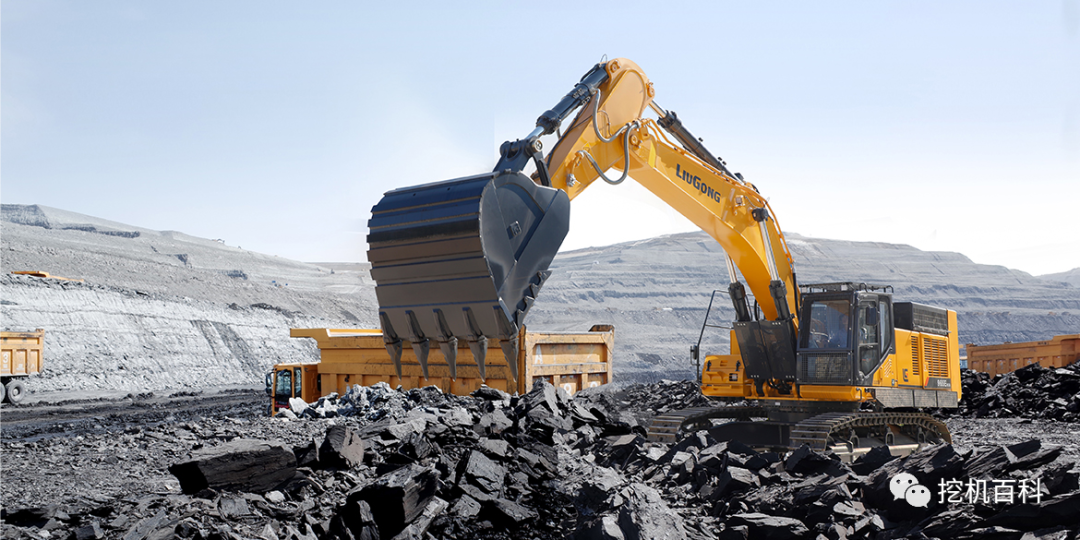

The 965EHD is a heavy-duty series of large excavators specifically designed for the mining industry. It is suitable for open pit mine and large and medium quarry crushing operations, car loading in quarries, large earth masses, shale peeling, coal peeling, property development, infrastructure construction, etc., with the lowest fuel consumption of the same tonnage. Burning 55 tons of oil, producing 70 tons, provides the best return on investment.

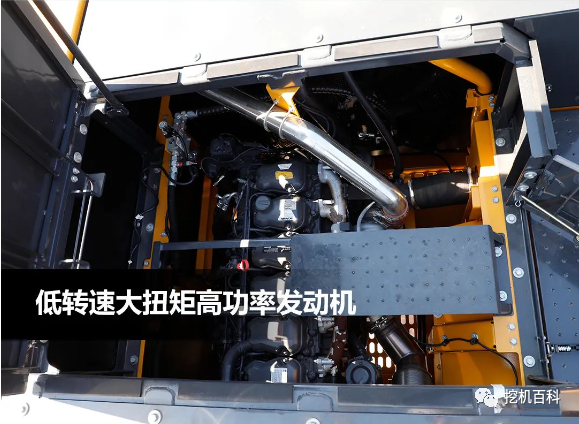

Powertrain:

Adopting the advanced design concept of running as maintenance, advanced combustion control technology has been developed, the engine has a strong transient response, the power output is efficient, and the fuel economy is excellent. The unique technology of the casing carbon ring ensures that the engine pistons operate efficiently and reduces the carbon deposit, improving the reliability of the engine.

Positive flow hydraulic system:

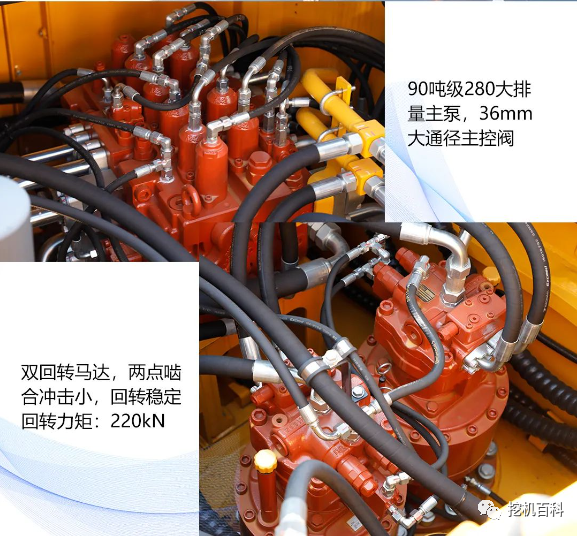

The machine adopts 280cc large displacement electronic control main pump matching 700B large diameter distribution valve, matching Liugong self-developed IPC control technology, accurate matching, the machine speed, low fuel consumption.

Doing a hammer does not have high temperatures:

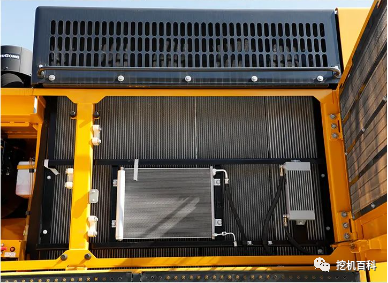

The large area heat sink and fan system utilizes the variable speed intelligent control technology, low temperature, low fuel consumption, high temperature, high speed and high efficiency heat dissipation, so that the hydraulic oil temperature and water temperature of the whole machine are always controlled in the optimal temperature range.

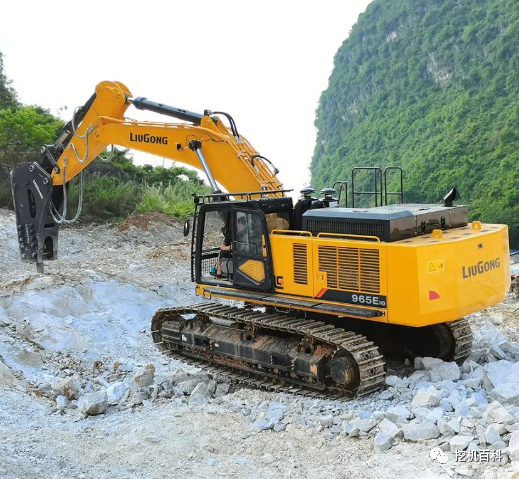

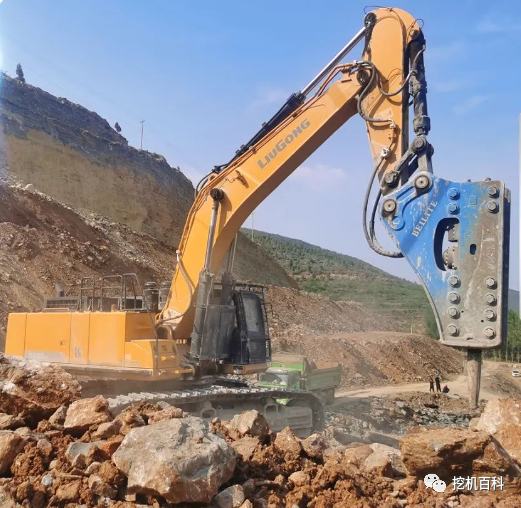

Designed exclusively for hammering:

Large aperture of 1.5 inches of broken hammer tubes with lower pressure losses;
500L large capacity broken hammer oil filter, higher filtration efficiency, greatly improve the reliability of liquid pressure components;
A standard crushing pipeline battery reduces the crushing pressure pulse and protects the hydraulic components;
B mode exclusive crushing mode, intelligent recognition of crushing conditions, one-button switch one-way river, continuous crushing timeout reminder;

Configuration parameters

Standard: ● Option: x To be perfected: / Reference value: *

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

1. Performance parameters:

force	Traction force	/	kN·m
	Bucket Digging Force - ISO	345	kN
	Bucket Rod Digging Force - ISO	300/285	kN
	Rotation torque	220	kN·m

speed	Reverse speed	8.5	r/min
speed	行走高速/低速	/	km/h

noise	Operator voice pressure （ISO 6396:2008）	/	dB（A）
noise	Average external sound pressure （ISO 6395:2008）	/	dB（A）

Other	Ability to climb slopes	35	degree
Other	Ground is higher than pressure	95.3	kPa

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

2. Powertrain:

Engine Model	Kenya / D13
rated power	331	kW/rpm
Maximum torque	2189	N.m/rpm
discharge volume	12.7	L
Emissions Level	Country 4
Emissions technology routes	/

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

3. Hydraulic system:

The technical route	Electric control positive flow control
Main Pump Brand / Model	Hengli *	Dual axial variable piston pump
Main pump discharge	280	cc
Main valve brand / model	Hang Li * / 700 B	36 Throughput
Reverse motors and gearing brands / models	/	Double turnaround
Walking motors and gears brands / models	/
Stress:
Main system pressure	35/37.3	MPa
Working pressure of the revolving cycle	32.3	MPa
Working pressure on walking circuits	35	MPa

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

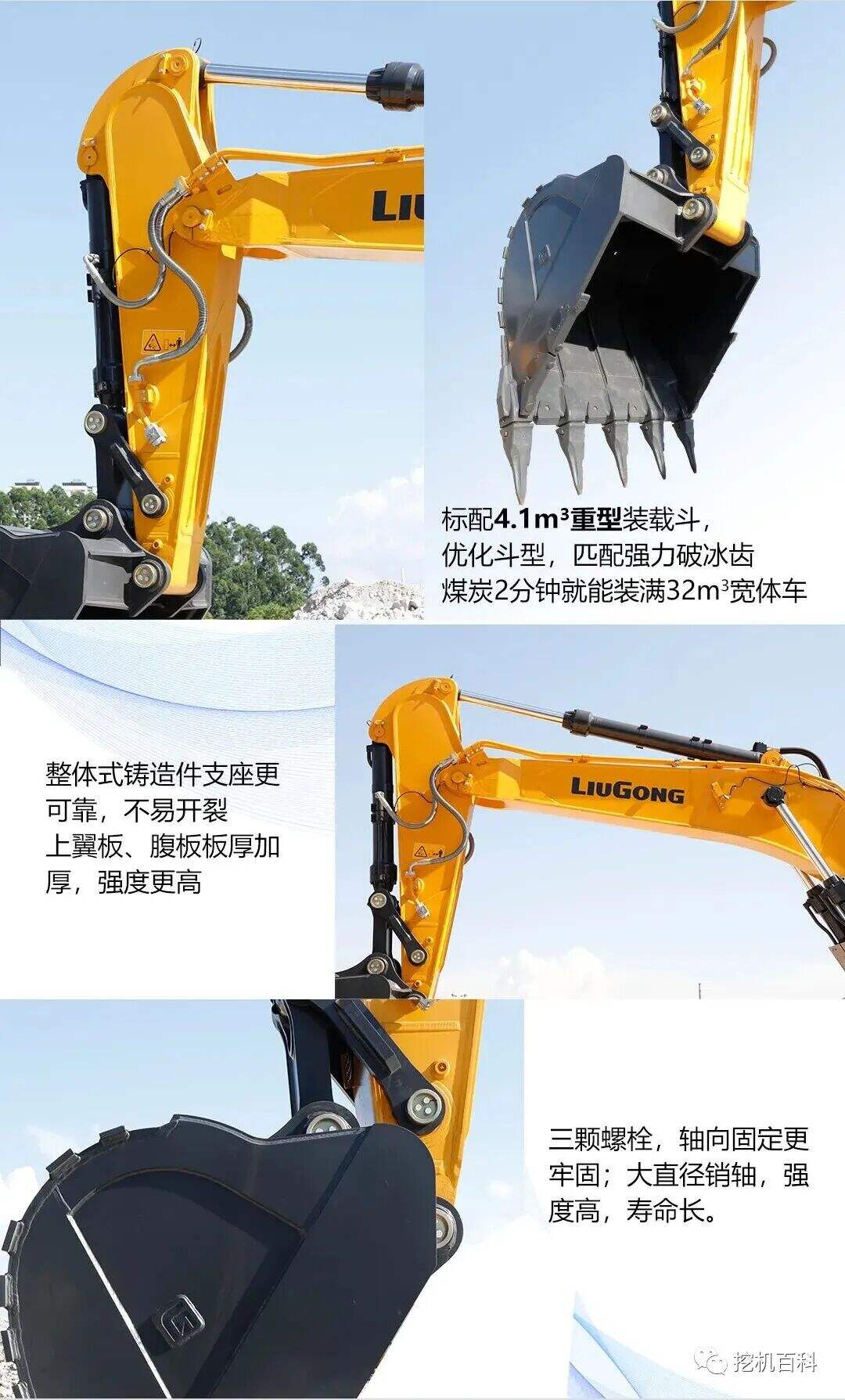

4. Working appliance:

Move your arms	6500/6500/7060	mm
Fighting clubs	2550/2900/2900	mm
Standard braces	4.1	m³
Choose a fighter costume	3.6~4.5	m³
A smashing hammer	210~215	mm

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

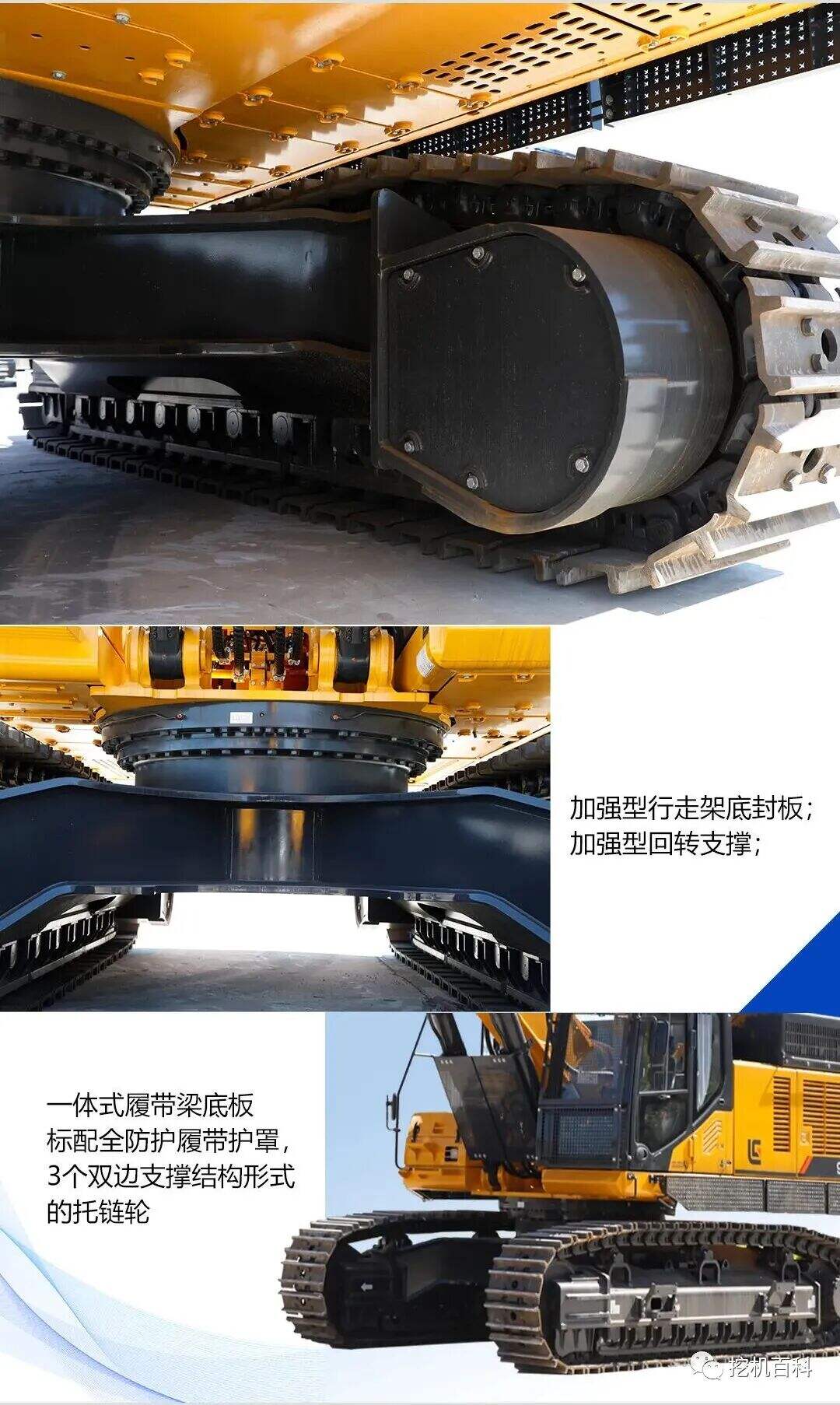

5. The chassis system:

Weight of weight	/	kg
Number of trackpads - one side	/	section
Number of cogs - one side	3	individual
Number of support wheels - one side	9	individual

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

6. Amount of oil and water added:

Fuel tank	880	L
Hydraulic system	510	L
Hydraulic fuel tank	310	L
Engine oil	39	L
Cooling system	/	L
Walking brake gear oil	/	L
Reverse gear oil	/	L

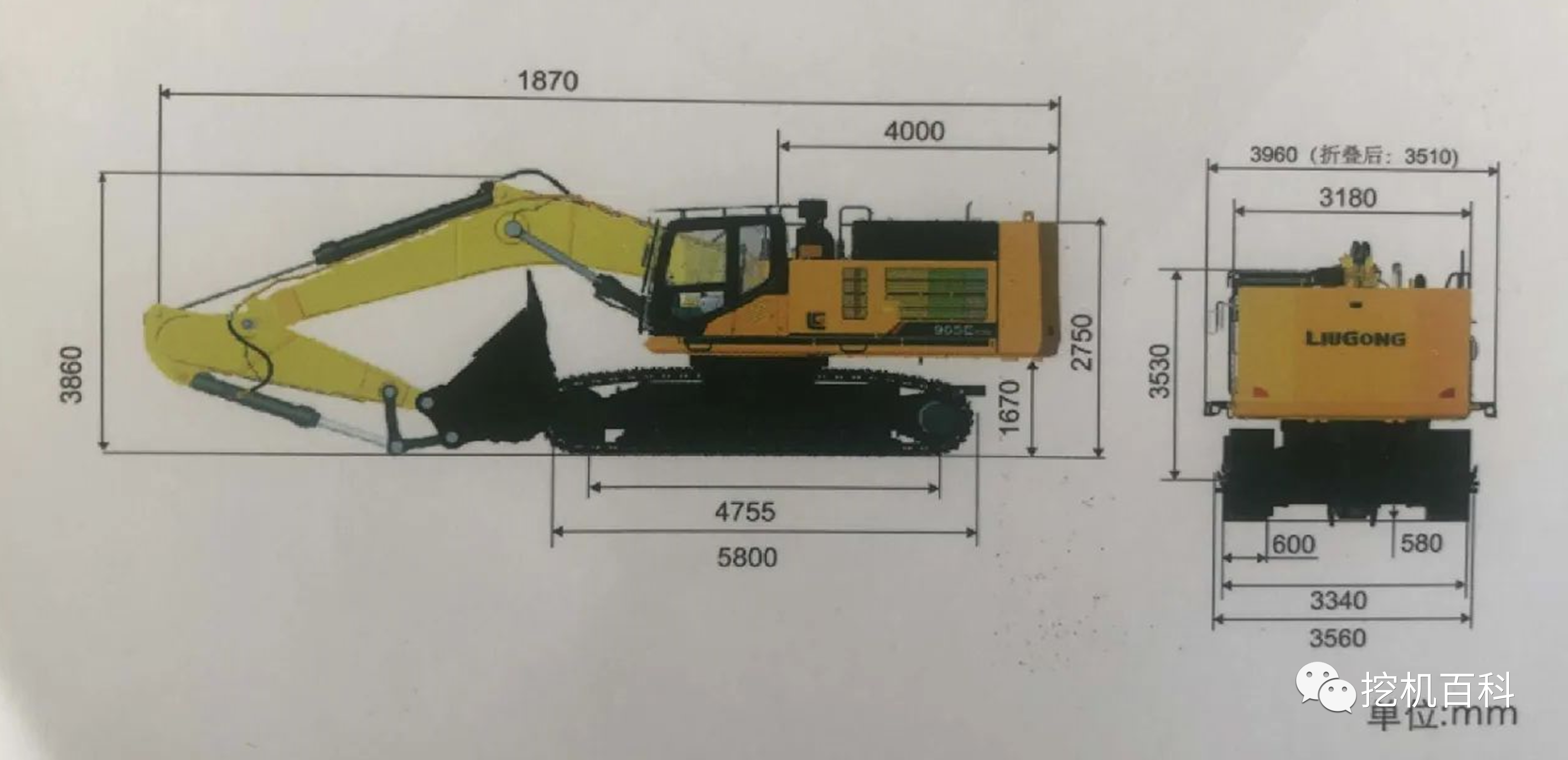

7. Form factor:

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

* Total length when transported 11970 mm

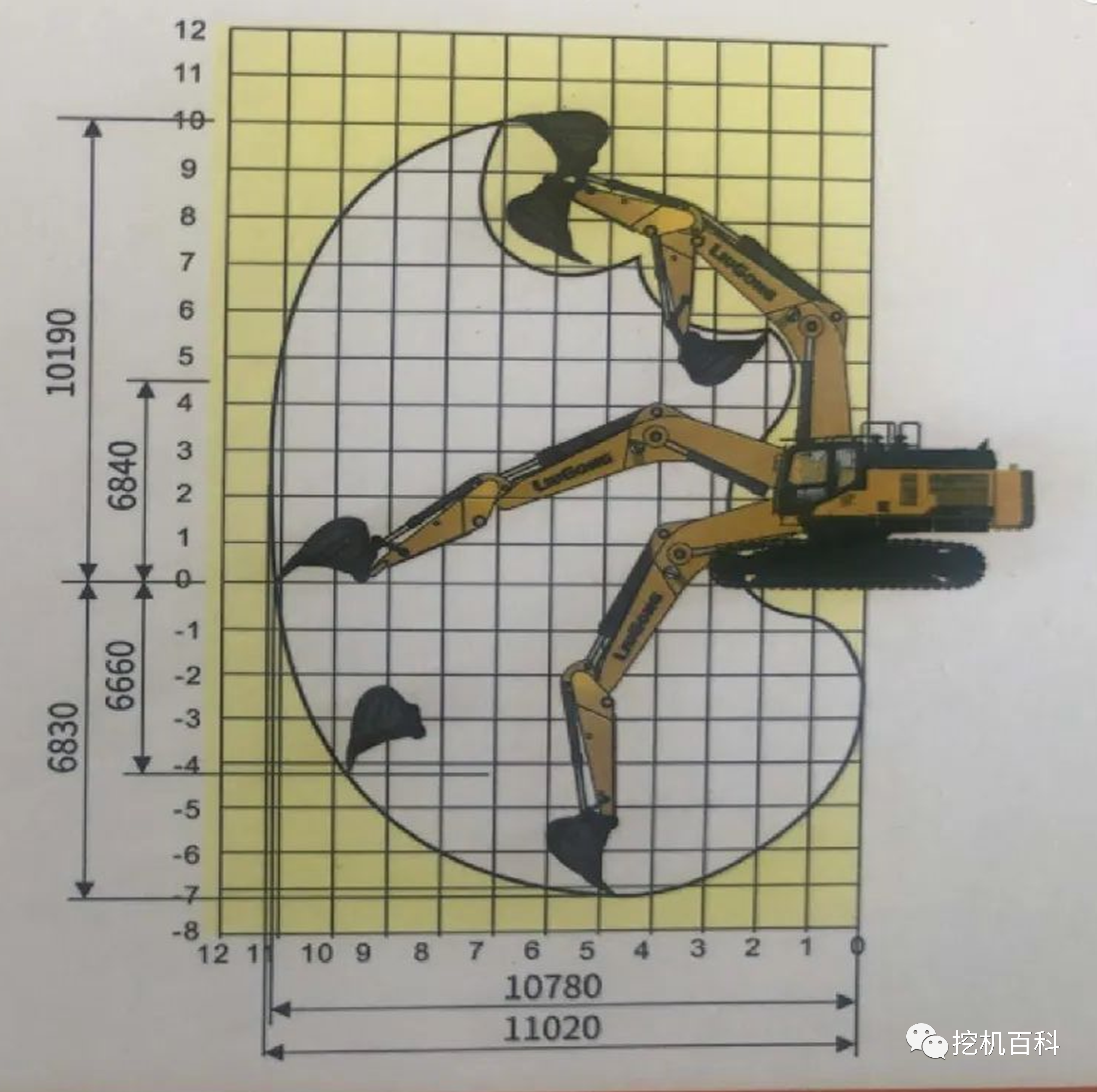

8. Operational scope:

LIUGONG 965EHDG4 Classic inheritance, brand new upgrade

Arm length	6500	6500	7060	mm
Chuckle length	2550	2900	2900	mm
Maximum excavation radius	11020	11325	11980	mm
Maximum ground excavation radius	10780	11090	11760	mm
Maximum excavation depth	6830	7265	7760	mm
Maximum excavation depth (2.5 m level)	6660	7100	7600	mm
Maximum vertical excavation depth	4360	4820	5310	mm
Maximum excavation height	10190	9920	10520	mm
Maximum removal height	6840	6920	7390	mm
Minimum rotation radius	4880	4850	5300	mm
